Factory Radio Integration

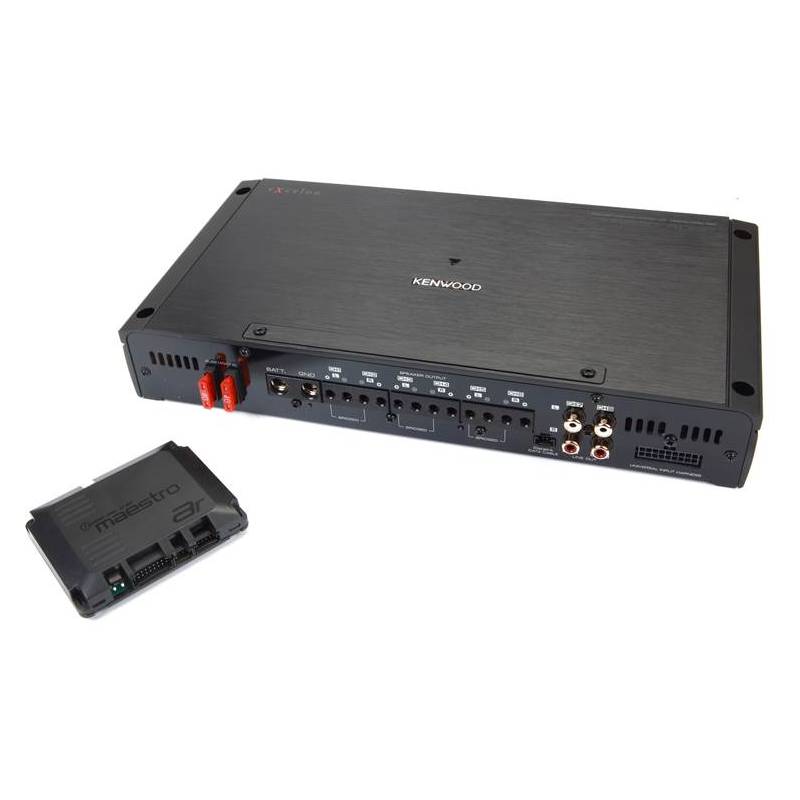

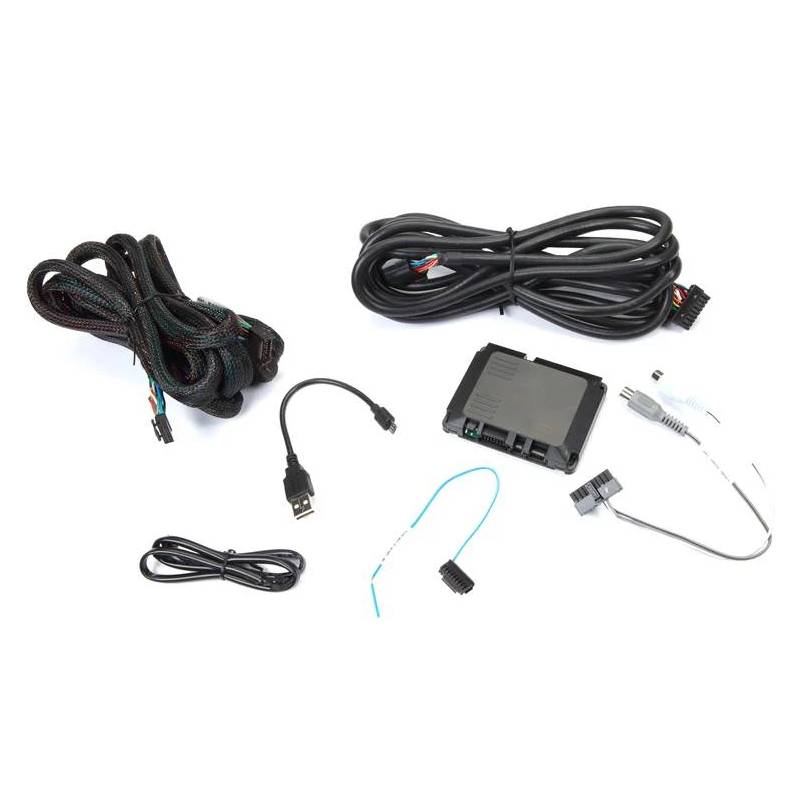

Many new cars equipped with premium amplified systems are nearly impossible to replace and very difficult to upgrade the audio performance. The XR600-6DSP when combined with an iDatalink Maestro AR can use a true stereo signal from the existing OEM stereo and translate all the CAN-Bus communication of the original radio to the XR600-6DSP. Integrates with many Chrysler, Dodge, Fiat, Ford, Jeep, Lexus, Maserati, Ram, Subaru and Toyota premium systems, with more vehicles to follow.
Setup by Remote App Through Bluetooth Connection
Use the KENWOOD DSP Control App (compatible with iPhone and Android) to setup the XR600-6DSP. The listening position, advanced equalization and filtering can be set during installation and the setting stored in memory. A simplified mode is available for day to day use.
Sound Quality and System Building
HThe 32-Bit 192kHz DSP gives the flexibility of independent tuning and equalization that is required with the variance of speakers and location challenges being used in a typical system. The channel flexibility allows any function or tuning on all 10 channels making it one of the most versatile solution based amplifiers on the market today.
Small Footprint Design

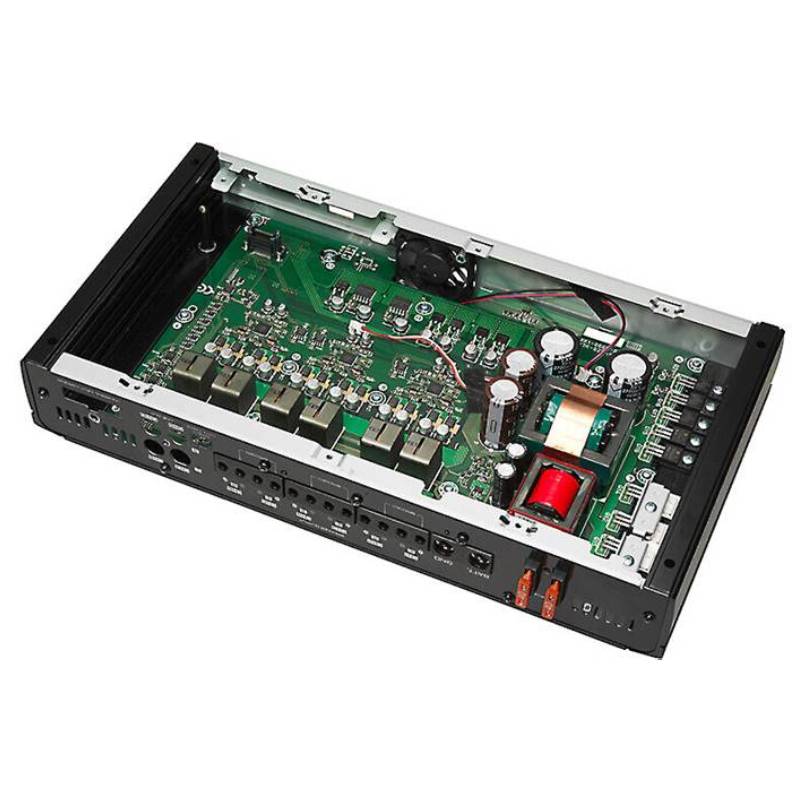

Reference-Fit amplifiers are KENWOOD’s best sounding amps and have one of the smallest footprints in their class, making them the perfect solution for vehicle installation where space is at a premium. This compact size was made possible by the development of a high-density mount circuit board in conjunction with an enhanced air cooling and heat control systems. KENWOOD’s created a compact amplifier that enables installation in tight locations previously restricted to lower performance amps. This is ideal for users who do not wish to sacrifice space or prefer a stealth installation.
- Maximum Power : 1200 Watts
- Number of Channels : 6
- Frequency Response : 20-50000 Hz
- Built In Crossovers : Yes
- Channel Separation : Yes
- RMS Power Range : 600 Watts
- Amplifier Class : D
- Fuse Rating : 60 A
- XP750-SE OFFER : Yes
CTA-2006 Primary Ratings
- Power Output: 75Watts RMS x 6 at 4 Ohms and ≤1%THD+N
- Signal-to-Noise Ratio: 81dBA (Reference: 1Watt into 4Ohms)
Maximum Power Output
Power Output:
- 6 channel Rated Power at 14.4V:
- 75Watts RMS x [ch] (4 Ohms, 20-20kHz, ≤1.00% THD)
- 100Watts RMS x [ch] (2 Ohms, 1kHz, ≤1.00% THD)
- 200Watts RMS x [ch/2] (Bridged 4 Ohms, 1kHz, ≤1.00% THD)
- * Bridged connection available CH1 & CH2, CH3 & CH4, CH5 & CH6
Specifications
- Signal to Noise Ratio: 95dB (Reference: Rated Power into 4Ohms at 14.4V)
- Frequency Response: 20Hz-50kHz (+0dB, -3dB)
- Input Impedance: 10k ohm
- Speaker Impedance: Bridged connection 4Ω to 8Ω allowable
Audio Section
- Input Sensitivity: 2.0[V] - 4.0[V]

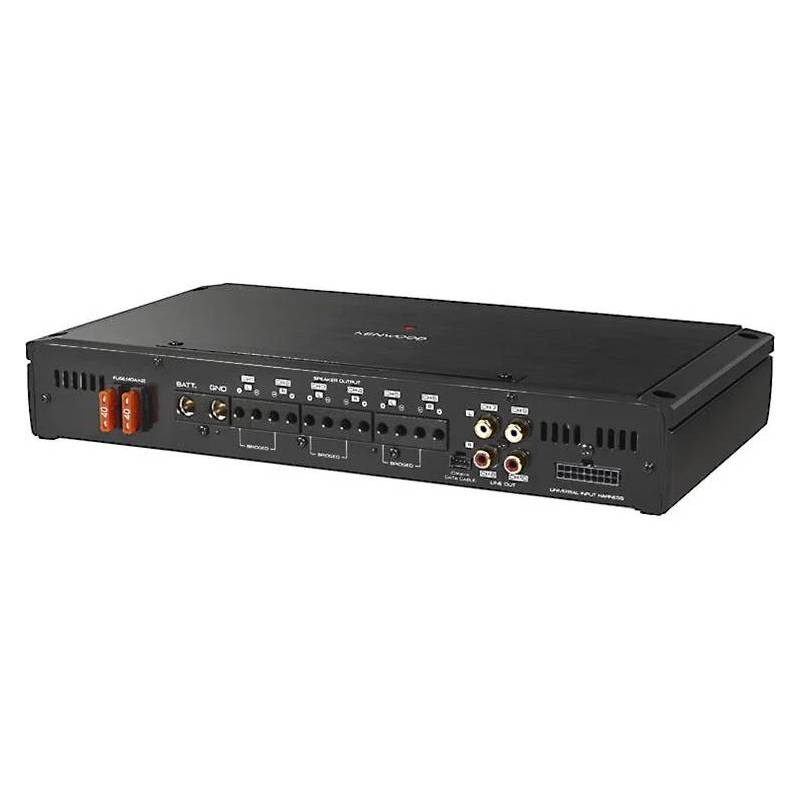

Terminals:
- Battery & Ground: capable for 4 guage
- Speaker Output: capable for 8 guage
- Line In: 18P Connector
- DSP Ajasted Line OUT RCA: (Gold colored)
- I/F: ADS I/F (4P) Connector
Input / Output Signal Interface
- Input:
- Channel 1 for: Audio Signal
- Channel 2 for: Audio Signal
- Channel 3 for: Audio Signal
- Channel 4 for: Audio Signal
- Channel 5 for: Information Signal
- Channel 6 for: Information Signal
- Output:
- Channel 1 for: Speaker L channel
- Channel 2 for: Speaker R channel
- Channel 3 for: Speaker L channel
- Channel 4 for: Speaker R channel
- Channel 5 for: Speaker L channel
- Channel 6 for: Speaker R channel
- Channel 7 for: RCA L channnel
- Channel 8 for: RCA R channnel
- Channel 9 for: RCA L channnel
- Channel 10 for: RCA R channnel
General
- Dimensions(WxHxD): 320 [mm] x 51 [mm] x 169 [mm], 12-5/8 inch x 2 inch x 6-5/8 inch
- Operating Voltage: 14.4V(11-16V allowable)
- Current Consumption: 60 [A]
Key Features:
- CTA-2006 Compliant
- Class D
- 2 Ohms Load Capability
- Terminal Cover
- Cooling Fan
- Power MOS-FET Switching Power Supply
- Extruded Aluminum Heat Sink Design
- Digital Signal Processor Function
- DSP Setting Apprication (iOS/Andorid)
- UPC: 019048231383
- Weight: 10
