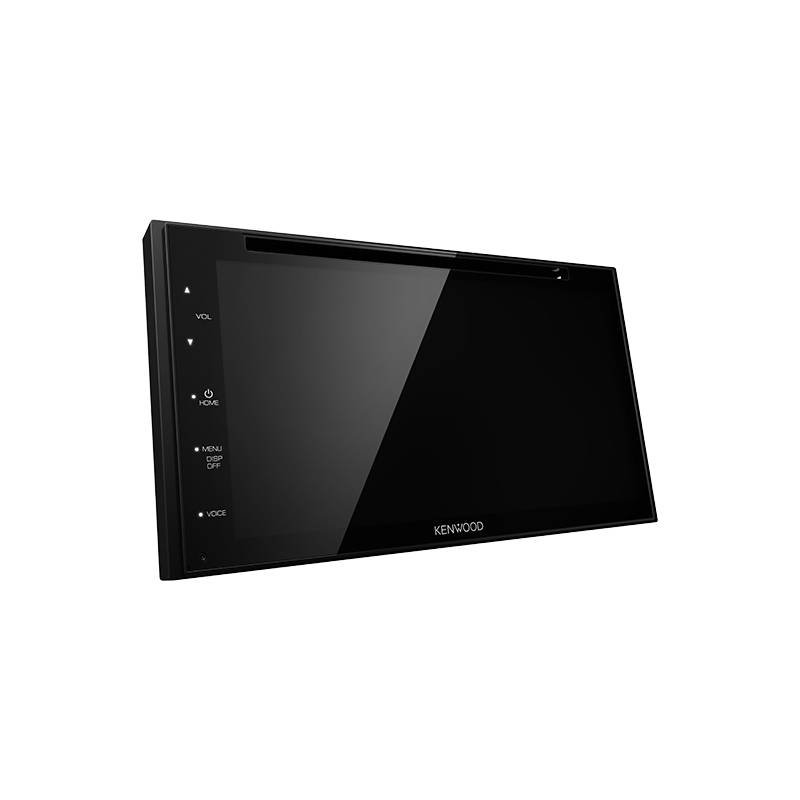

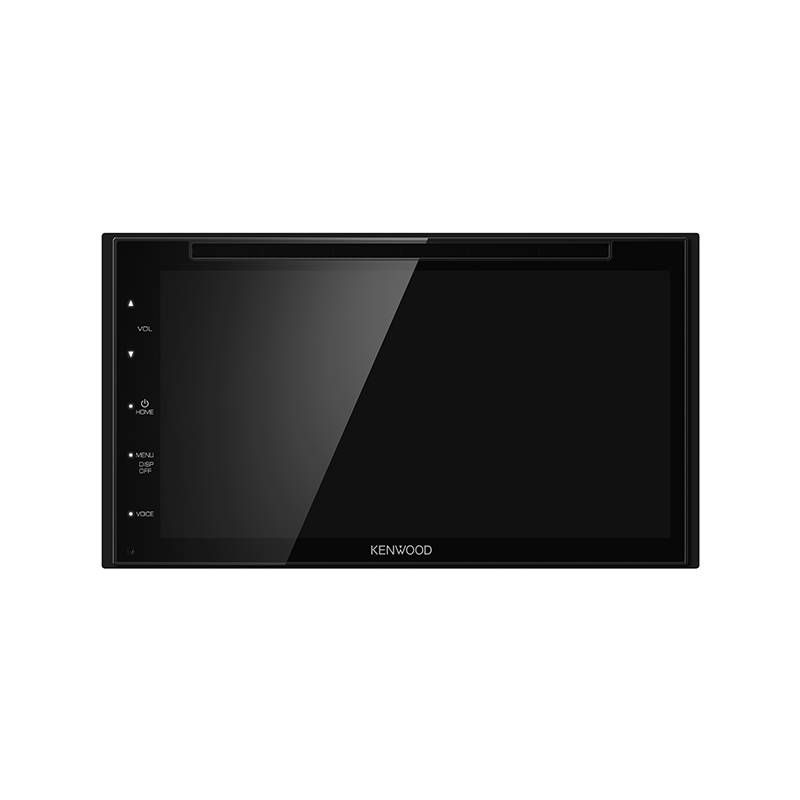

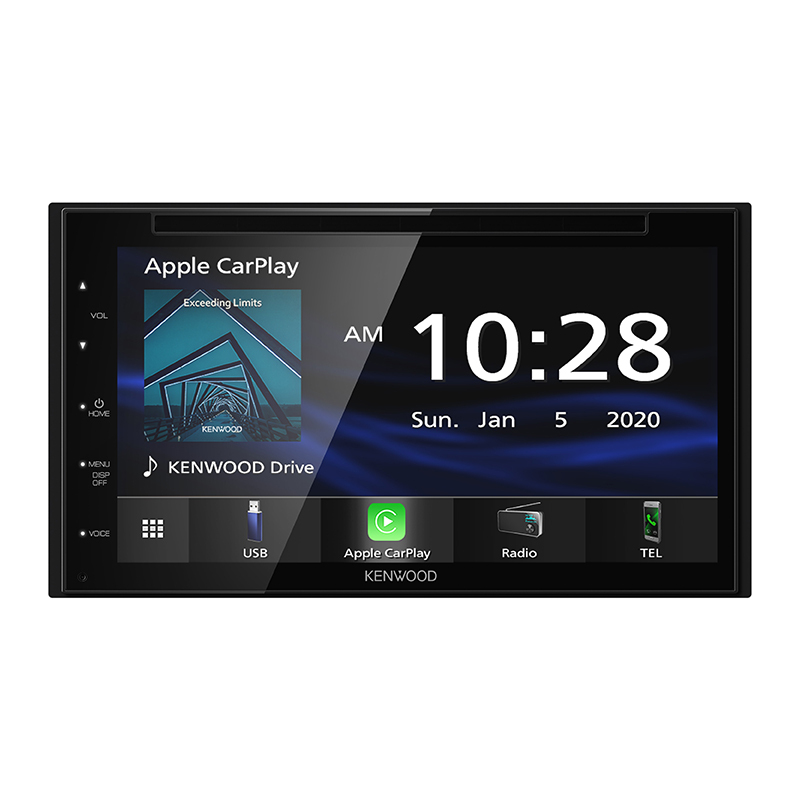

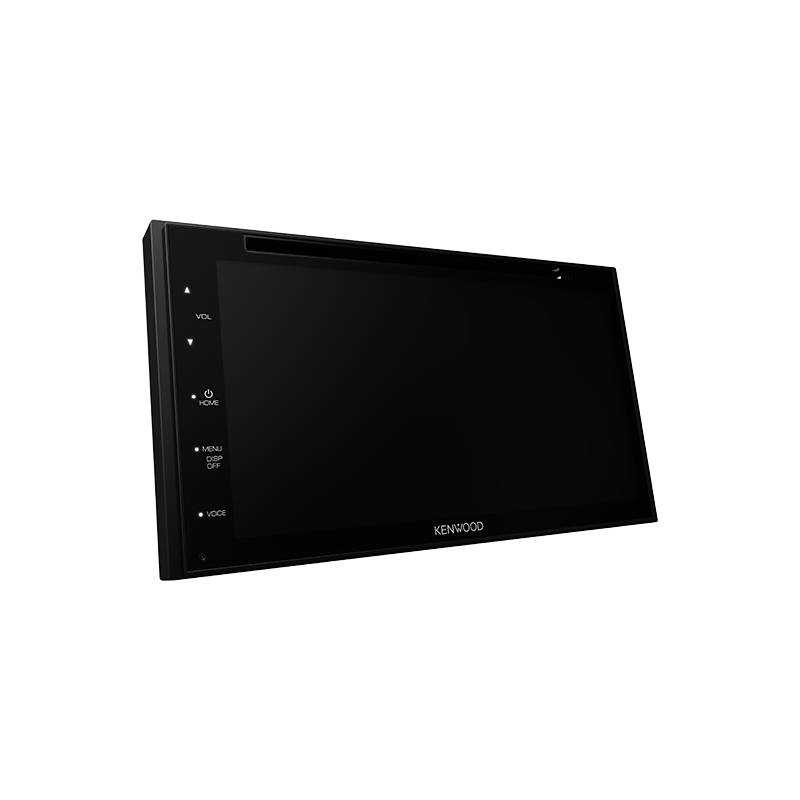

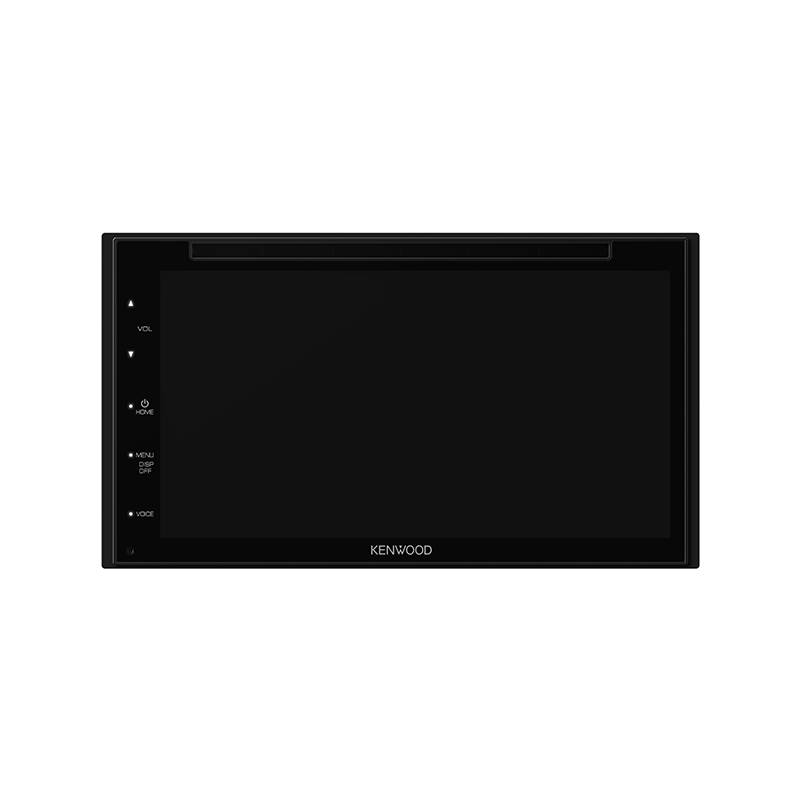

Kenwood DDX5707S 6.8” DVD Receiver with Bluetooth, Apple CarPlay (Wired), Android Auto, Android Mirroring , Rear Camera Input, SiriusXM Ready
We are a Kenwood authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

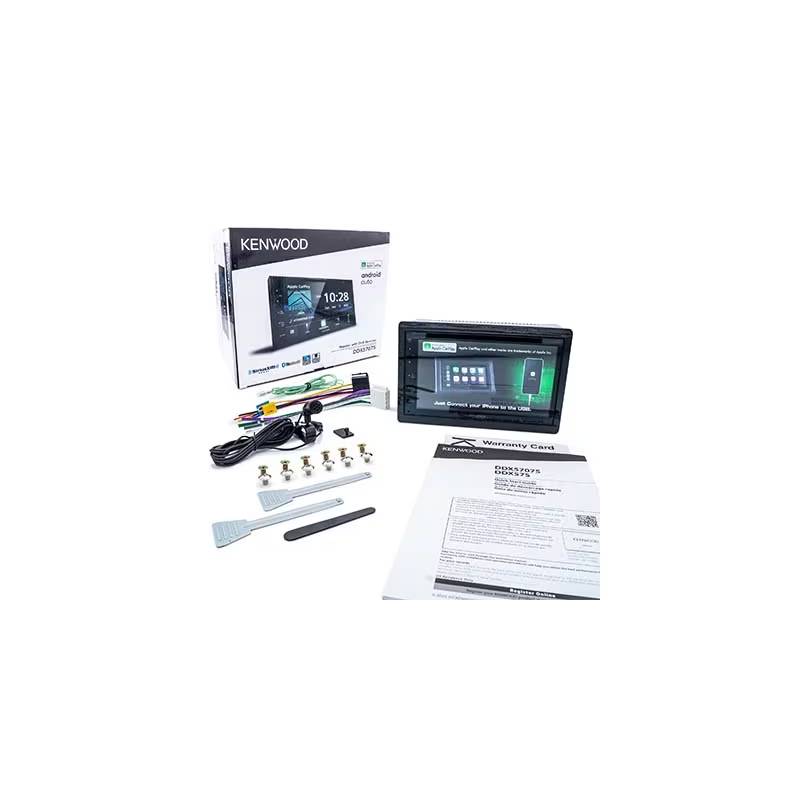

What's Inside?
- • DVD receiver w/ fixed 6.75" touchscreen monitor (15A fuse)

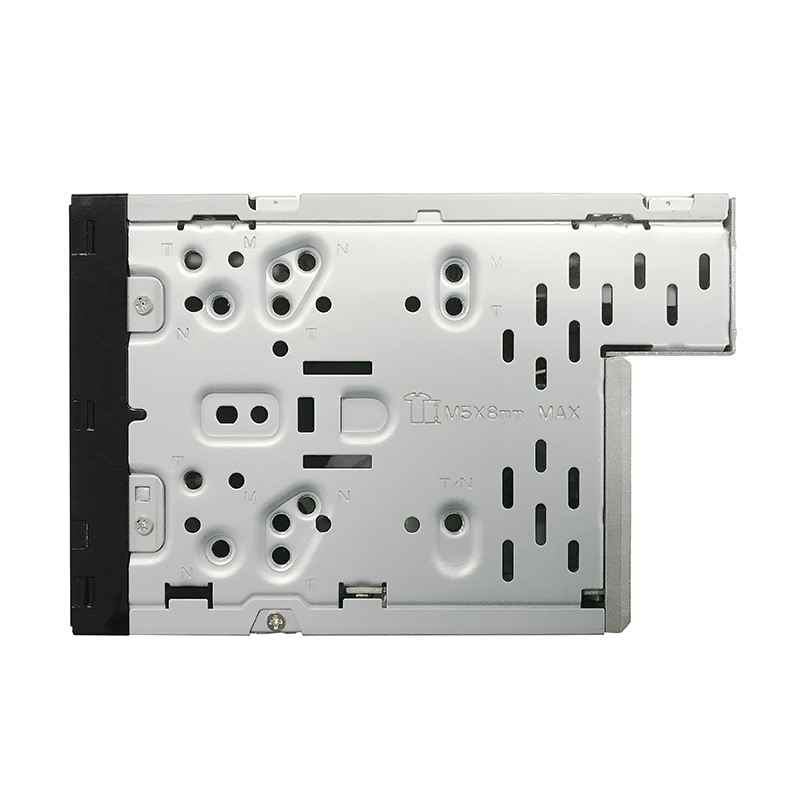

- • Sleeve (attached)
- • Trim ring
- • Power harness
- • Speaker harness
- • 6.5" Light-green parking brake wire (pre-installed)
- • Microphone w/ bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)
- • (2) Radio removal tools
- • Trim-ring removal tool
- • (6) Pan-head ISO-mount screws
- • (6) Flat-head ISO-mount screws
- • Owner's Manual
Comes With the Latest Technologies and Features
Ever felt the hassle of having an outdated receiver? Do you still need to click on some buttons to make things work? Hate being distracted while driving? Kenwood might have the best solution for you. The Kenwood DDX5707S multimedia receiver comes with the latest technologies and features that allow you to have a convenient driving experience you will never forget.

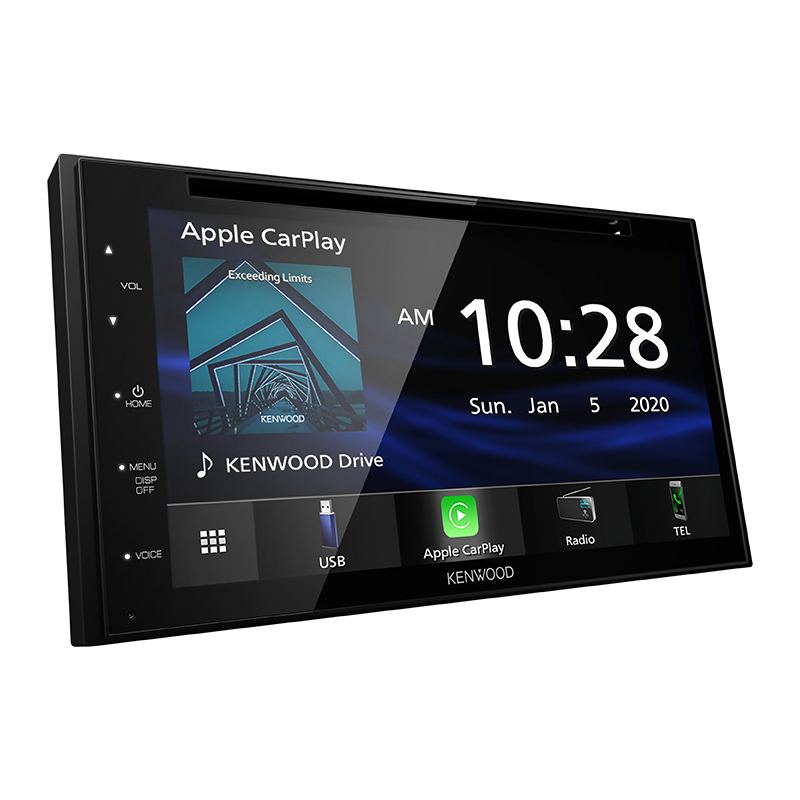

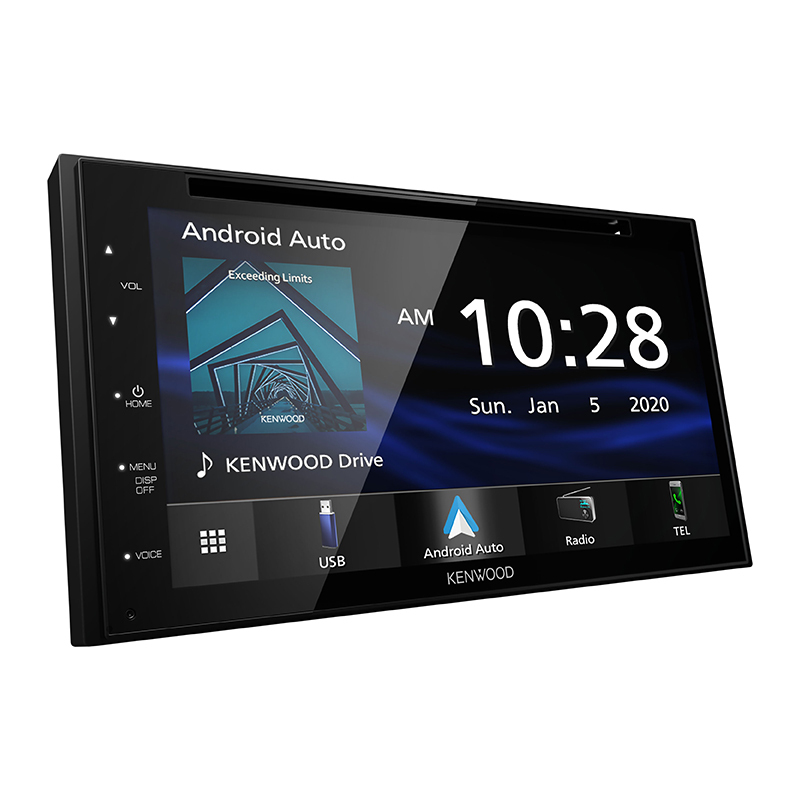

Apple CarPlay and Android Auto
As the Kenwood DDX5707S is compatible with Apple CarPlay and Android Auto, you can now read and send text messages without touching your phone, listen to your voicemails, make and take phone calls, ask for directions, and play music, as you can now use voice commands to activate any of these functions. You can also use its Bluetooth connectivity features to answer your phone calls hands-free or stream music wirelessly.
Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment
Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.
Built-in Amplifier
The Kenwood DDX5705S comes with a built-in amplifier with a 5-channel preamp output. It has a continuous power output of 21 Watts and a peak power of 45 Watts per channel. It comes with a 13-band EQ to tweak your amplifier's frequency response to your taste, and it also has low-pass, phase, and subwoofer level controls for a more defined audio quality.
True Mirroring via USB, 2-Way Touch Control for Android
Allows you to display and control your Android smartphone on the screen of the receiver. You can enjoy your favorite apps on a large display and with impressive sound quality. Before starting, just install the free app “Mirroring OA for KENWOOD” on your smartphone and connect it to KENWOOD receiver via a USB cable and Bluetooth.
Additional Features
Provides a high contrast ratio, crystal clear display and vivid text. Easy to use widgets provide access to information screens with a swipe. Access additional music, sports and entertainment content on the go with SiriusXM Radio. (Optional SiriusXM tuner required, sold separately) This receiver unit can be operated using the optional remote control KNA-RCDV331.
- CD-R/CD-RW Compatible : Yes
- Satellite Radio Ready : Yes
- Built In Crossovers : Yes
- Subwoofer Preamp Outputs : Yes
- DIN : 2
- Preamp Voltage : 2 volts
- Display Size : 6.8 Inch
- Audio/Video Inputs : 1
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- HD Radio : No
- Rear USB Input : 1
- Preamp Outputs : 2
- Audio/Video Outputs : 1
- Rear View Camera Input : Yes
- Apple CarPlay : Yes
- Android Auto : Yes
- USB Mirroring : Yes
Features:
- Capacitive Touch Panel: Clear glass display with swipe functionality that provides superior picture and touch panel control.
- Android USB Mirroring: Solution for seamlessly displaying and controlling your smartphone apps on a screen via a USB connection on select Android devices.
- Parking Guide Lines: Parking guide lines (requires installation of compatible backup camera) that enhance the effectiveness of a backup camera.
- Graphic EQ / Digital Time Alignment: 13-Band equalizer and DTA gives optimal tuning enhancements for listeners.
- FLAC Supported: Compatible with various audio file formats from FLAC and WAV, to MP3, WMA and AAC.
- Android Rapid Charge: Rapidly charge your compatible Android smartphone with the USB port, up to a maximum of 1.5A.
Specifications:
Monitor Section
- Picture size: 6.75inches(diagonal) wide
- W x H: 151.8 x 79.7mm, 5-15/16 x 3-1/8 inch
- Display system: Transparent TN LCD panel
- Drive system: TFT active matrix system
- Number of pixels: 1,152,000 800H x 480V x RGB
- Effective pixels: 99.99%
- Pixel arrangement: RGB striped arrangement
- Back lighting: LED
DVD Section
- D/A Converter: 24 Bit
- Audio Decoder: Linear PCM Dolby Digital
- Video Decoder: -
- Wow & Flutter: Below Measurable Limit
- Frequency response 96k Sampling: 20 - 22,000 Hz
- 48k Sampling: 20 - 22,000 Hz
- 44.1k Sampling: 20 - 22,000 Hz
- Total harmonic distortion 1kHz: 0.0001
- Signal to Noise ratio: 90.5dB
- Dynamic range: 89dB
- DISC Format: DVD-Video / VIDEO-CD / CD-DA DVD-R / DVD-RW / DVD+R / DVD+RW
- Sampling frequency: 44.1kHz / 48kHz / 96kHz
- Quantifying bit number: 16 / 20 / 24bit
USB I/F Section
- USB Standard: USB2.0 High Speed
- File System: FAT 16/32 , exFAT
- Maximum Power Supply Current: DC5V=1.5A
- D/A Converter: 24Bit
- Audio Decoder: MP3 / WMA / AAC / WAV / FLAC
- Video Decoder: MPEG1/2, MPEG4 / WMV / H.264 / .mkv
- Frequency response 192k Sampling: 20 - 20,000 Hz
- 96k Sampling: 20 - 20,000 Hz
- 48k Sampling: 20 - 20,000 Hz
- 44.1k Sampling: 20 - 20,000 Hz
- Total harmonic distortion 1kHz: 0.2
- Signal to Noise ratio: 75dB
- Dynamic range: 75dB
Bluetooth Section
- Technology: Bluetooth Ver4.1
- Frequency: 2.402 – 2.480 GHz
- RF Output Power (E.I.R.P.): +8dBm (Avg.), Power Class 1
- Maximum Communication range: Line of sight approx.10m(32.8ft)
- Audio Codec: SBC / AAC
- Multi Profile Support: Multi Profile
- Profile: HFP (V1.6) (Hands Free Profile), : inherit;">SPP (Serial Port Profile), A2DP (Advanced Audio Distribution Profile), AVRCP (V1.5) (Audio/Video Remote Control Profile), PBAP (Phonebook Access Profile)
DSP Section
- BAND: 13 Band
- frequency (Hz) (BAND1-13): 62.5/ 100/ 160/ 250/ 400/ 630/ 1k/ 1.6k/ 2.5k/ 4k/ 6.3k 10k/ 16k
- Gain: -09 to +09 (-9dB to +9dB)
- 2Way X'Over
- HIGH PASS FILTER frequency (Hz): Through/ 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250
- SLOPE: -6/ -12/ -18/ -24 dB/Oct.
- Gain -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB
- LOW PASS FILTER frequency (Hz)30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250/ Through
- SLOPE -6/ -12/ -18/ -24 dB/Oct.
- Gain -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB
- Position
- Front / Rear /Subwoofer Delay 0 to 6.1m (0.01m Step)
- Gain: -8 to 0dB
- Subwoofer Level: -40 to +6dB
FM
- Frequency Range: 87.9 - 107.9 MHz
- (Frequency step): (200kHz)
- Usable sensitivity: 16.2dBf
- S/N 30dB: 1.8μV/75 Ohms
- Quieting sensitivity: -
- DIN S/N 46dB: 13dBf(4.47uV/75 ohm)
- Frequency response (±3.0dB): 30Hz - 14kHz
- S/N (dB): 50dB (MONO)
- Selectivity: Over 80dB
- Stereo separation: 35dB (1kHz)
AM
- Frequency Range: 530 - 1700 kHz
- (Frequency step): (10kHz)
- Usable sensitivity: 99μV(40dBμ)
Video
- Color system of external video input: NTSC/ PAL
- External video input level (Mini jacks): 1.0Vp-p / 75 Ohms
- External audio max input level (RCA jacks): 1.5V / 25k Ohms
- Video Output level (RCA jacks): 1.0Vp-p / 75 Ohms
Audio
- Maximum Power Output (Front&Rear): 45Wx4
- Full Bandwidth Power (at less than 1%THD): 21Wx4
- Output frequency band: 20 - 20,000Hz
- Preout level (V): 2.0V / 10k Ohms
- Preout impedance (Ω): 1.4k Ohms
- Speaker Impedance (Ω): 4-8 Ohms
General
- Operating voltage: 12V DC Car Battery
- Installation Dimensions WxHxD: 182 x 112 x 153 (mm) 7-3/16 x 4-7/16 x 6 (inch)
- Main Unit Installation size W x H x D(w/o sleeve): 178 x 100 x 153 (mm) 7 x 3-15/16 x 6 (inch)
- Weight Main unit: 1.8 kg / 4.0 lbs
- (Including Sleeve and Trim plate): 2.0 kg / 4.4 lbs
- UPC: 019048230935
- Weight: 8
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
