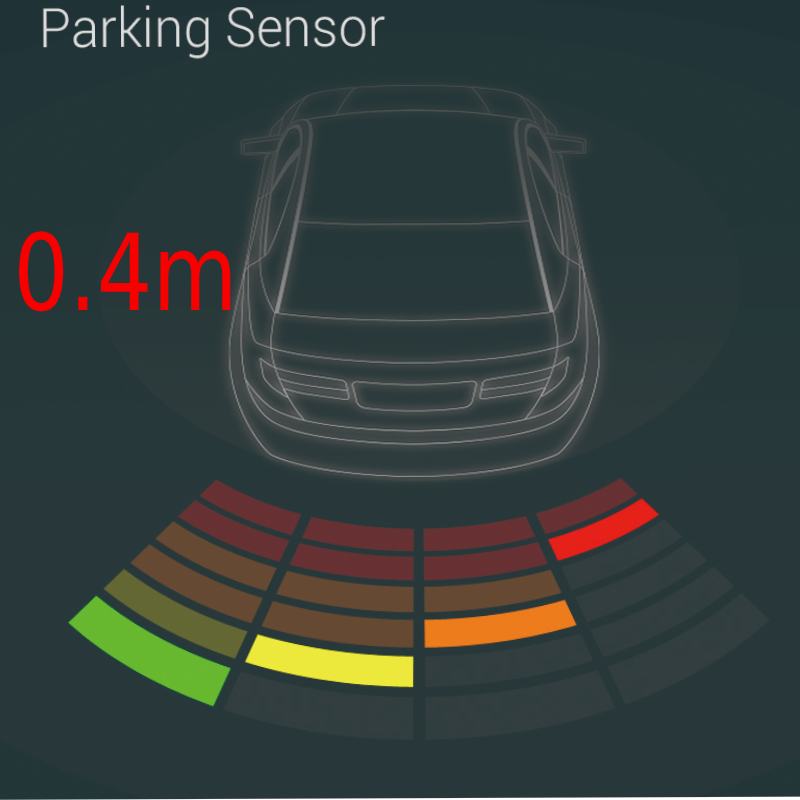

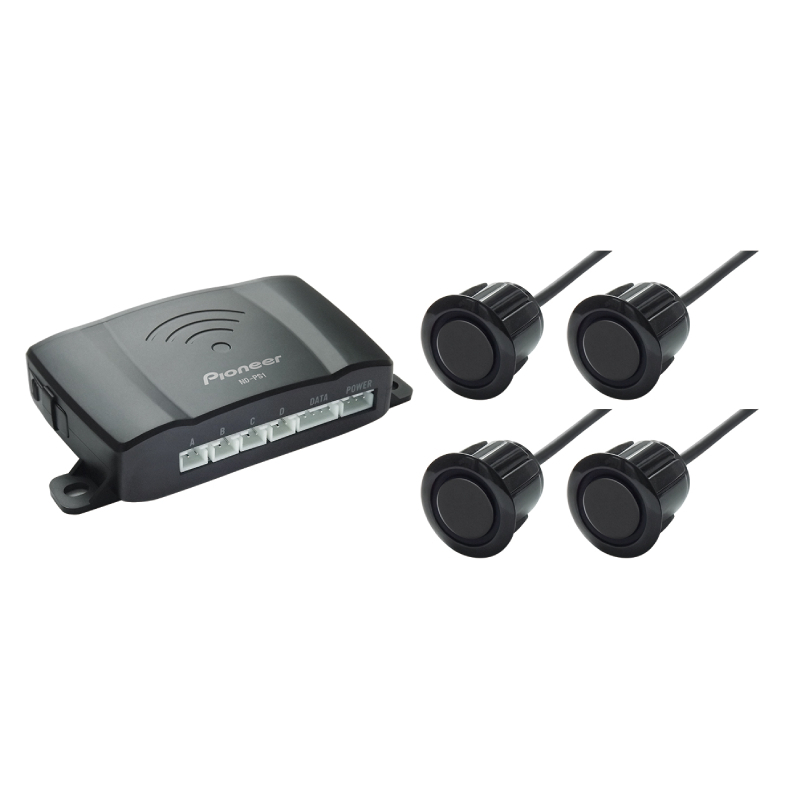

Pioneer’s ND-PS1 optional rear parking sensors are easy to install and are designed to be connected directly to Pioneer’s SPH-C10BT. When connected, you can park easily and safely thanks to the audio and visual illumination warnings on the head unit.
Additionally, when used in conjunction with Pioneer’s SPH-C10BT and Pioneer Smart Sync app, you can also experience the parking assist display on your compatible smartphone screen.
Features:
- 1m Power Cable
- 5m Connection Cable
- IP67 Certified
- Requires connection to Pioneer SPH-C10BT
- Display requires use of Pioneer Smart Sync app
Specifications:
Control box specification
- Nominal voltage: 14.4 V DC
- Operating voltage: 10.8 ~ 15.1 V DC
- Rated current: 10 ~ 30 mA at 14.4 V DC
- Detection Range: 0.3 m ~ 2.5 m
- Operation temperature range: -30°C ~ 80°C
- Dimensions (WxHxD): 105.3 mm x 21.8 mm x 56.0 mm
- Weight: 50 g / 1 pc
Cable length
- Power cable: 1 m
- Connection cable: 5 m
Sensor specifications
- Center frequency: 40 kHz
- Directivity X-axis: 70°
- Directivity Y-axis: 70°
- Maximum input voltage: 120 Vp-p (at 40 kHz)
- IP code: IP67
- Dimensions: φ 23.5 mm x 19.8 mm (exclude cable)
- Cable length: 2.5 m
- UPC: 884938404594
- Weight: 1.01
