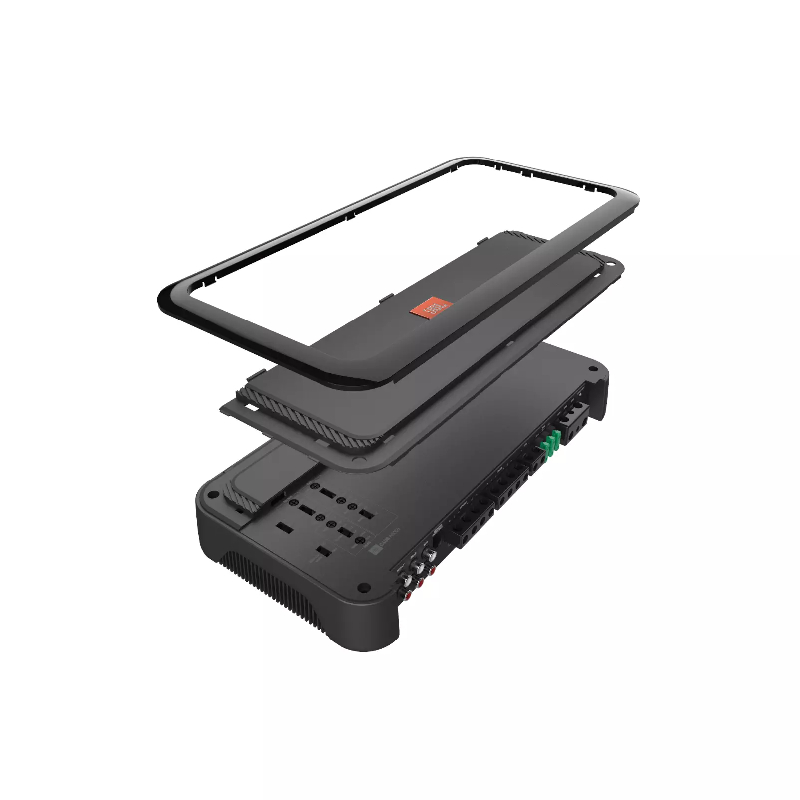

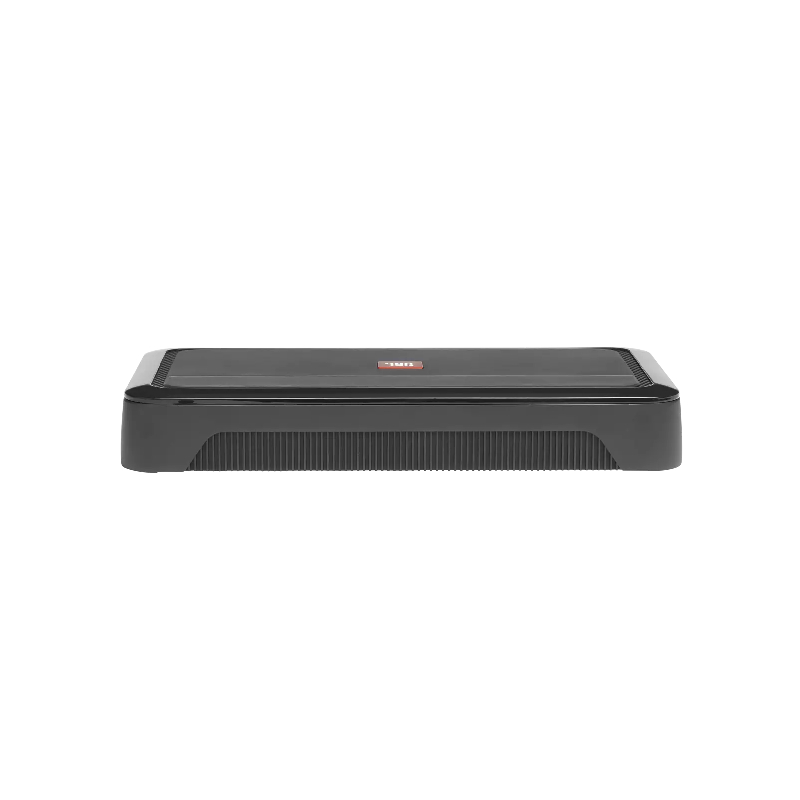

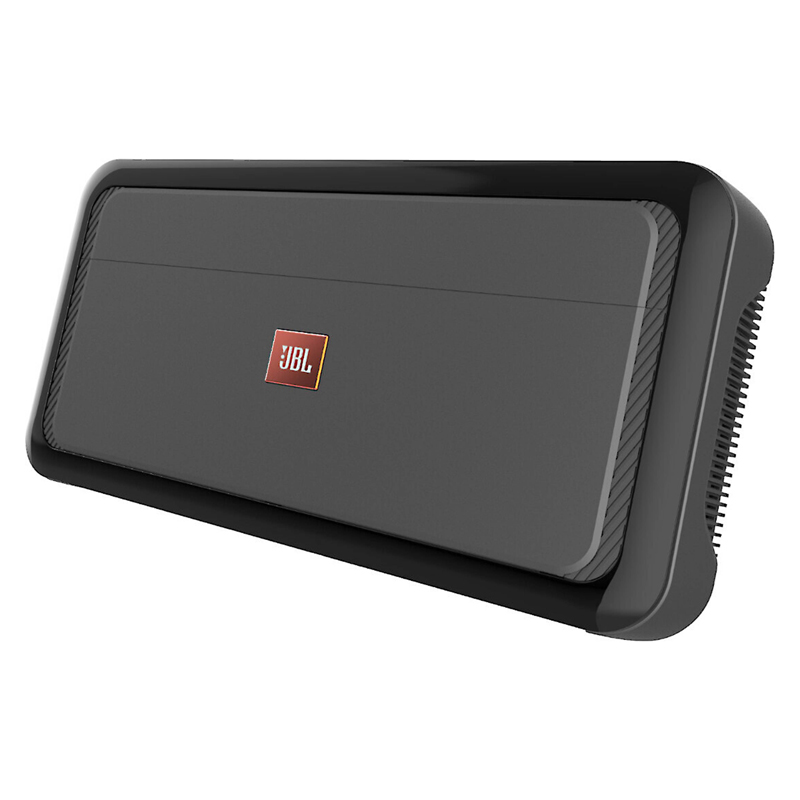

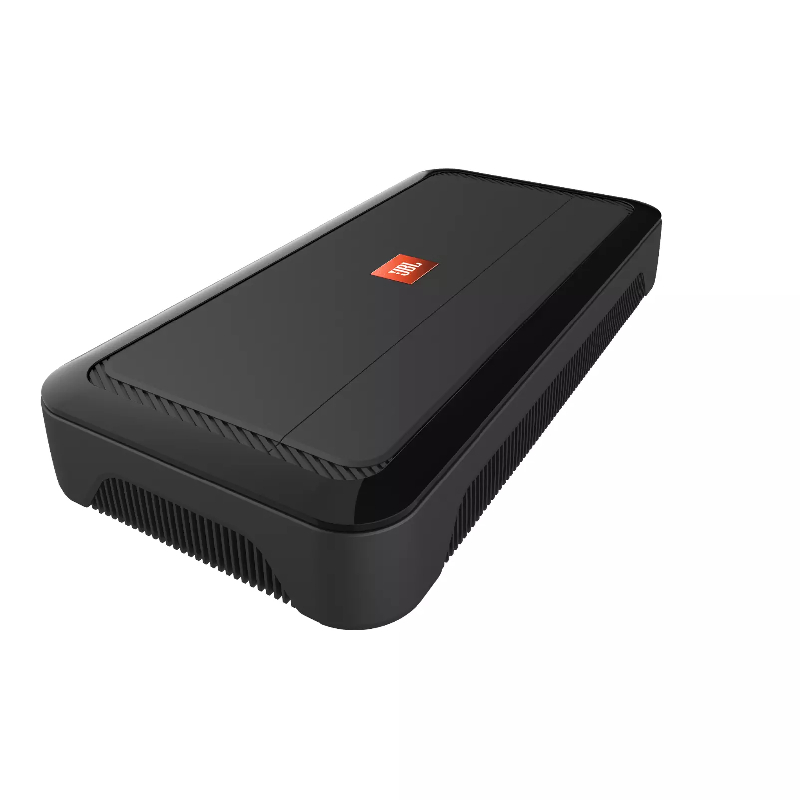

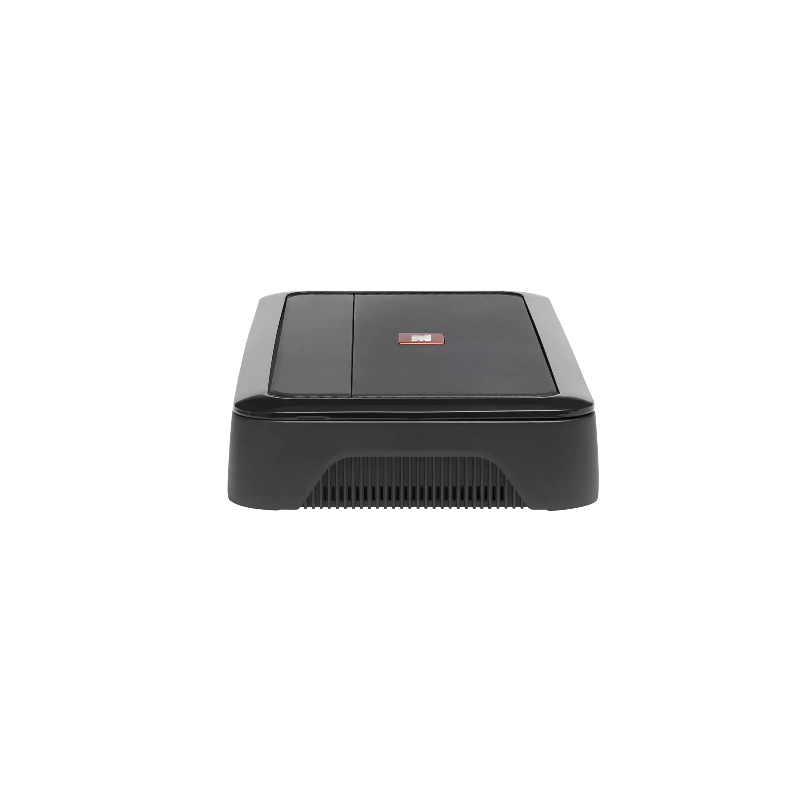

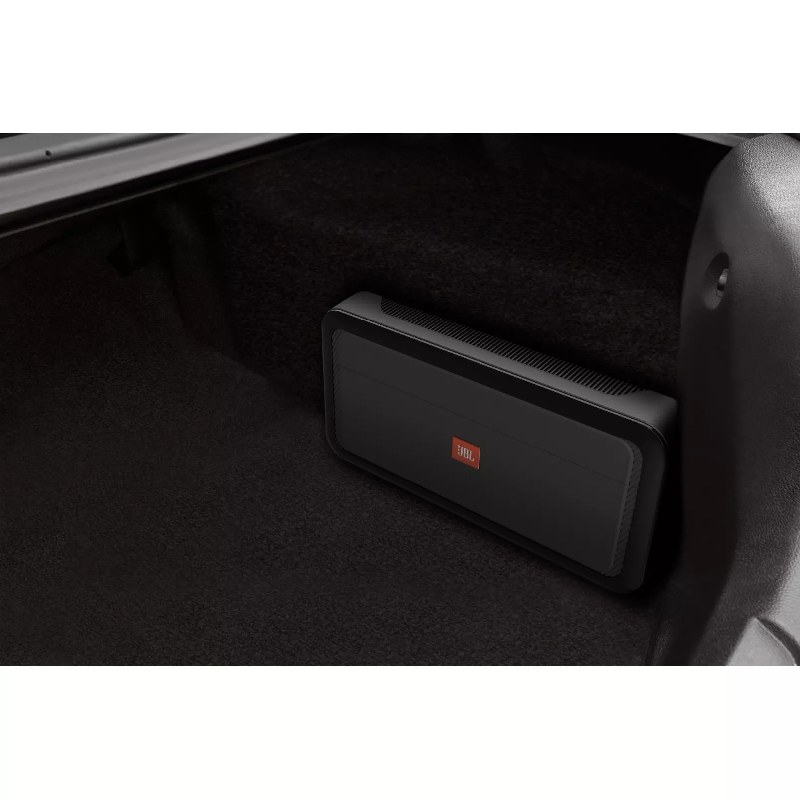

The JBL Club A5055 amplifier features a low-profile chassis and a small overall footprint to fit in more vehicles where available space is limited.
High and low level input
Speaker-level and low-level inputs allow the Club A5055 to integrate with both aftermarket and factory car stereo systems.
Variable crossover and bass boost
Unlike many amplifiers available at similar prices, the JBL Club A5055 features variable electronic crossovers and bass boost circuits allowing for precise system tuning and performance.
Low noise and distortion
The Club A5055 has been engineered using Balanced Differential Inputs to ensure low noise and distortion even at high output levels. This also makes it far less susceptible to line induced radiated engine noise.
Input Level Control
When the low-level inputs are used, this control adjusts the input sensitivity between 200mVrms and 2.0 Vrms. When high-level inputs are used, this control adjusts the input sensitivity between 2Vrms and 20Vrms.
Full on-board protection
On-board circuitry protects the Club A5055 from shorts, high-temperature, overvoltage and undervoltage. An LED indicator is provided to let you know when one of these conditions exists.
This switch changes the input phase to inverted or non-inverted. This is especially helpful with the subwoofer channel.
RBC wired remote
The RBC wired remote is an easy installation and can be mounted for convenient volume adjustment from driver’s seat.
Class AB+D amp technology
The JBL Club A5055 5 channels subwoofer amplifier delivers 780-Watts RMS using a Class AB+D amplifier design to ensure high output and minimum current draw.
This switch changes DC to REM to adapt with low-level signals or high-level signals, this is especially helpful as part of remote turn-on lead of your installation more choice. A selectable “Turn-on mode” can protect battery to avoid current drain, when you don’t expect turn on your amplifier.
Low Frequency Response : 32-320 Hz
High Frequency Response : 32-320 Hz
Number of Channels : 5
Frequency Response : 10-40000 Hz
Built In Crossovers : Yes
RMS Power Output : 65x4 Watts
Fuse Rating : 90 A
1 x Club A5055 five channel amplifier

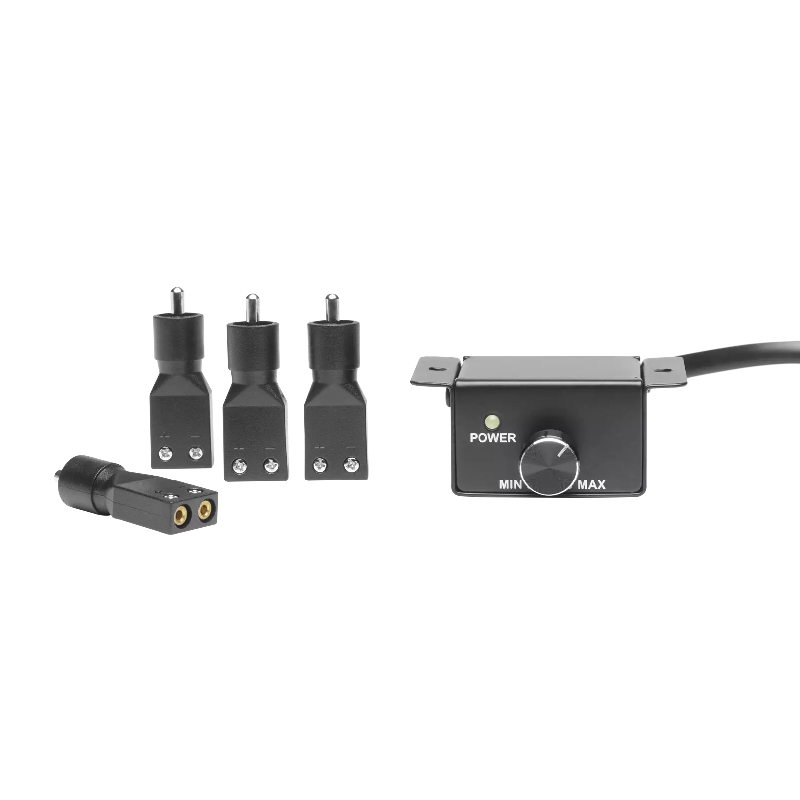

4 x Bare wire-to-RCA adapters
6 x 30A ATO fuses (3 installed, 3 spare)
1 x Remote bass control module
1 x 16.5' Remote control cable (RJ-25 plugs on both ends)
2 x Self-tapping screws for remote (M3 x 15mm)
4 x Mounting screws (M4 x 53mm)
1 x Owner's manual
5 channel car amplifier
50 watts RMS x 4 + 320 watts RMS x 1 at 4 ohms
65 watts RMS x 4 + 500 watts RMS x 1 at 2 ohms
140 watts RMS x 2 bridged at 4 ohms + 500 watts RMS x 1 at 2 ohms
variable high- and low-pass filters (32-320 Hz, 12 dB/octave) on front and rear channels
low-pass filter (32-320 Hz, 12 dB/octave) on subwoofer channel
bass boost on subwoofer channel (0-12dB at 45Hz)
phase switch on subwoofer channel (0, 180 degrees)

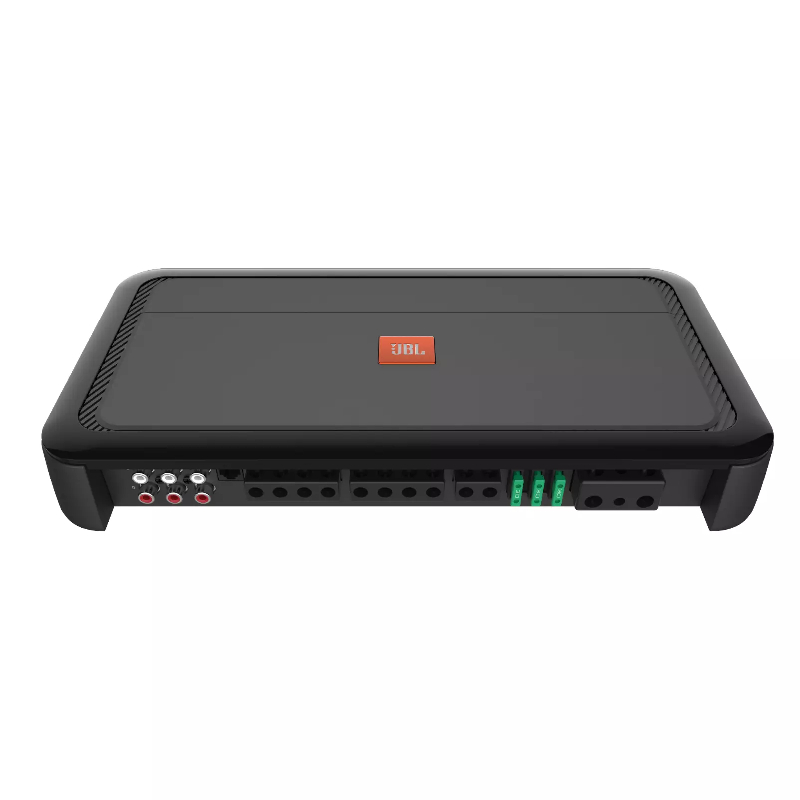

preamp and speaker-level inputs
fuse rating: 30A x 3
4-gauge power and ground leads recommended — wiring and hardware not included with amplifier
WxHxD=360mm x 51.3mm x 180mm (14-3/16” x 2-1/16" x7-1/8”)
