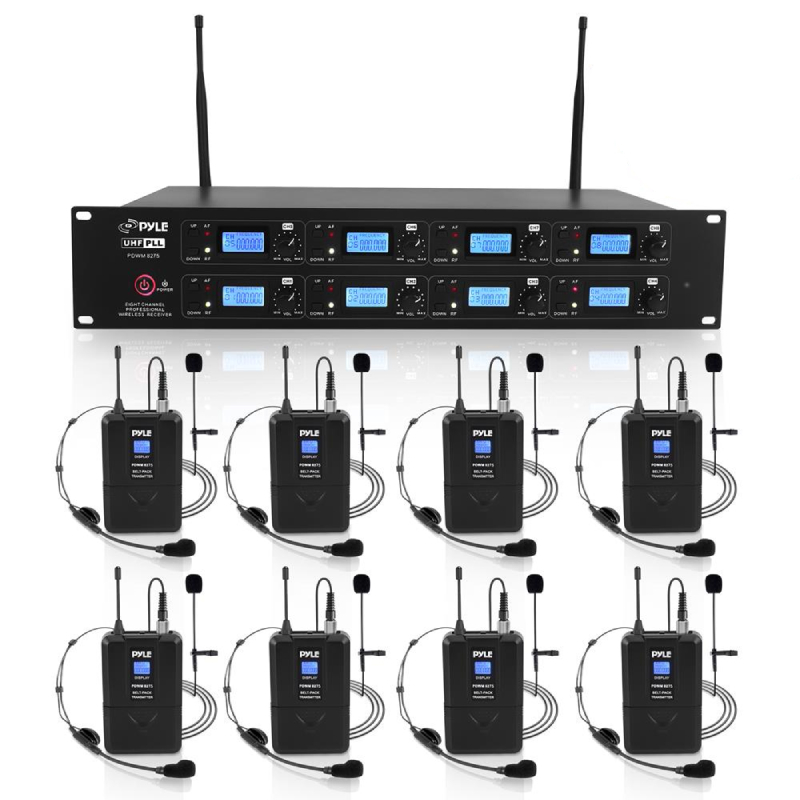

Pyle PDWM8275 8-Ch. UHF Wireless Microphone System Kit
The Pyle 8-Channel Wireless Microphone Systems provide wide area coverage ranges with simple controls and hassle-free operation. Wireless UHF signal audio transmission allows for distortion free and crisp vocal audio performance for all of your microphone needs. System base receiver features independent adjustable channel volume controls, digital LCD displays with frequency read-out, along with LED audio signal indicators. Additional system features include (8) XLR balanced output jacks, (2) 1/4’’ mixed output connectors and integrated mounting brackets for rack mount compatibility. Enjoy easy-to-use and crisp audio performance with the Pyle 8-Channel Wireless Microphone Systems.
Some of the amazing features of this product:
ASSORTED MICS - 8 body-pack transmitters that clip comfortably on any garment for use with 8 headsets/lapel mics. This audio system allows you to sing, talk or vocalize, leaving hands free to play any instrument.
UHF - Wireless UHF signal audio transmission provides unsurpassed performance with operation up to 164 FT for clear, noise & distortion free, crisp vocals & excellent sound reproduction. Great for conferences, broadcasting & presentations.
RACK MOUNTABLE RECEIVER - Receiver base design with rotating removable dual antennas, independent channel adjustable volume controls, digital LCD displays, LED audio signal indicators (8) XLR balanced output jacks, (2) 1/4'' mixed output connectors.
HIGH QUALITY & COMFORT - Headsets are designed for extended comfortable wear providing excellent audio quality with its omni-directional condenser element, & ultra-low profile lapel lavalier microphones capture audio and projection of your subject.

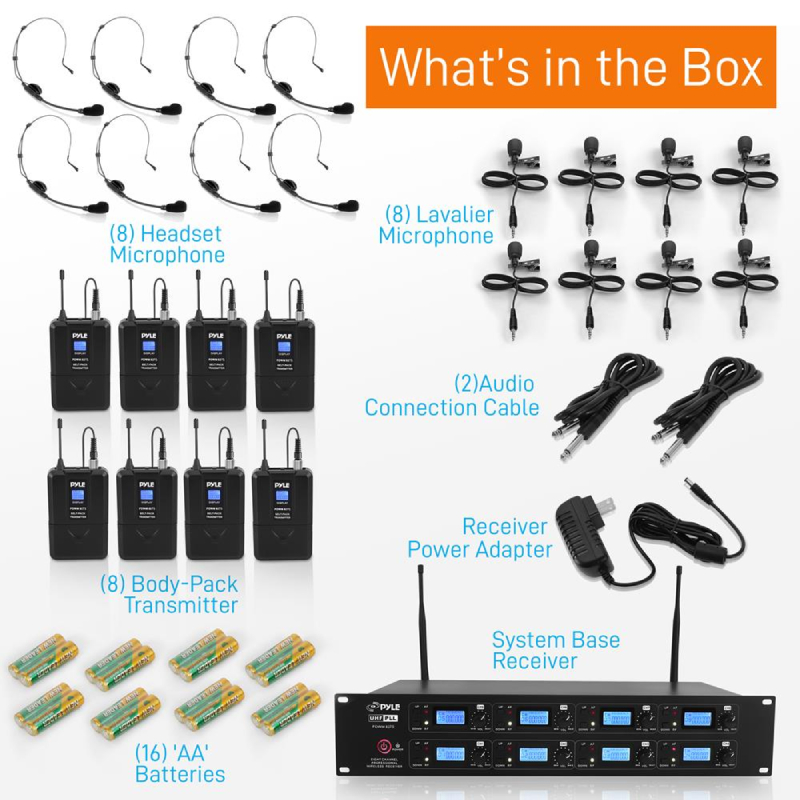

8 Belt-Pack Transmitters
8 Headset Microphones
8 Lavalier Microphones
2 Detachable Antennas
2 1/4" Audio Cable
16 'AA' Batteries
Wireless Audio Control for up to (8) Transmitters
UHF System for Wide Area Signal Range Coverage
Simple & Hassle-Free Operation
Independent & Adjustable Channel Volume Controls
Digital LCD Display with Channel & Frequency Readout
Wireless Operation Range: Up to 164 ft.
LED Audio Signal Indicator Lights
RF (Radio Frequency) & AF (Audio Frequency)
(8) XLR Balanced Output Jacks
(2) 1/4’’ Mixed Outputs
Digital LCD Display Channel Readout
Image & Spurious Rejection: >70 dB
Receiving Sensitivity: -105 dB

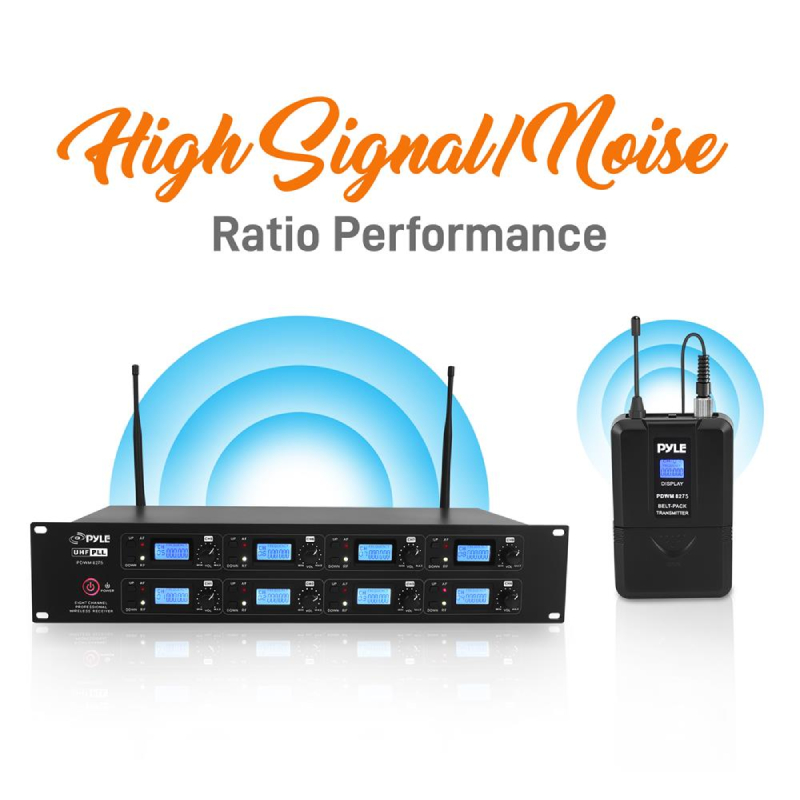

Signal / Noise Ratio: -105dB
Border Upon Channel Rejection: > 70 dB
Audio Output Level: 0-300 mV
Power Requirements: 13-15V DC nominal 1500 mA
T.H.D.: < 1%
Power Supply: 110/220V (13-15V Power Adapter)
Receiver Dimensions (L x W x H): 18.9'' x 7.8'' x 3.9''
Body-Pack Transmitter Specifications:
Includes (8) Beltpacks
Digital LCD Display Channel Readout
RF Output: >10 dBm
Modulation Type: FM
Spurious Emission: > 55 dBc
Nominal Current Drain: < 100mA

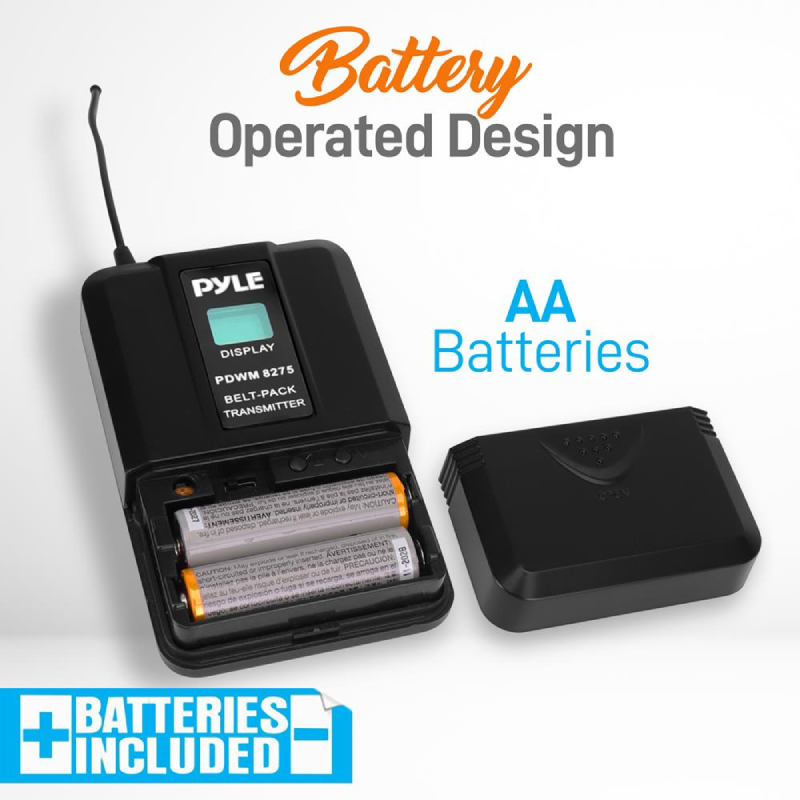

Battery Operated, Requires (2) x ‘AA’ Batteries
Body-Pack Dimensions (L x W x H): 4.1'' x 2.5'' x 1.2''
Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
