Pioneer  TS-WX1210AH-Bundle

Pioneer TS-WX1210AH 12" 1500W Peak Single Powered Subwoofer + JVC CS-DF620 6.5" 300W Peak Power 2-Way Coaxial Speakers + JVC CS-DF6920 6x9" 400W Peak Power 4 Ohms 2-way Coaxial Speakers

Item #78131

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


Exclusive Bundle Banner for OCS

Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

Pioneer TS-WX1210AH-Bundle Pioneer TS-WX1210AH 12" 1500W Peak Single Powered Subwoofer + JVC CS-DF620 6.5" 300W Peak Power 2-Way Coaxial Speakers + JVC CS-DF6920 6x9" 400W Peak Power 4 Ohms 2-way Coaxial Speakers


Authorized Dealer Stamp

We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • •Pioneer TS-WX1210AH
  • •JVC CS-DF620
  • •JVC CS-DF6920
  • •Owner's Manual

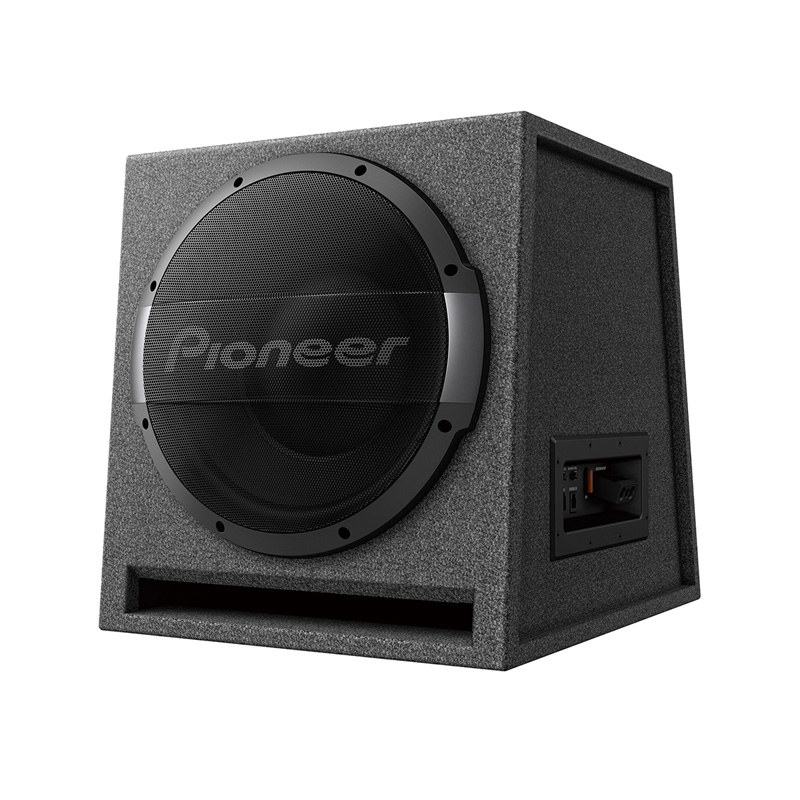

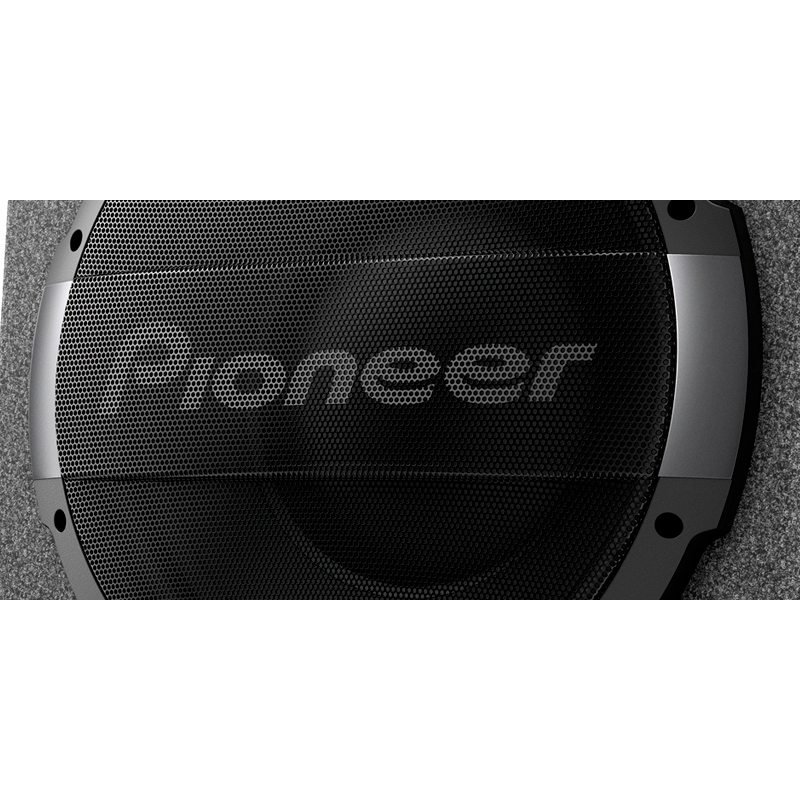

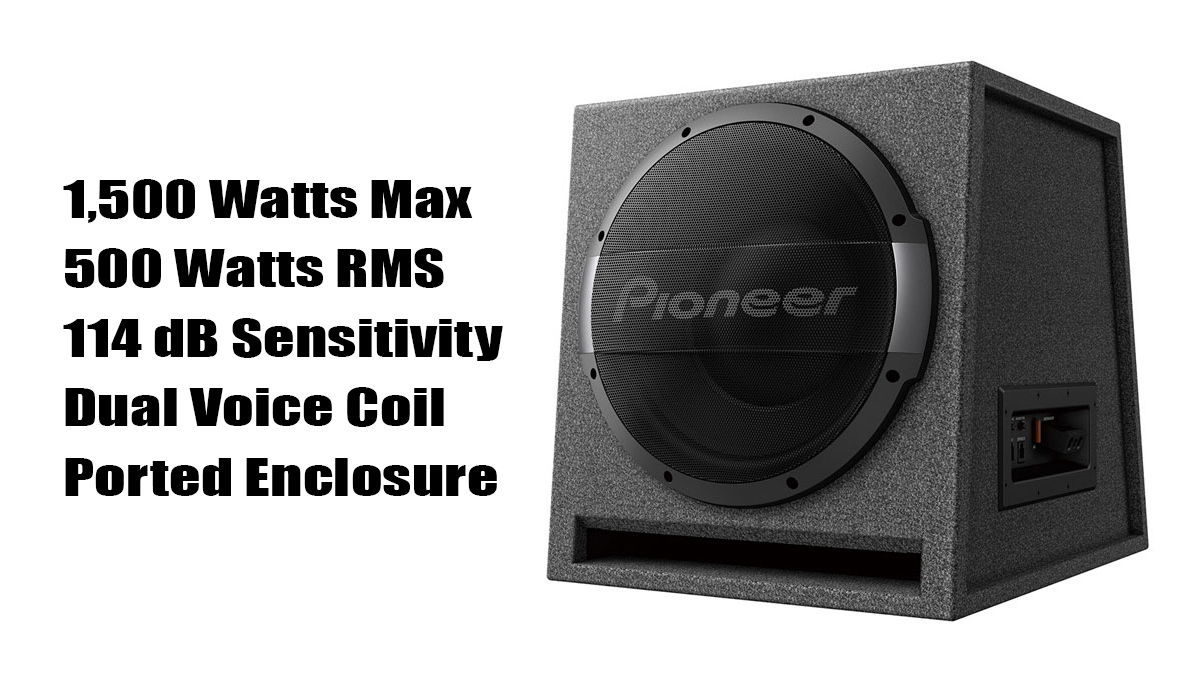

Pioneer TS-WX1210AH 12" 500W RMS (1500W Peak Power Handling) 600W Peak Power Built-In Amplifier Single Powered Bass Reflex Subwoofer System

Powerful bass and easy to install

The cabinet mechanism and the bass reflex port of the TS-WX1210AH are optimized to take advantage of the low-frequency response of a single driver with a 30 cm woofer unit. Which enable the original bass reproduction of the device and make it possible to enjoy a high-quality and powerful heavy bass reproduction. Equipped with a bass boost circuit, it is possible to adjust the sound pressure level and the frequency characteristics. You can adjust your favorite music to your liking.

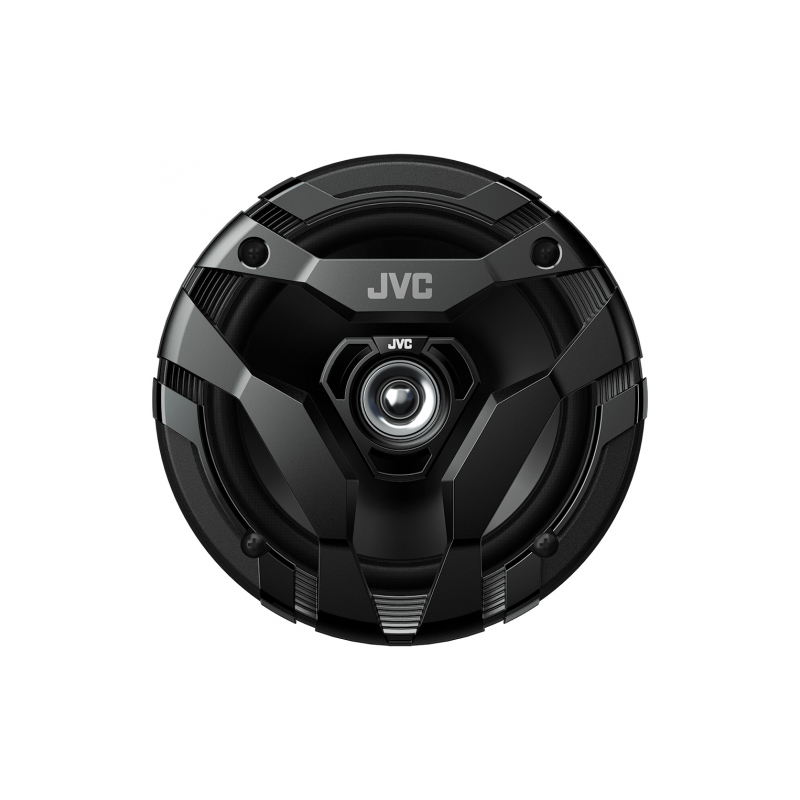

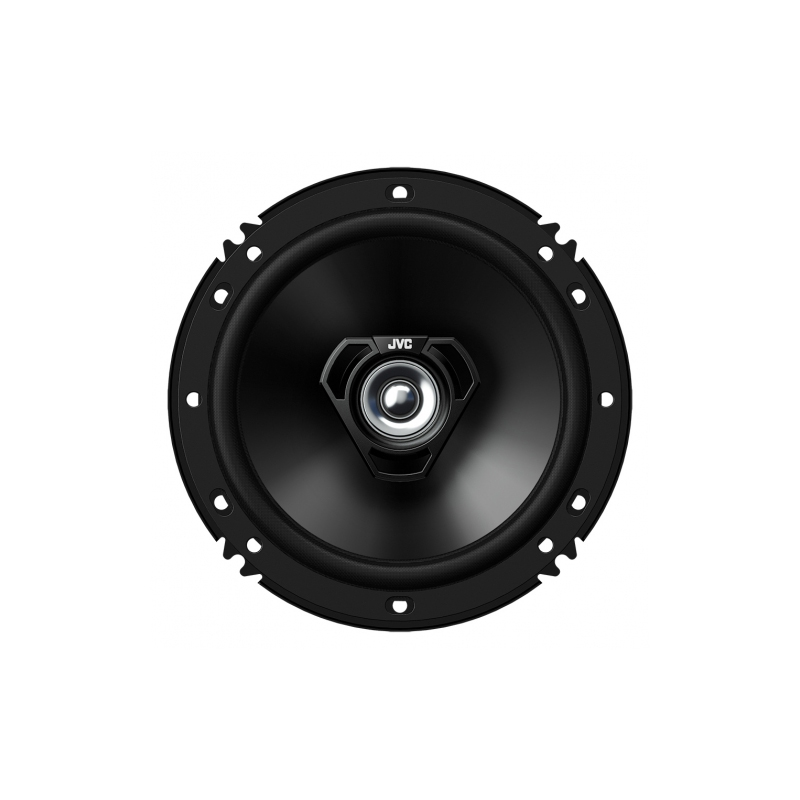

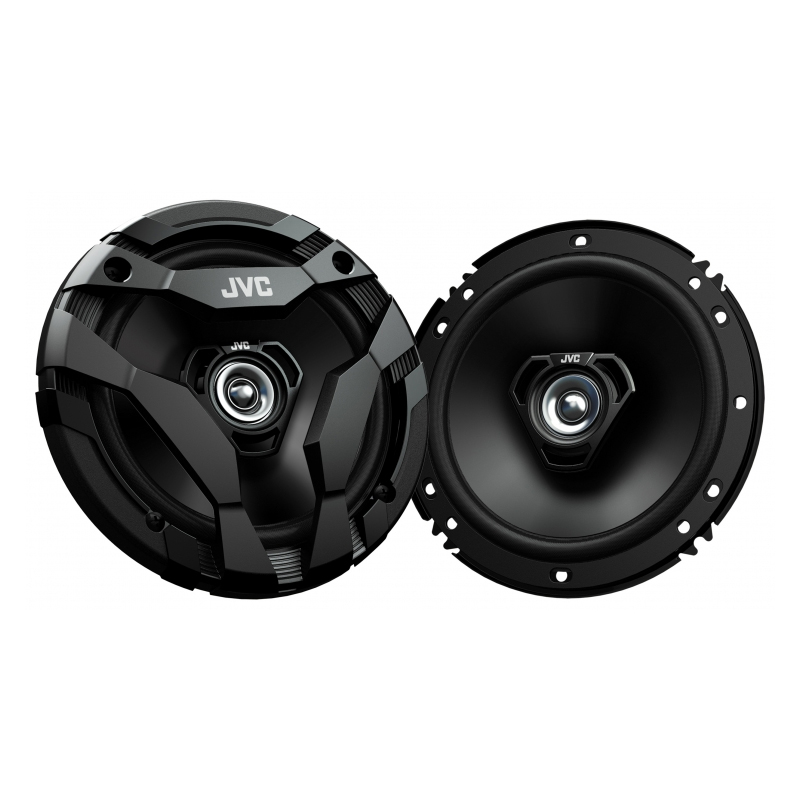

JVC CS-DF620 DF Series 6-1/2" 25W RMS (300W Peak Power Handling) 2-Way Coaxial Speakers

Deliver Clear and Balanced Sound

The CS-DF620 features a polypropylene cone woofer and a balanced dome tweeter, which work together to deliver clear and balanced sound with a frequency response range of 70 Hz to 19,000 Hz. The speaker is rated for a maximum power handling of 300 watts and an RMS power handling of 25 watts, making it suitable for use with a variety of car audio amplifiers.

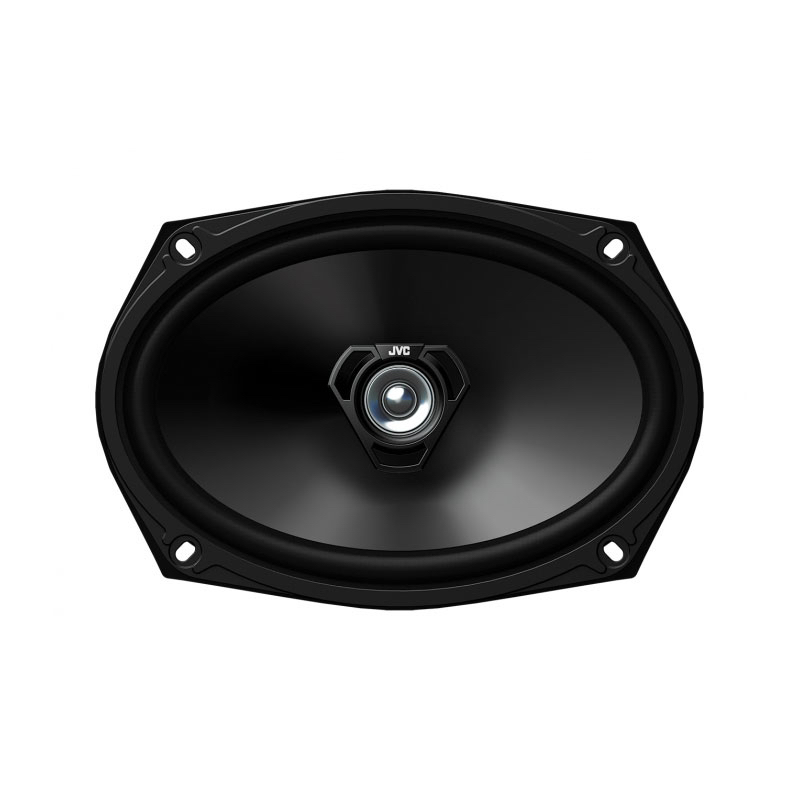

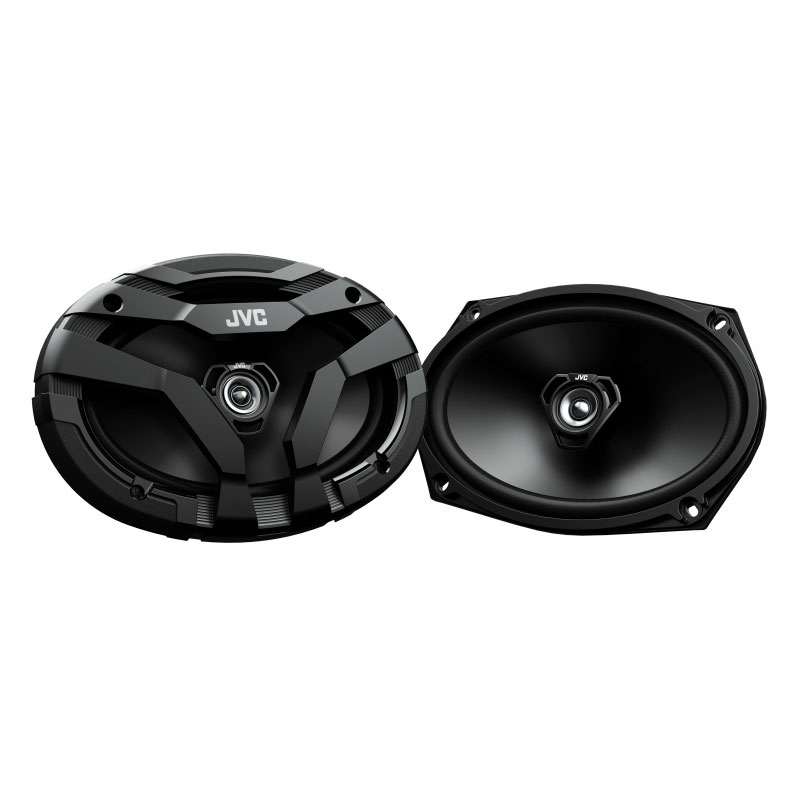

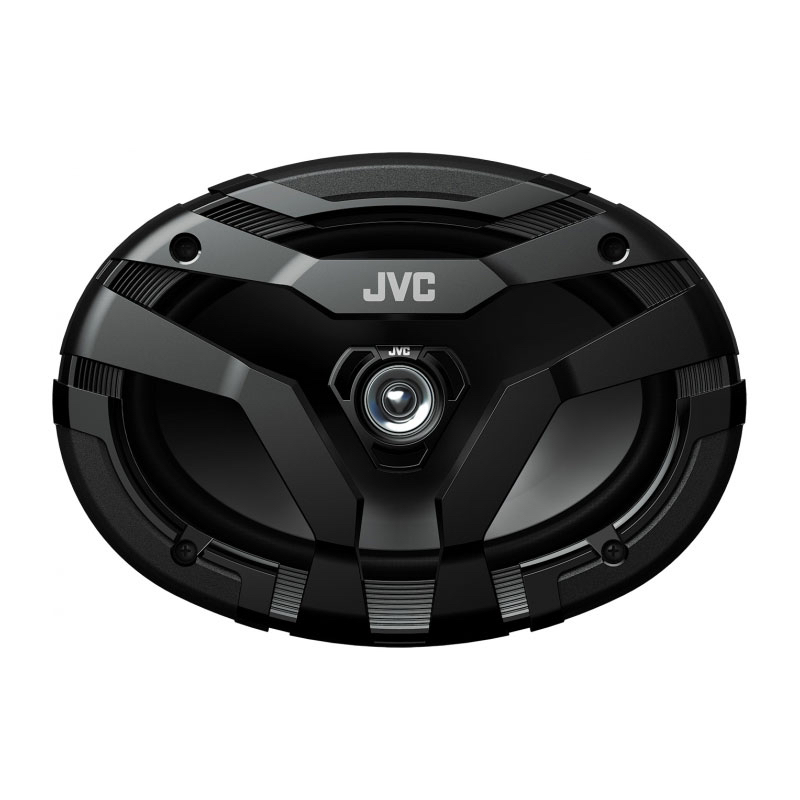

JVC CS-DF6920 DF-Series 6"x 9" 30W RMS (400W Peak Power Handling) 2-Way Coaxial Speaker

2-way Coaxial Car Speaker Designed

The JVC CS-DF6920 is a 6x9-inch, 2-way coaxial car speaker designed for use in car audio systems. It is known for its high-quality sound reproduction and affordability. The CS-DF6920 features a polypropylene cone woofer and a balanced dome tweeter, which work together to deliver clear and balanced sound with a frequency response range of 30 Hz to 17,000 Hz.


SPECIFICATIONS



FEATURES


TS-WX1210AH 12" 500W RMS (1500W Peak) Single Powered Bass Reflex Subwoofer System

Specifications:

  • CarSoundFit App: Yes
  • Size: 30 cm (12")
  • Type: Single powered bass reflex subwoofer system
  • Maximum power: 1500 W
  • Nom Power: 500 Watt
  • Frequency response: 20 Hz - 2.9 kHz
  • Sensitivity: 114 dB (in car, 2V) dB
  • Impedance: 0.6 ohms
  • Woofer material: Pulp
  • Surround: Urethane
  • Voice Coil type: Copper round wire 4-layers single voice coil
  • Voice Coil bobbin type: Kapton
  • Terminals: Faston
  • Magnets: FERRITE
  • 30cm / 12" Enclosed Active : Yes
  • LPF: 50 Hz - 200 Hz (-12dB / oct)
  • Weight: 12.3 kg
  • Dimensions: 373x459(375)x400 mm



CS-DF620 - DRVN Series 6.5" 25W RMS (300W Peak Power Handling) 4 Ohms 2-Way Coaxial Speakers

Woofer

  • Size: 16 cm (6-1/2'')
  • Diaphragm: PP injection cone
  • Surround: Hybrid Surround (Rubber & Cloth)
  • Magnet: Ferrite



Tweeter

  • Size: 2.5 cm (1'')
  • Type: Balanced Dome



General

  • Frequency Response: 70 - 19,000Hz
  • Power Handling Capacity (RMS): 25W
  • Power Handling Capacity (Peak Power): 300W
  • Impedance: 4 ohms
  • Sound Pressure Level: 86dB
  • Mounting Depth: 46 mm (1-13/16'')



CS-DF6920 6x9" 30W RMS (400W Peak Power Handling) 4 Ohms 2-way Coaxial Speakers

Woofer

  • Size: 15 x 23 cm (6x9'')
  • Diaphragm: PP injection cone

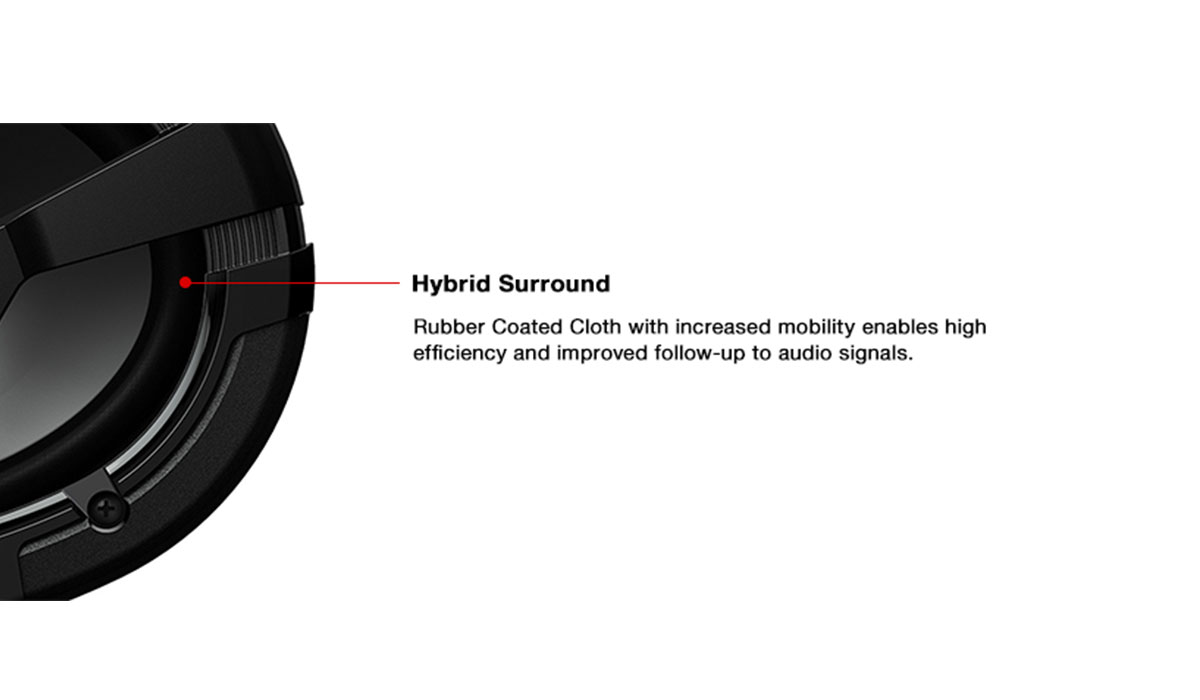

  • Surround: Hybrid Surround (Rubber & Cloth)
  • Magnet: Ferrite



Tweeter

  • Size: 2.5 cm (1'')
  • Type: Balanced Dome



General

  • Frequency Response: 30 - 17,000Hz
  • Power Handling Capacity (RMS): 30W
  • Power Handling Capacity (Peak Power): 400W
  • Impedance: 4 ohms
  • Sound Pressure Level: 82dB
  • Mounting Depth: 65.5 mm (2-9/16'')
  • UPC: 798418843639
  • Weight: 40
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
