Onlinecarstereo Exclusive Bundle
This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.
Kenwood Excelon X302-4
Rich and Immersive High-Resolution Audio
High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.
Sliding Terminal Cover
Detachable sliding terminal cover offers a sleek design and easier installation.
Variable Gain Circuit
Improved Signal to Noise Ratio

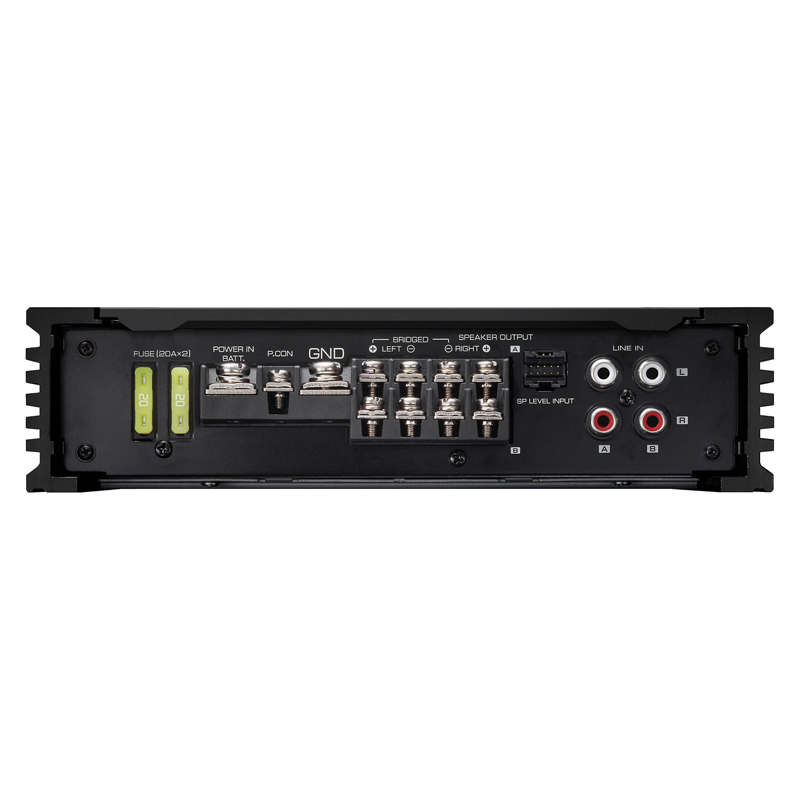

One-side Connection
All terminals and connections are on one side for easier installation and a cleaner look.
Speaker Level Input Harness
Speaker Level Input Harness is included to connect to speaker wires from factory installed receivers.
Kicker 43DSC6504 & 43DSC6504

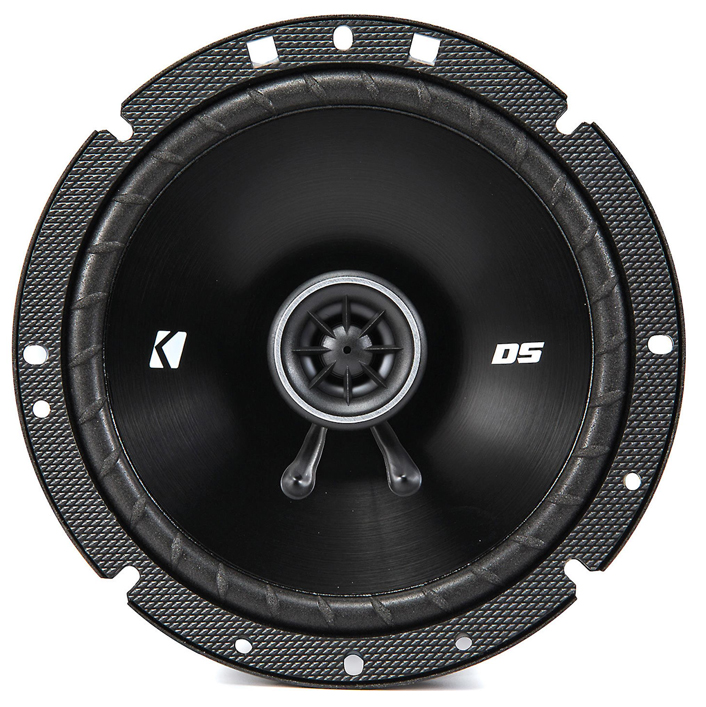

DS Speakers
The KICKER® DS coaxial fits nearly any vehicle door for an enormous improvement over factory sound. With stiff polypropylene cones and ribbed, UV-treated foam surrounds these drivers give you the realism and power you’ve always wanted.
Don't drill holes in your door. KICKER DS speakers will fit nearly every vehicle on the road today, right out of the box.
The zero protrusion PEI dome tweeters play clean, crisp music without getting in the way of factory grilles and window motors.

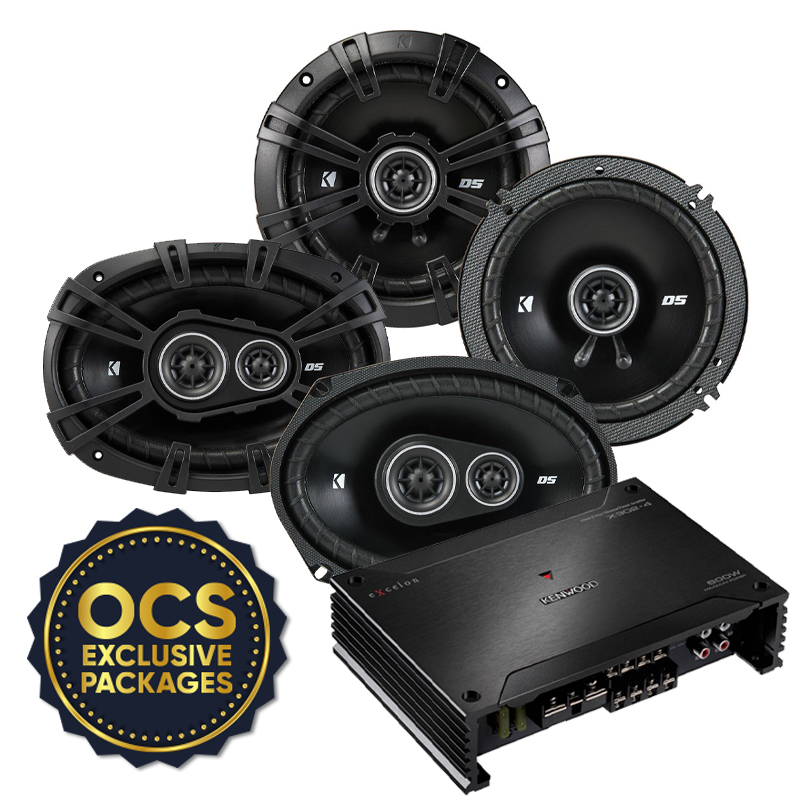

What's Included?
- 1 Kenwood Excelon X302-4
- 1 pair of Kicker 43DSC6504
- 1 pair of Kicker 43DSC69304

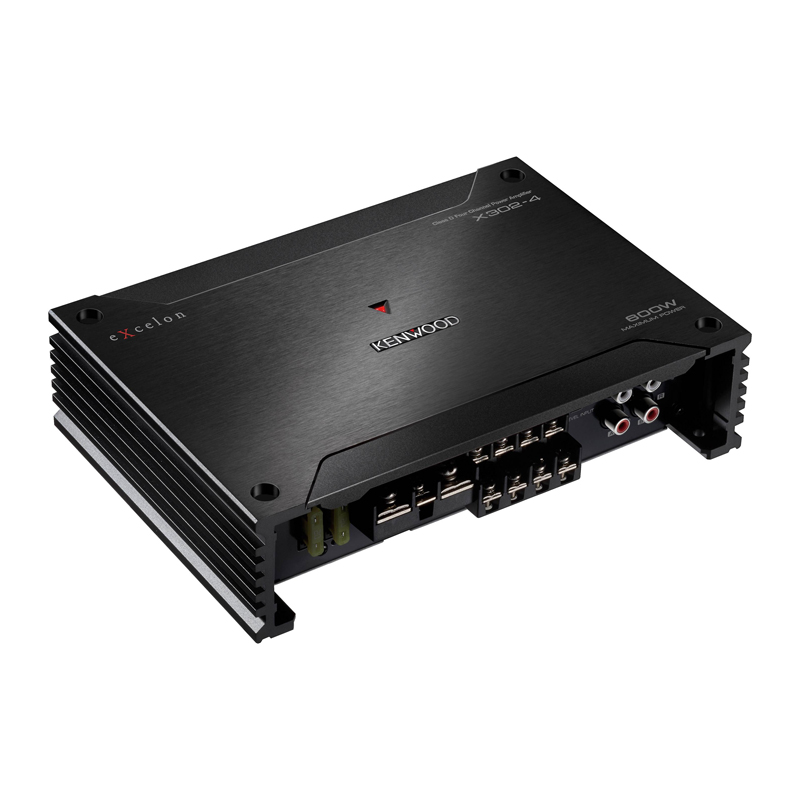

X302-4 X Series 600 Watts Max Power Class D 4 Channel Amplifier
CTA-2006 Primary Ratings
- Power Output: 50 Watts RMS x 4 at 4 Ohms and ≤1%THD+N
- Signal-to-Noise Ratio: 85dBA (Reference: 1Watt into 4Ohms)
Maximum Power Output
Rated Power Output at 14.4V
- A/B (4 Ohms): 50Watts RMS x 4 (4 Ohms, 20-20kHz, ≤1.0% THD)
- A/B (2 Ohms): 75Watts RMS x 4 (2 Ohms, 1kHz, ≤1.0% THD)
- SUB (4 Ohms): -
- SUB (2 Ohms): -
- A/B (Bridged 4Ohms): 150Watts RMS x 2 (Bridged 4 Ohms, 1kHz, ≤1.0% THD)
Specifications
- Signal to Noise Ratio: 100dB (Reference: Rated Power into 4Ohms at 14.4V)
- Frequency Response: 20Hz-50kHz (+0dB, -3dB)
- Frequency Response: -
- Input Impedance: 10k ohm
- Speaker Impedance: 4Ω (2Ω to 8Ω allowable)
- Bridged Connection: 4Ω to 8Ω allowable
Audio Section
- Low-Pass Filter: 50Hz-200Hz, -12dB/oct (A/B)
- High-Pass Filter: 50Hz-200Hz, -12dB/oct (A/B)
- Bass Boost: 40Hz, 0dB - +18dB (Bch)
- Infrasonic Filter: -
- RCA Input Sensitivity: 0.2[V] - 5.0 [V]
- Speaker Level Input Sensitivity: 4.0[V] - 12.0 [V]
Terminals
- Battery & Ground: M6 Screw Type Terminal Block
- Speaker Output: M4 Screw Type Terminal Block
General
- Dimensions(WxHxD): (W)8-3/8” x (H)2-1/16” x (D)5-7/8”
- Dimensions(WxHxD): (W) 213cm x (H) 53cm x (D) 149cm
- Weight: 3.1 lbs ( 1.4 kg)
- Operating Voltage: 14.4V(11-16V allowable)
- Current Consumption: 20[A]
Key Features
- High-Res Audio Compliant
- CTA-2006 Compliant
- 2 Ohms Load Capability
- One Sided Connection
- Speaker Level Input with Signal Sensing Turn-on
Accessorries
- Signal Sensing Turn-On
- Terminal Cover
- Power MOS-FET Switching Power Supply
- Extruded Aluminum Heat Sink Design

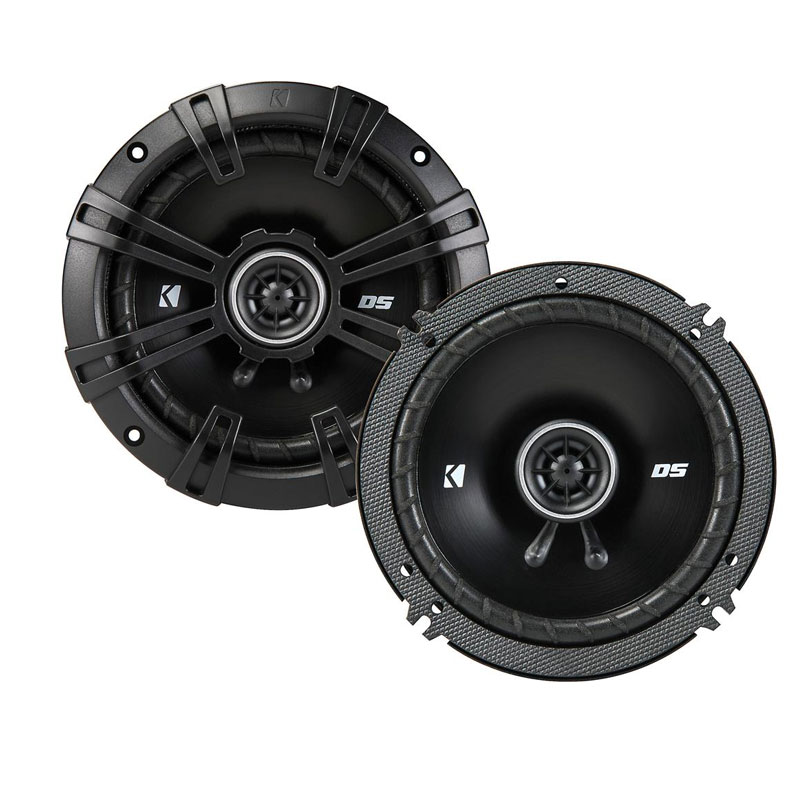

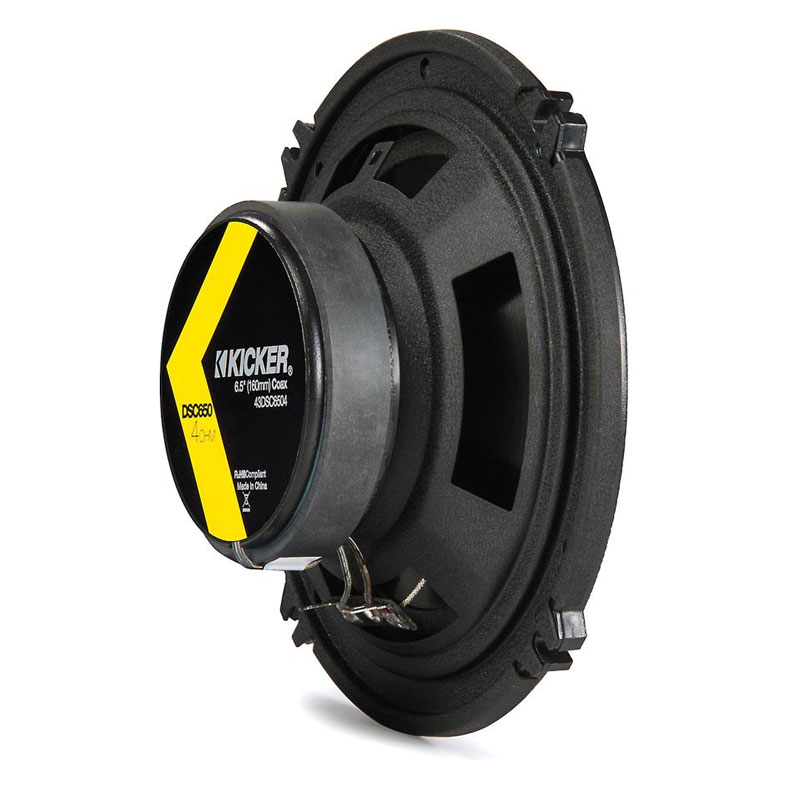

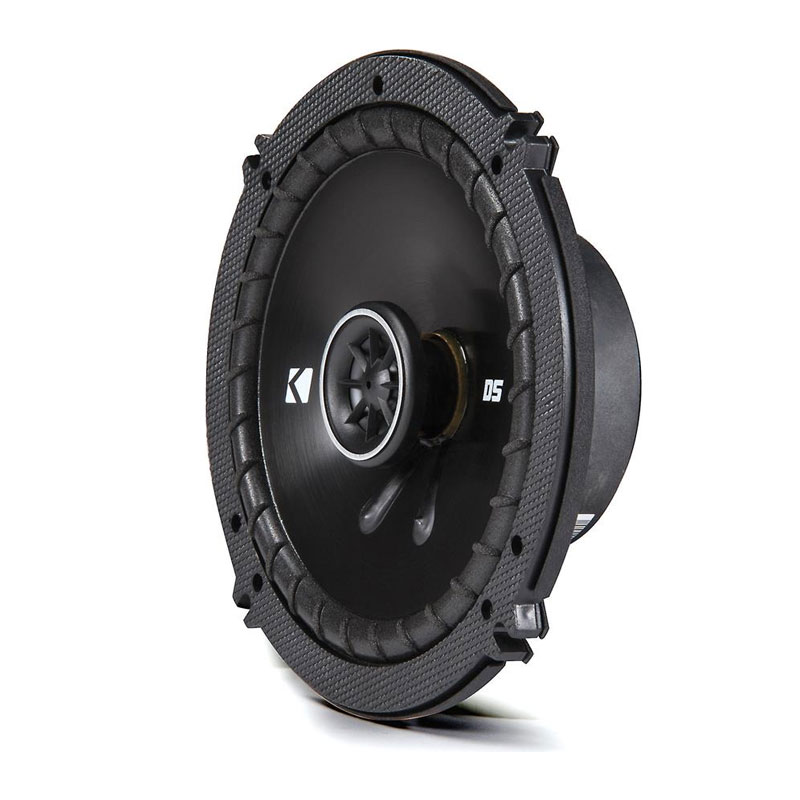

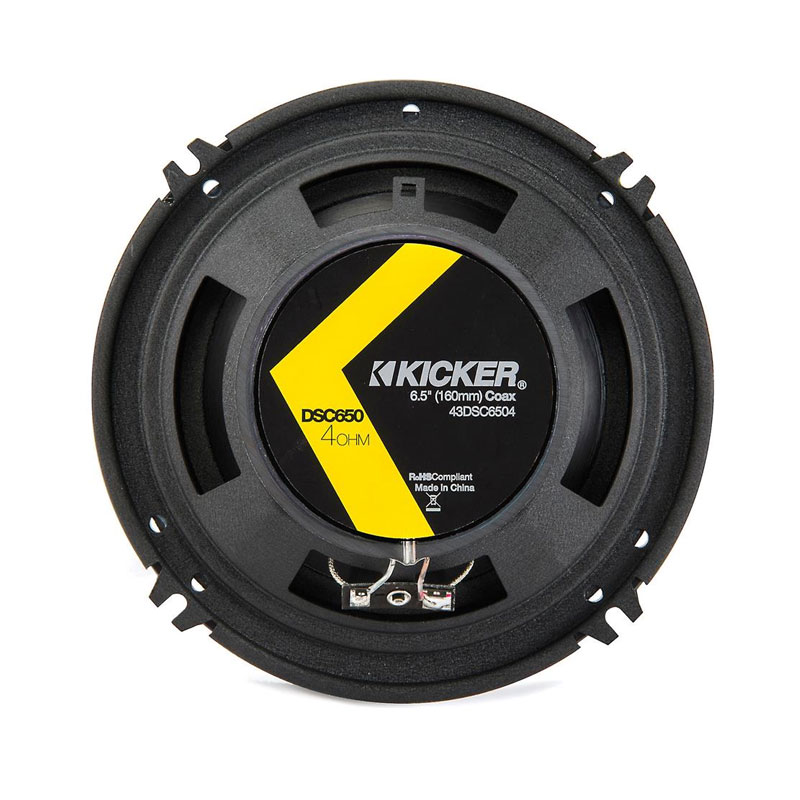

43DSC6504 DS Series 6-1/2" 2-way car speakers. Power Range: handles up to 60 watts RMS (240 watts peak power) Frequency range: 40-20,000 Hz at 4 ohms
Specifications
- Woofer Surround: Polyester Foam
- Tweeter Composition: PEI
- Tweeter Design: 1/2" Balanced Dome
- Sensitivity: 90 dB at 1 watt
- Peak Power Handling (Watts): 240
- RMS Power Range (Watts): 60
- Design: 2-way
- Cutout Diameter or Length (inches): 4 7/8
- Impedance (Ohms): 4
- Woofer Composition: Polypropylene
- Frequency Response: 40 - 20k Hz
- Top-mount Depth (Inches): 1 13/16
- Bottom-mount Depth (Inches): 2 3/16

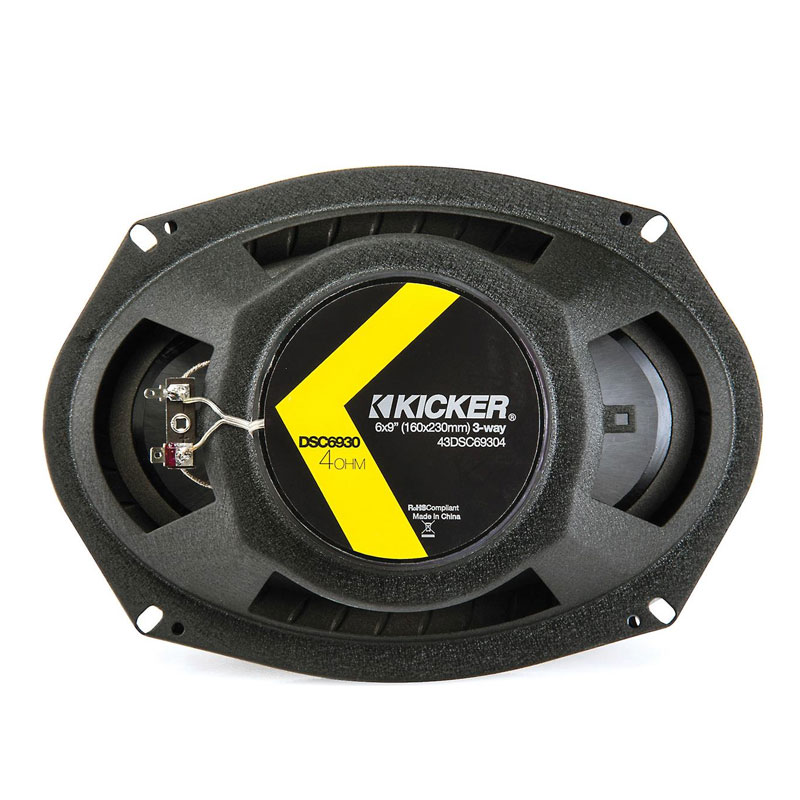

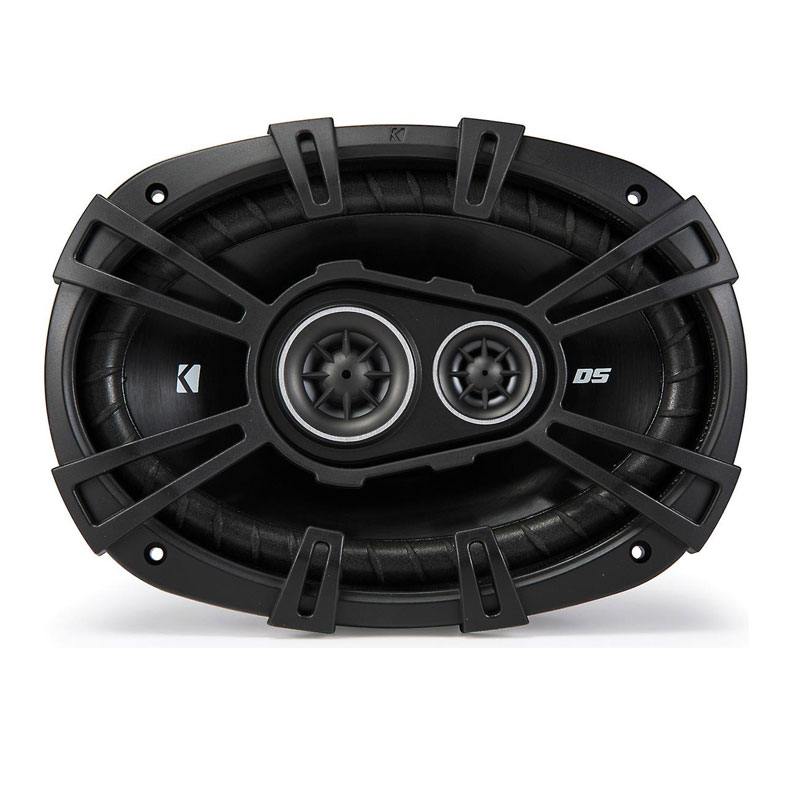

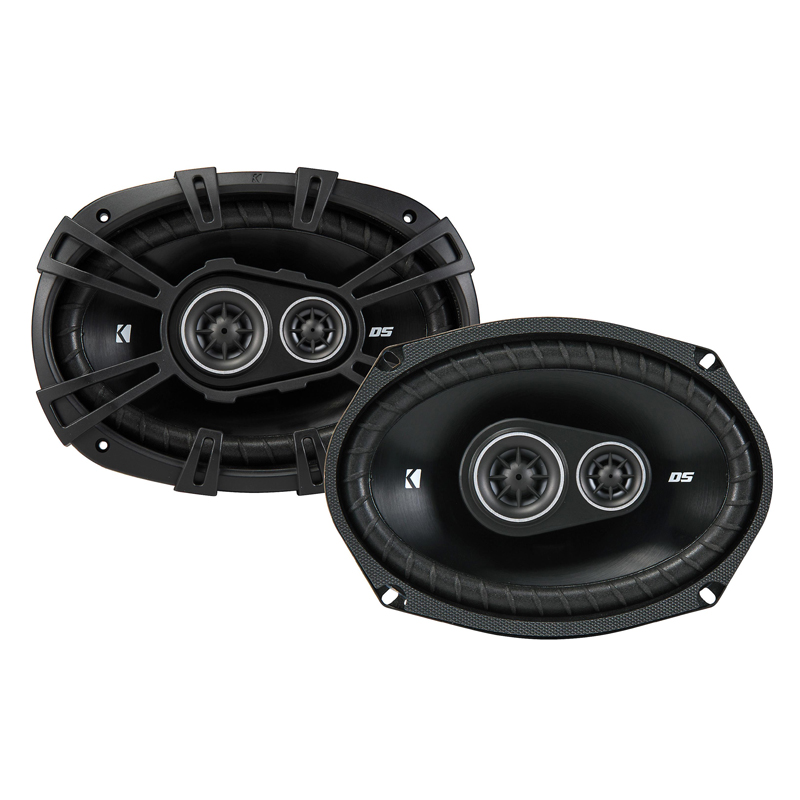

43DSC69304 360 Watts Peak Power (6-90 Watts of RMS) 6"x9" 3-Way DS Series Coaxial Car Speakers
Specifications:
- Top-mount Depth (Inches): 3 1/4
- RMS Power Range (Watts): 90-180
- Woofer Composition: Polypropylene
- Tweeter Composition: PEI
- Sensitivity: 92 dB at 1 watt
- Peak Power Handling (Watts): 360
- Tweeter Design: 1/2" Balanced Dome
- Design: 3-way
- Woofer Surround: Polyester Foam
- Frequency Response: 30 - 20k Hz
- Impedance (Ohms): 4
- Bottom-mount Depth (Inches): 3 11/16
- UPC: 798418843622
- Weight: 20
