Our new 2XLDS Subwoofers have been completely redesigned with a new custom cast aluminum basket and the motor moved to the outside of the basket in a more standard style to allow for lower frequency response and increased power handling, providing audiophile sound quality at Xtreme sound levels.
Featuring a new NBR Nitrile Butadiene Rubber surround for increased linear accuracy and a proprietary Woven Glass Fiber Kraft Reinforced cone the 2XL series is built to perform. The custom cast aluminum basket provides perimeter venting to assist in cooling the newly redesigned 2.5” Black Kapton (BKSV) voice coil and inverted motor structure.
Diameter : 12 Inch
Sensitivity : 84.73 dB
Impedance : 4 Ohm
Frequency Response : 28-450 Hz
Peak Power Handling : 1300 Watts
Number of Voice Coils : Dual
RMS Power Handling : 650 Watts

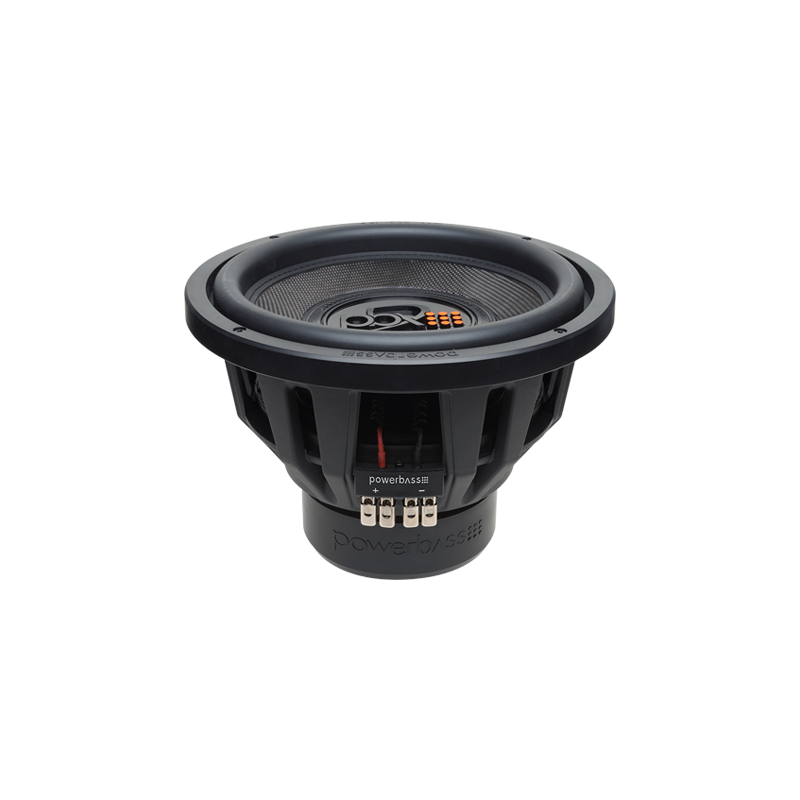

12" Dual 4-Ohm Subwoofer
650 watt RMS / 1300 Watts Max
Woven Glass Fiber Cone With Pressed Kraft Paper Reinforcement
Nitrile Butadiene Rubber (NBR) Surround
2.5" Vented BKSV Voice Coil Former
Perimeter Aero-Vent Voice Coil Cooling Vents
Non Resonance DDC Coated Cast Aluminum Basket
XTRA XTRA Large Double Stacked Motor Structures
Square Spring Loaded Nickel Plated Input Terminals
Optimally Designed for Both Sealed or Ported Enclosures
Nominal Impedance: Dual 4-ohm
Inputs: Dual Voice Coil
Subwoofer Frequency Range: 28 Hz - 450 Hz
Voice Coil Size: 2.5 in
Material: Woven Glass Fiber and Kraft Paper
Magnet Size: 85 oz
Sensitivity (1W / 1M): 84.73 dB
Motor Structure: 85 oz
Cutout Diameter: 11.0" (280mm)
Mounting Depth: 8.6 in
Xmax: 15 mm
Spl: 84.73 dB
Mms: 296.7 g
Cms: 64 uM/N
Vas: 23.73 Ltr
SD: 510.71 sqCM
Fs: 36.4 Hz
Test Impedance: 1.82-ohm
VC Impedance: 4-ohm + 4-ohm
Size: 12 in
Sensitivity: 84.73 dB
Frequency Response: 28 Hz - 450 Hz
Voice Coil Size: 2.5 in
Power Handling (RMS/Peak): 650 / 1300 watts
