The Arena X features a proprietary motor design that provide completely linear cone travel throughout the cone's excursion range — that means you'll hear supremely accurate bass. Its aluminum composite concave cone and nitrile-butylene rubber surround take charge, giving you clean output at any power level. A massive die-cast aluminum basket and progressive spider keep everything together so your bass stays tight at the highest volume levels. And its oversized 2.5" voice coil drives the cone to stunning levels of output.
The powerful 2.5-inch voice coil is suspended in a separate magnetic gap. At low power, the coil drives the cone, cancelling any non-linearities. As input increases, the coil continues to drive the cone for incredible power handling.

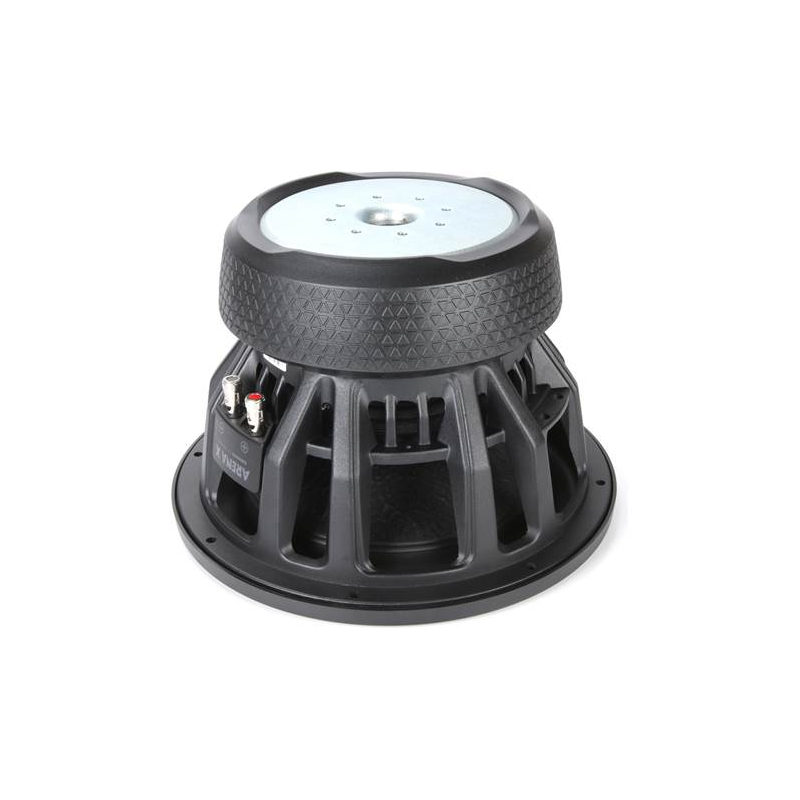

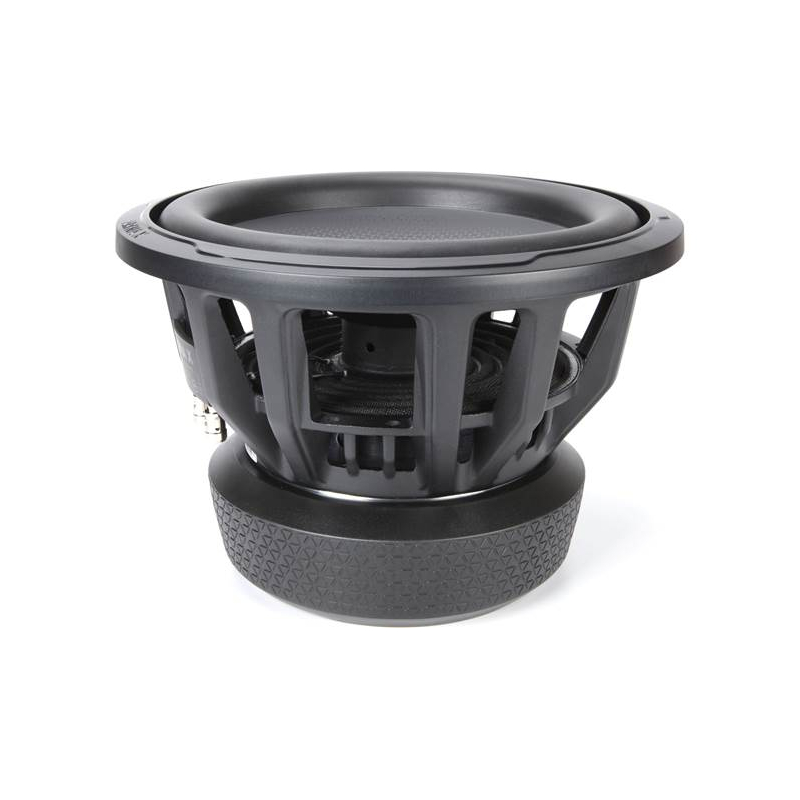

Die-cast, vented aluminum frame
This sub's aluminum frame features significant venting and heatsink fins to add power handling. And since aluminum is a rigid material, it keeps the critical voice-coil components in perfect alignment while they travel through the linear excursion range.

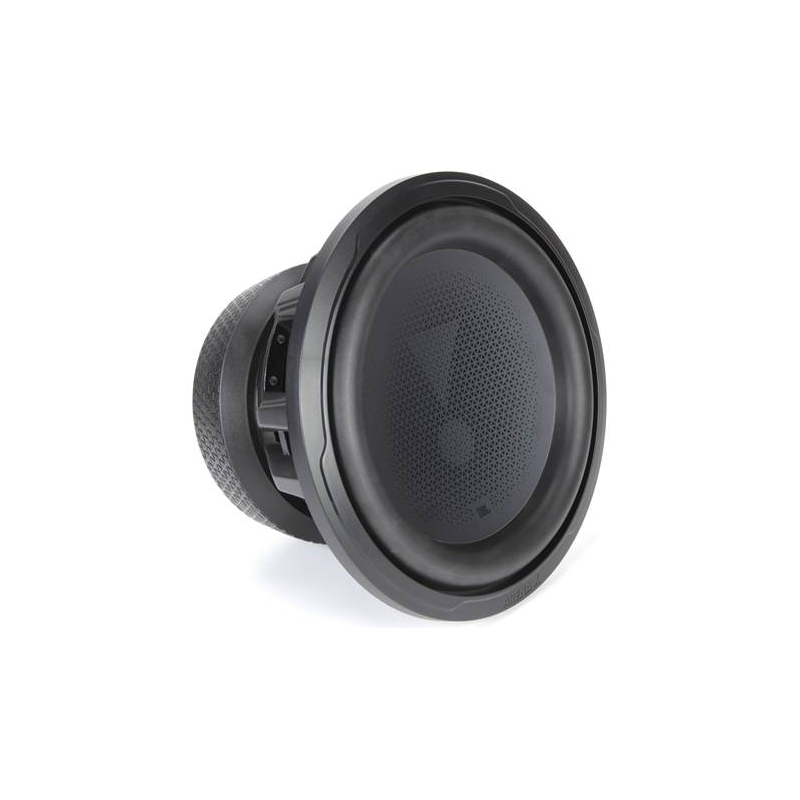

Aluminum woofer cone and dust cap
Aluminum is well known for being light weight yet extremely stiff, making it the ideal cone material to move large amounts of air without flex or distortion.
NBR(nitrile butadiene rubber) surround.
The JBL ARENA X uses a single-piece NBR surround seal between the front and back - an essential design feature considering the enclosure's high pressure level. NBR is known to be a tough industrial, environmentally stable material, allowing your sub to perform optimally whether it's Winter or Summer.
Impressive power handling
JBL engineers desgined the ARENA X subwoofer to produce uncompromising, mammoth bass from an amplifier capable of delivering up to 1,600 watts of power. Nothing else even comes close.
Learn how to wire subwoofers
Diameter : 12 Inch
Maximum Power : 1600 Watts
Sensitivity : 86.4 dB
Impedance : 2 Ohm
Frequency Response : 25-1000 Hz
Peak Power Handling : 1600 Watts
Top Mount Depth : 7.787 Inches
Number of Voice Coils : Single
Suggested Sealed Box Volume : 0.954 Cubic ft.
Suggested Ported Box Volume : 1.615 Cubic ft.
RMS Power Handling : 800 Watts
Free Air : Yes
1 12" JBL Arena X 12" Subwoofer
Screw cover trim ring
Adhesive-backed foam gasket
Eight 1-1/8" Screws
12" Single 2 ohms ohm Series Subwoofer
800 watts RMS
1600 watts Peak Power
Frequency Response: 25 - 1000 Hz
2.5" voice coil
Nitrile Butadiene Rubber NBR Surround
Vented cast aluminum basket

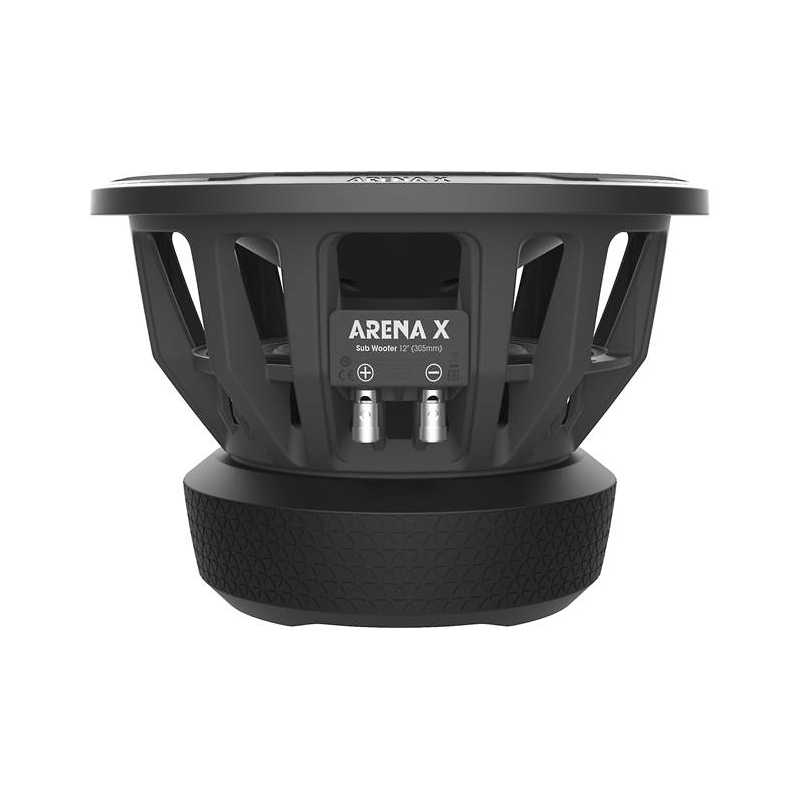

Gold-plated terminal binding posts
Sensitivity: 86.4 dBdB
Top-mount depth: 7-13/16""
Cutout diameter: 11-1/16""
sealed box volume: 0.954 cubic feet
ported box volume: 1.02-1.615 cubic feet
grille not included
