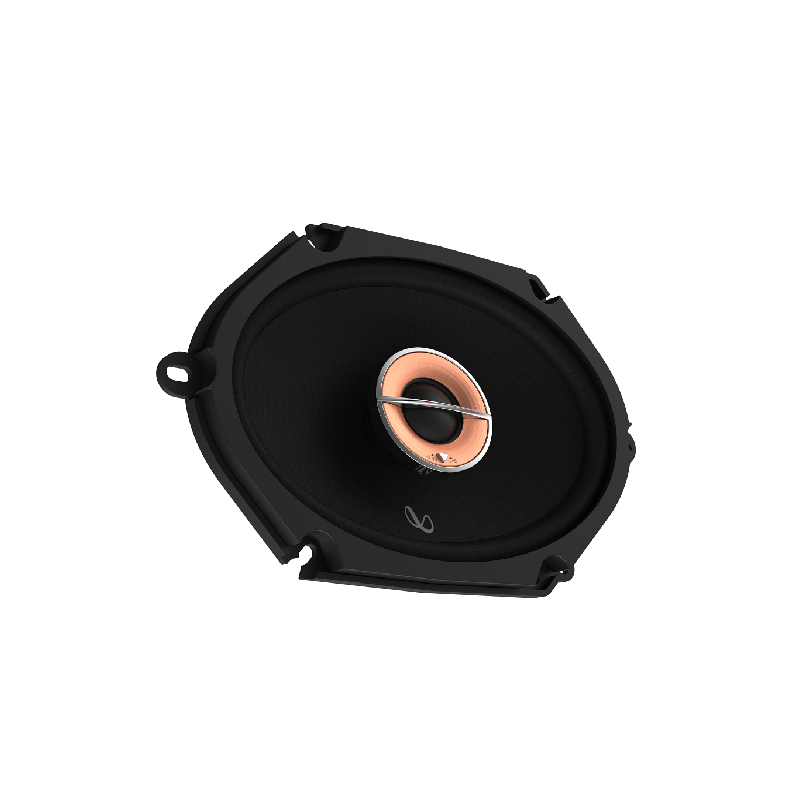

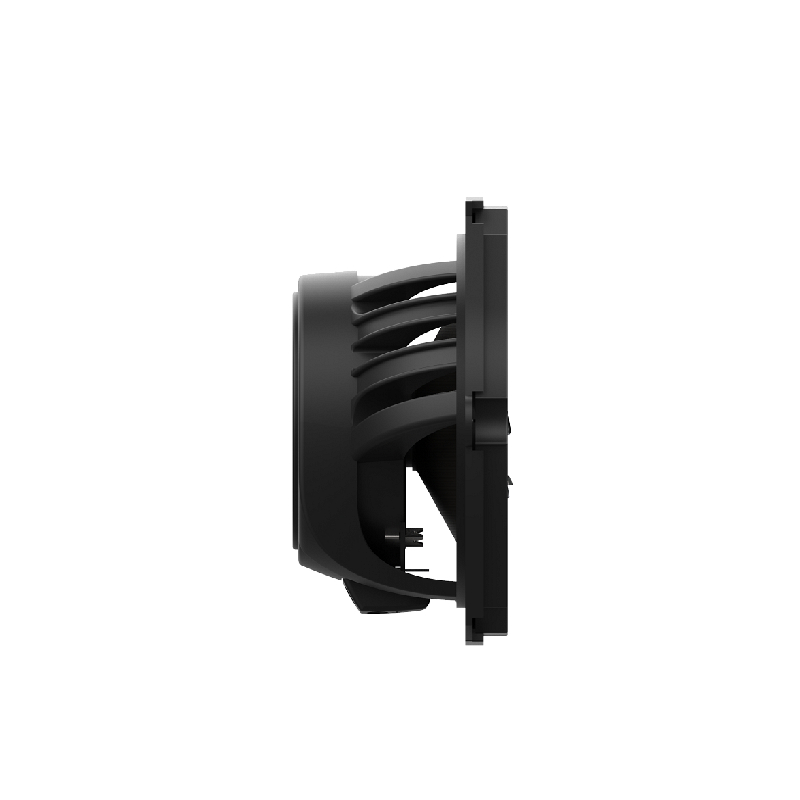

Infinity Kappa 683XF Kappa Series 100W RMS 2-Way Car Speakers
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?

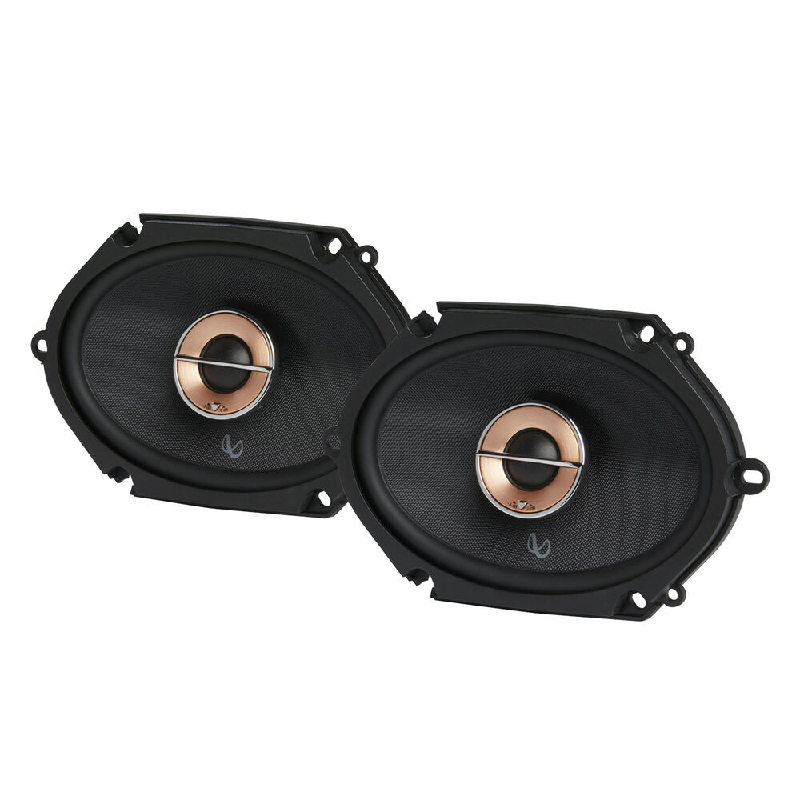

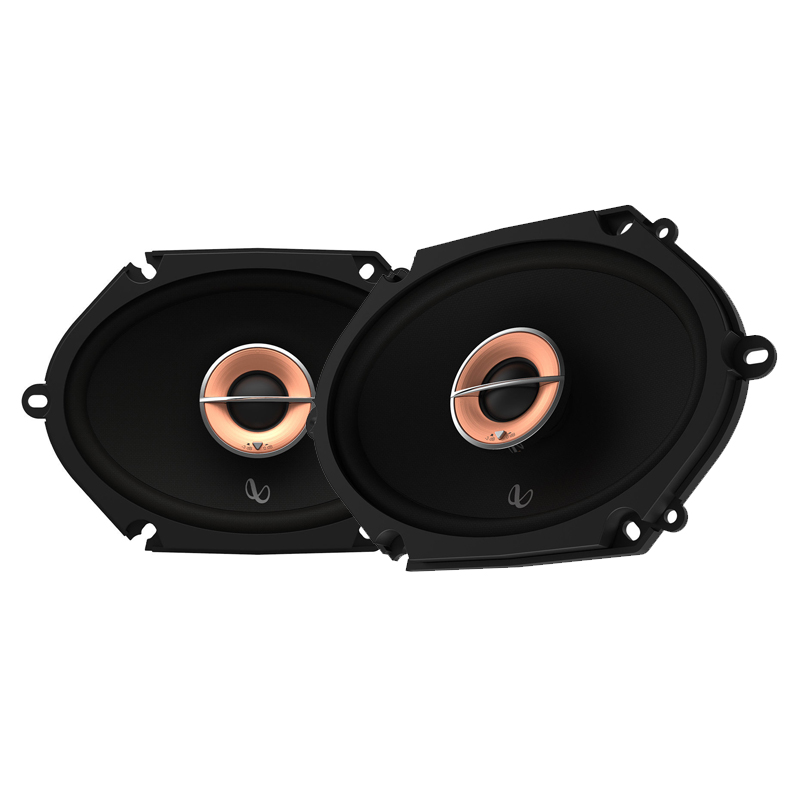

- •(2) 2-way speakers

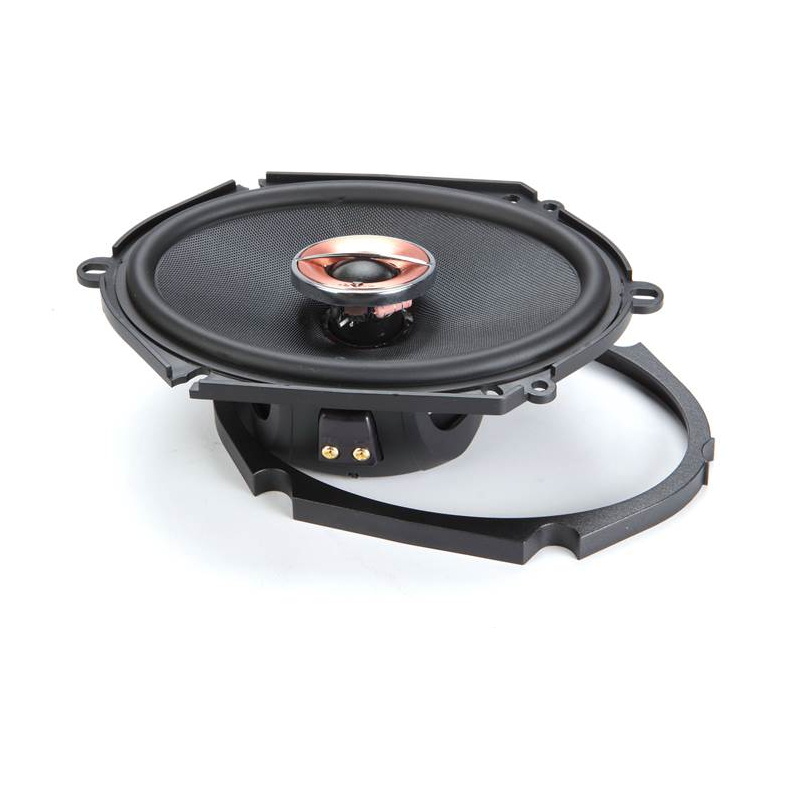

- •(2) Plastic adapter brackets
- •(8) 1-3/8" Screws
- •(8) Speed clipsv
- •(2) Adhesive backed foam gaskets
- •(2) Adhesive backed Infinity logo badges
- •Installation instructions
Patented Plus One™ Glass Fiber Woofers
The Infinity Kappa 683XF is a high-performance car audio speaker that delivers exceptional sound quality and clarity. Equipped with a 6"x8" Plus One+ woofer cone and an edge-driven soft dome tweeter, the Kappa 683XF produces powerful and precise sound reproduction. Its high power handling capability of 100 watts RMS ensures rich bass, detailed midranges, and crystal-clear highs, bringing your music to life with impressive depth and accuracy.
UniPivot Tweeter
The Kappa 683XF features advanced engineering and design elements that optimize sound performance. Its unique woofer cone design increases cone area, allowing for improved bass response and reduced distortion. The edge-driven textile dome tweeter delivers smooth, detailed high-frequency reproduction, ensuring a well-balanced sound signature.
SLI(Super Low Impedance) High Output design
The Kappa 683XF is designed for easy installation and compatibility with various vehicles. Its adaptable design fits into different car models, seamlessly upgrading your existing audio system. With its versatile mounting options and adjustable tweeter level control, you can customize the sound staging and achieve optimal audio imaging for your specific vehicle and listening preferences.
Completely Tuned
Built with high-quality materials, the Kappa 683XF is engineered for durability and longevity. Its rugged construction ensures reliable performance, allowing you to enjoy exceptional sound quality for years to come, even in challenging environments.
- Diameter : 6x8 Inch
- Sensitivity : 93 dB
- Impedance : 3 Ohm
- Frequency Response : 40-40000 Hz
- Peak Power Handling : 300 Watts
- Design : 2 Way
- RMS Power Handling : 100 Watts
Features:
- Plus One Woofer Cones: The Plus One speaker cones offer more surface area than other speakers that fit in the same size opening. This is accomplished by using a new basket design and hi-roll surround. The result is greater bass output and an increase in efficiency.
- Edge Driven Dome Tweeters: Each speaker has an edge-driven silk dome tweeter. Edge-driven tweeters have better dispersion characteristics and allow for a lower crossover frequency than typical tweeters of the same size, which improves imaging. The result is improved vocals and musical clarity. The tweeter also has an output level switch; choose +0 dB (flat) or -3 dB.

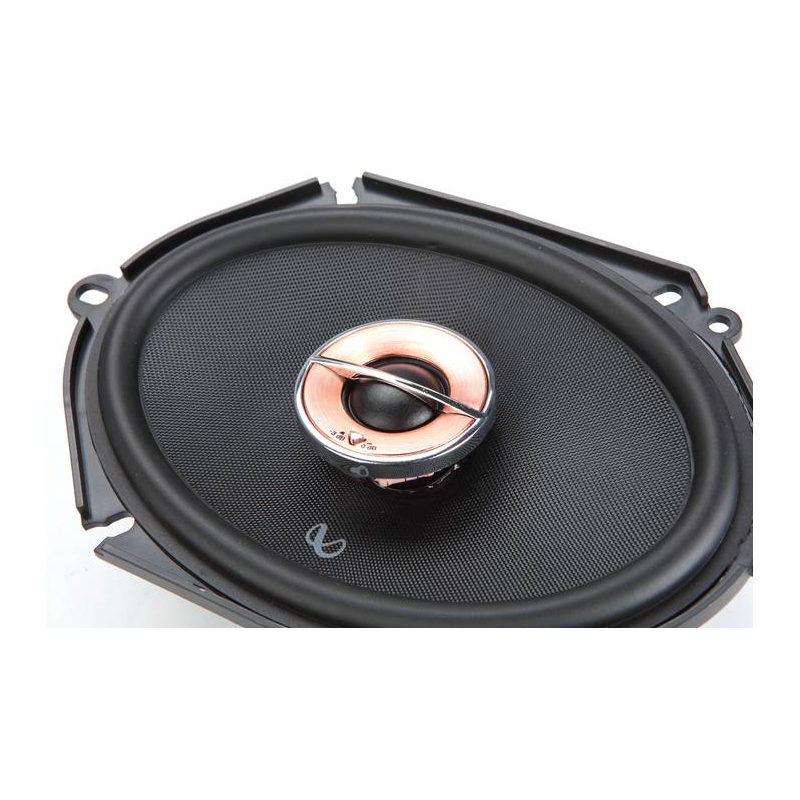

- UniPivot Tweeter: The tweeter is angled and can be rotated about 315° after installation. This allows you to direct the tweeters toward the listeners, very useful for speakers mounted low in a door.
- High-Output Design: The high output 3? voice coil design compensates for the high in-line resistance of small gauge factory wiring and extracts every watt from factory receivers, increasing overall system output and efficiency (relative to 4? speakers). The speakers also benefit from increased power when you upgrade the wire and add aftermarket amplifiers, designed to power a 3? load.

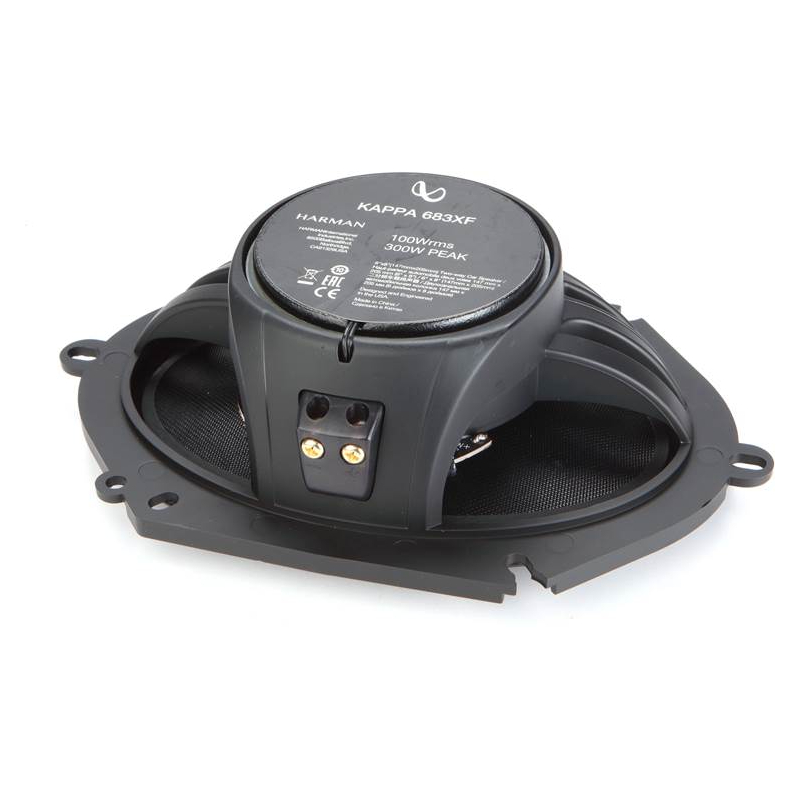

- Terminals: The input terminals are set screws that will accept up to 12 gauge bare wire.
- Mounting Applications: Infinity describes these speakers as 6x8, but they also fit many 5x7 applications. Please enter your vehicle information to confirm fit.
Specification:
- 6x8" Kappa Series 2-Way Car Speakers
- Power Handling:
- Peak: 600 watts per pair / 300 watts each
- RMS: 200 watts per pair / 100 watts each
- Recommended Minimum Power: 25-100 watts each
- Carbon Injected Glass Fiber cone material
- Plus One cone technology offers more cone area than other speakers in its class
- Rubber speaker surround
- 1" Soft Dome edge-driven Fabric tweeter construction
- Adjustable, 0 or +3dB push-button tweeter level attenuation control
- UniPivot tweeter allows you to aim the tweeter at the listener for better imaging
- High temperature voice coil reduces distortion
- Vented magnet and motor assembly cool the voice coil
- Gold-plated, screw-type speaker terminals for a secure connection
- Injected Carbon Glass Matrix (iCGM) speaker frames
- High-quality passive crossover components
- 3 ohms impedance
- Frequency response: 40-40,000 Hz

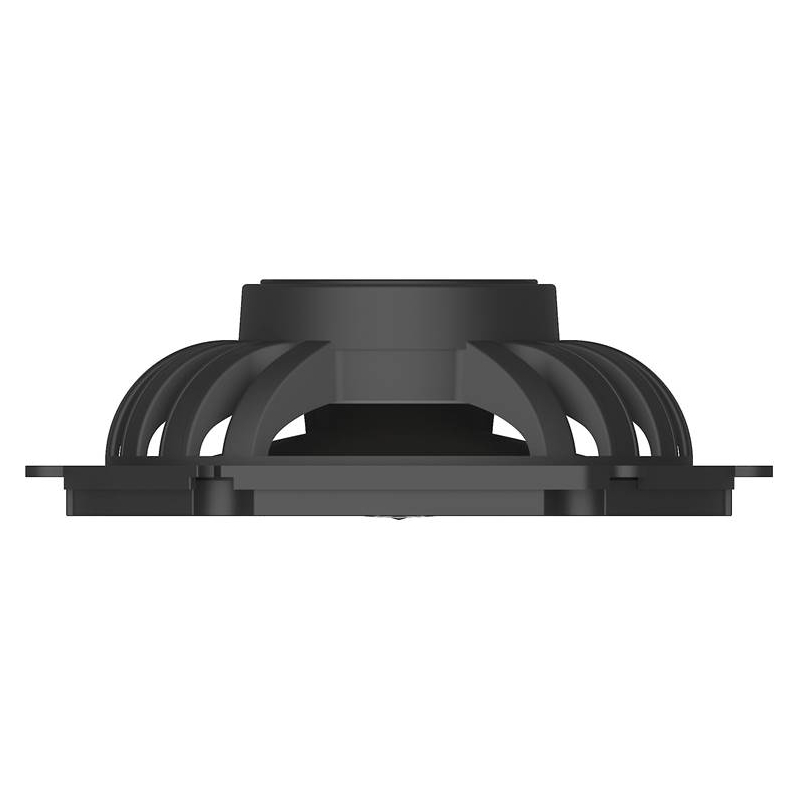

- Top-mount depth: 2-5/16"
- Sensitivity: 93dB
- UPC: 050667376970
- Weight: 8
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
