PCH Custom Audio  Civic Sound System

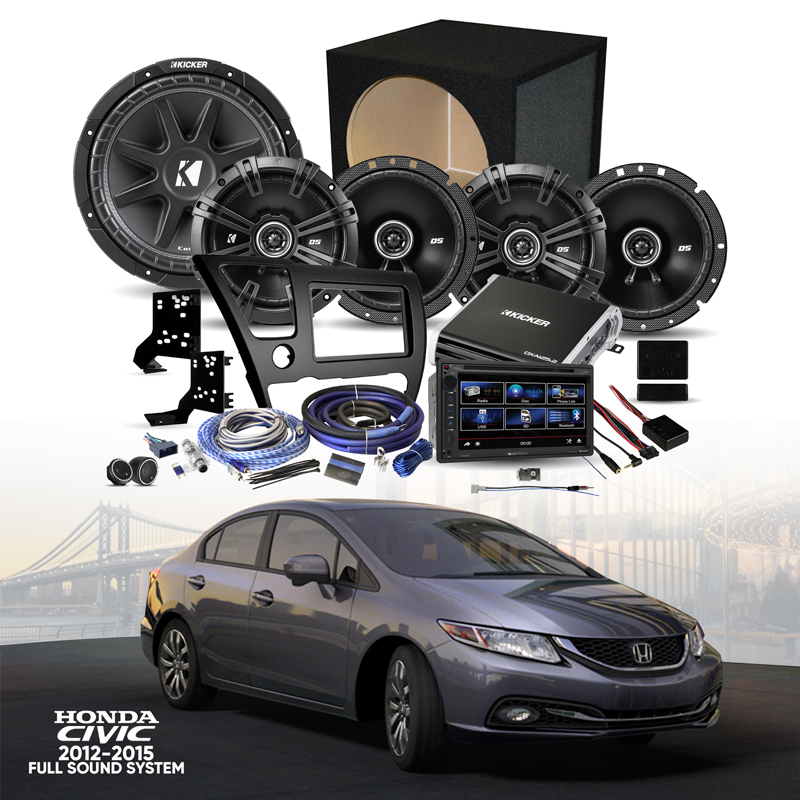

2012-2015 Honda Civic Full Sound System

Item #78563

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


Exclusive Bundle Banner for OCS

Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

PCH Custom Audio Civic Sound System 2012-2015 Honda Civic Full Sound System


Authorized Dealer Stamp

We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • •Soundstream VR-651B
  • •Two Pairs of Kicker 43DSC6504
  • •Kicker 43DXA1252
  • •Kicker 46CST204
  • •Kicker 43C124
  • •Ground Shaker SQ112-B
  • •XS Power AKXP4-1
  • •Metra 95-7882B
  • •Metra 70-1729
  • •Metra 40-HD11
  • •Axxess AXSWC
  • •Owner's Manual

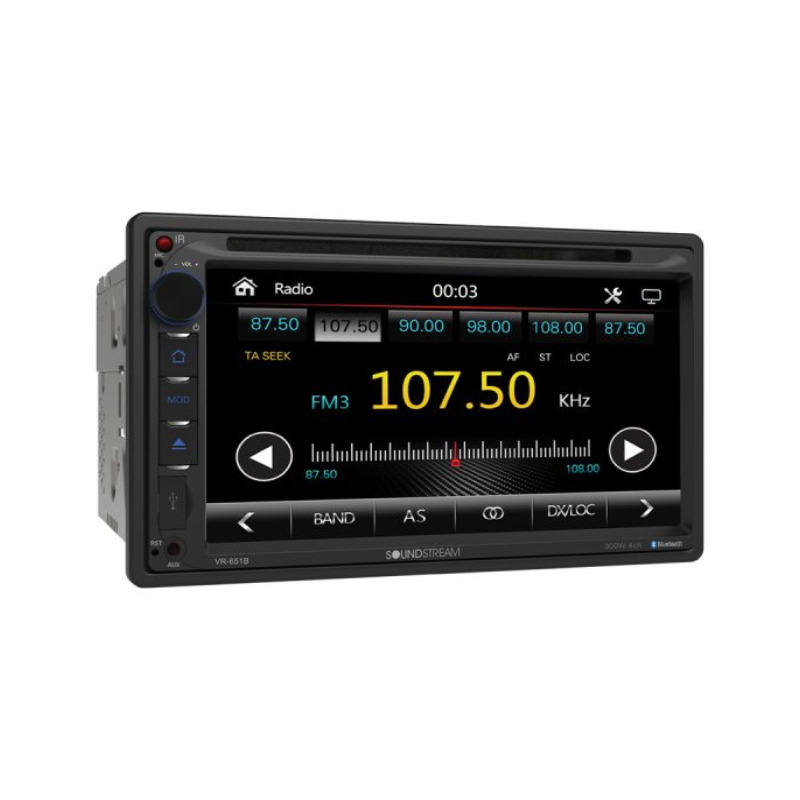

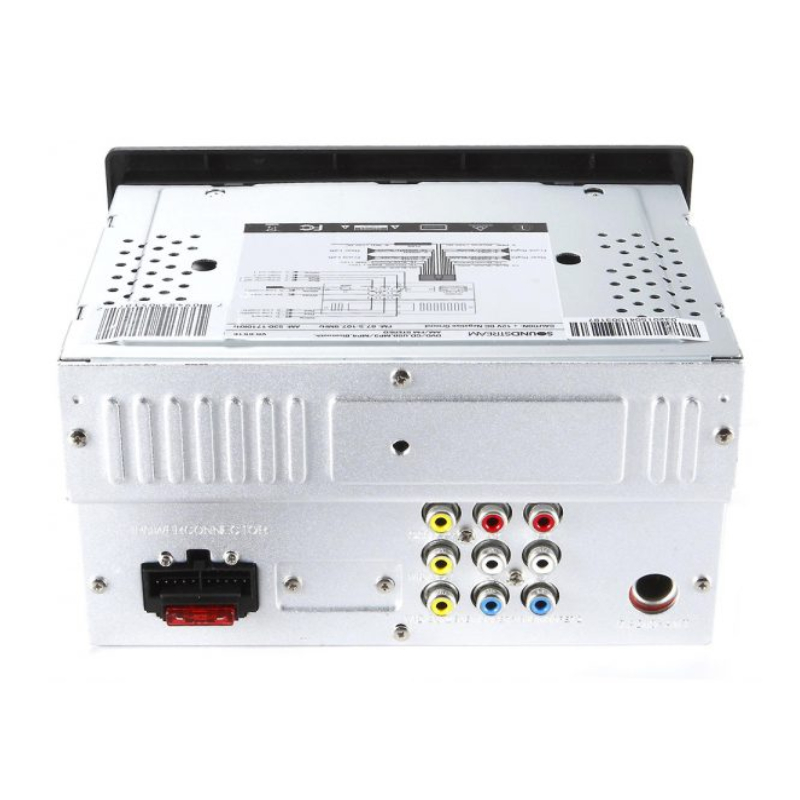

Soundstream VR-651B 2-DIN 7" DVD/CD Receiver with Bluetooth, Android PhoneLink Mirroring, Glass Resistive Anti-Glare Touchscreen

Android PhoneLink

VR-651B also includes Android MHL PhoneLink mobile device integration. PhoneLink enables complete control of select Android smartphones from the touchscreen. No special cables are required; use the charging cable that came with your device. Conveniently launch any application, play your own videos, and all other content. Your smart device display is mirrored to the head unit’s larger LCD screen via a simple USB connection. Android MHL PhoneLink ensures safe, hands-free operation of devices without distraction.

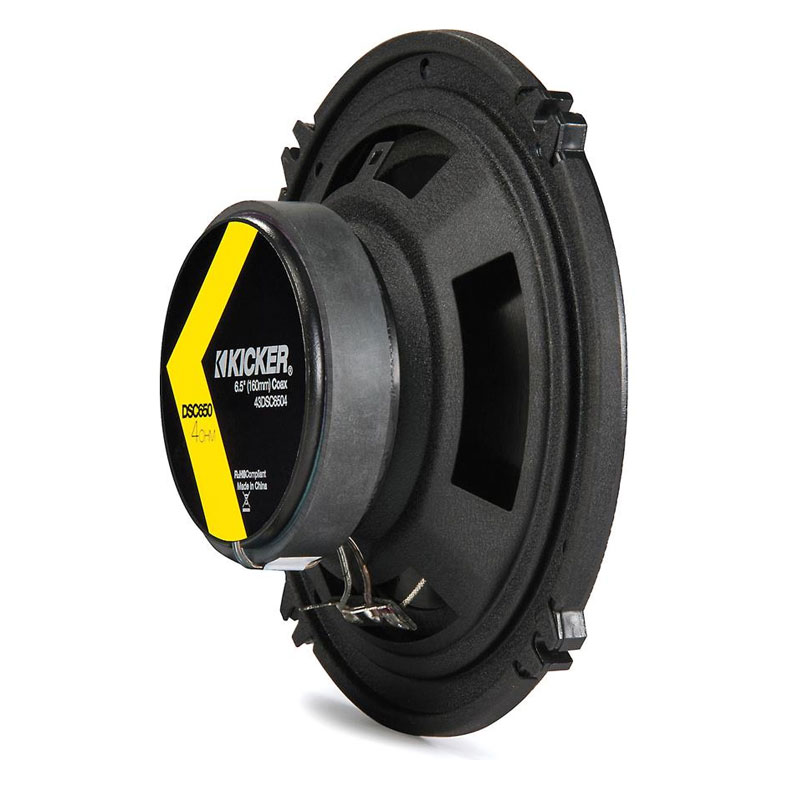

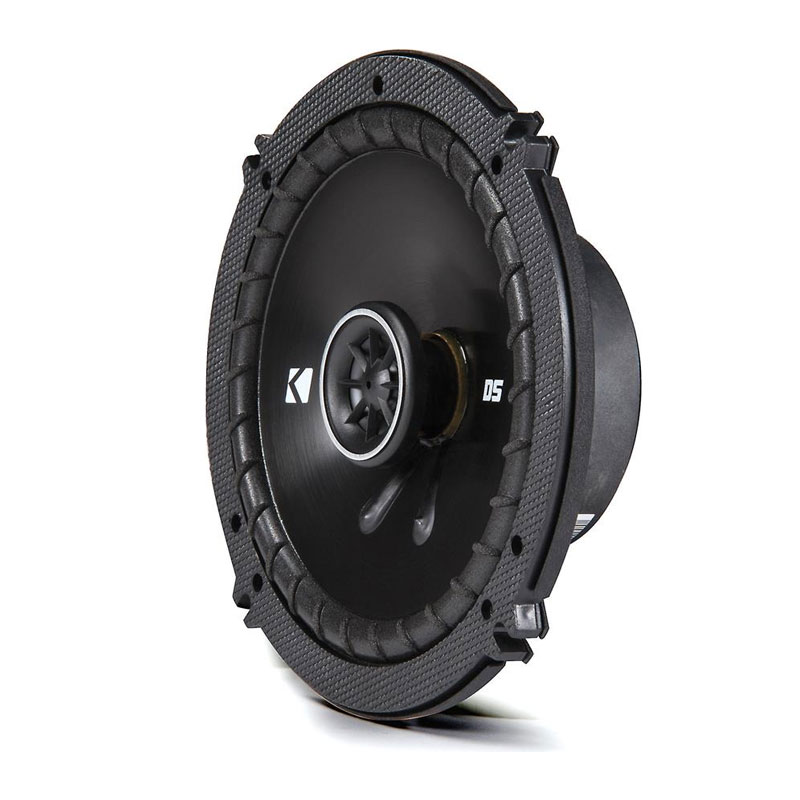

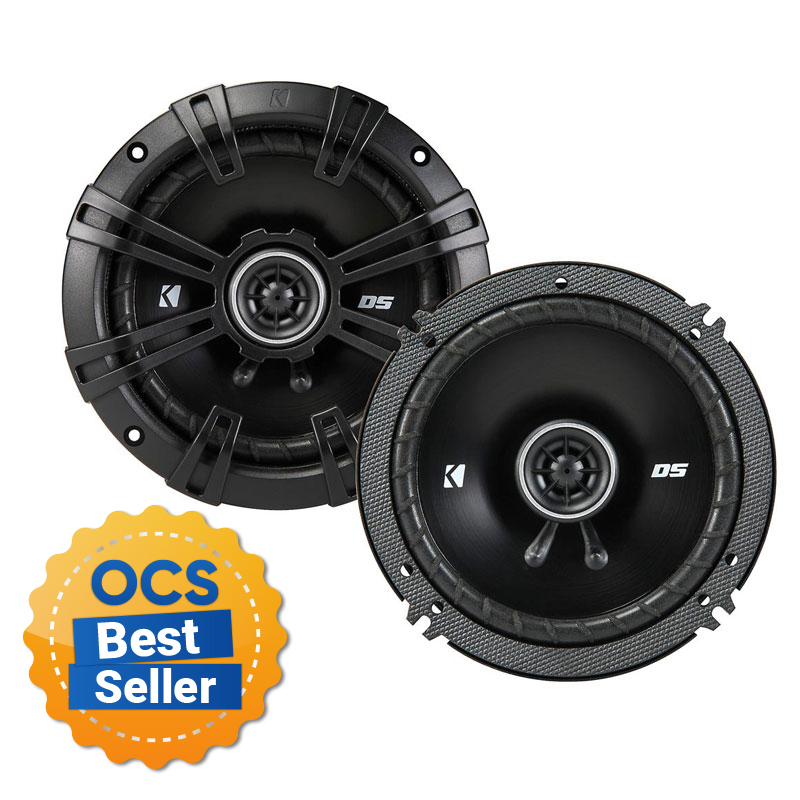

Kicker 43DSC6504 DS Series 6.5" 60W RMS (240W Peak Power Handling) 4 Ohms 2-way Full Range Car Speakers

2-Way Car Speaker

A 2-way car speaker that has the ability to deliver a dynamic and powerful sound that will be perfect for the acoustics inside your vehicle, the Kicker 43DSC6504 is an excellent option if you are looking to upgrade from your stock speakers without breaking the bank.

Kicker 43DXA1252 DX Series 60W x 2 RMS @2Ohms, 250W Max Power Class A/B 2-Channel Amplifier

IT'S FIT™

DX-Series amps come loaded with FIT™ (Fail-Safe Integration Technology) circuitry for superior clarity and a wiring flexibility. Wire a KICKER amp directly to your factory radio – no special plugs or converters needed.

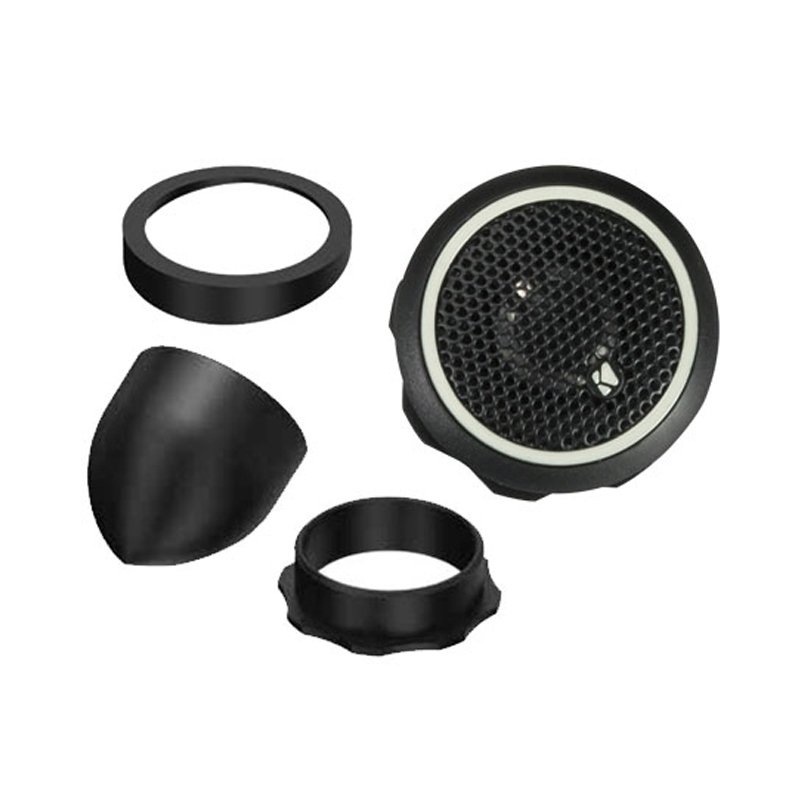

Kicker 46CST204 CS Series 3/4" 50W RMS (150W Peak Power Handling) 4 Ohms Titanium Dome Tweeters

Designed to Reproduce Your Audio Car System

The Kicker 46CST204 is a 0.75-inch titanium dome tweeter designed to reproduce your audio car system with high-quality sound. It features a 4-ohm impedance, a frequency response range of 4,500 to 21,000 Hz, and a sensitivity rating of 92 dB, making it capable of producing clear and accurate sound across a wide range of frequencies.

Kicker 43C124 Comp Series 12" 150W RMS (300W Peak Power Handling) 4 Ohms Car Subwoofer

High-quality Subwoofer Designed

The Kicker 43C124 is a high-quality subwoofer designed to deliver powerful and accurate bass to your car audio system. With its solid construction and impressive specifications, this subwoofer enhances your audio experience.

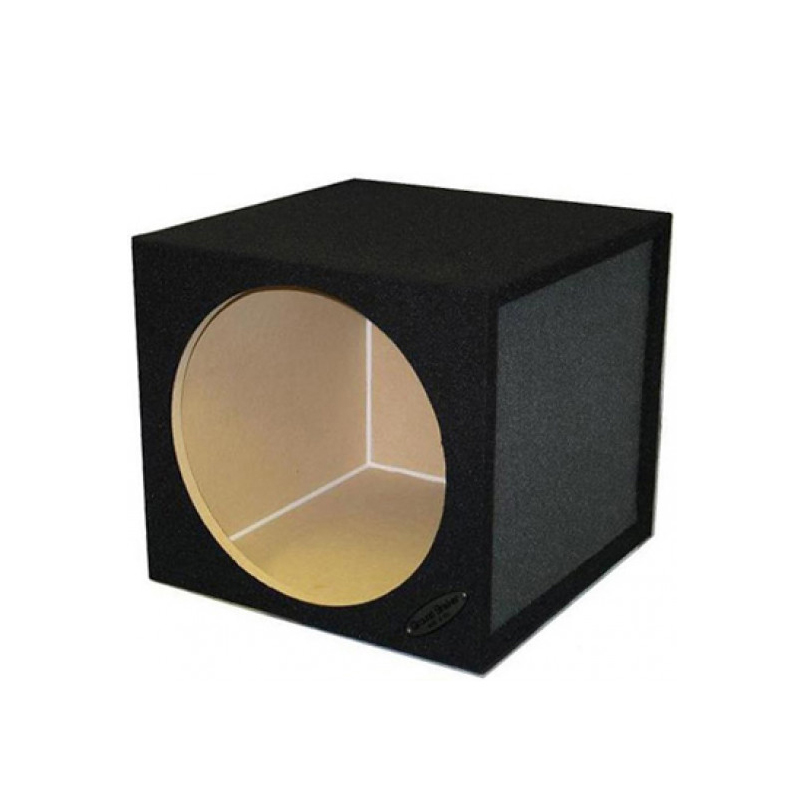

Ground Shaker SQ112-B Black 12" Single Mid-Size Sealed Sub Box

Unveiling Powerful Sound

Introducing the incredible Ground Shaker SQ112-B! This impressive product is designed with meticulous attention to detail, featuring a sleek black design that complements its powerful performance. With a generous 12-inch single mid-size sealed sub box, this speaker system delivers exceptional sound quality and depth, ensuring an immersive audio experience that elevates your music or entertainment. Its precisely engineered enclosure is crafted to optimize sound resonance and clarity, guaranteeing that every beat and note is delivered with precision and impact. Whether you're a music enthusiast or an audiophile seeking premium sound, the Ground Shaker SQ112-B is the ultimate choice for those who demand nothing but the best from their audio systems.

XS Power AKXP4-1 Amp Kit, XP Flex 4 AWG, Power Cable, Speaker Cable, Signal and Remote

Effortless Installation Guide

This kit is designed to help you correctly and safely install your new XS Power or other aftermarket Powercell. The kit was designed with the installer in mind, and can be completed with very few tools and requires no wire crimping if the directions are followed correctly. Please see the steps below that will help to facilitate a fast, safe and easy installation of your new battery and cables.

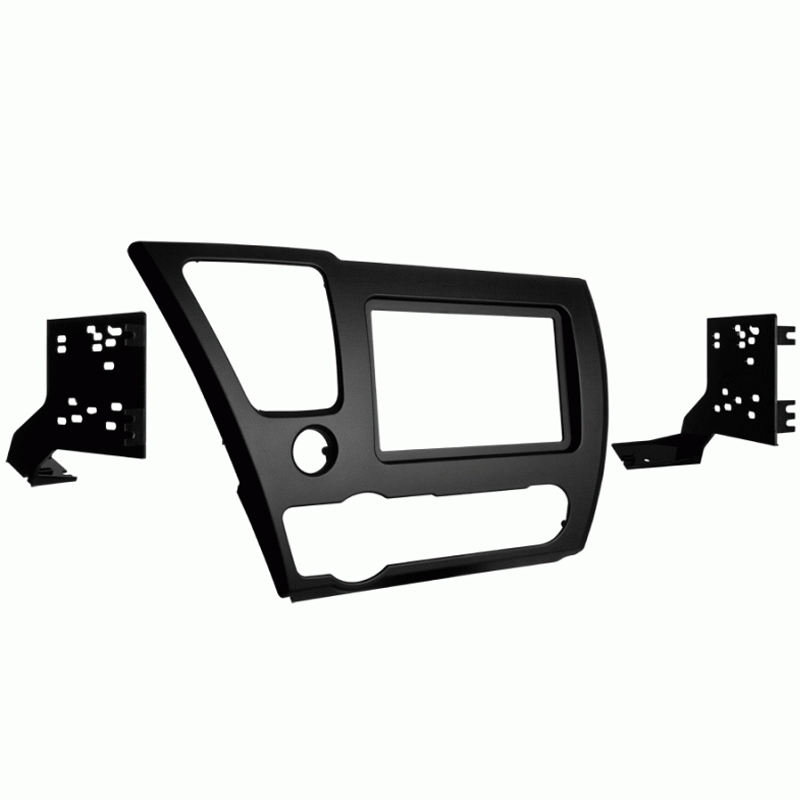

Metra Electronics 95-7882B Honda Civic 2013-2015 Dash Kit

Match the Original

This stereo installation kit is engineered to help you install an aftermarket 4" tall (Double-DIN) radio into the original vehicle dashboard. This dash kit helps make radio replacement simple and is painted silver to match the original look and feel of the vehicle's dashboard.

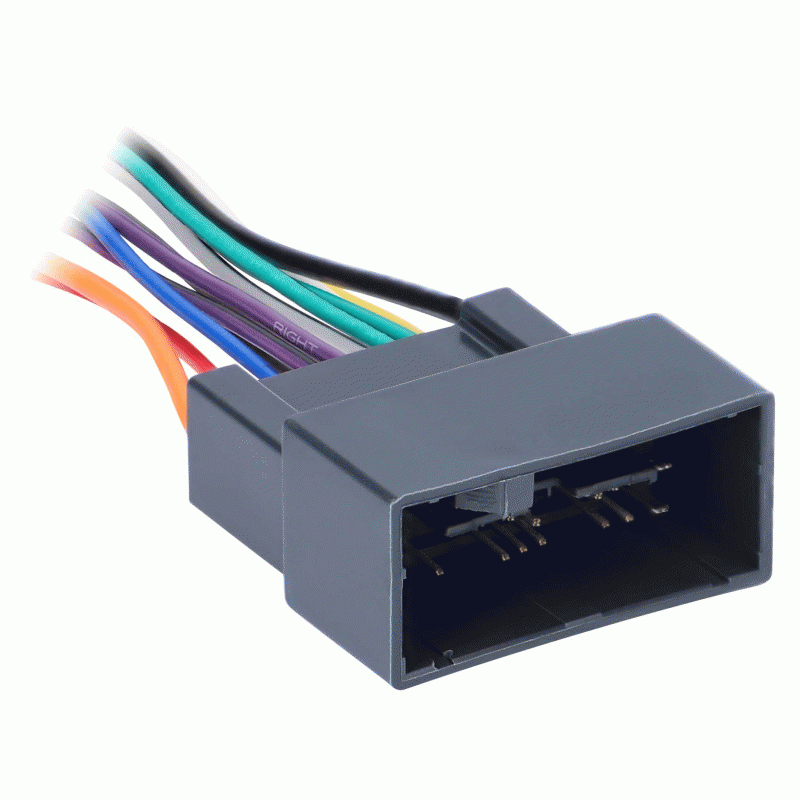

Metra Electronics 70-1729 Honda Accord 08-Up

Wiring Harness Designed

The Metra Electronics 70-1729 is a wiring harness designed to simplify the installation of an aftermarket car stereo in select Honda vehicles. It eliminates the need for cutting and splicing wires, making installation quick and easy.

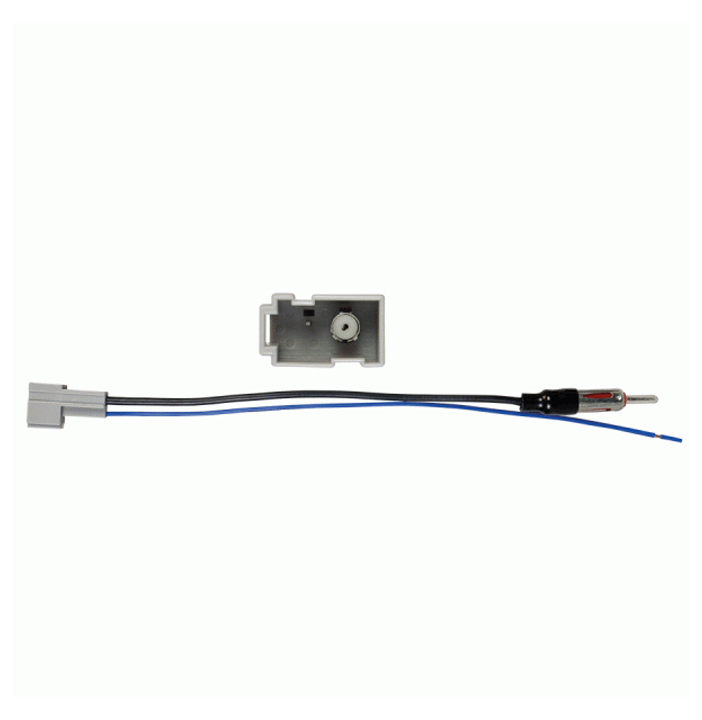

Metra Electronics 40-HD11 Honda Antenna Adapt Cable 2009-Up

Simple Yet Necessary Cable

If you are replacing the radio in your vehicle, this antenna cable adapter ensures that you can continue to use your factory antenna. It is a simple yet necessary cable that adapts the vehicle’s original antenna cable to plug into an aftermarket radio with a male Motorola™ connector and a blue wire lead on one end and a female Honda-style snap-lock antenna connector on the other.

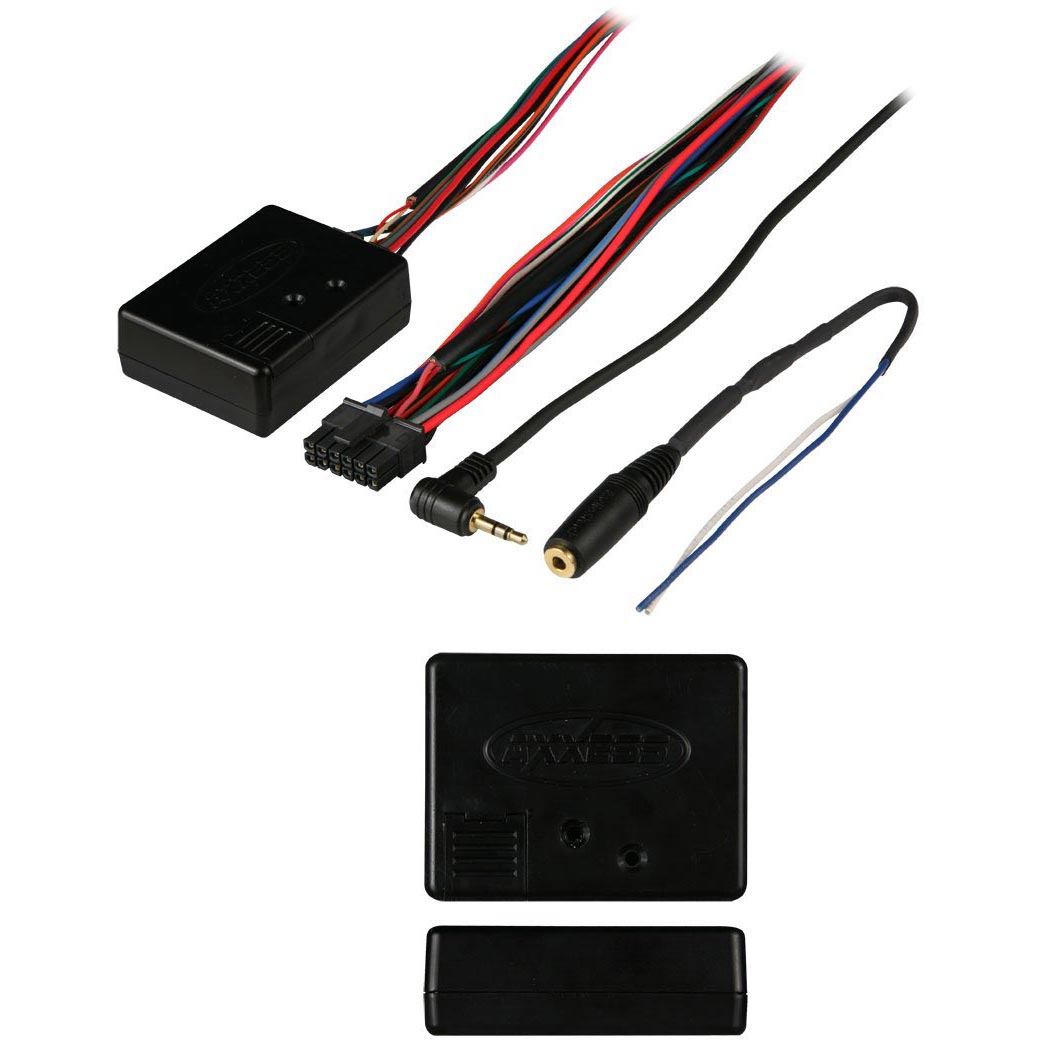

Axxess AXSWC Universal Steering Wheel Control Interface

Steering Wheel Control Harness

This wiring harness allows you to connect various electrical components of a car to the steering wheel. It is typically used to connect a hands-free device such as a Bluetooth headset, or a car stereo system, to the steering wheel. This harness is designed to provide a secure connection that ensures the electrical components are securely connected to the steering wheel.


SPECIFICATIONS


  • Vehicle Make : Honda
  • Vehicle Model : Civic

FEATURES


What's Included?

  • Soundstream VR-651B
  • Two Pairs of Kicker 43DSC6504
  • Kicker 43DXA1252
  • Kicker 46CST204
  • Kicker 43C124
  • Ground Shaker SQ112-B
  • XS Power AKXP4-1
  • Metra 95-7882B
  • Metra 70-1729
  • Metra 40-HD11
  • Axxess AXSWC

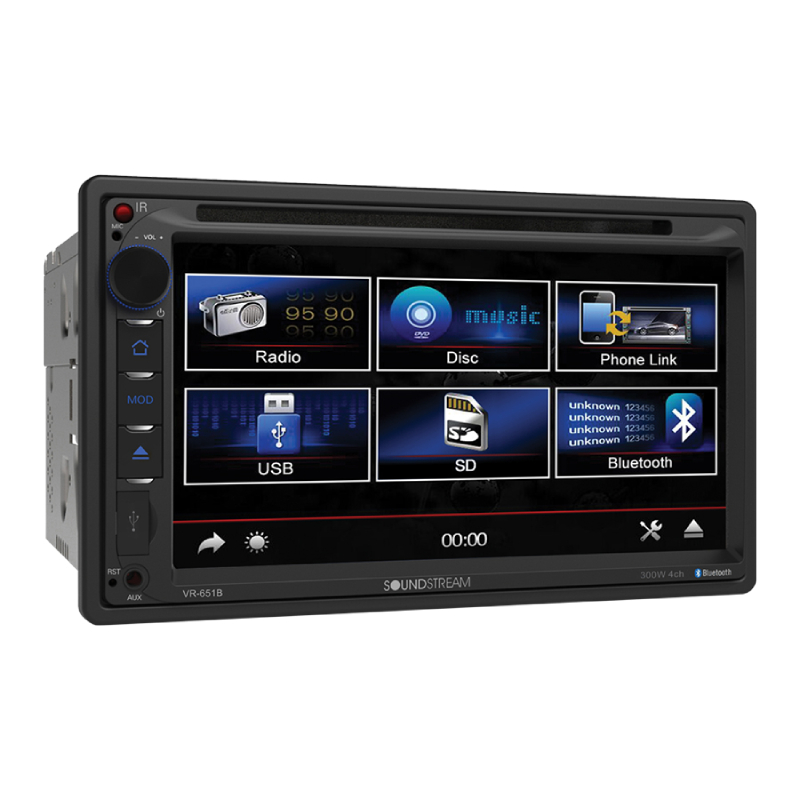

VR-651B 6.5" DVD Receiver with Bluetooth

Features:

  • Accepts Farenheit OEM & Steering Wheel Control Interface
  • Bluetooth V2.0 Hands Free Calling From Enabled Devices
  • A2DP Wireless MP3 Audio Playback From Enabled Devices
  • Playback from DVD & CD of MP3 & MP4
  • Playback from 32GB SD/USB of MP3 & MP4
  • ID3 MP3 Tag Reading for Track & Artist Information
  • AUX A/V Input for Personal Media Devices
  • Dual Zone for Rear Seat or Overhead Entertainment
  • Front & Rear Pre-Amp Audio Outputs
  • Fixed 80Hz Subwoofer Output
  • Video Output for Auxiliary Devices
  • Rear View Camera Input w/ Trigger
  • 52w x 4 MOSFET Speaker Outputs
  • Custom & Preset Equalizer Settings
  • Multi-Region FM Frequency Stepping
  • 480x243 Widescreen Resolution
  • 400 NIT LED Brightness

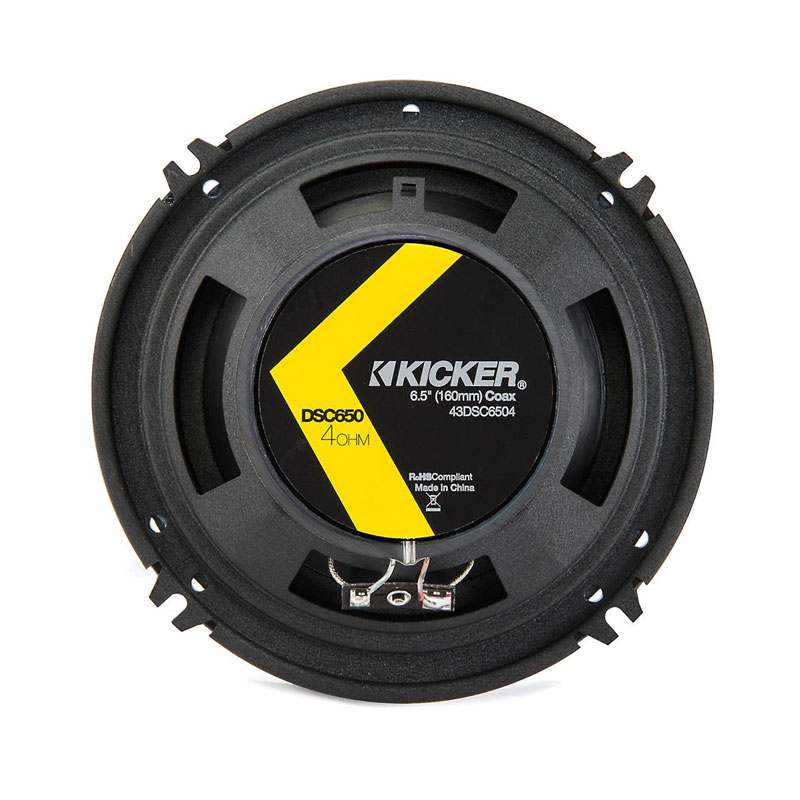

(2) 43DSC6504 DS Series 6-1/2" 240 watts peak power 4 ohms 2-way car speakers

Specifications:

  • Woofer Surround: Polyester Foam
  • Tweeter Composition: PEI
  • Tweeter Design: 1/2" Balanced Dome
  • Sensitivity: 90 dB at 1 watt
  • Peak Power Handling (Watts): 240
  • RMS Power Range (Watts): 60
  • Design: 2-way
  • Cutout Diameter or Length (inches): 4 7/8
  • Impedance (Ohms): 4
  • Woofer Composition: Polypropylene
  • Frequency Response: 40 - 20k Hz
  • Top-mount Depth (Inches): 1 13/16
  • Bottom-mount Depth (Inches): 2 3/16

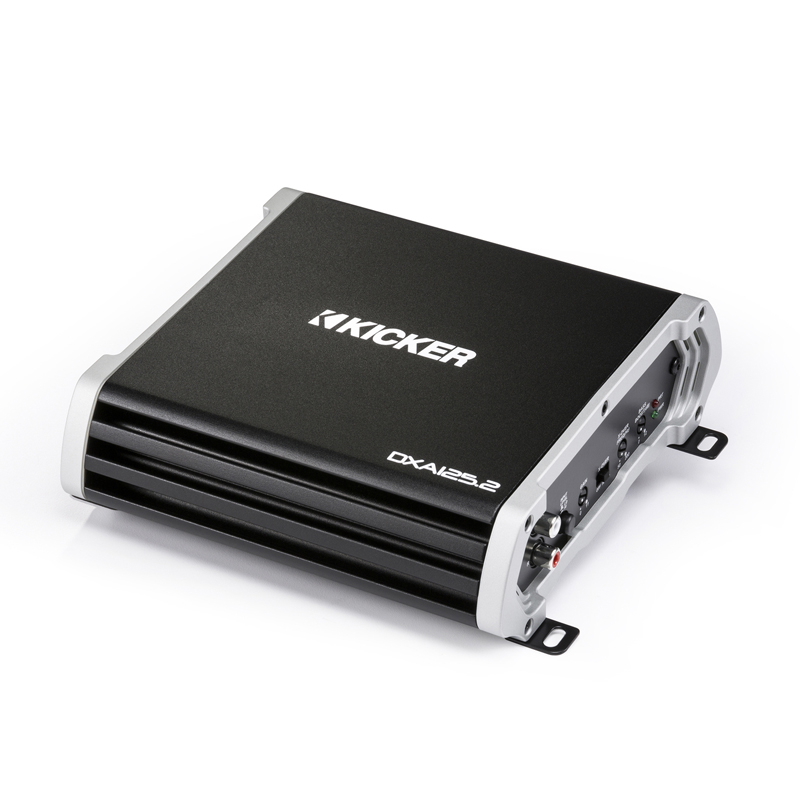

43DXA1252 DX Series 250W Peak Power Class A/B 2 Channel Amplifier

Specifications:

  • Series: DX Series 2-Channel Amp
  • RMS Power @ 4 ohms stereo 14.4V: 30 x 2
  • RMS Power @ 2 ohms stereo 14.4V: 60 x 2
  • RMS Power @ 4 ohms mono 14.4V: 125 x 1
  • Max Power Output: 250W x 1 ch.
  • Input Sensitivity (Low): 125mV -5V
  • Input Sensitivity (High): 250mV-10V
  • Frequency Response: 10-20000Hz
  • Signal-to-Noise Ratio (dB): >95, A-weighted, re: rated power
  • Subsonic Filter: 24dB @ 25Hz
  • KickEQ™ Bass Boost: 0-12 dB @ 40Hz
  • Electronic Crossover: HI, LO or OFF: 50-200Hz, 12 dB/octave

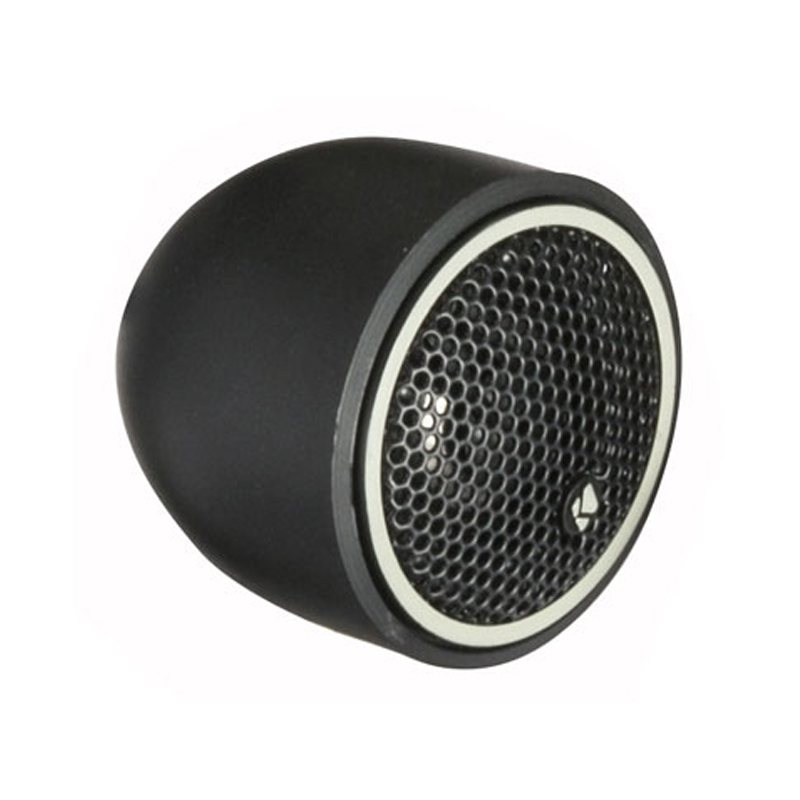

46CST204 CS Series 3/4" Titanium Dome Tweeters with Crossover System 4-Ohm Impedance

Specifications:

  • Tweeter [in,mm]: 3/4, 20
  • Dome Material: Titanium
  • Rated Impedance: 4 ohms
  • Peak Power Handling [Watts]: 100
  • Continuous Power Handling [Watts RMS]: 50
  • Sensitivity [1W, 1m]: 92
  • Frequency Response (Hz): 4500-21k
  • Flush Mount Tweeter Depth [in, mm]: 9/16, 14.5
  • Flush Mount Tweeter Hole Diameter [in, mm]: 1-9/16, 40
  • High Pass [dB], at Frequency [Hz]: 6, 4500

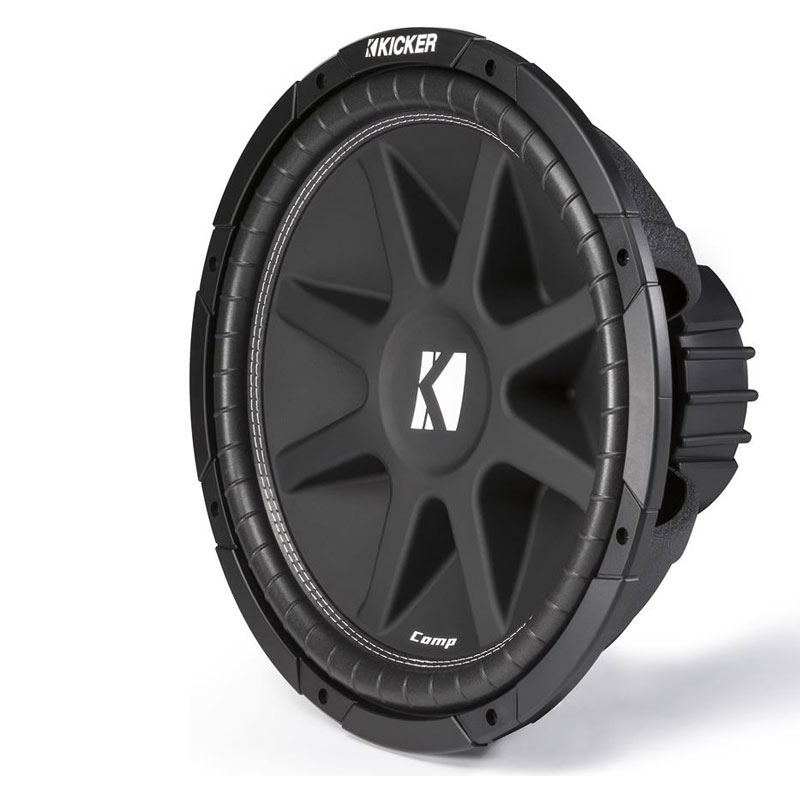

43C124 Comp Series 12" 300W Peak Power 4-ohm subwoofer

Specifications:

  • Vas (liters): 95.18
  • Cone Material: Polypropylene
  • Port diameter (inches): N/A
  • Peak Power Handling (Watts): 300
  • Sensitivity 88.3 dB at 1 watt
  • Port length (inches): N/A
  • Size: 12 -inch
  • Top Mount Depth (inches): 5 3/4
  • Frequency Response: 27 - 500 Hz
  • Impedance: 4 ohms
  • RMS Power Range (Watts): 70-150
  • Ideal Sealed Box Volume (cubic feet): N/A
  • Surround Material: Foam
  • Ideal Ported Box Volume (cubic feet): N/A
  • Free-Air: No
  • Dual Voice Coil: No
  • Bottom Mount Depth (inches): N/A
  • Cutout Diameter or Length (inches): 11
  • Fs (Hz): 30
  • Qts: 0.559
  • Xmax (millimeters): 10.3



SQ112-B Black 12" Single Mid-Size Sealed Sub Box

Specifications:

  • Cutout Diameter: 11 1/8"
  • Total Air Volume: 1.20 Cubic Ft.
  • Weight:  22 Lbs.
  • Mounting Depth: 12 1/2"



Dimensions:

  • Height: 13 1/2”
  • Length: 17 1/4"
  • Depth: 13 1/2”



Construction:

  • 11/16" High Density Mdf Wood
  • Carpeted With Durable Trunk Liner Finish
  • Sealed With High Quality Silicone
  • 1-spring Loaded Terminal

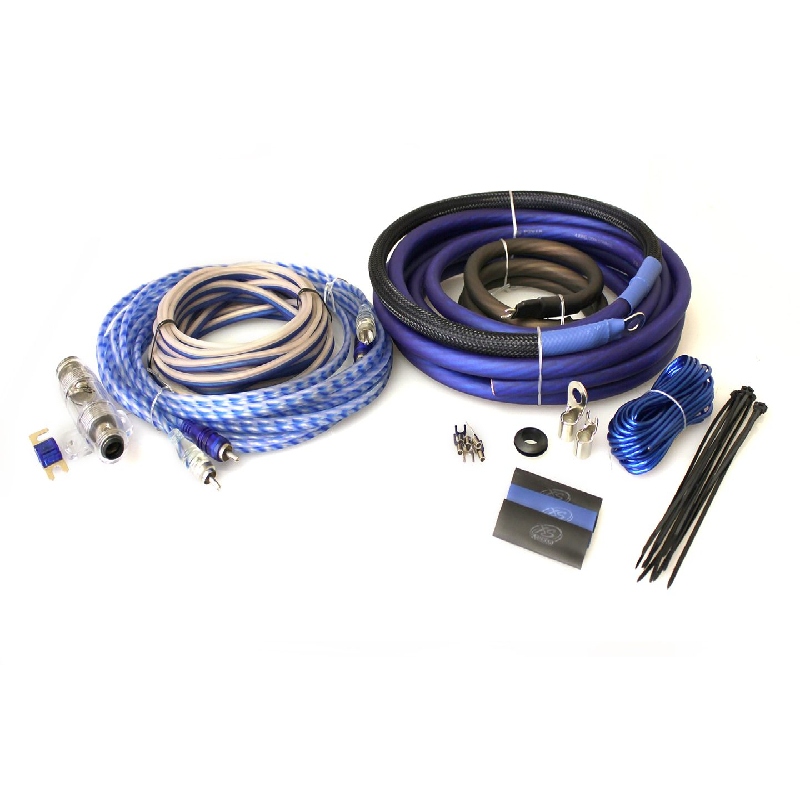

AKXP4-1 Amp Kit, XP Flex 4 AWG, Power Cable, Speaker Cable, Signal and Remote

Specifications:

  • Weight Lbs. – 3.25
  • Weight Kgs. – 1.47
  • Length – 9.75 in
  • Height – 11 in
  • Width – 2.5 in



Kit Contents:

  • 1qty - 17ft 4AWG XPFLEX BL Cable
  • 1qty - 3ft 4AWG XPFLEX BK Ground Cable
  • 1qty - 17ft 18G BL Remote Cable
  • 1qty - 17ft 16G Clear Speaker Wire
  • 1qty - 17ft High Grade Twisted Pair RCA Cables
  • 1qty - Mini ANL Fuse Holder
  • 1qty - 60A ANL Fuse
  • 2qty - Plaite Braid Tube in BK
  • 2qty - 4AWG Ring Terminal/Seamless/BL
  • 2qty - 4AWG Spade Terminal/BK
  • 2qty - 16G Spade Terminals/BK
  • 3qty - 16G Spade Terminals/BL
  • 1qty - 1/2" Firewall Grommet
  • 10qty - 6" Zip Ties



95-7882B Honda Civic 2013-2015 Dash Kit

Features:

  • ISO DDIN radio provision
  • Painted matte black



Wiring and Antenna Connections:

  • Harness
    • 70-1729 (sold separately)
    • 70-1730 (sold separately)
  • Antenna Adapter
    • 40-HD11 (sold separately)

*Note: This Kit Will Not Retain the i-MID Display*





70-1729 Honda Accord 08-Up

  • Plugs into Car Harness at radio
  • Vehicle Applications:
    • Honda 2008-up
    • Refer to Vehicle Application Chart for specific vehicle applications

40-HD11 Honda Antenna Adapt Cable 2009-Up

  • Honda factory antenna cable to aftermarket radio



AXSWC Universal Steering Wheel Control Interface, Works with Many Popular Aftermarket Receivers - NEW MODEL that replaced the ASWC-1

Features:
  • One Interface does it all – No additional interfaces needed
  • Designed to be compatible with all major radio brands
  • Auto detects (1) vehicle type, radio connection, and presets controls
  • Ability to dual assign steering wheel control buttons
  • Can be manually programmed for most vehicles
  • Retains settings even after battery disconnection or interface removal
  • All connections done at the radio location
  • Micro “B” USB updatable
  • UPC: 798418841932
  • Weight: 50
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
