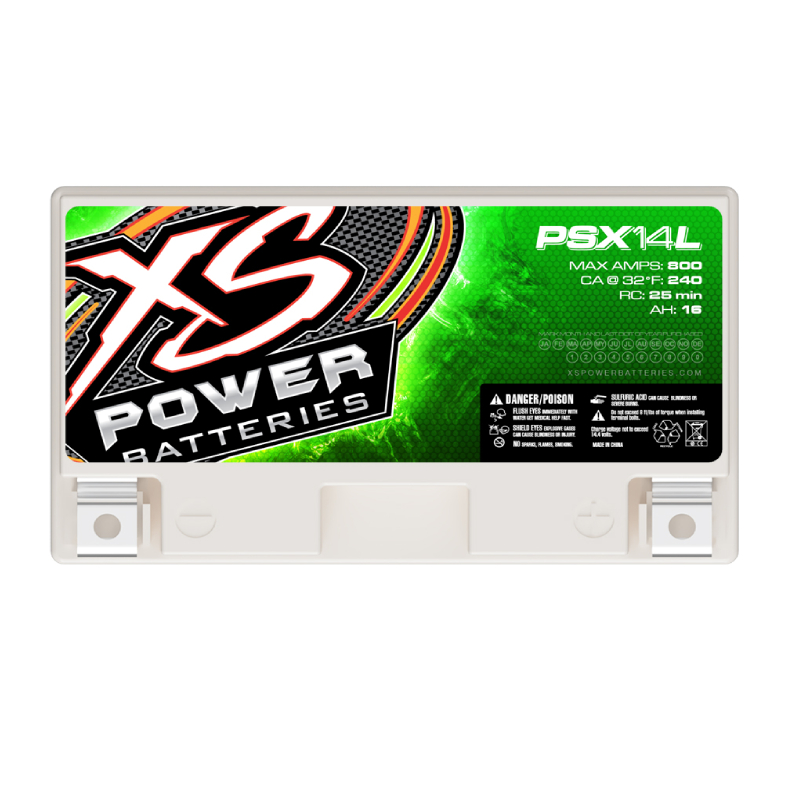

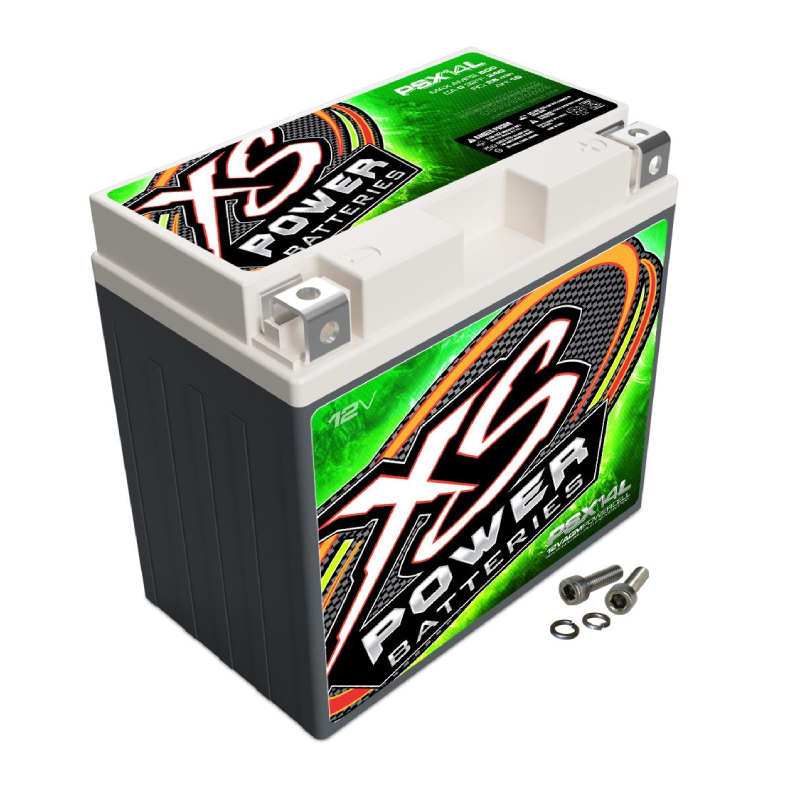

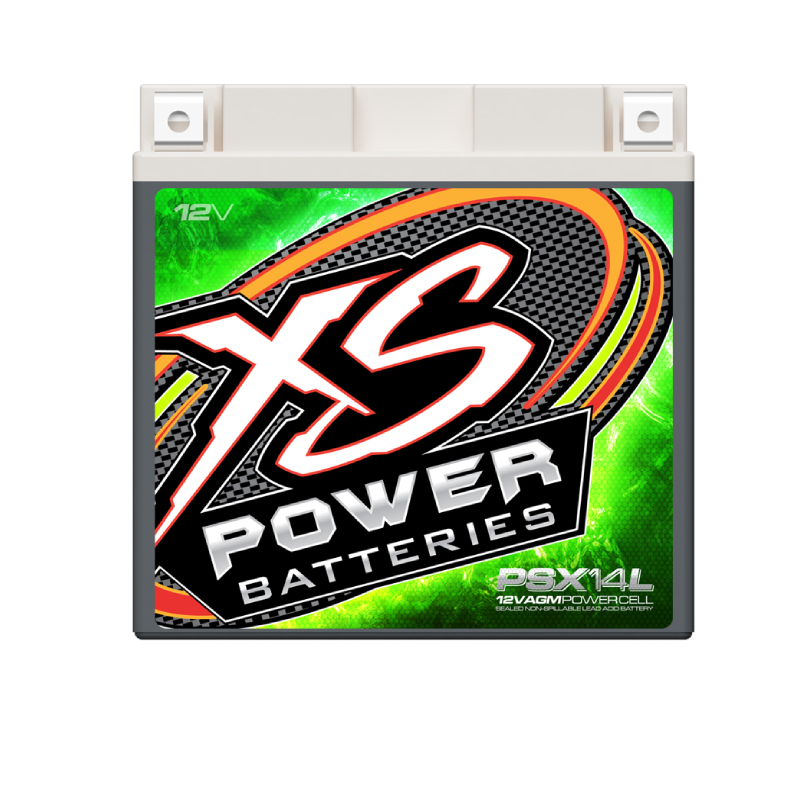

XS Power PSX14L 12V AGM Battery, Max Amps 800A, CA: 240, Ah: 16
We are a XS Power authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 12V Super Capacitor Bank
- • Owner's Manual
High-Capacity 12V Super Capacitor Bank
The XS Power PSX14L, a 12V AGM battery, provides reliable power for a wide range of applications. With a maximum current output of 800A, a cold-cranking amp rating of 240, and an ampere-hour capacity of 16Ah, it ensures dependable performance, even in cold weather, and is well-suited for various uses.
Frequently Asked Questions (FAQ)
- • Why did my motorcycle audio keep cutting out with the old battery?
One verified PSX14L customer reported that their previous battery would cut out whenever their custom motorcycle audio system demanded too much power. After switching to the PSX14L, they reported louder, cleaner audio with no more cutouts.
- • Could the PSX14L be physically smaller than the battery I am replacing?
Yes. The PSX14L is a compact Group 14L battery measuring about 5.91 × 3.43 × 5.79 inches and weighing 10.6 pounds. Its small footprint can be helpful in tight powersports compartments, but the tray and terminal position should still be checked before installation.
- • Why don't my factory battery cables immediately connect to the PSX14L?
The PSX14L includes M6 terminal hardware rather than relying on every vehicle's original cable arrangement. XS Power also offers brass post adapters for clamp-style installations, which can solve compatibility problems when the factory cable ends do not match the supplied terminals.
- • Can a small 16Ah battery really support several aftermarket accessories?
The PSX14L is rated at up to 800A maximum current and is designed for accessories such as light bars, winches, power inverters, and audio equipment. However, its 16Ah capacity means sustained accessory use can still drain it quickly if the charging system cannot replenish the energy being consumed.
- • Why might my PSX14L fit the tray but still need repositioning?
Battery-case dimensions alone do not determine whether an installation will work. The terminal location, cable direction, hold-down clearance, and surrounding components can all affect the final fit, so the complete installation area should be measured before replacing the original battery.
- • What could cause the PSX14L to become weak after repeated accessory use?
Although the AGM design supports deep-cycle applications, repeated heavy discharge without adequate recharge can eventually reduce available performance. With only 25 minutes of reserve capacity, the PSX14L should not be expected to power high-draw accessories indefinitely with the engine or charging system inactive.
- • Is vibration still something I need to consider with this sealed AGM battery?
Yes. The PSX14L is built with a sealed AGM construction and a vibration-resistant case for powersports environments, but the battery should still be firmly secured. A loose battery can put unnecessary stress on the case, terminals, and connected cables during repeated off-road impacts.
- • Why might the PSX14L have enough starting power but not enough reserve for my accessories?
Starting power and stored energy are different measurements. The PSX14L can deliver up to 240 cranking amps while providing 16Ah of capacity and a 25-minute reserve, so it can start an engine strongly without being designed as a large long-duration power source.
- • Could the wrong charging conditions reduce the PSX14L's performance?
Yes. XS Power specifies a charging-temperature range of 5°F to 120°F (-15°C to 50°C), so charging conditions matter when the battery is used in very cold or very hot environments. Proper AGM charging helps preserve the battery's available capacity and service life.
- • Why should I check the battery orientation before ordering a PSX14L?
The PSX14L is a specific Group 14L configuration, so matching only the voltage is not enough. Physical dimensions, terminal placement, cable reach, and hold-down arrangements should all correspond to the intended vehicle before purchase to avoid an installation that requires unexpected modifications.
Features:
- 12V AGM Battery: The XS Power PSX14L is a 12V AGM battery, reliable for various applications.
- Maximum Current Output: Capable of delivering up to 800A for ample power.
- Cold Cranking Amps (CA): Offers a CA rating of 240 for dependable cold-weather performance.
- Ampere-Hour Capacity (Ah): With a 16Ah capacity, it suits a variety of uses.
Specifications:
- Length – 5.91 in
- Height – 5.79 in
- Width – 3.43 in
- MAX Amps – 800
- CA – 240A
- RC – 25min
- Ah – 16
- M6 Terminal Hardware Included
- UPC: 692209053316
- Weight: 10.6
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
