PCH Custom Audio  RAM 1500 Full Sound System

RAM 1500 2002-2009 Full Sound System

Item #78575

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


Exclusive Bundle Banner for OCS

Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

PCH Custom Audio RAM 1500 Full Sound System RAM 1500 2002-2009 Full Sound System


Authorized Dealer Stamp

We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • •Alpine iLX-W650
  • •Kicker 46CSS694
  • •Kicker 46CSC654
  • •Kicker 46CXA8001t
  • •Kicker 46CXA3604t
  • •Two Kicker 43C124
  • •Ground Shaker ZDG210-B
  • •Metra 70-6502
  • •Metra 95-6522B
  • •Two XS Power AKXP4-1
  • •Owner's Manual

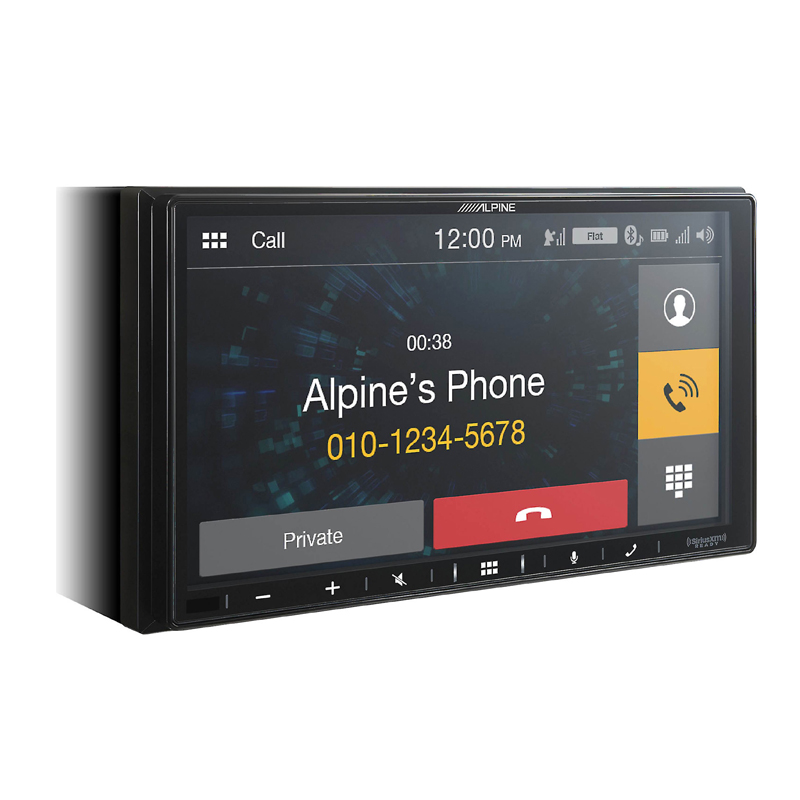

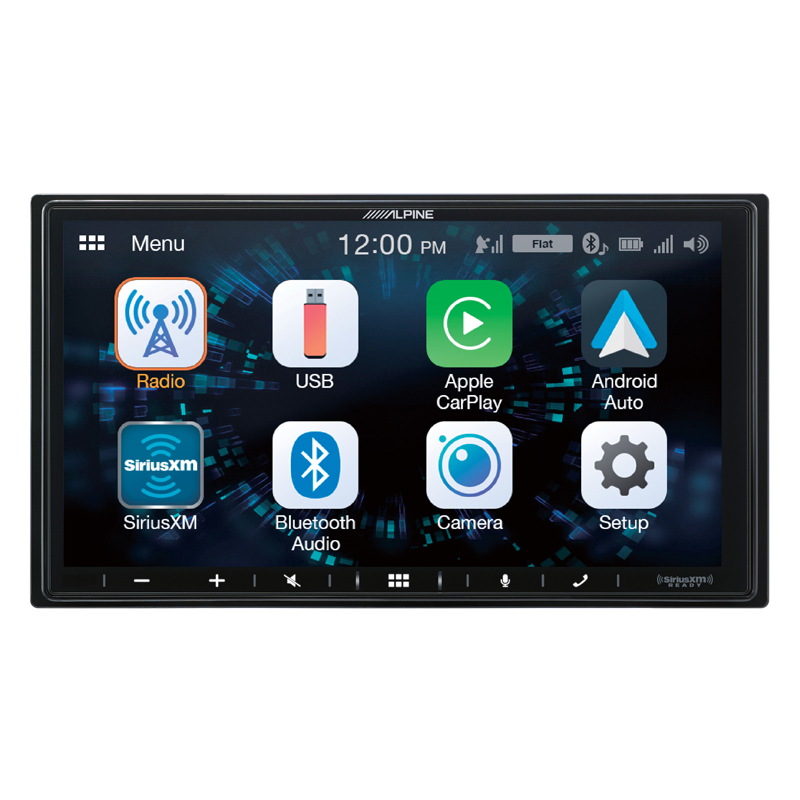

Alpine iLX-W650 7" Double DIN Mech-Less Digital Multimedia Receiver with Bluetooth, Apple CarPlay®, Android Auto™, SiriusXM, Pandora, Spotify

High Quality Digital Multimedia Receiver

One of the best-selling car receivers in OnlineCarStereo's history, the Alpine iLX-W650 has one of the best bang for the buck value for aftermarket car stereos in the industry. With its modern features, compact size, easy-to-install design, and affordable price point, you get a car multimedia receiver that will make your driving experience more comfortable and way better than before.

Crunch PZ-2020.2 2000 Watts Max Power Powerzone Series 2 ohm Stable 2 Channel Class-A/B Car Amplifier

Powerzone

POWERZONE two channel amplifier highlighted with bright Crunch red heatsink elements feature high level inputs utilizing SPEED-FET output devices and QTD Technology produces 2000 watts of power in a stereo or bridged mono application.

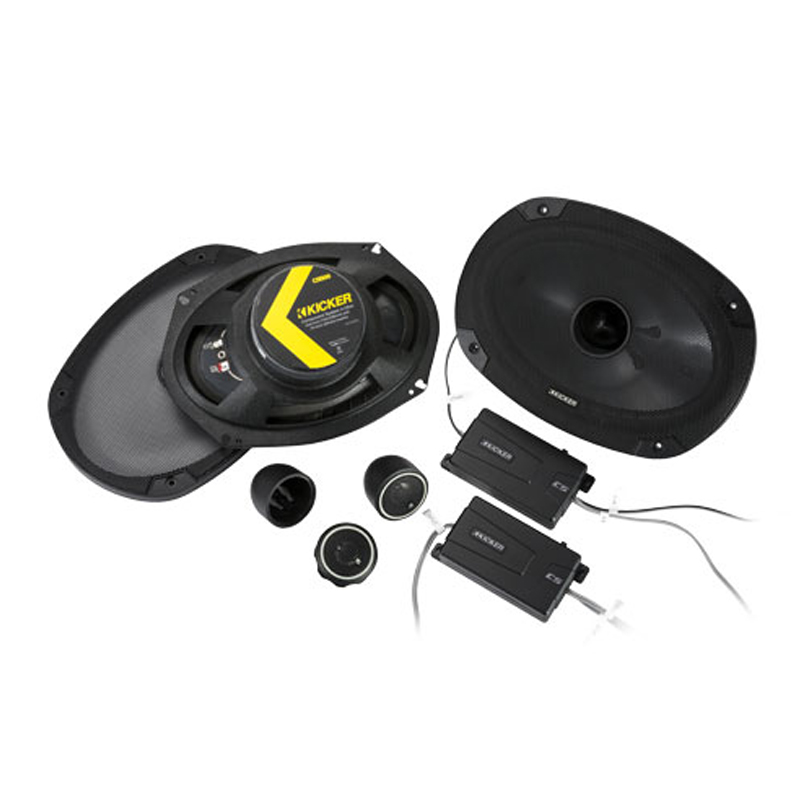

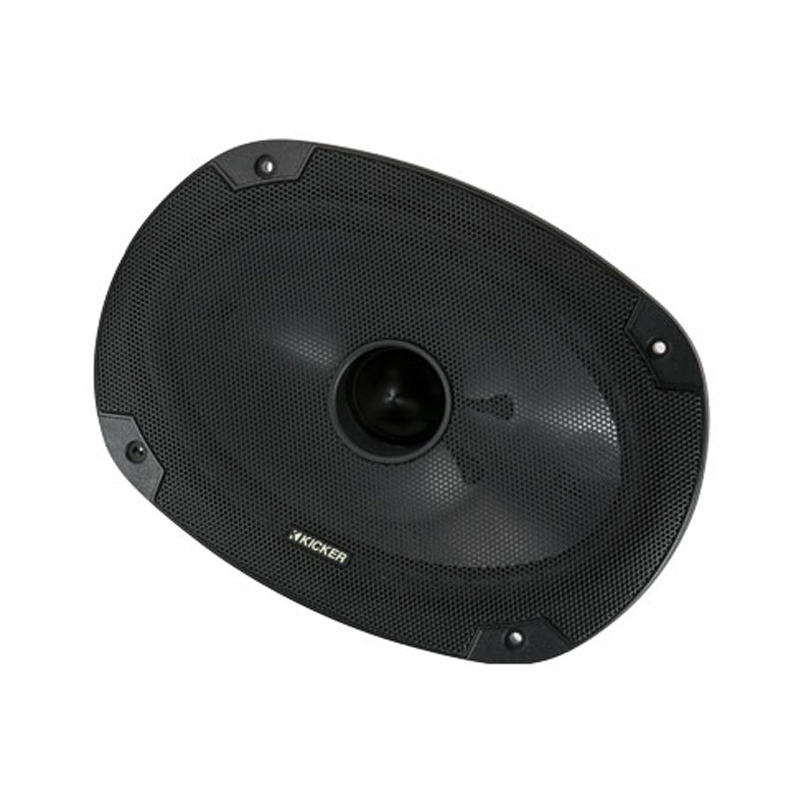

Kicker 46CSS694 CS Series 6x9" 150W RMS (450W Peak Power Handling) 4 Ohms 2-way Component Speaker System

CS Speakers

A car component system that delivers high-quality audio without you needing to break the bank, the Kicker 46CSS694 is designed for all car audiophiles who are on a tight budget but still prefer to have better audio performance than your typical stock car audio speakers. With two 6x9-inch woofers, two tweeters, and a pair of external crossovers, the Kicker 46CSS694 is ready to give you the full-range frequency performance you deserve.

Kicker 46CSC654 CS Series 6.5" 100W RMS (300W Peak Power Handling) 2-way 4 Ohms Coaxial Speakers

2-Way Car Speaker

Are you getting tired of listening to your vehicle's stock speakers? The Kicker 46CSC654 is a two-way car speaker made to fit in your vehicle quickly and give you the high-quality audio you are looking for, making it an excellent choice for upgrading your car’s audio system and taking it to the next level.

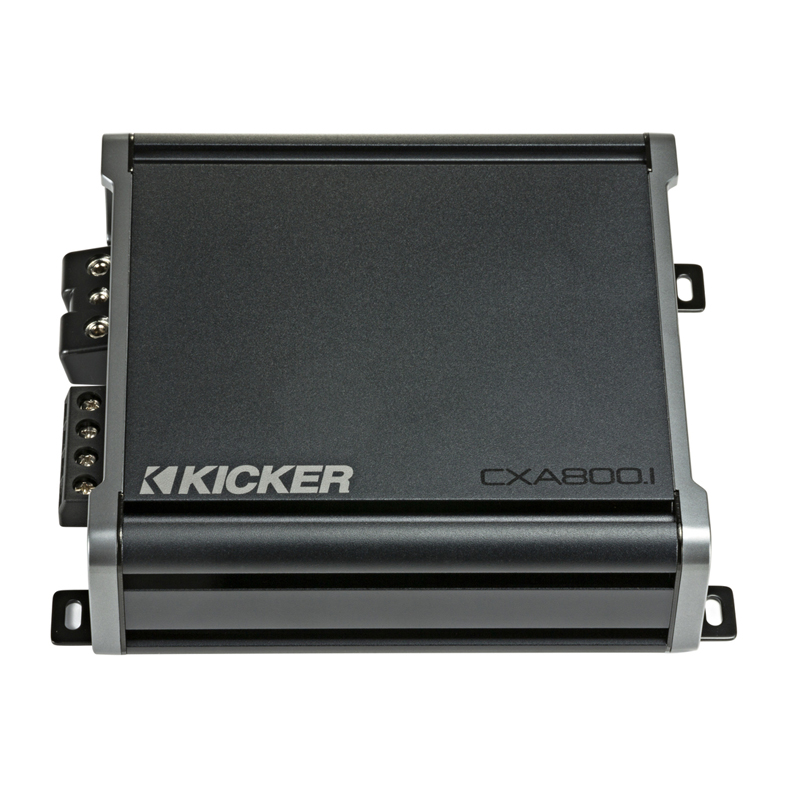

Kicker 46CXA8001t CX Series 600W x 1 RMS @2Ohms, 1600W Max Power Class D Monoblock Subwoofer Amplifier

Stable Monoblock Amplifier

The Kicker 46CXA8001t is a powerful one-ohm stable mono amplifier with a Class-D design. It's ideal for car audio systems, offering flexibility and durability. It features a variable crossover (50-200 Hz) and adjustable bass boost (+6dB) to customize your bass while safeguarding your subwoofer.

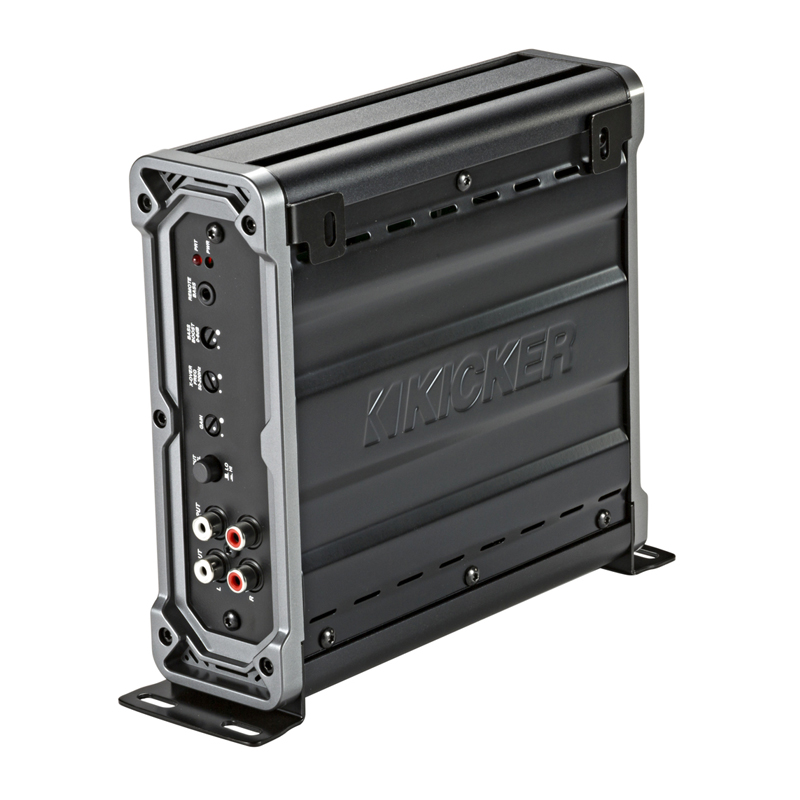

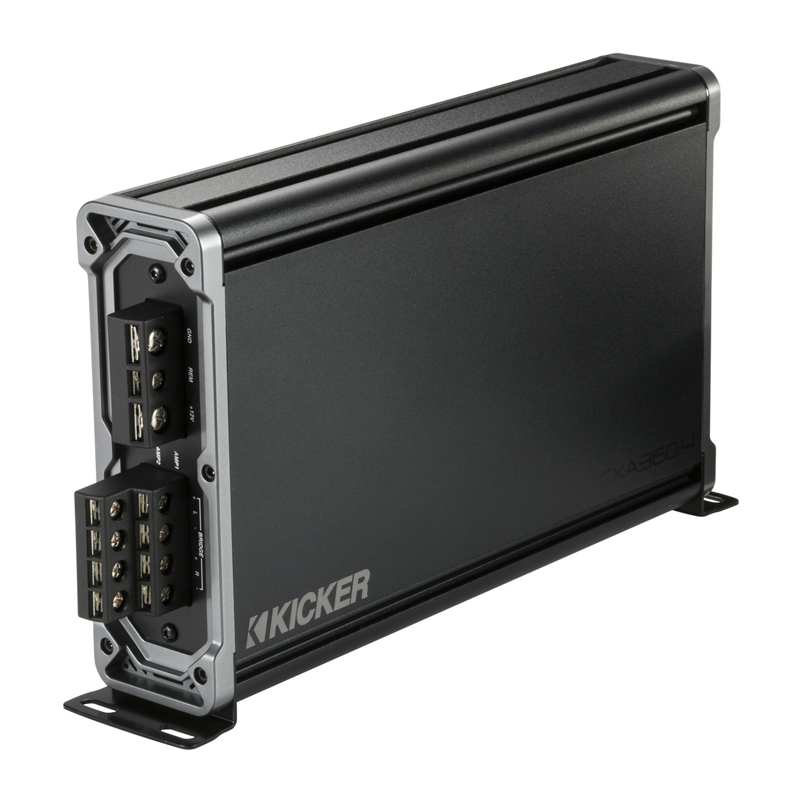

Kicker 46CXA3604t CX Series 90W x 4 @2Ohms, 720W Max Power Class A/B 4-channel Subwoofer Full Range Amplifier

High-quality Full-range Sound

The 4-ohm impedance of the subwoofer offers installation flexibility and works with different amplifiers. It uses Kicker's UniPlate™ technology to manage heat and maximize power handling. With a single voice coil, you can customize your setup easily, and its frequency response (30Hz to 500Hz) guarantees impactful bass at different frequencies.

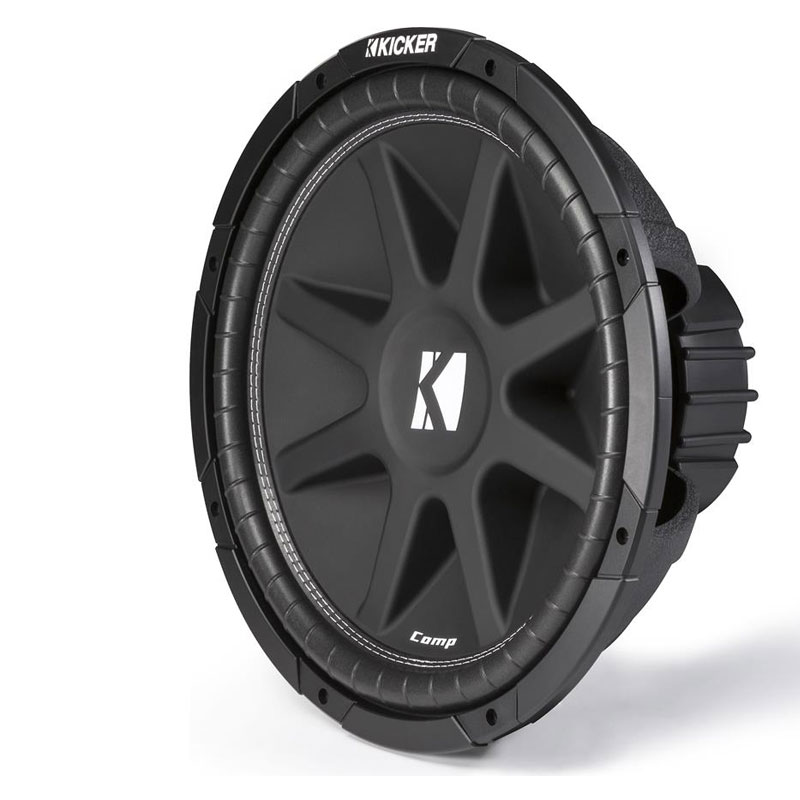

Kicker 43C124 Comp Series 12" 150W RMS (300W Peak Power Handling) 4 Ohms Car Subwoofer

High-quality Subwoofer Designed

The Kicker 43C124 is a high-quality subwoofer designed to deliver powerful and accurate bass to your car audio system. With its solid construction and impressive specifications, this subwoofer enhances your audio experience.

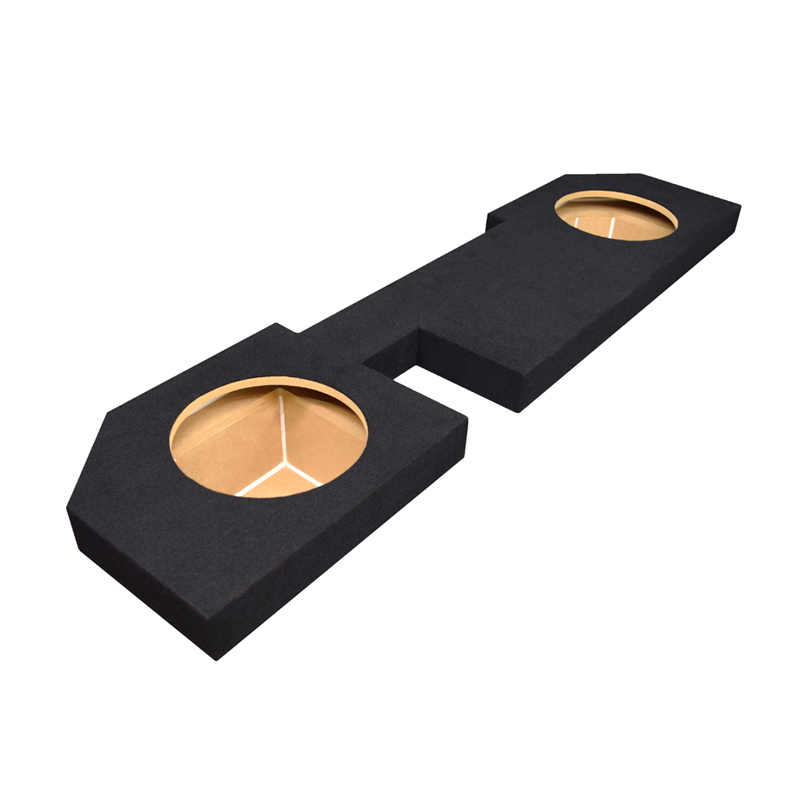

Ground Shaker ZDG210-B Black 10" Dual Sealed Sub Box, Fits Dodge Ram 1500 / 3500 Crew-Cab & Ext-Cab 2002-2018

Unmatched Audio Precision

Immerse yourself in unparalleled audio quality with the Ground Shaker ZDG210-B, meticulously crafted to deliver exceptional sound performance. This black 10-inch dual sealed sub box is custom-engineered to seamlessly fit Dodge Ram 1500/3500 Crew-Cab & Ext-Cab models produced between 2002 and 2018. Its precision-designed construction ensures an ideal acoustic environment for your vehicle, allowing for the optimal resonance and clarity of your music. Elevate your driving experience with this tailored sub box, offering a perfect blend of form, function, and compatibility for Dodge Ram enthusiasts seeking premium sound without compromise.

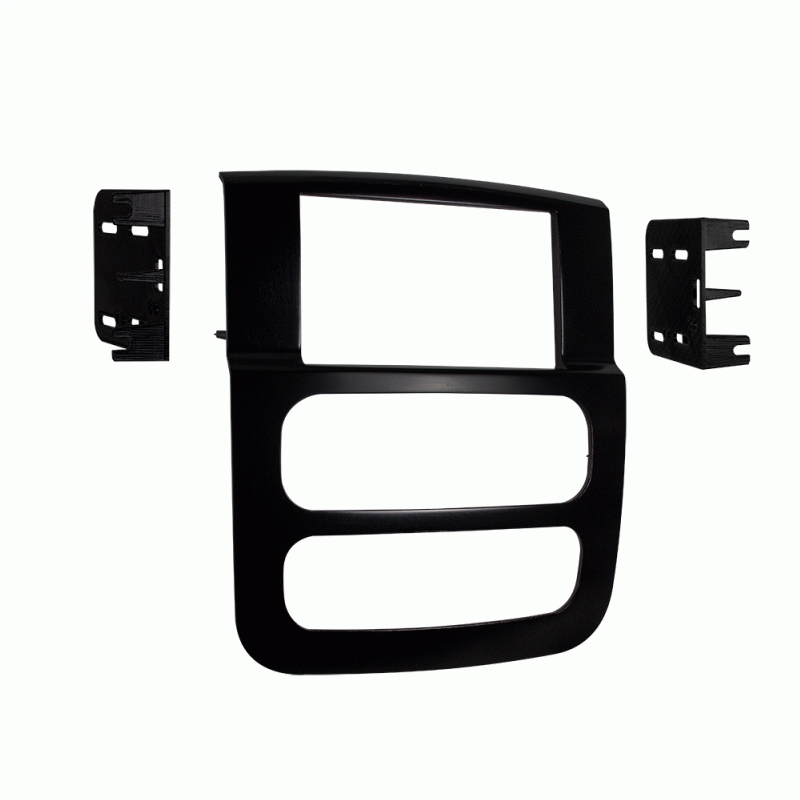

Metra Electronics 95-6522B 2-DIN Stereo Install Dash Kit for Select 2002-2005 Dodge Ram

Double-DIN

This stereo installation kit is engineered to help you install an aftermarket 4" tall (Double-DIN) radio into the original vehicle dashboard. This dash kit helps make radio replacement simple and is painted scratch-resistant matte black to match the original look and feel of the vehicle's dashboard.

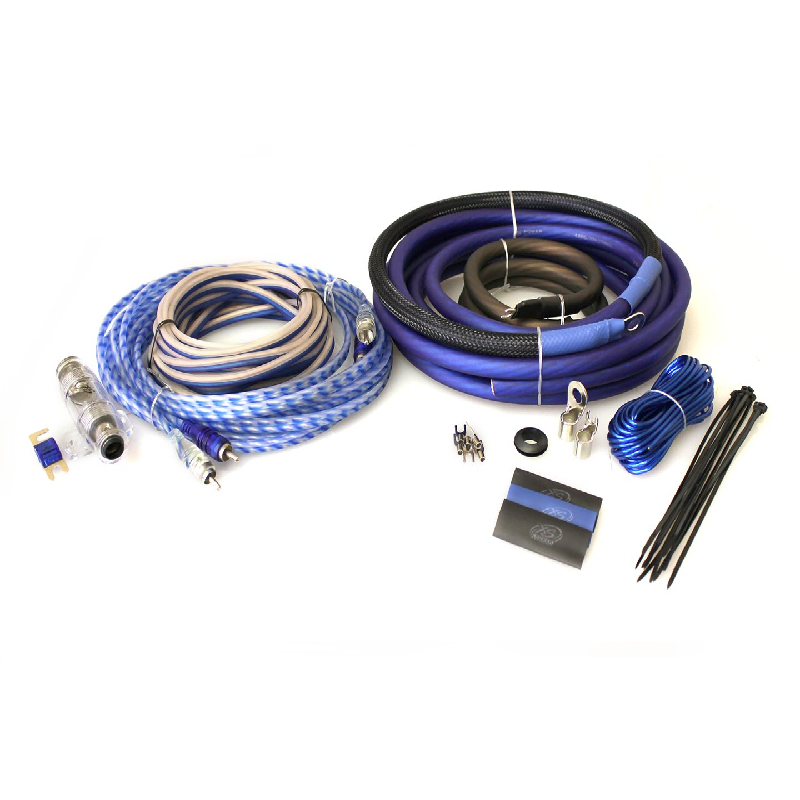

XS Power AKXP4-1 Amp Kit, XP Flex 4 AWG, Power Cable, Speaker Cable, Signal and Remote

Effortless Installation Guide

This kit is designed to help you correctly and safely install your new XS Power or other aftermarket Powercell. The kit was designed with the installer in mind, and can be completed with very few tools and requires no wire crimping if the directions are followed correctly. Please see the steps below that will help to facilitate a fast, safe and easy installation of your new battery and cables.


SPECIFICATIONS



FEATURES


iLX-W650 7" Mech-Less Digital Multimedia Receiver with Bluetooth, Apple CarPlay®, Android Auto™, SiriusXM, Pandora, Spotify

Features

  • 7” anti-glare capacitive touch screen
  • Audio, video and Bluetooth® feature set
  • Two-finger swipe user interface
  • Works with Apple CarPlay®
  • Works with Android Auto™ and the Google Assistant
  • SiriusXM-Ready™ (SXV300 Connect Vehicle Tuner Kit sold separately; SiriusXM® subscription required)
  • Works with Pandora® Music for iPhone® and Android™ phones
  • Rear camera input (camera sold separately)
  • FLAC/MP3/WMA/AAC/HE-AAC music playback via USB
  • Compatible with the KTA-450 Power Pack Amplifier (sold separately) via PowerStack installation
  • The iLX-W650 used with the KTA-450 is a 2019 CES Innovation Awards Winner



Tech Specs

  • Compatible with most factory steering wheel audio controls (adapter required)
  • USB port accommodates various devices and thumb drivesxternal microphone included
  • Built-in amplifier (16 watts RMS/40 peak x 4 channels)
  • CTA-2006 compliant

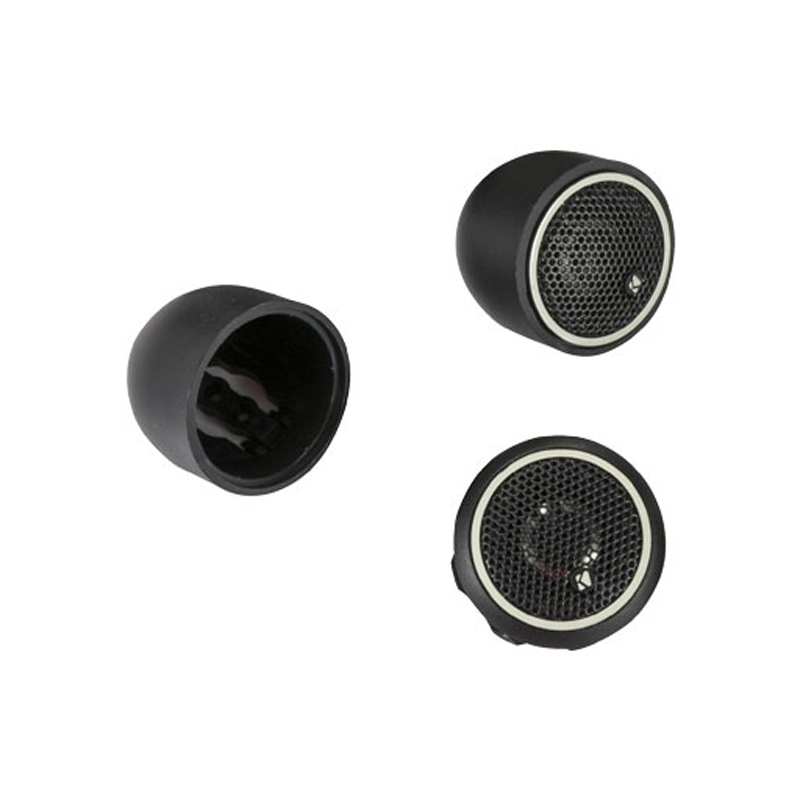

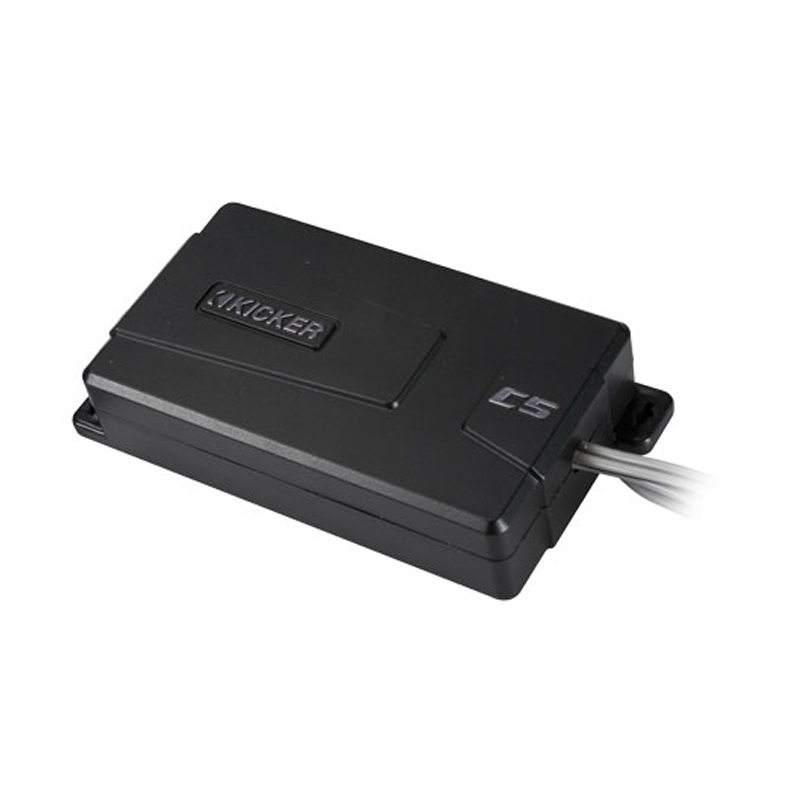

46CSS694 CS Series 6"x9" 450 Watts Peak Component Speaker System

Specifications:

  • Woofer Size | in [mm]: 6x9 [160x230]
  • Tweeter Size | in [mm]: 3/4 [20]
  • Dome Material: Titanium
  • Peak Power | [watts]: 450
  • Continuous Power | [watts RMS]: 150
  • Effective Frequency Range | Hz: 30-21k
  • Woofer Mounting Hole Diameter | in [mm]: 5 5/8 x 8 7/16 [143x215]
  • Woofer Bottom Mount Depth | in [mm]: 3 3/16 [81]
  • Flush Mounting Tweeter Hole Diameter | in [mm]: 1 9/16 [40]
  • Flush Mount Tweeter Depth | in [mm]: 9/16 [14.5]
  • High Pass | dB, at Frequency | Hz: 12, 4000
  • Low Pass | dB, at Frequency | Hz: 12, 4000
  • High Frequency Output Attenuation | dB: 0, 3, & 6
  • Bolt-Thru Grilles: Yes



46CSC654 CS Series 6-1/2" 300 Watts Peak Power 2-way Coaxial Speakers 4-ohm Impedance

Specifications:

  • Speaker Design: 2-Way
  • Woofer Size | in [mm]: 6 1/2 [160]
  • Tweeter Size | in [mm]: 1/2 [13]
  • DC Resistance | ohm: 3.3
  • Peak Power | Watts: 300
  • Continuous Power | Watts, RMS: 100
  • Sensitivity [SPLo] | dB @ 1W, 1m: 90
  • Effective Frequency Range | Hz: 40-20k
  • Mounting Hole Diameter | in [mm]: 4 13/16 [123]
  • Top Mount Depth | in [mm]: 3/8 [9]
  • Bottom Mount Depth | in [mm]: 1 11/16 [43]
  • Tweeter Protrusion | in [mm]: 0
  • Grilles: Yes
  • Tweeter Magnet Material: Neodymium
  • Tweeter Dome Material: PEI
  • Tweeter Design: Balanced dome
  • Woofer Cone Material: Polypropylene
  • Woofer Surround Material: Polyester foam



46CXA8001t CS Series 1600 Watts Peak Power Class D Mono Subwoofer Amplifier

Specifications:

  • Model: CXA800.1t
  • Power (watts/ch) 4 Ohm Stereo: 300x1
  • Power (watts/ch) 2 Ohm Stereo: 600x1
  • Power (watts/ch) 1 Ohm Mono: 800x1
  • CXRC Remote Bass Capable (sold sep.): yes
  • Dimensions (in, cm): (all models 2-3/8, 5.9H x 6-3/4, 17W x ...L): 8-1/8, 20.6
  • Frequency Response (Hz): 25-200, +0/-1dB
  • Input Sensitivity: 250mV-10V (Low Level) | 1V-40V (High Level)
  • Signal-to-Noise Ratio: >95dB, a-weighted, re: rated power
  • Active Crossover: Variable Lo-pass 50Hz–200Hz, 12dB/octave
  • Subsonic Filter 25Hz @24dB/Octave
  • KickEQ™ Boost Variable 0-6dB @40Hz



46CXA3604t CX Series 720 Watts Peak Power Class A/B Subwoofer Full Range Amplifier

Specifications:

  • Model: CXA360.4t
  • Power (watts/ch) 4 Ohm Stereo: 65x4
  • Power (watts/ch) 2 Ohm Stereo: 90x4
  • Power (watts/ch) 4 Ohm Mono: 180x2
  • CXRC Remote Bass Capable (sold sep.): yes
  • Dimensions (in, cm): (all models 2-3/8, 5.9H x 6-3/4, 17W x ...L): 12-1/2, 31.7
  • Frequency Response (Hz): 10Hz-20kHz
  • Input Sensitivity: 250mV-10V (Low Level) | 1V-40V (High Level)
  • Signal-to-Noise Ratio: 95dB
  • Active Crossover: HI, LO or OFF; Variable 50–200Hz @ 12dB/Octave
  • Subsonic Filter: N/A
  • KickEQ™ Boost: Variable 0-6dB @40Hz



(2) 43C124 Comp Series 12" 300W Peak Power 4-ohm subwoofer

Specifications:

  • Vas (liters): 95.18
  • Cone Material: Polypropylene
  • Port diameter (inches): N/A
  • Peak Power Handling (Watts): 300
  • Sensitivity 88.3 dB at 1 watt
  • Port length (inches): N/A
  • Size: 12 -inch
  • Top Mount Depth (inches): 5 3/4
  • Frequency Response: 27 - 500 Hz
  • Impedance: 4 ohms
  • RMS Power Range (Watts): 70-150
  • Ideal Sealed Box Volume (cubic feet): N/A
  • Surround Material: Foam
  • Ideal Ported Box Volume (cubic feet): N/A
  • Free-Air: No
  • Dual Voice Coil: No
  • Bottom Mount Depth (inches): N/A
  • Cutout Diameter or Length (inches): 11
  • Fs (Hz): 30
  • Qts: 0.559
  • Xmax (millimeters): 10.3

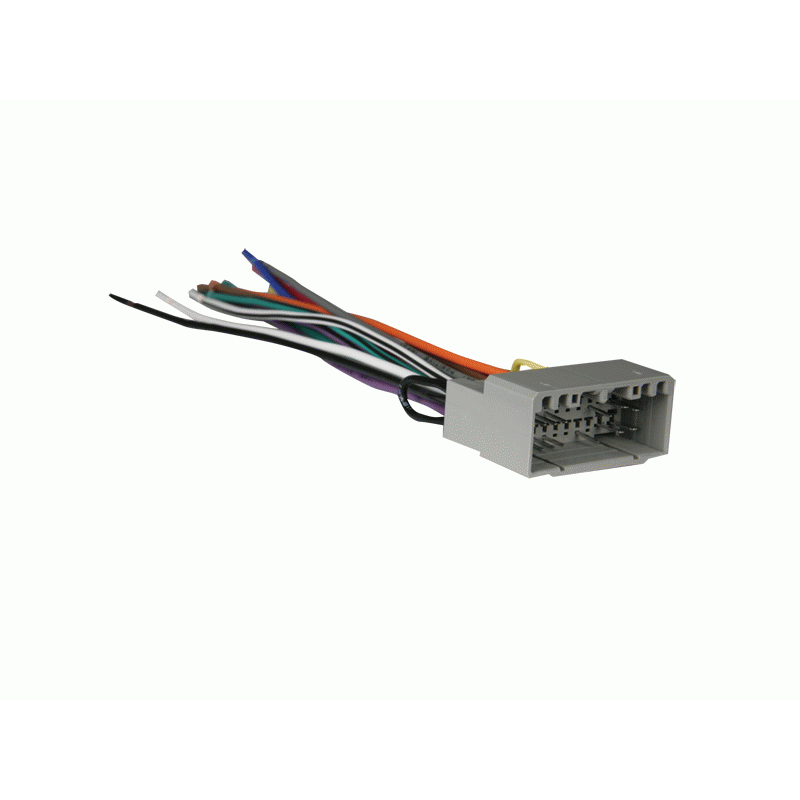

70-6502 Chyrsler 2002-2009 Harness

  • Plugs into Car Harness at radio
  • Power – 4 Speakers



95-6522B Ram Trucks 2002-2005

  • Double DIN radio provision
  • Painted matte black



ZDG210-B Black 10" Dual Sealed Sub Box, Fits Dodge Ram 1500 / 3500 Crew-Cab & Ext-Cab 2002-2018

Specifications:

  • Cutout Diameter: 9 1/4"
  • Total Air Volume: 0.98 Cubic Ft.
  • 2 Individual Chambers
  • Volume Per Subwoofer: 0.49 Cubic Ft.
  • Weight: 28 Lbs
  • Mounting Depth: 6"



Dimensions:

  • Height: 8 1/4”
  • Length: 55 1/2"
  • Depth: 13 3/4"



Construction:

  • 5/8" & 1/2” High Density Mdf Wood
  • Carpeted With Durable Trunk Liner Finish
  • Sealed With High Quality Silicone
  • 2 Spring Loaded Terminals



Installation:

  • Fits Under Rear Seat
  • Upward Firing
  • Removal Of Jack And Plastic Tray Required



(2) AKXP4-1 Amp Kit, XP Flex 4 AWG, Power Cable, Speaker Cable, Signal and Remote

Specifications:

  • Weight Lbs. – 3.25
  • Weight Kgs. – 1.47
  • Length – 9.75 in
  • Height – 11 in
  • Width – 2.5 in



Kit Contents:

  • 1qty - 17ft 4AWG XPFLEX BL Cable
  • 1qty - 3ft 4AWG XPFLEX BK Ground Cable
  • 1qty - 17ft 18G BL Remote Cable
  • 1qty - 17ft 16G Clear Speaker Wire
  • 1qty - 17ft High Grade Twisted Pair RCA Cables
  • 1qty - Mini ANL Fuse Holder
  • 1qty - 60A ANL Fuse
  • 2qty - Plaite Braid Tube in BK
  • 2qty - 4AWG Ring Terminal/Seamless/BL
  • 2qty - 4AWG Spade Terminal/BK
  • 2qty - 16G Spade Terminals/BK
  • 3qty - 16G Spade Terminals/BL
  • 1qty - 1/2" Firewall Grommet
  • 10qty - 6" Zip Ties
  • UPC: 798418841888
  • Weight: 80
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
