PCH Custom Audio  F150 11TH Gen Sound System

Ford F150 11th Generation 2004-2008 Crew Cab Full Sound System

Item #78577

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


Exclusive Bundle Banner for OCS

Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

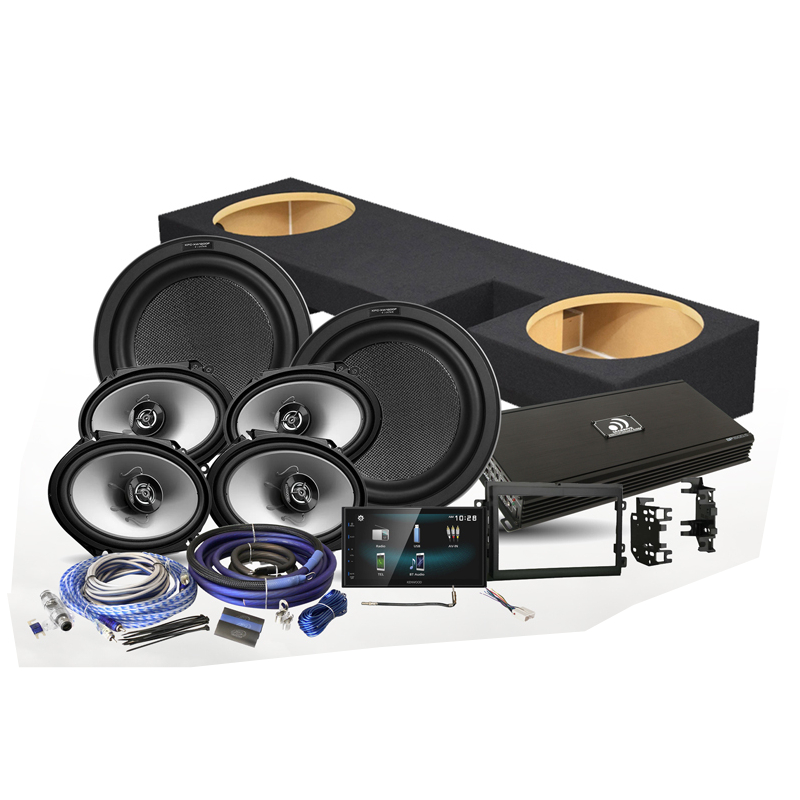

PCH Custom Audio F150 11TH Gen Sound System Ford F150 11th Generation 2004-2008 Crew Cab Full Sound System


Authorized Dealer Stamp

We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • •Kenwood DMX125BT
  • •Kenwood KFC-C6866S
  • •Kenwood KFC-XW1200F
  • •Massive Audio BP1500.5-V2
  • •Ground Shaker ZF150212-B
  • •Ground Shaker ZF150212-B
  • •Metra 95-5812
  • •Metra 40-NI12
  • •Metra 70-5520
  • •Metra 40-CR10
  • •XS Power AKXP4-1
  • • Owner's Manual

Kenwood DMX125BT 6.8" 2-DIN Digital Multimedia Receiver with Bluetooth, Rear View Camera Input, 13 Band EQ, English/Spanish, USB Mirroring for Android

Excellent Option That You Should Look Into

If you are looking to upgrade your factory receiver with a modern one but do not want to break the bank, the Kenwood DMX125BT would be an excellent option that you should look into. This 6.75-inch multimedia receiver has a capacitive touchscreen display and can fit on double-DIN dash openings.

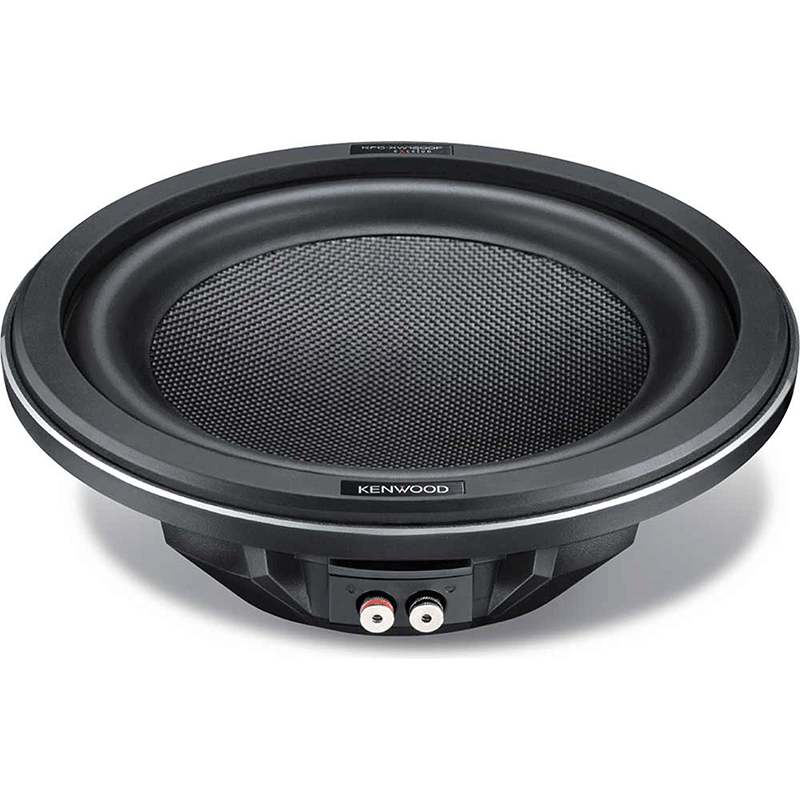

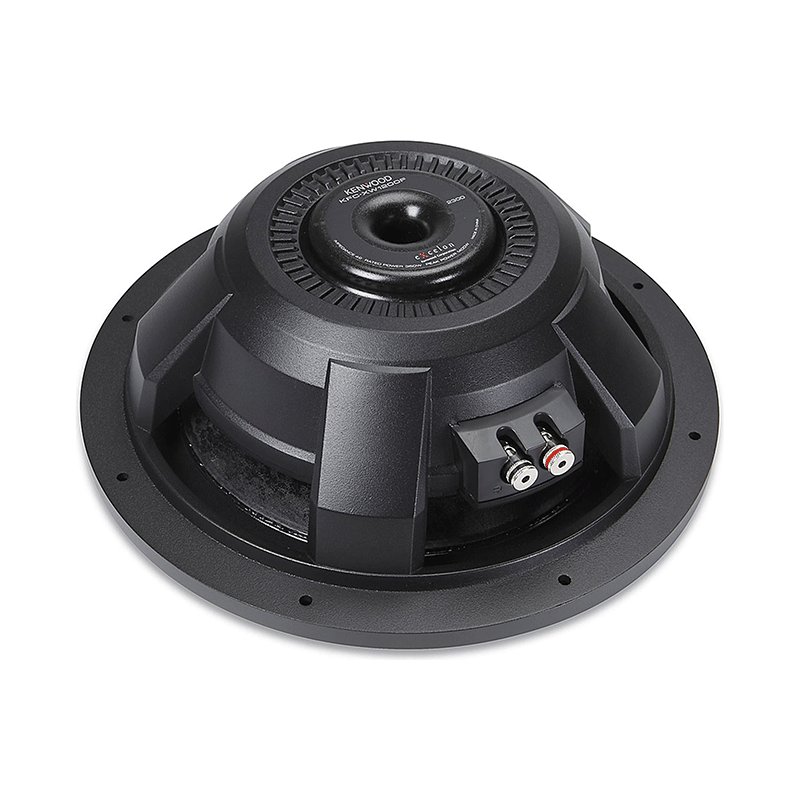

Kenwood Excelon KFC-XW1200F Excelon 12" 350W RMS (1400W Peak Power Handling) Single 4-Ohm Voice Coil Car Shallow-Mount Subwoofer - (Sold as Each)

Produces Serious Bass Output

The Kenwood Excelon KFC-XW1200F 12" "flat" subwoofer produces serious bass output in the hard-to-fit areas of your compact car or truck. And this shallow-mount sub measures less than 4" deep, so you can get creative with your installation. The carbon-glass fiber cone employs a honeycomb pattern to deliver quick response in demanding conditions without flexing. The beefed-up rubber surround maintains control over the cone, minimizing distortion caused by resonance. A die-cast aluminum basket offers a rock-solid housing with plenty of venting to keep the heat down. The silver-plated push terminals offer convenient connections and provide excellent signal transfer.

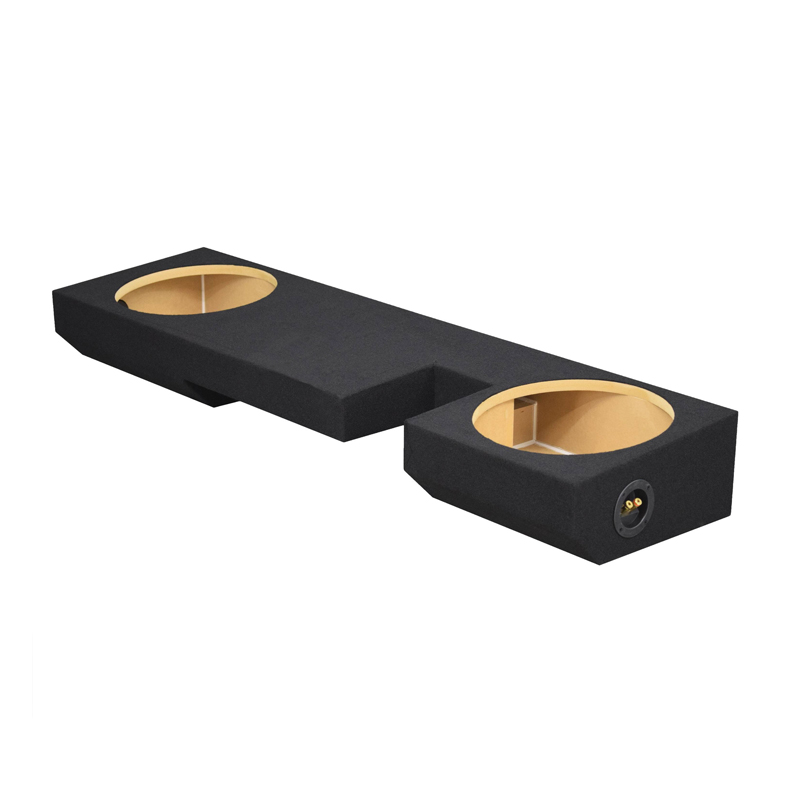

Ground Shaker ZF150212-B Black 12" Dual Sealed Sub Box, Fits Ford F-150 Ext-Cab & Crew-Cab 2004-2008

Snug Fit and Enhanced Sound Performance

The GS-ZF150212B is a sleek black 12" dual sealed subwoofer box designed specifically for 2004-2008 Ford F-150 Extended and Crew Cab models. This enclosure provides a snug fit and enhanced sound performance, offering a stylish and efficient solution for maximizing bass in your vehicle.

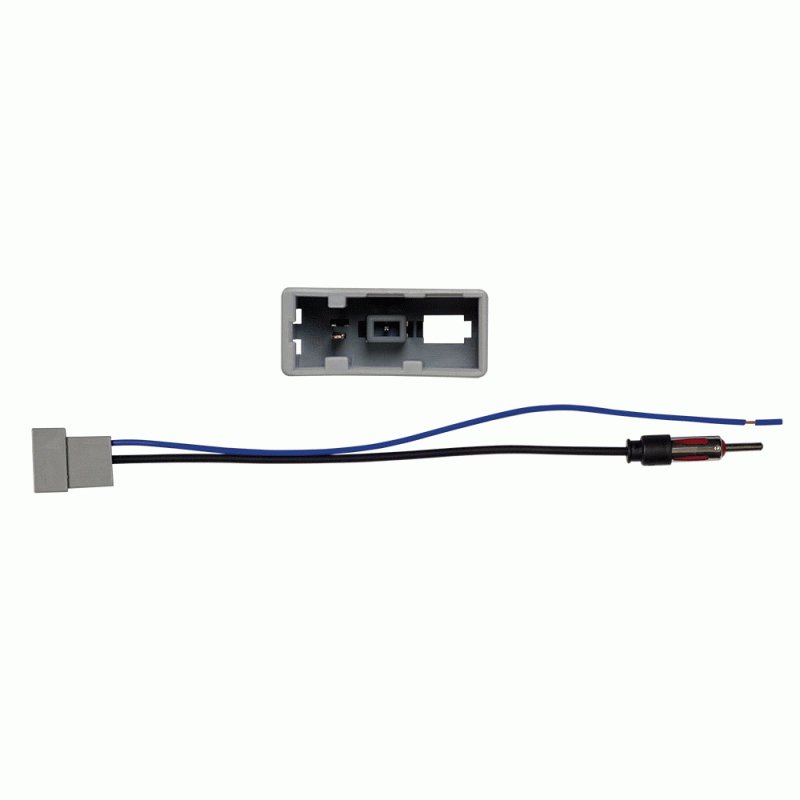

Metra Electronics 40-NI12 Factory Antenna to Aftermarket Radio Adapter for 2007 and Up Infinity/Nissan Vehicles

Simple Yet Necessary Cable

If you are replacing the radio in your vehicle, this antenna cable adapter ensures that you can continue to use your factory antenna. It is a simple yet necessary cable that adapts the vehicle’s original antenna cable to plug into an aftermarket radio with a male Motorola™ connector a blue wire lead on one end on one end, and a Nissan-style antenna connector on the other.

Metra Electronics 40-CR10 Factory Antenna to Aftermarket Radio Adapter for Chrysler/Dodge/Ford/GM 2006/Jeep 2002-Up

Simple Yet Necessary Cable

If you are replacing the radio in your vehicle, this antenna cable adapter ensures that you can continue to use your factory antenna. It is a simple yet necessary cable that adapts the vehicle’s original antenna cable to plug into an aftermarket radio with a male Motorola™ connector on one end and a snap-lock female antenna connector on the other.

Kenwood KFC-C6866S Sport Series 6x8" 30W RMS (250W Peak Power Handling) 2-way Coaxial Car Speakers

Entry-level Price Point

If you are tired of listening to your dull factory 6x8-inch car speakers, the Kenwood KFC-C6866S is the perfect option to take you out of your misery. The KFC-C6866 is a 6x8-inch two-way woofer that can deliver an impressive full-range frequency output at an entry-level price point.

Massive Audio BP1500.5-V2 BLADE BP Series 80Wx4 + 500W Class A/B 5 Channel Amplifier

Unleash the Full Potential of Your Sound System

The Massive Audio BP1500.5-V2 BLADE BP Series is a car audio amplifier designed to enhance the sound system in a vehicle. It is a 5-channel amplifier, which means it can power multiple speakers and a subwoofer simultaneously. It is designed to deliver clean and powerful audio to your car's speakers and subwoofer, enhancing the overall sound experience in your vehicle.

Metra Electronics 95-5812 Ford Multi-Kit 2004-Up

Painted Scratch-resistant

The Metra Electronics 95-5812 is a car stereo installation kit designed for select Ford vehicles from 2004 to 2011. The kit includes a dash kit, and an optional wiring harness and antenna adapter, allowing for a seamless installation of an aftermarket stereo system.

Metra Electronics 70-5520 OEM Deck Harness

Designed to Simplify the Installation of an Aftermarket Car Stereo

The Metra Electronics 70-5520 is a wiring harness designed to simplify the installation of an aftermarket car stereo in select Ford vehicles. The harness connects to the factory wiring and allows the user to avoid cutting and splicing the original wires, which can be time-consuming and potentially damaging.

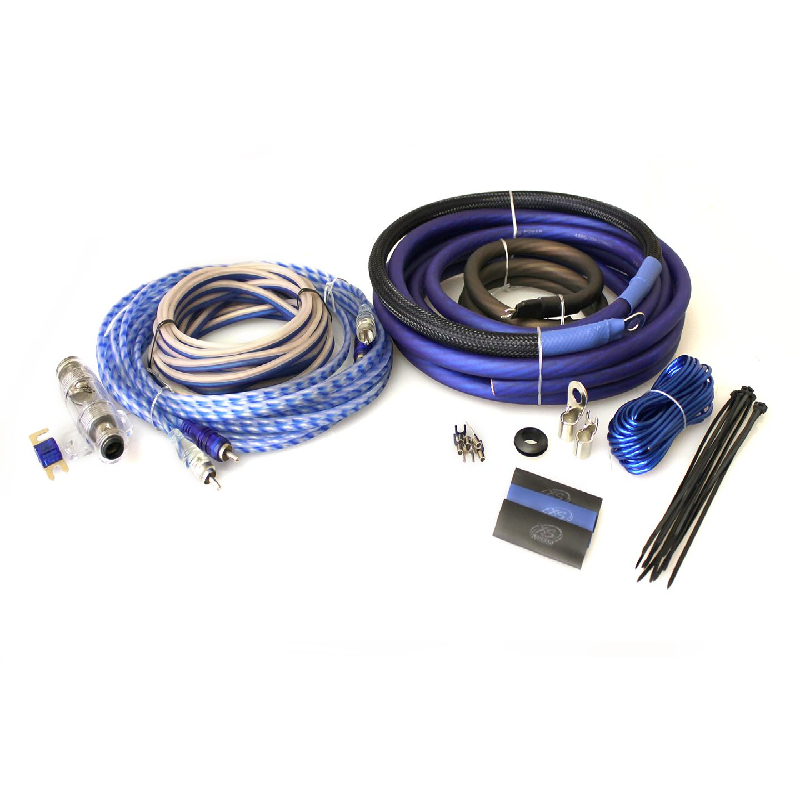

XS Power AKXP4-1 Amp Kit, XP Flex 4 AWG, Power Cable, Speaker Cable, Signal and Remote

New Battery and Cables

This kit is designed to help you correctly and safely install your new XS Power or other aftermarket Powercell. The kit was designed with the installer in mind, and can be completed with very few tools and requires no wire crimping if the directions are followed correctly. Please see the steps below that will help to facilitate a fast, safe and easy installation of your new battery and cables.


SPECIFICATIONS


  • Vehicle Make : Ford
  • Vehicle Model : F150

FEATURES


What's Included?

  • Kenwood DMX125BT
  • Two Pairs of KFC-C6866S
  • Two KFC-XW1200F
  • Massive Audio BP1500.5-V2
  • Ground Shaker ZF150212-B
  • Metra 95-5812
  • Metra 70-5520
  • Metra 40-CR10
  • XS Power AKXP4-1

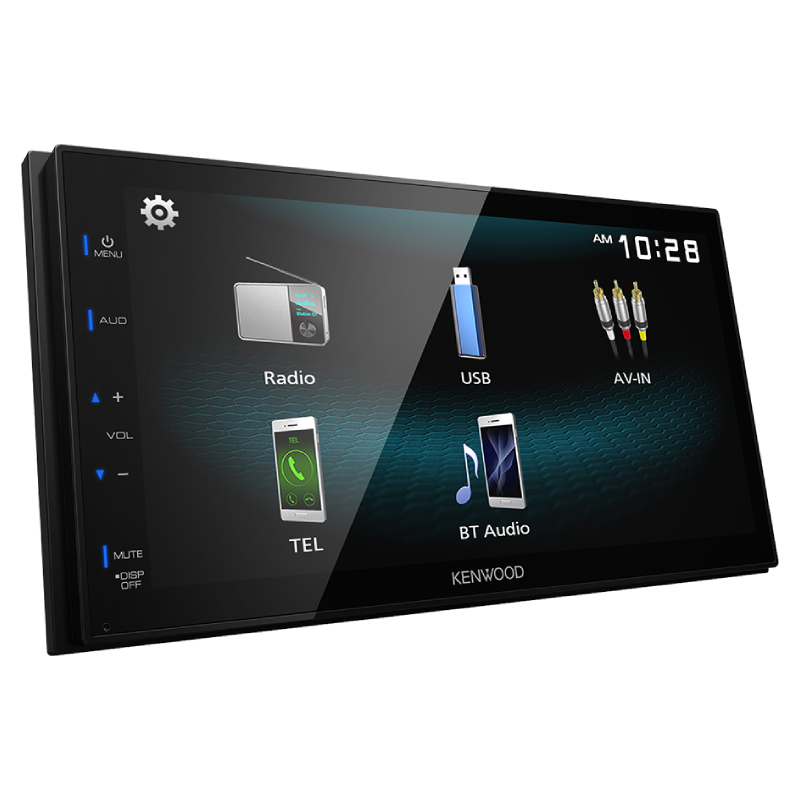

DMX125BT 6.8" Digital Multimedia Receiver with Bluetooth, Rear View Camera Input, 13 Band EQ, English/Spanish Support, USB Mirroring for Android

Features:

  • 6.8” Capacitive Touch Screen
  • Short Chassis (2-15/16” Depth)
  • Bluetooth - HFP/A2DP
  • Reverse Camera Input w/Parking
  • Guidelines
  • Full HD Video File Format Playback
  • USB Mirroring for Android
  • 1 AV Input
  • 1 Video Output
  • 1 USB Input
  • 13 Band Graphic EQ
  • Digital Time Alignment
  • Blue Key Illumination
  • 2 Pre-outs @ 2 Volt
  • English/Spanish Language Support

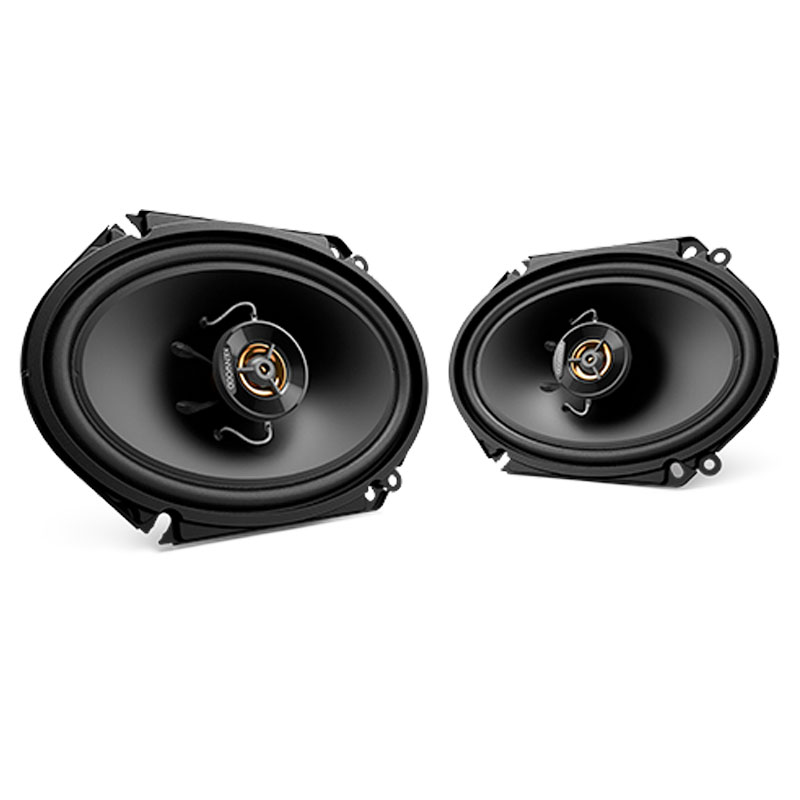

(2) KFC-C6866S 6" x 8" 500 Watts Max Power 2-Way Coaxial Car Speakers

Features:

  • 6"x8" 2-way speakers (pair)
  • polypropylene woofer with treated cloth surround
  • 1" PEI balanced dome tweeter
  • handles up to 30 watts RMS (250 watts peak power)
  • impedance: 4 ohms
  • frequency response: 40-22,000 Hz
  • sensitivity: 90 dB
  • top-mount depth: 2-5/16"

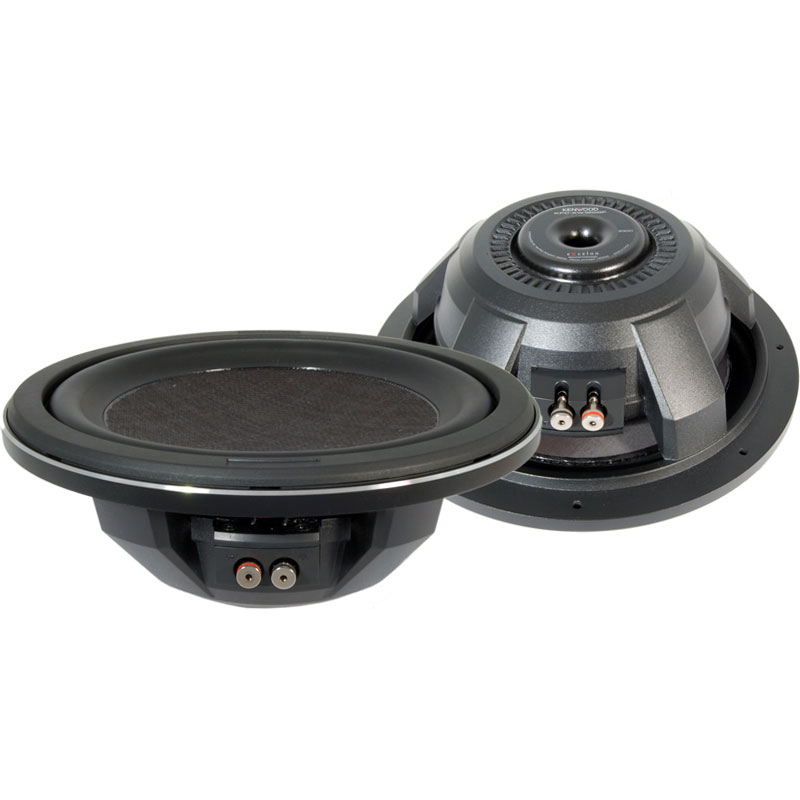

(2) KFC-XW1200F Shallow 12" 1400 Watts Max Power 4-Ohm Car Subwoofer

Specifications:

  • Ideal Ported Box Volume (cubic feet): 0.8
  • Fs (Hz): 24.8
  • Peak Power Handling (Watts): 1400
  • Vas (liters): 62.69
  • Qts: 0.544
  • Xmax (millimeters): 8.5
  • Dual Voice Coil: No
  • Cone Material: Carbon-glass fiber
  • Frequency Response: 30 - 700 Hz
  • Port length (inches): 14
  • Surround Material: Butyl rubber
  • Top Mount Depth (inches): 3 15/16
  • Sensitivity: 91 dB at 1 watt
  • Free-Air: No
  • Size: 12 -inch
  • Impedance: 4 ohms
  • Ideal Sealed Box Volume (cubic feet): 0.8
  • Port diameter (inches): 3
  • RMS Power Range (Watts): 50-350
  • Bottom Mount Depth (inches): 4 7/16
  • Cutout Diameter or Length (inches): 11 1/8

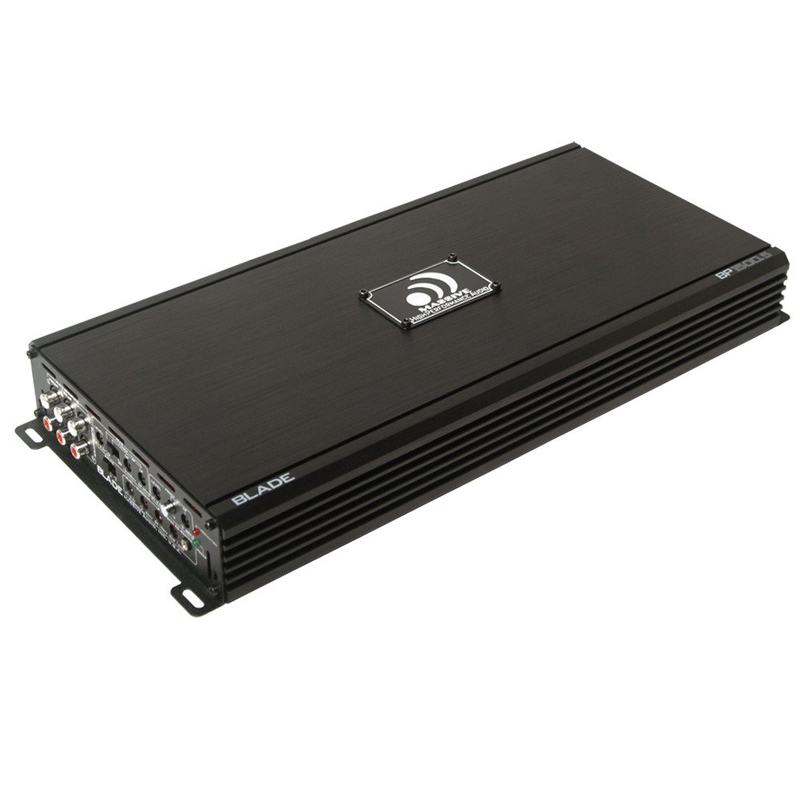

BP1500.5-V2 BLADE BP Series 80Wx4 + 500W Class A/B 5 Channel Amplifier

Features:

  • New Thicker Heatsink
  • Built-In OEM Line Converter
  • 2 Ohm Stable Design
  • Class A/B
  • Mil Spec PCB with SMD parts
  • Built-in Noise Reduction Circuitry
  • Full MOSFET with High Grade Switching Devices
  • Built-In Auto Sensing Turn On Function (Hi-Inputs)
  • 12V Remote Output for External Devices (Hi-Level Inputs)
  • 0dB ~ 12dB Bass Boost
  • Next Generation Advanced 5 Way Protection Circuitry
  • World Wide Standards Compliant (RoHS, E-Mark, CTA-2006, CE)

Specifications:

  • Peak Output Power @ 14.4V: 250W x 4 + 500W
  • 1 Ohm RMS: n/a
  • 2 Ohm RMS: 160W x 4 + 500W x 1
  • 4 Ohm RMS: 80W x 4 + 200W x 1
  • 4 Ohm Bridged: 320W x 2 + 200W x 1
  • Input Level: 0.2~9.0v
  • Freq. Response: 15Hz~30KHz
  • THD at 4 Ohm Load 30% Rated Power: <0.1%
  • S/N Ratio: >90dB
  • Bass Boost: 0~12dB (45Hz)
  • Minimum Load: 2 Ohm Stereo + 2 Ohm Mono
  • Gain Remote: UR1 (Optional)
  • Dimension: 2"H x 7.1"W x 15"L

ZF150212-B Black 12" Dual Sealed Sub Box, Fits Ford F-150 Ext-Cab & Crew-Cab 2004-2008

Specifications:

  • Cutout Diameter: 11 1/8"
  • Total Air Volume: 1.18 Cubic Ft.
  • 2 Individual Chambers
  • Volume Per Subwoofer:  0.59 Cubic Ft.
  • Weight:  29 Lbs.
  • Mounting Depth: 5"

Dimensions:

  • Front Height: 6”
  • Rear Height: 5"
  • Length: 50 1/4"
  • Depth: 13 1/4"

Construction:

  • 5/8" High Density Mdf Wood
  • Carpeted With Durable Trunk Liner Finish
  • Sealed With High Quality Silicone
  • 2-spring Loaded Terminals

Installation:

  • Fits Under Rear Seat
  • Upward Firing
  • Needs To Remove Jack

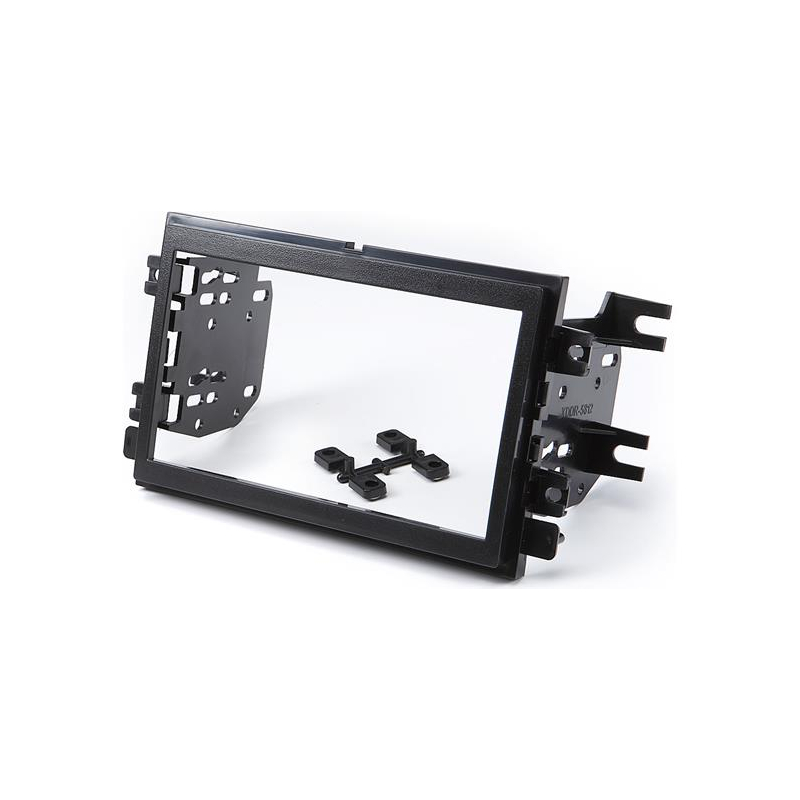

95-5812 Ford Multi-Kit 2004-Up

  • ISO DDIN radio provision

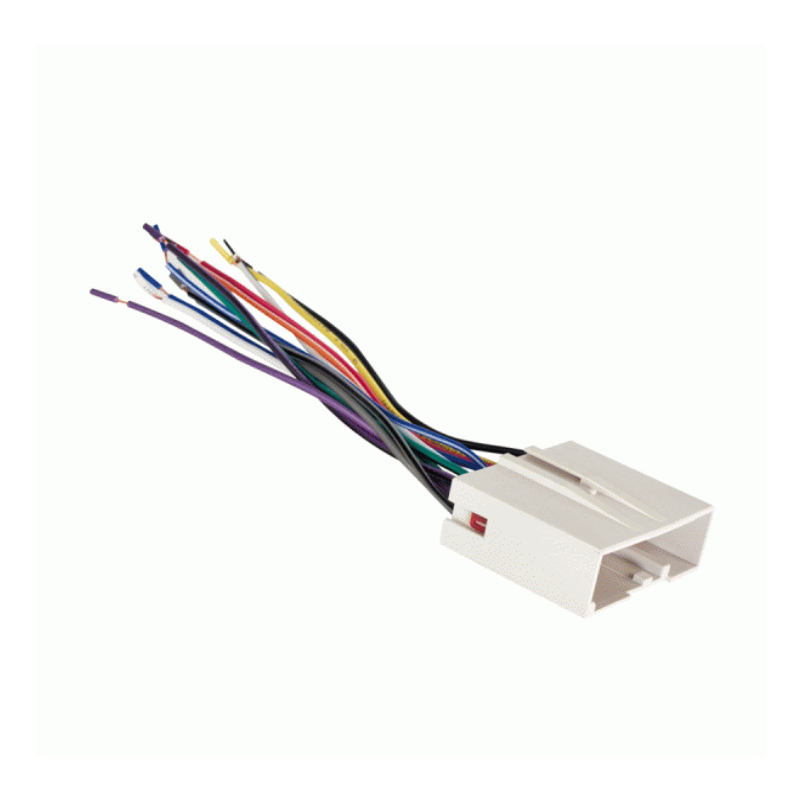

70-5520 Ford Lincoln Mercury 2003-Up Harness

  • Includes one 24-way plug for power and speaker

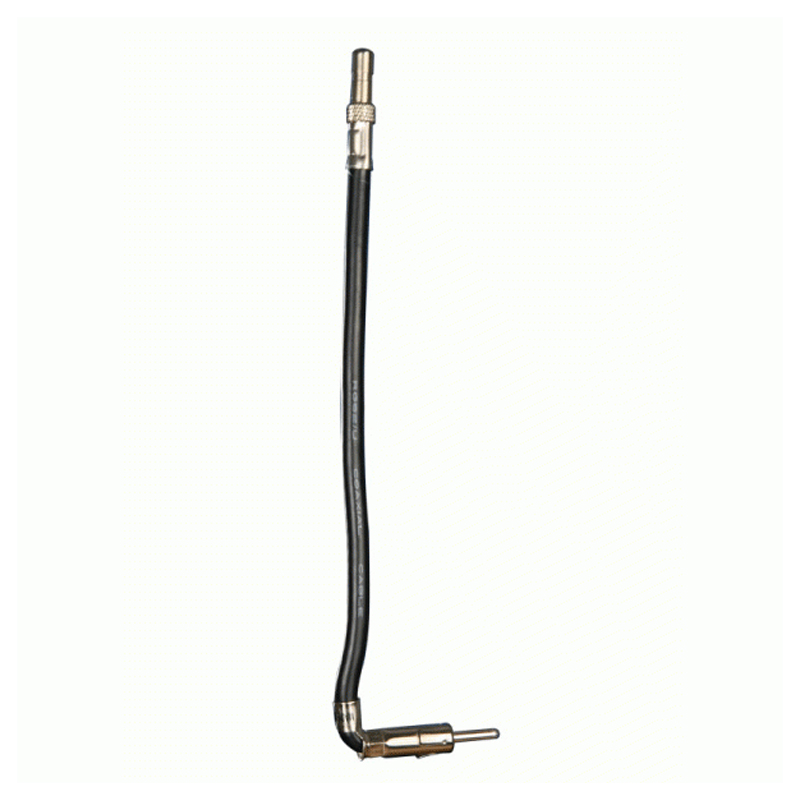

40-CR10 Chrysler/Dodge/Ford/GM/Jeep Antenna Adapter Cable 2002-Up

  • Chrysler factory antenna adapter
  • Snap-lock to aftermarket radio

AKXP4-1 Amp Kit, XP Flex 4 AWG, Power Cable, Speaker Cable, Signal and Remote

Specifications:

  • Weight Lbs. – 3.25
  • Weight Kgs. – 1.47
  • Length – 9.75 in
  • Height – 11 in
  • Width – 2.5 in

Kit Contents:

  • 1qty - 17ft 4AWG XPFLEX BL Cable
  • 1qty - 3ft 4AWG XPFLEX BK Ground Cable
  • 1qty - 17ft 18G BL Remote Cable
  • 1qty - 17ft 16G Clear Speaker Wire
  • 1qty - 17ft High Grade Twisted Pair RCA Cables
  • 1qty - Mini ANL Fuse Holder
  • 1qty - 60A ANL Fuse
  • 2qty - Plaite Braid Tube in BK
  • 2qty - 4AWG Ring Terminal/Seamless/BL
  • 2qty - 4AWG Spade Terminal/BK
  • 2qty - 16G Spade Terminals/BK
  • 3qty - 16G Spade Terminals/BL
  • 1qty - 1/2" Firewall Grommet
  • 10qty - 6" Zip Ties
  • UPC: 798418841864
  • Weight: 60
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
