Onlinecarstereo Exclusive Bundle
This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

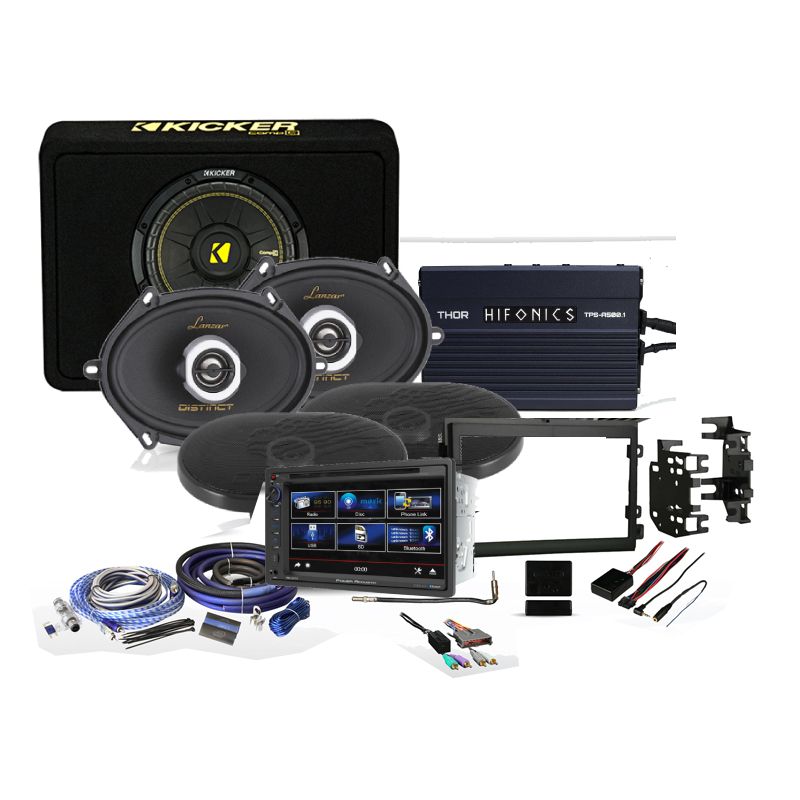

PCH Custom Audio Expedition 3rd Gen Sound System Ford Expedition 3rd Gen 2007-2017 Full Sound System
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •Power Acoustik PD-651B
- •Lanzar DCT5.72
- •Kicker 44TCWC104
- •Hifonics TPS-A500.1
- •Ground Shaker 95-5812
- •Metra 70-5510
- •Metra 40-CR10
- •Axxess AXSWC
- •XS Power AKXP4-1
- • Owner's Manual
Power Acoustik PD-651B 2-DIN 6.5" LCD Touch Screen Multimedia Source Unit with Bluetooth, DVD/CD, AM/FM Receiver
PhoneLink for Android
PhoneLink for Android enables complete control of select Android smartphones and tablets by the source unit’s operating system. Conveniently launch any application, post social media updates, or play your videos and all other content on your mobile device. Your smart device display is mirrored to the head unit’s larger LCD screen via a simple USB connection. Even activate your phone’s default artificial intelligence assistant/voice command with push-to-talk (PTT). PhoneLink for Android ensures a safe, hands-free operation of your smart device without distraction. When connecting the smartphone for the first time, the head unit will upload an app to the device. Once installed, the app will automatically launch as a background task each time the phone is connected
Lanzar DCT5.72 Pro Audio 5x7" 100W RMS (200W Peak Power Handling) 2-Way Coaxial Speaker, Set of 2
5" x 7" 100 Watts 4ohms 2 Way Coaxial Speakers
Standard 5"x 7" Size Fits OEM Locations - High Quality Sandy Coated Paper Cone Non-Fatiguing Butyl Rubber Surround - 1" High Temperature Aluminum Voice Coil 1" PEI Dome Neo-Tweeter - Sandy Black Coated Steel Basket - 20 Oz Magnet Structure Rubber Magnet Boot - Power Handing: 100 Watts RMS/ 200 Watts Peak Output Frequency Response: 65 Hz - 20 kHz - Impedance: 4 Ohms - Mounting Depth: 2.48"
Kicker 44TCWC104 CompC Series 10" 300W RMS (600W Peak Power Handling) 4-Ohm Car Subwoofer in Thin Profile Enclosure
Loaded Subwoofer Enclosure
You should go for a Kicker 44TCWC104 if you are thinking of a loaded subwoofer enclosure that would surely fit inside your vehicle rather than having you install it on your own. Coming with a 10-inch CompC subwoofer, you can be sure that it can deliver a powerful and loud bass that you can always expect from any of Kicker subwoofers.
Hifonics TPS-A500.1 Thor Series Compact 500Wx1 RMS @2Ohms (500W Max Power) Mono Powersports Digital Amplifier
High-performance Mono Amplifier
The Hifonics TPS-A500.1 is a high-performance mono amplifier designed to deliver powerful and efficient sound for outdoor and marine applications. Engineered to withstand harsh environments, the TPS-A500.1 is a must-have for anyone looking to upgrade their sound system for outdoor use.
Metra Electronics 95-5812 Ford Multi-Kit 2004-Up
Painted Scratch-resistant
The Metra Electronics 95-5812 is a car stereo installation kit designed for select Ford vehicles from 2004 to 2011. The kit includes a dash kit, and an optional wiring harness and antenna adapter, allowing for a seamless installation of an aftermarket stereo system.
Metra Electronics 70-5510 Factory Amplifier Integration Harness
New Car Radio Faster
The Metra Electronics 70-5510 is a car stereo wiring harness designed for select Ford vehicles. It provides a convenient and efficient solution for connecting an aftermarket stereo to the factory wiring system without the need for cutting or splicing wires. The 70-5510 features a plug-and-play design, making installation quick and hassle-free. It is specifically engineered to fit seamlessly into compatible Ford models, ensuring a secure and reliable connection. The harness is constructed with high-quality materials to guarantee durability and long-lasting performance.
Metra Electronics 40-CR10 Factory Antenna to Aftermarket Radio Adapter for Chrysler/Dodge/Ford/GM 2006/Jeep 2002-Up
Simple Yet Necessary Cable
If you are replacing the radio in your vehicle, this antenna cable adapter ensures that you can continue to use your factory antenna. It is a simple yet necessary cable that adapts the vehicle’s original antenna cable to plug into an aftermarket radio with a male Motorola™ connector on one end and a snap-lock female antenna connector on the other.
Axxess AXSWC Universal Steering Wheel Control Interface
Steering Wheel Control Harness
This wiring harness allows you to connect various electrical components of a car to the steering wheel. It is typically used to connect a hands-free device such as a Bluetooth headset, or a car stereo system, to the steering wheel. This harness is designed to provide a secure connection that ensures the electrical components are securely connected to the steering wheel.
XS Power AKXP4-1 Amp Kit, XP Flex 4 AWG, Power Cable, Speaker Cable, Signal and Remote
Safe and Easy Installation
This kit is designed to help you correctly and safely install your new XS Power or other aftermarket Powercell. The kit was designed with the installer in mind, and can be completed with very few tools and requires no wire crimping if the directions are followed correctly. Please see the steps below that will help to facilitate a fast, safe and easy installation of your new battery and cables.
What's Included?
- Power Acoustik PD-651B
- Two Pairs of Lanzar DCT5.72
- Kicker 44TCWC104
- Hifonics TPS-A500.1
- Metra 95-5812
- Metra 70-5510
- Metra 40-CR10
- XS Power AKXP4-1
- Axxess AXSWC

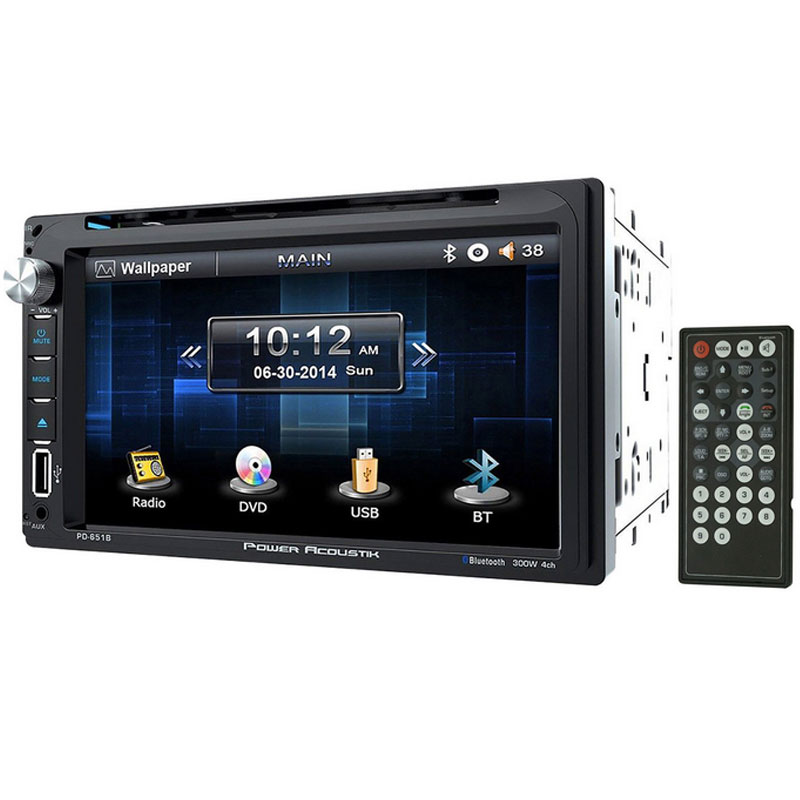

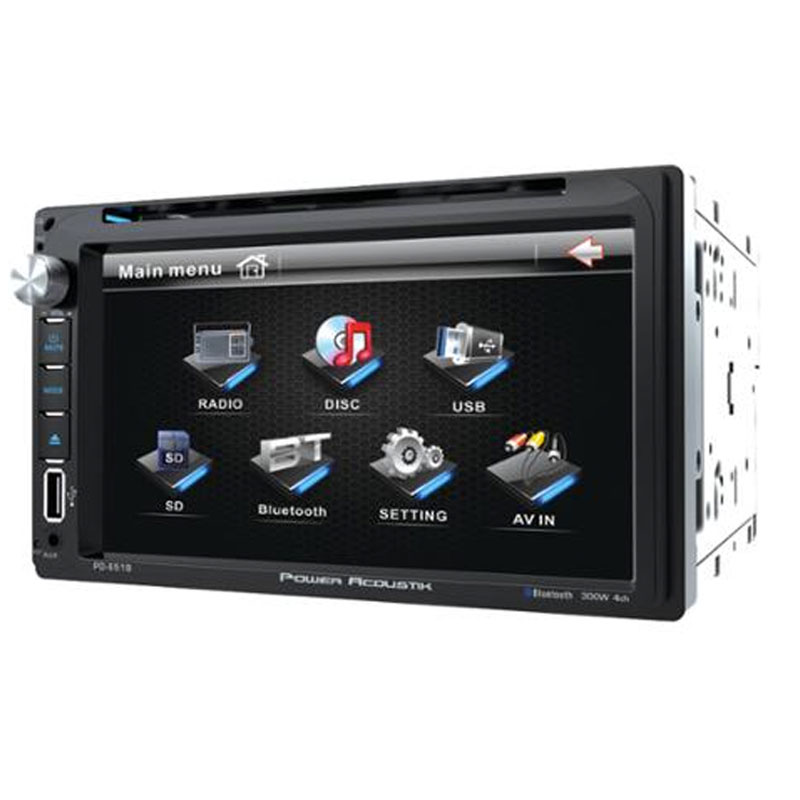

PD-651B 2-DIN Multimedia Source Unit w/ 6.5" LCD Touch Screen with Bluetooth
General Features:
- In-Dash AM/FM, DVD, DivX, AVI, MP3, USB Receiver with Remote
- Full-color 6.5" LCD touchscreen display
- Motorized monitor angle adjustment
- Easily navigate through the extensive features with a tap of the screen to access all menus and settings
- Bluetooth V2.0 Hands Free Calling From Enabled Devices
- Dual Zone for Rear Seat or Overhead Entertainment
- 480 x 243 Widescreen Resolution
- Blue/White illuminated button lighting with angle adjustment
Playback and Audio Features:
- Playback of DVD, DVD-R, DVD-RW, CD, CD-R, CD-RW, MP3, MP4, WAV, JPG, DivX and WMA
- Playback of any region DVD discs
- AM/FM tuner with 18FM/12AM presets
- Multi-region radio frequency selections
- Electronic Shock Protection (ESP)
- 2-band parametric equalizer with 5 selectable tone curves (4 Preset, 1 User)
- Fixed 80Hz subwoofer Low Pass crossover filter
Expandability Options:
- 3 Sets of 2V preamp outputs (front, rear and mono subwoofer)
- Front A/V Auxiliary Input: Used for connecting video accessories such as game consoles, MP3 players, etc.
- Front USB Input: USB port allows connection to digital devices such as flash drives, portable media players, etc.
- Backup Camera Input: Used for universal rear view cameras with an RCA composite input. The Power Acoustik CCD-3 is recommended and sold separately
- Rear RCA Audio/Video Output: Used for connection to separate monitors and devices
Power Output:
- Peak: 52 watts x 4 channels
- RMS: 17 watts x 4 channels
- Wireless remote control included
- CD text information display
- MP3 ID3 Tag Display (Title/Artist/Album)
Includes:
- Head Unit
- Harness
- Control
- Manual
(2) DCT5.72 Pro Audio 5x7" 100W RMS (200W Peak Power Handling) 2-Way Coaxial Speaker, Set of 2
Standard 5"x 7" Size Fits OEM Locations - High Quality Sandy Coated Paper Cone Non-Fatiguing Butyl Rubber Surround - 1" High Temperature Aluminum Voice Coil 1" PEI Dome Neo-Tweeter - Sandy Black Coated Steel Basket - 20 Oz Magnet Structure Rubber Magnet Boot - Power Handing: 100 Watts RMS/ 200 Watts Peak Output Frequency Response: 65 Hz - 20 kHz - Impedance: 4 Ohms - Mounting Depth: 2.48"
Specifications
- Impedance: 4 Ohms
- Cone Composition High Quality Sandy Coated Paper Cone
- Frequency Response: 65 Hz - 20 KHz
- Includes Custom Wire-Mesh Grills, Wires and Installation Hardware
- Basket Composition Sandy Black Coated Steel Basket
- Voice Coil Composition 1" High Temperature Aluminum
- Magnet Structure 20 Oz
- Surround Composition Non-Fatiguing Butyl Rubber Surround
- Fits OEM Locations Standard 5''x 7'' Size
- Boot Rubber Magnet Boot
- Dome Neo-Tweeter 1" PEI
- Power Handing: 100 Watts RMS/ 200 Watts Peak
- Mounting Depth: 2.48"
- Sold as: Unit

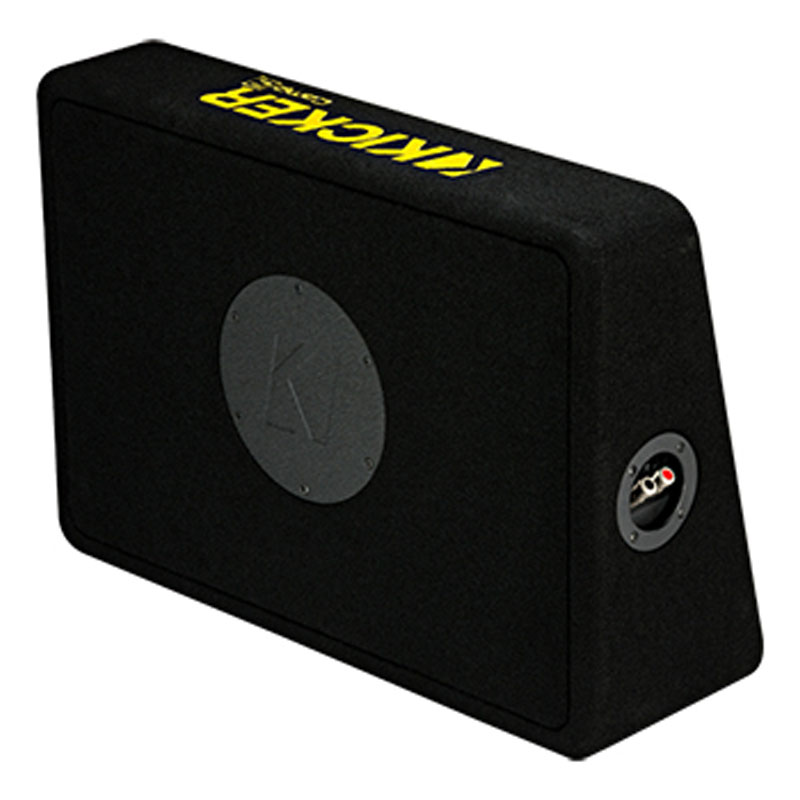

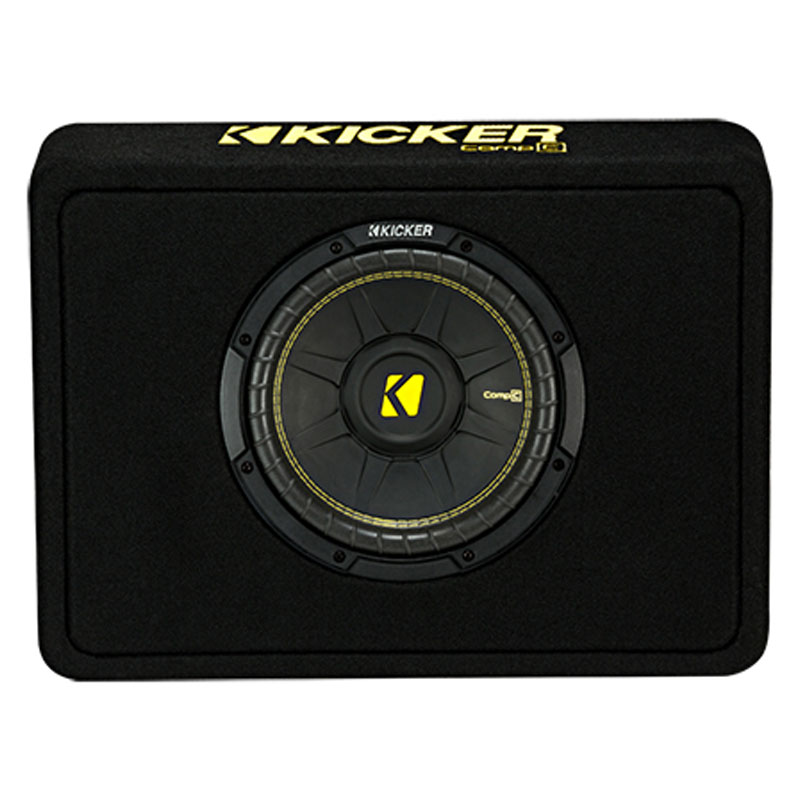

44TCWC104 CompC Series 10" 600 Watts Max Power 4-Ohm Car Subwoofer in Thin Profile Enclosure
Features:
- Fits Perfectly Under Or Behind A Seat
- Genuine CompC Subwoofer
- Custom Port Design
- Made Of Heavy MDF
- Spring Loaded Speaker Terminal
- Thick Black Carpet Protects the Enclosure
- Embroidered KICKER Logo
- Works Perfectly with CX300.1
Specifications:
- Subwoofer (in, cm): 10, 25
- Impedance (Ohms): 4
- Power Watts (peak/RMS): 600/300
- Sensitivity (dB 1w/1m): 93.8
- BOX TOP DEPTH (in, cm): 4,10.2
- BOX BOTTOM DEPTH (in, cm): 7-5/8, 19.4
- BOX HEIGHT (in, cm): 15, 38.1
- BOX WIDTH (in, cm): 21-1/2, 54.6

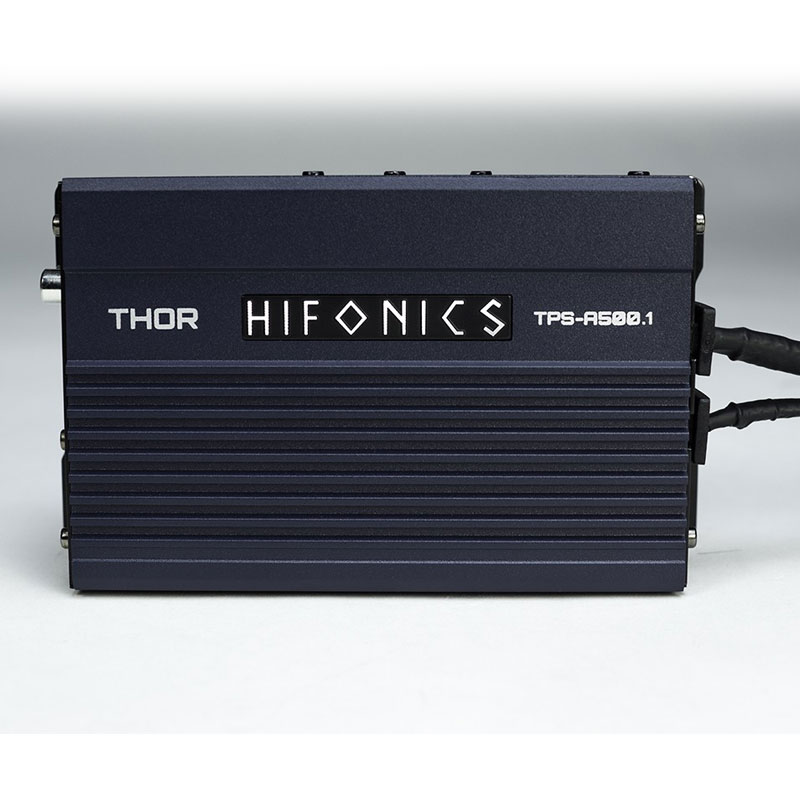

TPS-A500.1 THOR Compact 500Wx1 @ 2 Ohm, Mono Powersports Digital Amplifier
Features & Benefits
- MARINE GRADE PROTECTION: YES
Amplifiers are ABYC & ASTM certified which defines that marine amplifiers must use conformal coated PC boards to resist corrosion from salt spray & moisture.
- PRE-AMP CIRCUITRY: Low Noise Pre-Amplifier Stage
Special preamplifier reduces incoming noise from source units dramatically improving sound quality
- INPUTS: 1 Pair, RCA Nickel-Plated
High temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant
- OPERATION MODE: Mono operation
Deisgned to power 1 subwoofer or subwoofer system
- CROSSOVER / SIGNAL SHAPING: LPF
Complete control of amplifier signal, essential when using two or more amplifiers
- CLASS / TOPOLOGY: Full Range Class D
Highly efficient circuit topology which helps the amplifer develop a lot of power in a very small heatsink.
- OUTPUT DEVICES TECHNOLOGY: PWM MOSFET Power Supply
Stable power through the PC board with minimal heat generation
- HEAT SINK: Aluminum
Quickly dissapates heat to allow the amplifer to run lower impedance for longer duration
- POWER SUPPLY: Simpatico Coil Design
The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices
- BASS REMOTE INLUDED: YES
Wired Bass Remote allows adjustments to bass frequencies to be made from the control mounted anywhere in the vehicle.
- OUTPUT CONNECTIONS: Quick Dissconect Wires, RCA Connections
Quickly remove amplifer when you are putting machine up for the winter of as a security precaution
- CONNECTIONS TYPE: Gold-plated connections
Gold-plated power, ground, speaker and RCA corrosion resistant connections
- DIAGNOSTICS: Three-stage protection circuits
Monitor thermal, overload, DC, and speaker short protection with lighted indicators on the amplifier end panel
- MARINIZED / WATERPROOF: YES
Water resistant for durability in any environment

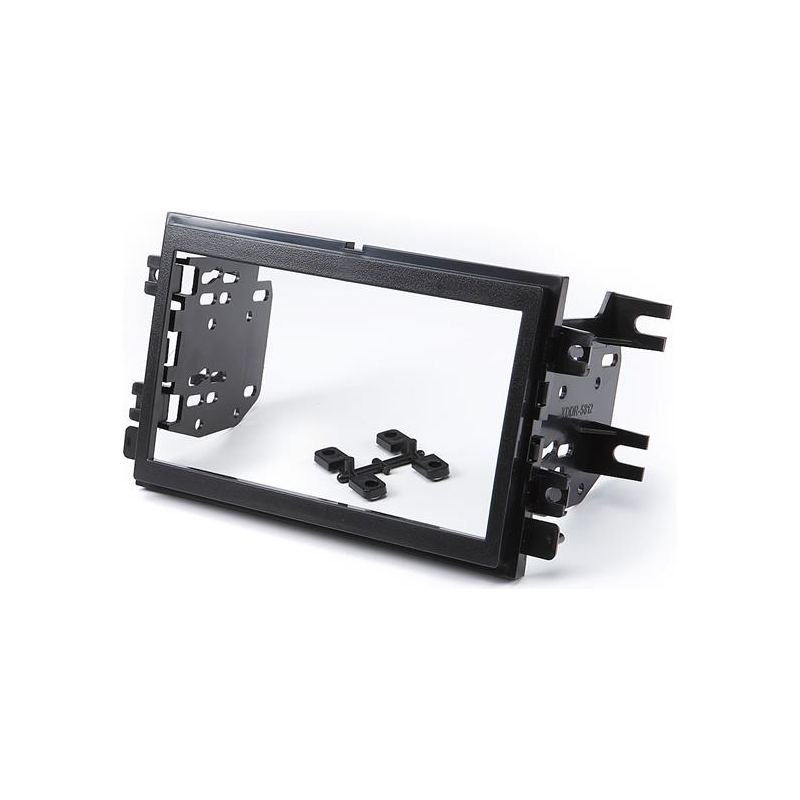

95-5812 Ford Multi-Kit 2004-Up

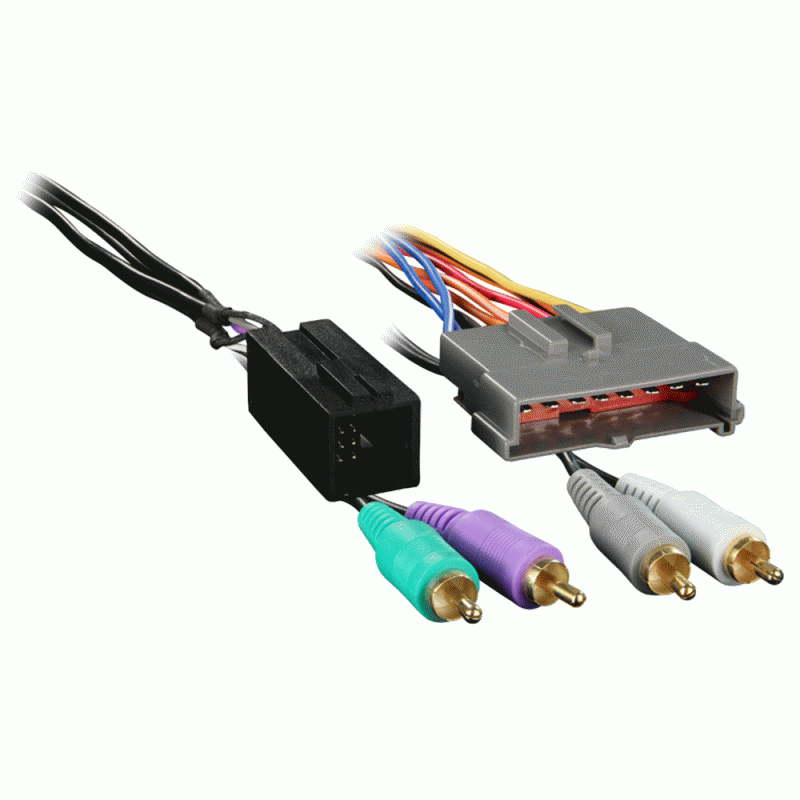

70-5510 Ford 1986-2000 Amp Integration
- For all amplified systems using a 35 Watt or greater radio
- Amplifier Integration Harness
- 12 inches

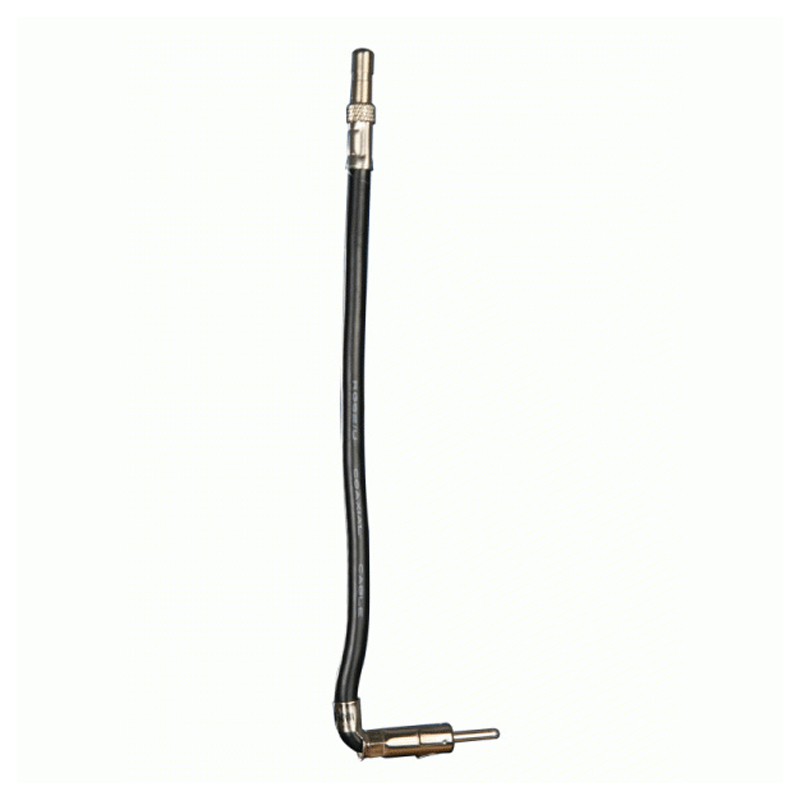

40-CR10 Chrysler/Dodge/Ford/GM/Jeep Antenna Adapter Cable 2002-Up
- Chrysler factory antenna adapter
- Snap-lock to aftermarket radio

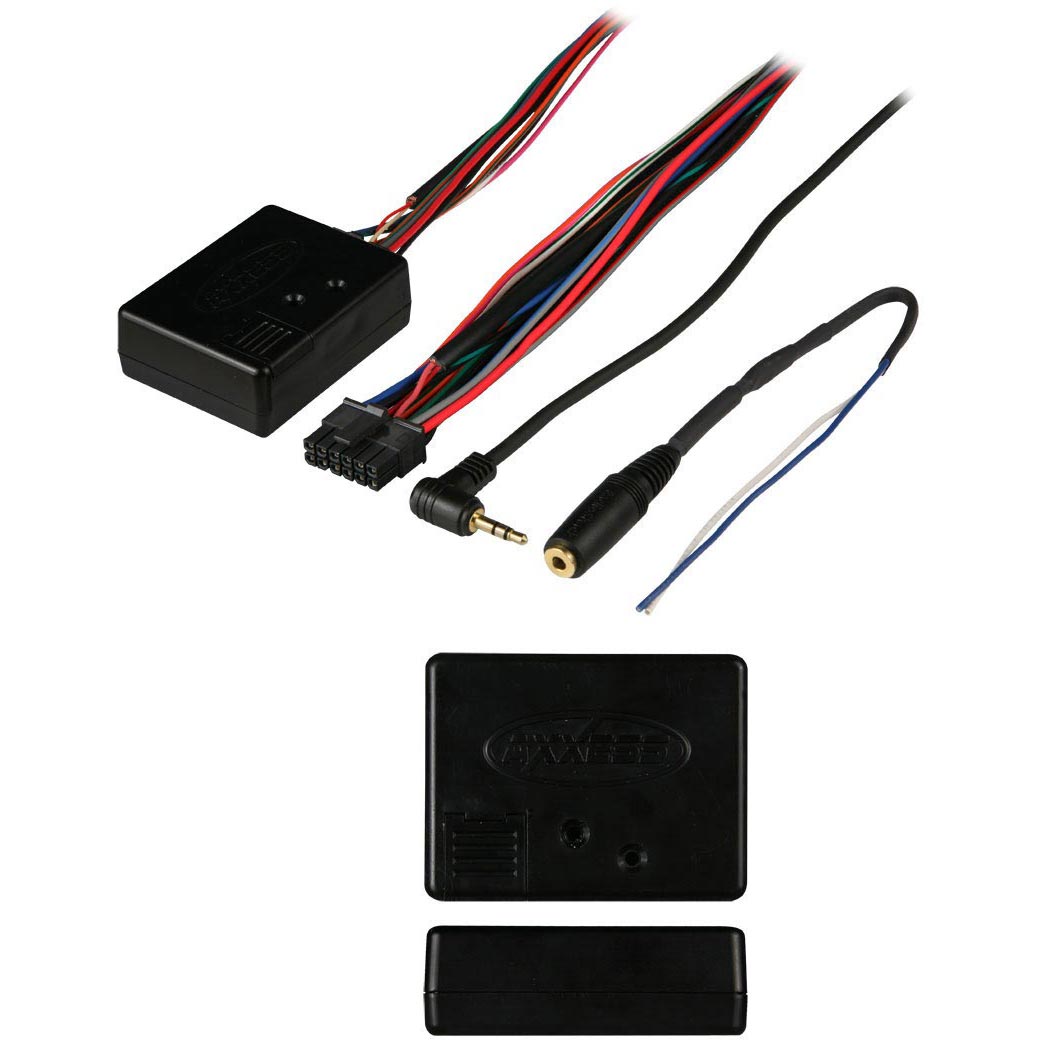

AXSWC Universal Steering Wheel Control Interface, Works with Many Popular Aftermarket Receivers - NEW MODEL that replaced the ASWC-1
Features:
- One Interface does it all – No additional interfaces needed
- Designed to be compatible with all major radio brands
- Auto detects (1) vehicle type, radio connection, and presets controls
- Ability to dual assign steering wheel control buttons
- Can be manually programmed for most vehicles
- Retains settings even after battery disconnection or interface removal
- All connections done at the radio location
- Micro “B” USB updatable
AKXP4-1 Amp Kit, XP Flex 4 AWG, Power Cable, Speaker Cable, Signal and Remote
Specifications:
- Weight Lbs. – 3.25
- Weight Kgs. – 1.47
- Length – 9.75 in
- Height – 11 in
- Width – 2.5 in
Kit Contents:
- 1qty - 17ft 4AWG XPFLEX BL Cable
- 1qty - 3ft 4AWG XPFLEX BK Ground Cable
- 1qty - 17ft 18G BL Remote Cable
- 1qty - 17ft 16G Clear Speaker Wire
- 1qty - 17ft High Grade Twisted Pair RCA Cables
- 1qty - Mini ANL Fuse Holder
- 1qty - 60A ANL Fuse
- 2qty - Plaite Braid Tube in BK
- 2qty - 4AWG Ring Terminal/Seamless/BL
- 2qty - 4AWG Spade Terminal/BK
- 2qty - 16G Spade Terminals/BK
- 3qty - 16G Spade Terminals/BL
- 1qty - 1/2" Firewall Grommet
- 10qty - 6" Zip Ties
- UPC: 798418841857
- Weight: 80
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
