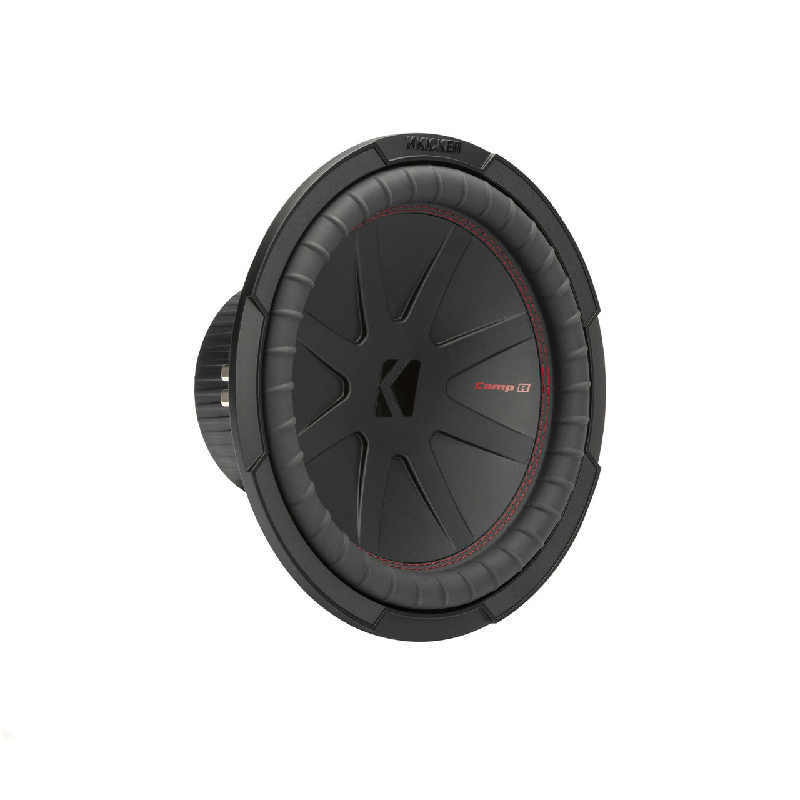

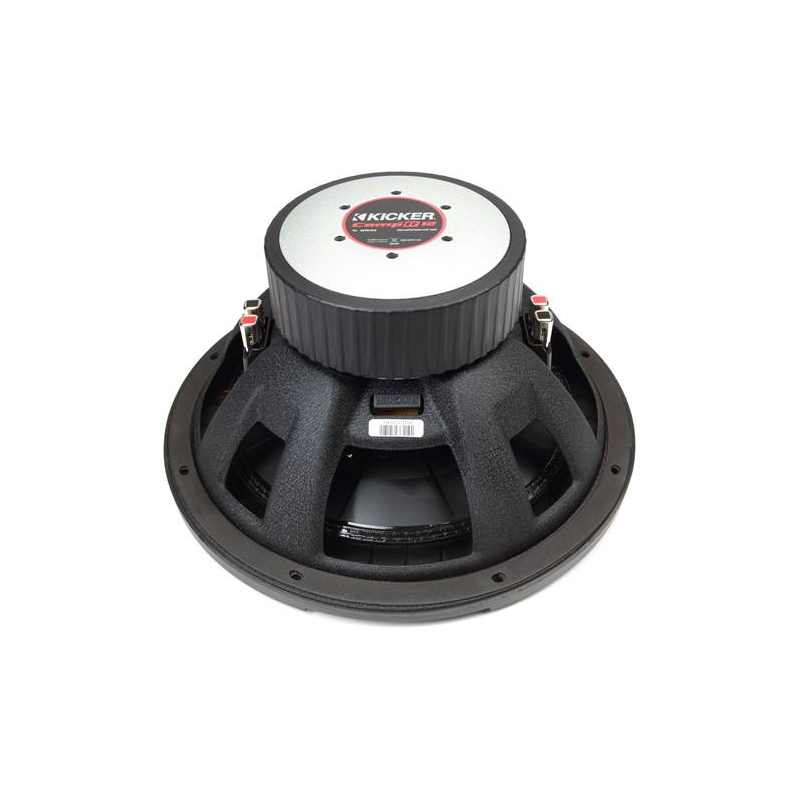

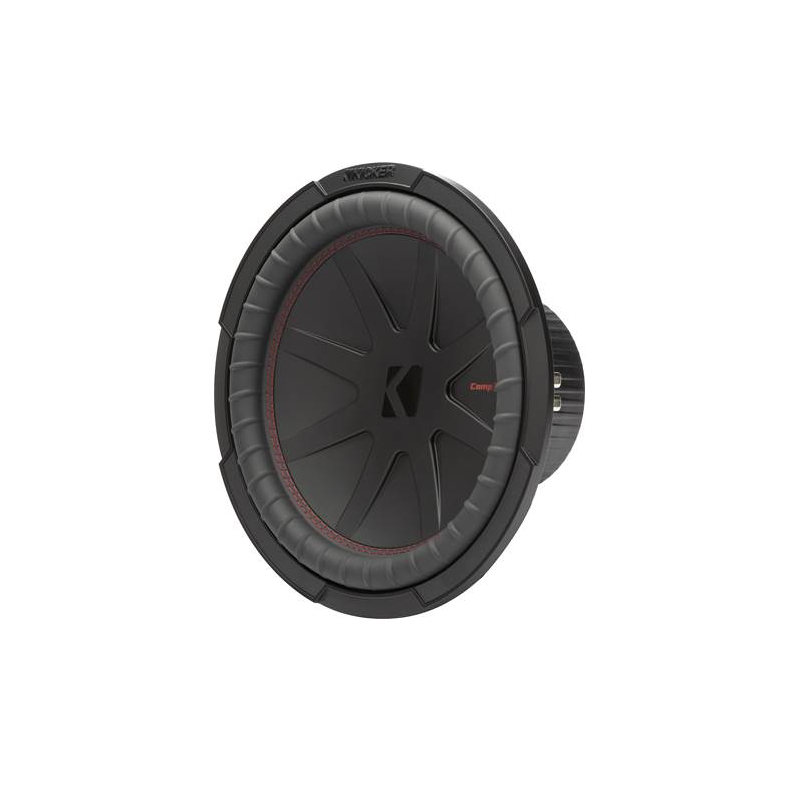

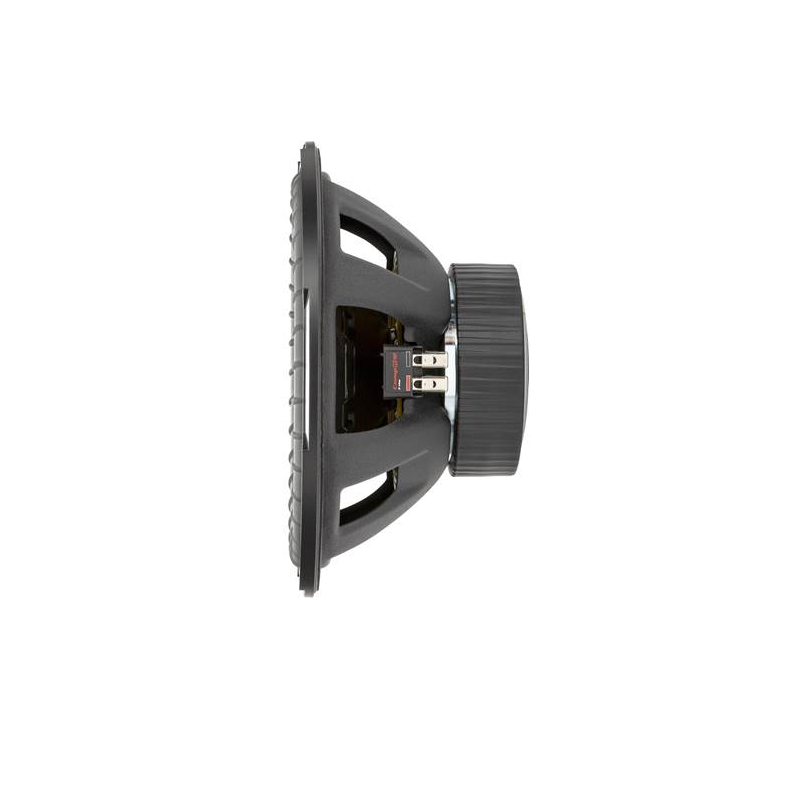

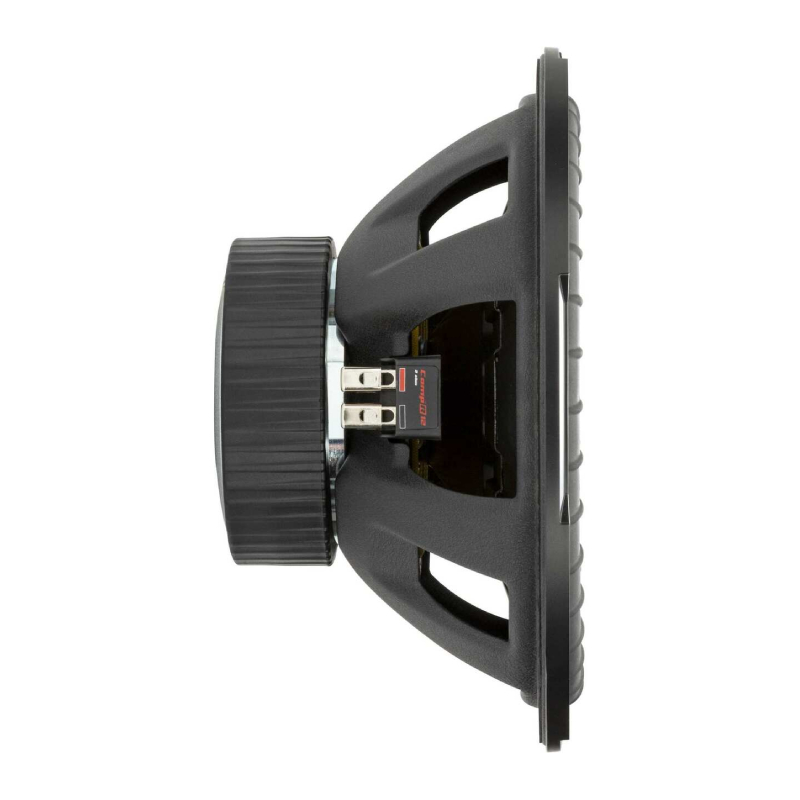

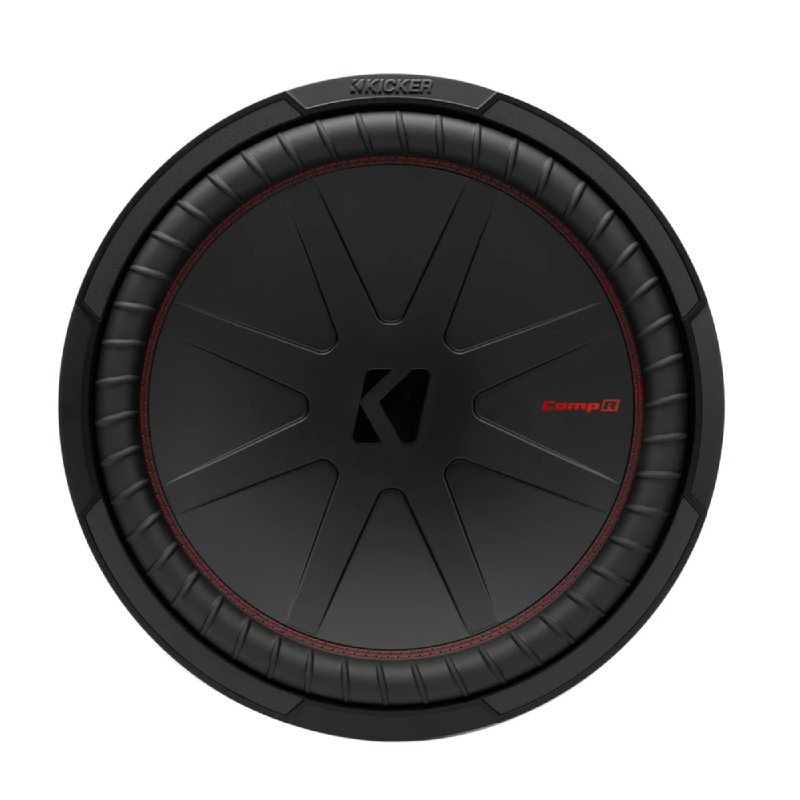

Kicker 48CWR124 CompR Series 12" 500W RMS (1000W Peak Power Handling) 4 Ohms, Dual Voice Coil Component Car Subwoofer
We are a Kicker authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 12" CompR Series Dual Voice Coil Component Car Subwoofer
- • Kicker logo sticker
- • (4) Adhesive backed screw covers
- • Screw cover installation instructions
- • Owner's Manual
Why Choose Kicker 48CWR124 Component Car Subwoofer?
Flexible Wiring, Precision Bass, and Superior Control
Dual 4-Ohm voice coils allow versatile wiring configurations—series, parallel, or dual amplifier setups—for easy system matching and maximum performance. SoloKon™ cone technology fuses the polypropylene cone with the vented back brace, creating a rigid, distortion-reducing structure that enhances cooling. Combined with an advanced suspension system, this subwoofer delivers tight, accurate bass with precise cone control, even during high-excursion play.
Cool, Durable, and Reliable Performance
The forced-air cooling system keeps the sub up to 25% cooler than standard designs, enabling longer play sessions and enhanced reliability under heavy loads. Built with rugged materials, including a Santoprene® surround and reinforced stitching, this subwoofer delivers long-lasting performance even in the most demanding environments.
Versatile Enclosure Compatibility for Custom Bass
Optimized for both sealed and ported enclosures, this subwoofer lets you tailor your bass response to your preferences delivering tight, controlled lows in sealed boxes or deep, extended output in vented setups for a fully customized listening experience.
Frequently Asked Questions (FAQ)
- • What amplifier is the best match for this subwoofer?
Select a mono amplifier with an RMS output close to the subwoofer's continuous power rating. Proper power matching provides clean bass while helping prevent speaker damage.
- • Is a sealed or ported enclosure recommended?
Both enclosure types work well when built within the recommended specifications. Sealed boxes emphasize accuracy, while ported enclosures deliver louder and deeper bass.
- • Why does my bass sound weaker than expected?
Improper enclosure size, incorrect crossover settings, or reversed speaker polarity are common causes. Double-checking the installation usually restores stronger bass output.
- • Can I wire multiple subwoofers to one amplifier?
Yes, as long as the final impedance matches your amplifier's supported load. Always verify the wiring diagram before making any connections.
- • Why does the bass become distorted at high volume?
Amplifier clipping and excessive gain settings are the most common reasons for distortion. Proper tuning helps produce cleaner bass and extends the life of the subwoofer.
- • Does this subwoofer require a break-in period?
Yes, many users recommend several hours of moderate playback before using maximum power. This allows the suspension to settle for smoother and more consistent performance.
- • Why is my enclosure rattling when the bass hits hard?
Loose mounting screws, air leaks, or vibrating trim panels are common causes. Securing the enclosure and adding sound-deadening material can greatly reduce unwanted noise.
- • Can this subwoofer handle daily high-volume use?
Yes, it is built for dependable daily performance when powered correctly. A properly matched amplifier and enclosure help ensure long-lasting reliability.
- • Why does the subwoofer get warm after extended listening?
Some heat is expected during long periods of high-power playback. Excessive heat usually indicates overpowering or incorrect amplifier gain adjustment.
- • Can this subwoofer deliver both deep bass and tight response?
Yes, it is capable of producing deep low frequencies while maintaining accurate bass reproduction. Proper enclosure construction and amplifier tuning make a noticeable difference in overall performance.
- Diameter : 12 Inch
- Sensitivity : 86.9 dB
- Impedance : 4 Ohm
- Frequency Response : 25-500 Hz
- Peak Power Handling : 1000 Watts
- Design : 1 Way
- Number of Voice Coils : Dual
- RMS Power Handling : 500 Watts
Features:
- Dual 4-Ohm Voice Coils: Offers flexible wiring configurations for series, parallel, or dual amplifier setups, making it easy to match your system and maximize performance.
- SoloKon Cone Technology: Joins the polypropylene cone to the vented back brace, forming a single integrated unit that reduces distortion while improving cooling and structural rigidity.
- Advanced Suspension System: Provides precise cone control during high-excursion play, keeping bass tight, accurate, and free from unwanted resonance.
- Forced-Air Cooling System: Keeps the sub up to 25% cooler than standard designs, allowing for longer play sessions and improved reliability under heavy load.
- Rugged Construction: Durable materials including Santoprene® surround and reinforced stitching ensure long-lasting performance even in demanding environments.
- Sealed or Ported Enclosure Compatible: Optimized for both sealed and vented boxes, allowing you to tune the bass response to your preferences, from tight and controlled lows to deep, extended output.
- High Power Handling: Designed to handle up to 500 watts RMS and 1000 watts peak, giving your system the ability to produce powerful, room-filling bass without compromising reliability.
- Precision Mounting Design: The compact 5-3/4" mounting depth and accurately sized 11" diameter make installation straightforward in a variety of enclosures and vehicle types.
Specifications:
- Size: 12" (30 cm)
- Impedance: 4 Ohm (Dual Voice Coil)
- Recommended Amplifier Power (RMS): 500 watts
- Peak Power (ANSI/CTA-2031-A): 1000 watts
- Sensitivity (1w/1m): 86.9 dB
- Mounting Depth: 5-3/4" (14.6 cm)
- Mounting Diameter: 11" (27.9 cm)
- Minimum Sealed Box Volume: 1.0 cu. ft (28.3 L)
- Maximum Sealed Box Volume: 2.0 cu. ft (56.64 L)
- Minimum Vented Box Volume: 1.75 cu. ft (49.6 L)
- Maximum Vented Box Volume: 2.25 cu. ft (63.7 L)
- UPC: 713034019114
- Weight: 13.6
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
