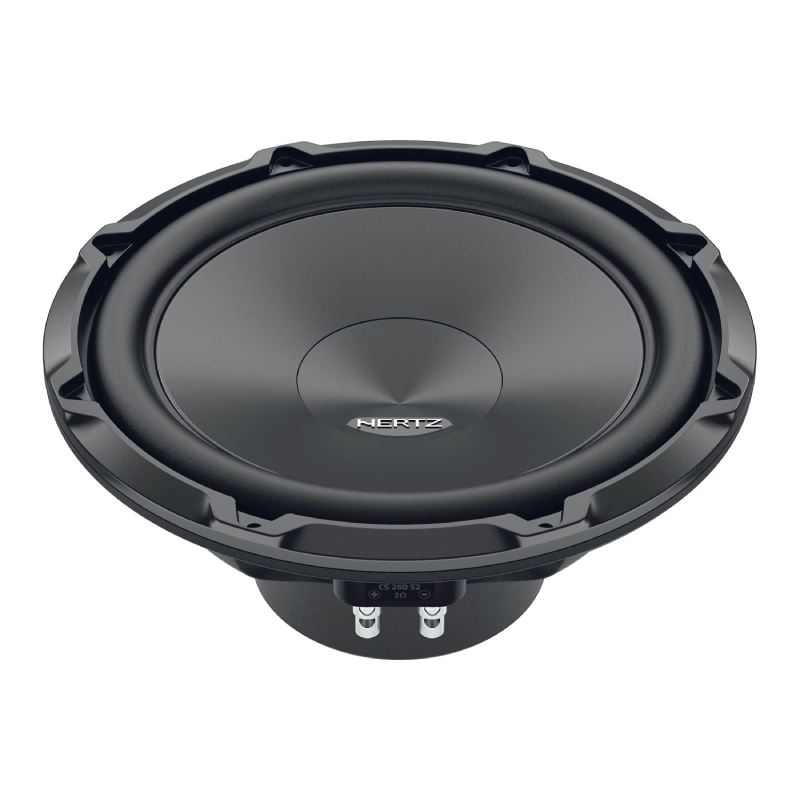

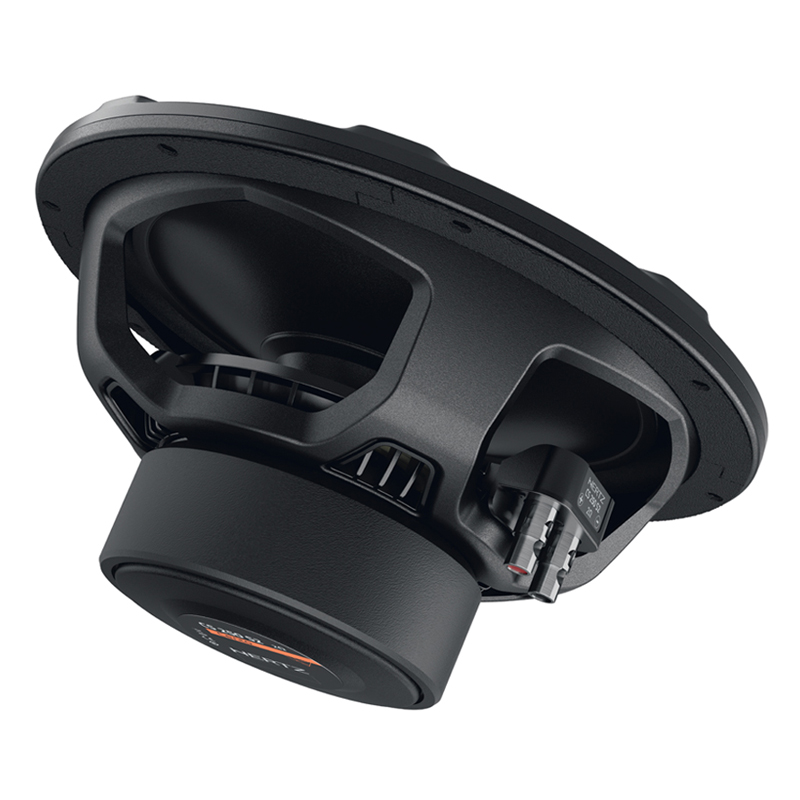

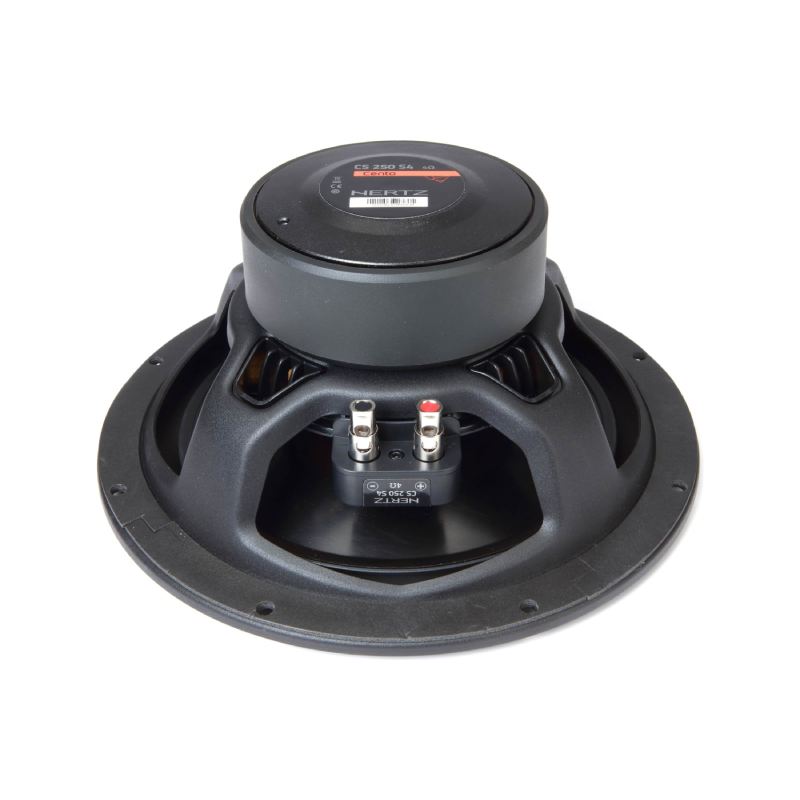

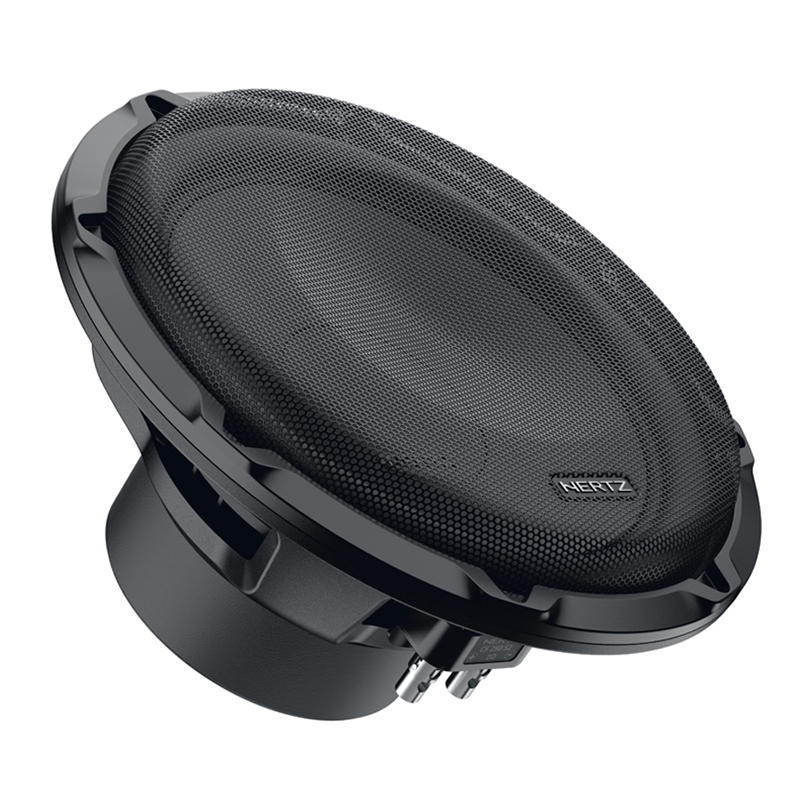

Hertz CS 250 S4 Cento Series 10" 300W RMS (600W Peak Power) 4 Ohms Voice Coil Car Subwoofer
We are a Hertz authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •One 10" Single 4-ohm voice coil subwoofer
- •Trim ring
- •Eight 1-1/2" Screws
- •8 Speed clips
- •Owner's manual
Perfect Enhancement to Every Sound System
The Hertz CS 250 S4 is a 10-inch subwoofer designed for use in car audio systems. It is part of Hertz's Cento series of subwoofers known for their high performance and reliability.
Detailed Bass Response

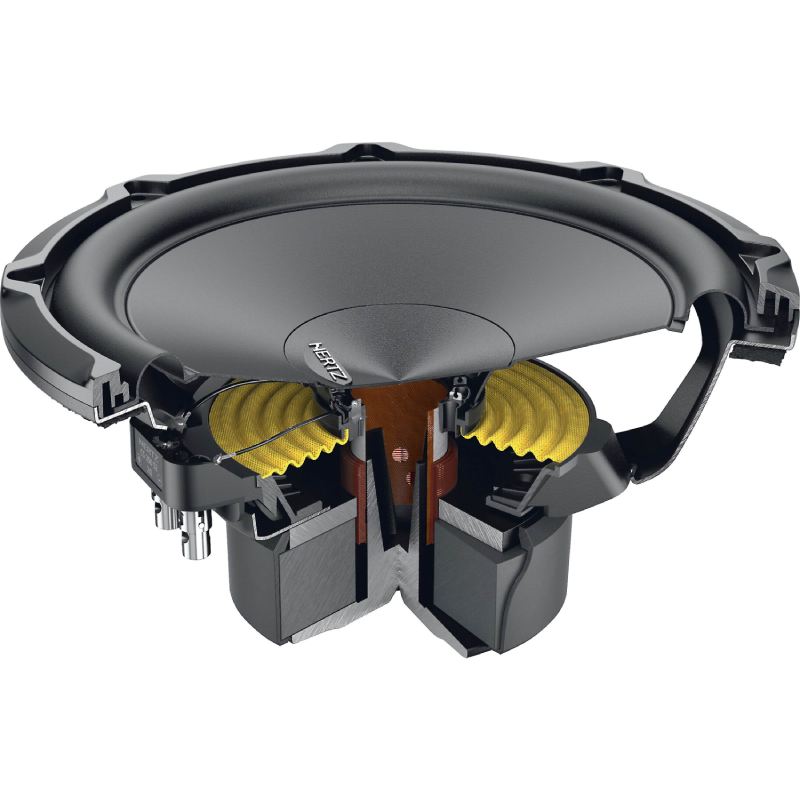

The CS 250 S4 features a single 4-ohm voice coil configuration, making it easy to wire to various amplifiers. Its cone is made from a polypropylene material, which is both lightweight and rigid, and is designed to deliver an accurate and detailed bass response with the help of its rubber surround.
Deliver high volumes of deep
The CS 250 S4 has a peak power handling capacity of 600 watts and an RMS power handling capacity of 300 watts, which means it can deliver high volumes of deep, powerful bass without distortion. Its butyl rubber surround helps to control the subwoofer's movement and reduce distortion, while its steel frame provides a sturdy and stable platform for the subwoofer.
Physical Specifications
- • A: 270 mm (10.63 in)
- • B: 231 mm (9.09 in)
- • C: 132 mm (5.2 in)
- • D: 115 mm (4.53 in)
- • E: 260 mm (10.24 in)
- • F: 28.3 mm (1.11 in)
ENCLOSURES
*Enclosures is not included in this product
BOX TECH DATA - SEALED BOX
-
- Volume of Enclosure (Vb): 16 cu.ft. (0.57 cu.m)
- • Tuning Frequency (Fb): 50 Hz
- • Total Q Factor (Qtc): 0.87
- • Width (W): 385 mm (15.16 inches)
- • Height (H): 385 mm (15.16 inches)
- • Depth (D): 180 mm (7.09 inches)
- • Mounting Hole (M): 231 mm (9.09 inches)
- • Wood Thickness: 19 mm (0.75 inches)
PANELS CUT LIST - SEALED BOX
- • Panel A (A): 385 x 385 mm (15.16 x 15.16 inches) - Quantity: 2
- • Panel B (B): 385 x 142 mm (15.16 x 5.59 inches) - Quantity: 2
- • Panel C (C): 347 x 142 mm (13.66 x 5.59 inches) - Quantity: 2
- Diameter : 10 Inch
- Sensitivity : 84 dB
- Impedance : 4 Ohm
- Peak Power Handling : 600 Watts
- Top Mount Depth : 4.5 Inches
- Bottom Mount Depth : 5.37 Inches
- Suggested Sealed Box Volume : 0.57 Cubic ft.
- RMS Power Handling : 300 Watts
Features:
- 10" 4-ohm shallow-mount subwoofer
- polypropylene cone with rubber surround
- power handling: 300 watts RMS (600 watts peak)
- sensitivity: 84 dB
- top-mount depth: 4-1/2"
- push terminals handle up to 8-gauge wire
- sealed box volume: 0.57 cubic feet
- grille sold separately
Specifications:
- Size: 250 millimeters (10 inches)
- Continuous Power Handling: 300 watts
- Peak Power Handling: 600 watts
- Impedance: 4 ohms
- Filter Component: None (Subwoofer)
- Voice Coil Diameter: 35 millimeters (1.38 inches)
- Magnet Size: 120 x 45 x 34 millimeters (4.72 x 1.77 x 1.34 inches)
- Weight: 3.795 kilograms (8.37 pounds)
- Magnet: High-density flux ferrite
- Cone: Polypropylene
- Xmech: 16.5 millimeters (0.65 inches)
Electro-Acoustic Specifications:
- Diameter (D): 216 mm
- Maximum Excursion (Xmax): 12.5 mm
- DC Resistance (Re): 3.6 ohms
- Resonant Frequency (Fs): 30 Hz
- Voice Coil Inductance (Le): 3.33 mH
- Equivalent Air Volume (Vas): 34.5 liters
- Moving Mass (Mms): 154 grams
- Mechanical Compliance (Cms): 0.18 mm/N
- Force Factor (BL): 13.7 T*m
- Total Q Factor (Qts): 0.52
- Electrical Q Factor (Qes): 0.56
- Mechanical Q Factor (Qms): 9.4
- Sound Pressure Level (SPL): 84 dB
- UPC: 8018823130363
- Weight: 10
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
