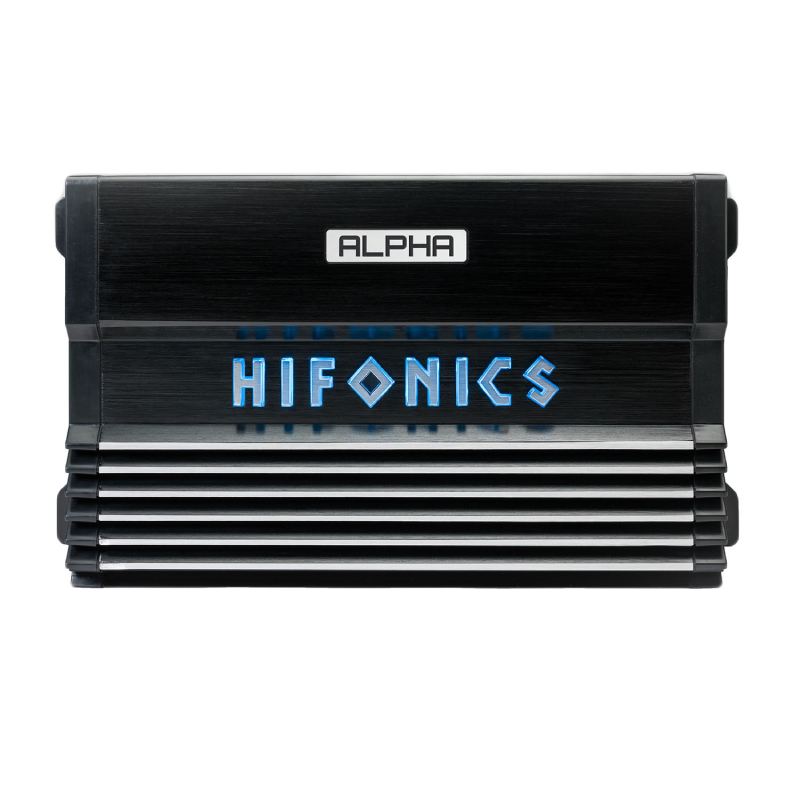

1000 watt Hifonics ALPHA series compact two channel Super D-Class® car audio amplifier with electronic crossovers utilizing Ultra-Fi MOSFETS for high power and effiencey cooling with minimal distortion. ALPHA car audio from Hifonics brings together the best design and engineering achievements from nearly 4 decades of driving the advancement of car audio. Technological advances like SUPER D-CLASS® and now FULL RANGE SUPER D-CLASS® have given ALPHA amplifiers the Power From The Gods. The SUPER D-CLASS digital chip technology provides extremely efficient, low temperature, high system power in order to run cool from 4-Ohm to 1-Ohm.
Maximum Power : 1000 Watts
Low Frequency Response : 50-250 Hz
High Frequency Response : 50-250 Hz
Number of Channels : 2
Frequency Response : 10-45000 Hz
Built In Crossovers : Yes
RMS Power Output : 500x2 Watts
Amplifier Class : D
XP750-SE OFFER : Yes
LOW NOISE PREAMPLIFIER CIRCUITRY - Maximum low voltage signal from the source unit comes into the amplifier through a low voltage circuit which delivers minimal distortion through the amplification process
RCA INPUTS - Audiophile RCA connectors allow maximum signal throughput with minimum distortion and masximum external noise rejection
OPERATION MODE - Mono mode only
CROSSOVER TYPE - Accu-Cross crossovers allow for complete control of the signal directing to all speakers. See specifications section for specific frequencies
ELECTRONIC EQUALIZER - Control of amplifier output with on board electronic crossover to tailor specific frequencies to speakers and subwoofers. Check specifications for specific frequencies for this amplifier
CLASS / TOPOLOGY - Developed over 4 decades of engineering to deliver the highest level of sound quality and power efficiency, Hfioncis ALPHA Super D-Class® circuitry results in lower distortion, higher current efficiencies and while producing less heat than conventional amplifier designs
OUTPUT DEVICE TECHNOLOGY - The Ultra-Fi™ MOSFET is designed for music production vs just electronics output power. It produces very musical high power with high efficiency for cooling and minimal distortion
HEAT SINK - Heavy duty aluminum alloy heat-sink efficiently moves heat from the MOSFET where it can be cooled
POWER SUPPLY - The Twin Turbo Coil PS is a Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices

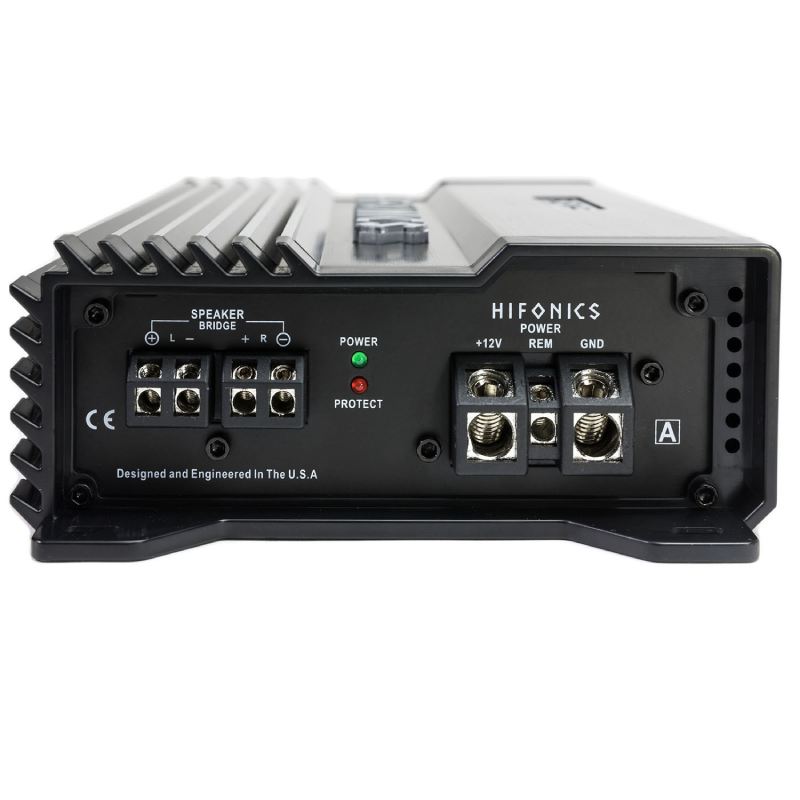

OUTPUT CONNECTIONS - Nickel-plated, high temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant
CONNECTION TYPE - Secure connection for all power, ground and speaker connections. Angled for ease of access during installation.
LED SYSTEM PROTECTION CIRCUITRY DIAGNOSTICS - Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel
AUTO TURN-ON - The amplifier detects a voltage rise (6 volts) with a "DC Offset" over the connected input signal on the HIGH LEVEL INPUTS when the head unit or source unit is switched on. Thus, the amplifier will also be turned on. When the source unit is turn off the amplifier is also turned off. Using this feature eliminates the need to use the REM (turn on wire). The AUTO TURN-ON function will work with 90% of all source units because they are equipped with "high power" output. Only a few holder head units will not use this function
FULL RANGE DIGITAL - Mono amplifiers focus on only subwoofer frequencies with Super D Class®, high efficiency/high power technology to deliver maximum wattage. With this focus on engineering, ALPHA delivers big sound while remaining very musical in a compact chassis is the result.
SMT INSIDE - With Surface Mount Technology the typical "through-hole" placement and the larger tolerances from human placement is dramatically improved. In addition, circuit engineers can design better circuits for power and sound quality as the tolerances of SMT components are superior to larger "through-hole" components because of their lower mass SMT components withstand shock and vibration making them perfect for audio designed for all vehicles.
300KHZ HIGH SPEED PULSING - The switching speed of the Class D chip puts the amplifier sampling frequencies at over 100 times higher than human ears can hear. This means that the amplifier and the very fast digital switching remains un-hearable in the audio bandwidth for music.
Class: Full Range Super D-Class®
Total Channels: 2
Power @ 2 OHMS: 2 x 500 Watts
Power @ 4 OHMS: 2 x 250 Watts
Mono Bridge @ 4 OHMS: 1 x 1000 Watts

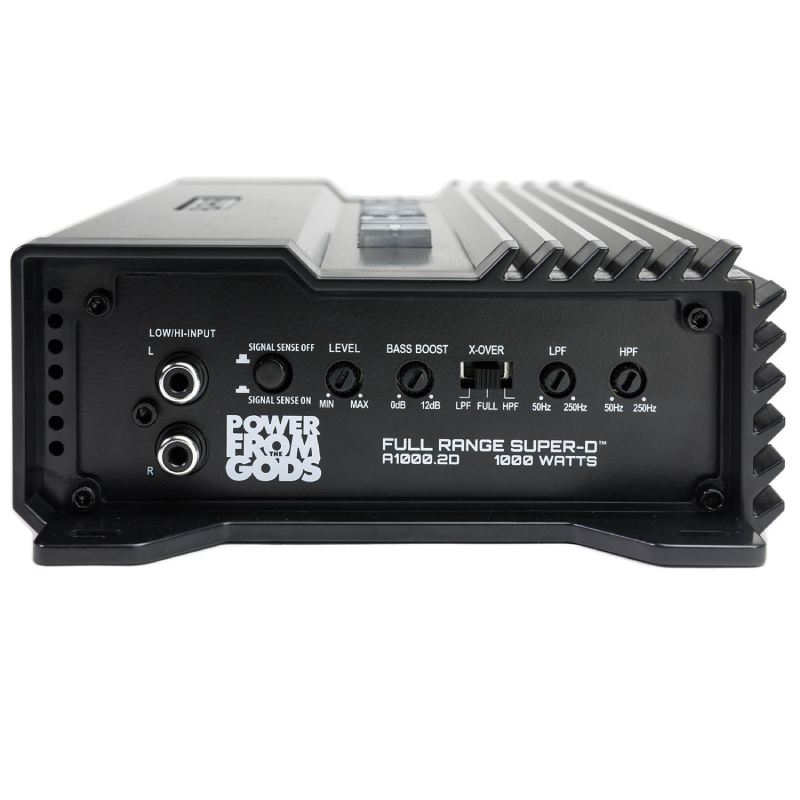

Crossover: Switched, LPF / FULL / HPF
Variable high pass crossover 12dB Per Octave: 50Hz - 250Hz
Variable low pass crossover 12dB Per Octave: 50Hz - 250Hz
Turn On Circuit: Switched, Remote Turn-On / Signal Sense On
Heatsink Size: Length: 9.25in x Depth: 5.75in x Height: 2.37in
