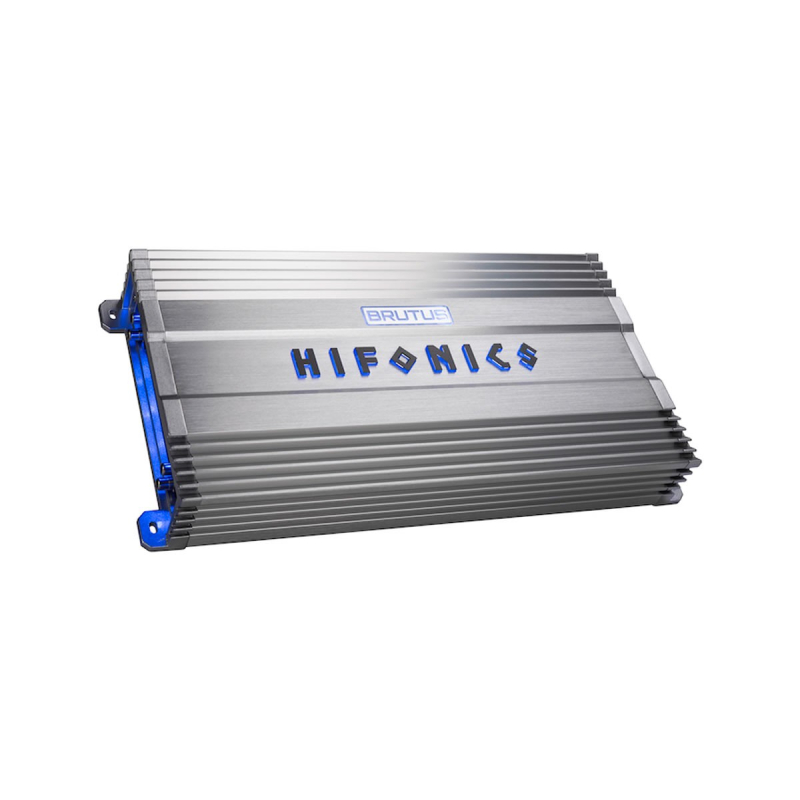

Hifonics BG-3300.1D
Hifonics BRUTUS Gamma Mono subwoofer audio amplifier delivers 3300 watts with Super D Class™ technology that features Ultra-Fi™ MOSFET outputs that are selected for both balance and output power.
General Features:
- TYPE: Mono Subwoofer Car Audio Amplifier
- CATEGORY: BRUTUS Gamma BG
- CLASS: Super D Class™
- TOTAL CHANNELS: 1
- POWER: 3300 Watts
- FUSING: External
- Maximum Power : 4000 Watts
- Low Frequency Response : 30-500 Hz
- Number of Channels : 1
- Frequency Response : 10-500 Hz
- Built In Crossovers : Yes
- RMS Power Output : 2000x1 Watts
- Amplifier Class : D
LOW NOISE PREAMPLIFIER CIRCUIT
- Maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion.
RCA INPUTS
- Nickel-plated RCA jacks create the most effiecient High/Low Level audio connection and resist corrosion.
OPERATION MODE
CROSSOVER TYPE
- Variable electronic crossovers allow for complete control of the sound.
ELECTRONIC EQUALIZER
- Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers.
CLASS/TOPOLOGY
- Super D-Class™ designs which employ high-speed microprocessors with proprietary D/A conversion algorithms to efficiently control the current consumption. At very high listening levels, Hifonics amplifiers with Super D-Class circuitry result in lower distortion, higher current efficiencies and less heat than conventional D-Class amplifier designs.
OUTPUT DEVICE TECHNOLOGY
- Pro-Fi™ Output Device Technology: The Ultra-Fi™ MOSFET is designed for music production vs just electronics output power. It produces very musical high power with high efficiency for cooling and minimal distortion.
HEAT SINK
- Classic aluminum Hifonics design to minimize heat build up on the Ultra-Fi™ output devices.
POWER SUPPLY
- Simpatico Coil Design: The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices.
OUTPUT CONNECTIONS
- High temperature impact resistant nickel plated connectors with allen head set screws which allow for secure termination of wire and creates an erosion resistant seal.

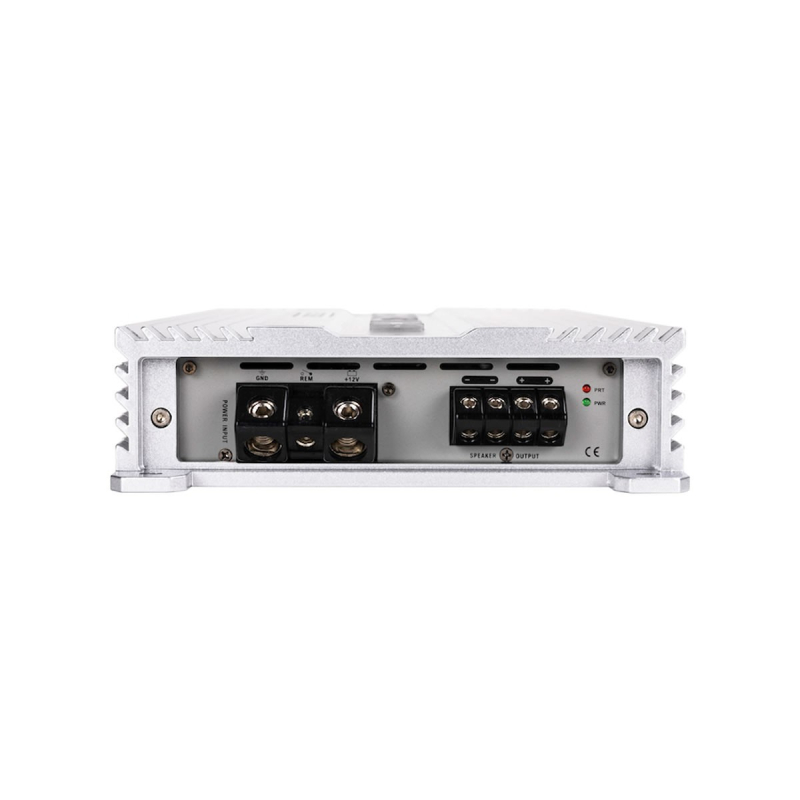

CONNECTION TYPE
- Secure molded connection terminal for all Power, Ground and Speaker connections. Angled for ease of access while creating a clean wire mangement profile.
LED SYSTEM PROTECTION CIRCUITRY DIAGNOSTICS
- Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel.
BASS REMOTE INCLUDED
- Wired Bass Remote allows adjustments to bass frequencies from the control which can be mounted anywhere in the vehicle.
PHASE ADJUSTMENT
- Phase 0-180°: Bass drum attack, snap requires phase between deep frequency subwoofers and upper midbass speakers.
STRAPPING
- Power Strapping allows the installer to Sync the input signal and output power to double the rated output of a mono amplifier which will drive a single subwoofer or group of subwoofers. Driving subwoofers with this method doubles the available power to the overall bass system, while insuring each subwoofer receives the exact same power level (output voltage). CONSULT PROFESSIONAL INSTALLER.
Features:
- CLASS: Super D Class™
- TOTAL CHANNELS: 1
- AMP MAX POWER (WATTS): 4000
- POWER @ 1 OHM (CH X WATTS): 1 x 4000
- POWER @ 2 OHMS (CH X WATTS): 1 x 2000
- POWER @ 4 OHMS (CH X WATTS): 1 x 1000
- CROSSOVER: Variable Electronic 12dB Per Octave
- VARIABLE LOW PASS CROSSOVER 12DB PER OCTAVE: 30Hz-250Hz
- TONE CONTROL/PARAMETRIC EQ: Built-in bass control
- BASS BOOST: 0-10dB
- SUBSONIC FILTER: 15Hz-35Hz
- PHASE SHIFT: 0-180 Degrees
- VARIABLE VOLTAGE: .2 to 9V
- FREQUENCY RESPONSE: 10Hz-500Hz
- TOTAL HARMONIC DISTORTION (THD): < 0.10%
- SPEAKER LEVEL AUDIO INPUTS: Yes
- POWER TERMINAL 12V/GND: 2 AWG
- SPEAKER TERMINAL WIRE GAUGE: 12 AWG
- FUSING: External
- UPC: 806576231646
- Weight: 14
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
