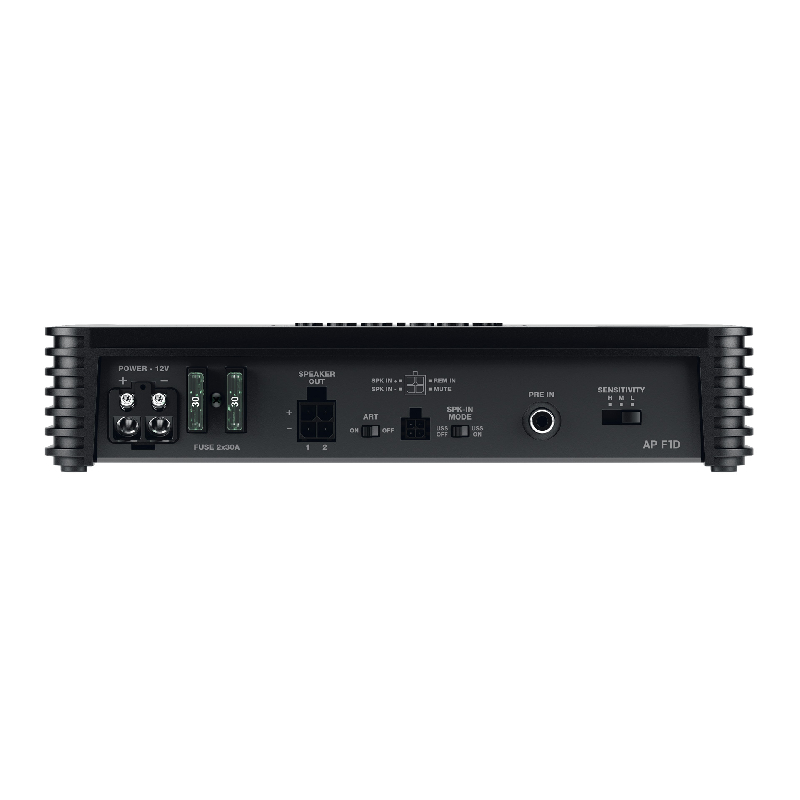

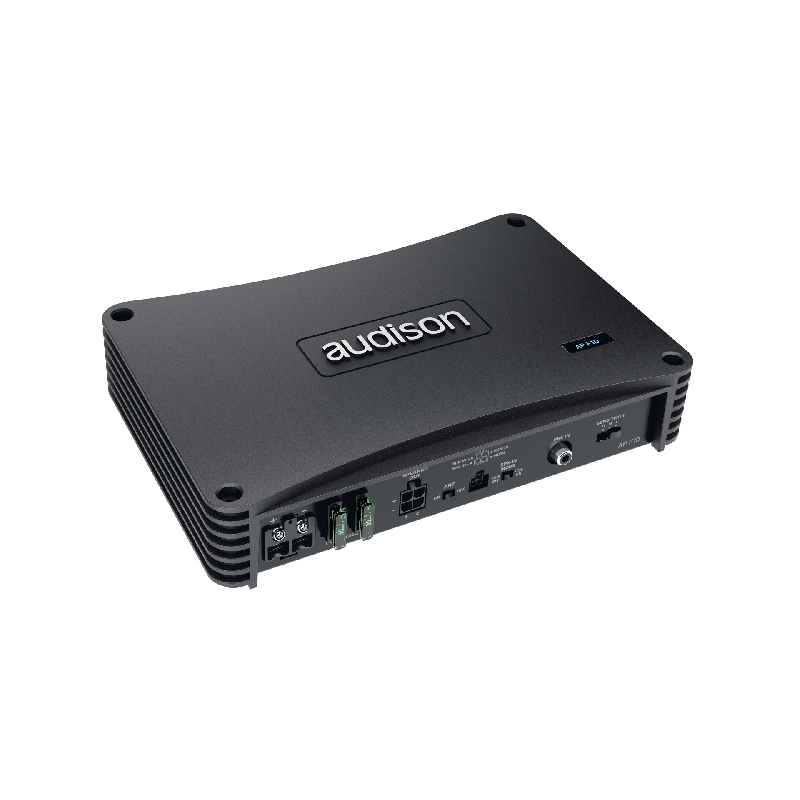

Audison  APF1D

PRIMA Series 1000W RMS at 2-Ohms, Class-D Mono Subwoofer Car Amplifier

Item #79266

Condition:   Brand New

Product Highlights

  • Prima 1000W Mono Amplifier
  • 2-Ohm Stable Subwoofer Amp
  • Class D Car Amplifier
  • High Power Bass Amp
  • Premium Car Audio Performance

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
CYBER WEEK DEALS!
Save 5% on Mono Subwoofer Amplifiers!

Use Code: CYBW5

Ends in:

$679.99

Reg. Price $880.00  Save $200.01
Add Extended Warranty
  Free 2-Years Warranty Included!

No Credit needed for acima logoLearn More

Audison Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Audison Banner

Audison APF1D - PRIMA Series 1000W RMS at 2-Ohms, Class-D Mono Subwoofer Car Amplifier


We are a Audison authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
APF1D
Designed to Drive the Most Demanding Subwoofer

The AP F1D amplifier was designed to drive the most demanding subwoofer and is the ideal extension of the AP F8.9 bit. At 1 Ohms, it is stable and can supply up to 1000 W of power with extremely compact dimensions.


SPECIFICATIONS


  • Maximum Power : 1000 Watts
  • Number of Channels : 1
  • Frequency Response : 10-500 Hz
  • Amplifier Class : D
  • Fuse Rating : 50 A

FEATURES


Features:

  • Power supply voltage / fuse 11 ÷ 15 VDC / 2 x 30A
  • Operating power supply voltage 6.5 ÷ 17 VDC
  • Idling current 1.3 A
  • Idling current when off 0.05 mA
  • Consumption @ 14.4 VDC, 2Ω, Max Musical Power 50 A
  • Remote IN 6.5 ÷ 15 VDC (1 mA)
  • ART - Automatic Remote Turn on/off from OUTPUT
  • BTL speakers (Selectable) 2 ÷ 7 VDC



Amplifier Stage:

  • Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power 0.1%
  • Damping factor @ 100 Hz, 4Ω, 2 VRMS 140
  • Bandwidth @ -3 dB 10 Hz ÷ 500 Hz
  • S/N ratio (A weighted @ 1 V Input) 110 dBA
  • Input sensitivity Pre-In Selectable:
  • 0.6 - 2.0 - 6.0 VRMS
  • Input sensitivity Speaker-In Selectable:
  • 2.0 - 6.5 - 20 VRMS
  • Minimum load impedance 1Ω
  • OUTPUT POWER (RMS) @14.4 VDC, 1% THD:
    • 1Ch @ 4Ω 500 W x 1
    • 1Ch @ 2Ω 800 W x 1
    • 1Ch @ 1Ω 1000 W x 1



Inputs:

  • Pre-In Inputs RCA
  • Speaker-In Inputs wired
  • Mute (Energy Saving control) wired (active to groung)



Other:

  • Ambient operating
  • temperature range 0 °C to 55 °C (32 °F to 131 °F)



Size:

  • Max size W x H x D (mm/inch) 238 x 49.5 x 155 / 9.37 x 1.95 x 6.1
  • Weight (kg/lbs) 1,92 / 4.23



  • UPC: 8018823126960
  • Weight: 8
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
