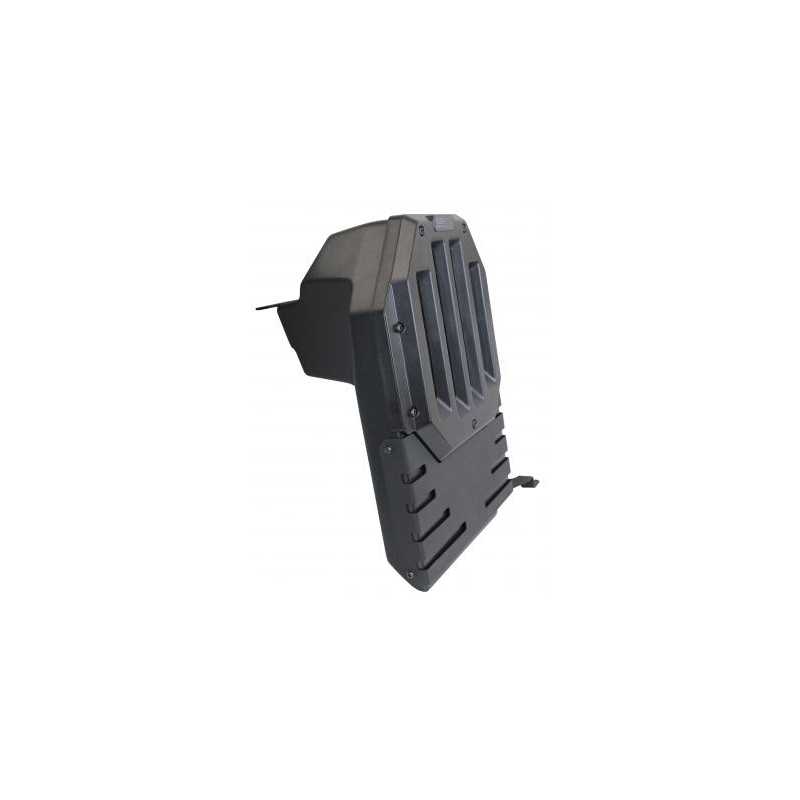

SSV Works JJL-DS10K 2018+ Jeep Wrangler JL 4-Door 10" Loaded Sub Enclosure With Kicker Comp RT Subwoofer
We are a SSV Works authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Subwoofer Enclosure
- • Grille
- • Top bracket (MB-1)
- • Bottom bracket (MB-2)
- • Owner's Manual
JL Wrangler 10" Kicker Bass Upgrade
Give your Jeep Wrangler Unlimited JL serious low-end power with the JJL-DS10 loaded with a Kicker 10" subwoofer. Rated at 400W RMS and 800W peak, it mounts neatly along the driver's-side cargo wall using three factory bolts—no drilling required. The rugged fiberglass enclosure delivers controlled bass while keeping your cargo area clean and functional.
Big Kicker Bass, Factory-Style Fit
Turn up your Wrangler JL with a space-saving 10" Kicker subwoofer engineered for a clean cargo-area installation. The 2-ohm final load delivers powerful performance, while the custom fiberglass enclosure provides a rigid foundation for deep, controlled bass. With factory-bolt mounting, stainless hardware, and flexible wiring, it's ready for both daily drives and off-road adventures.
Frequently Asked Questions (FAQ)
- • Will the enclosure block too much space in the rear cargo area?
It mounts along the driver's-side cargo wall, leaving the main cargo floor usable, but the enclosure does occupy some side storage space.
- • Can I add this subwoofer to my existing aftermarket stereo?
Yes, but the amplifier and signal connection must be compatible with the system you're using. SSV Works notes that standard enclosures require an external amplifier.
- • Why doesn't the bass feel as powerful as a larger custom box?
The JJL-DS10K uses a compact sealed enclosure, so its output can differ from larger enclosures. Wrangler owners have also discussed concerns about getting enough bass while keeping cargo space.
- • Can changing the subwoofer affect how the box performs?
Yes. The enclosure's internal volume needs to suit the replacement driver. The JJL-DS10K is listed at approximately 0.7 ft³, so verify the subwoofer's recommended sealed-box volume before changing drivers.
- • Why does the box move or vibrate after driving off-road?
Check the three factory mounting points and hardware for looseness. The enclosure is designed to attach to existing bolts without drilling.
- • Can I replace the included Kicker with another 10-inch sub?
Possibly, but confirm the replacement's depth, cutout, impedance, and enclosure requirements first. Wrangler owners commonly compare different 10-inch drivers based on enclosure volume and fit.
- • Why doesn't my amplifier plug directly into the enclosure?
The enclosure uses an SSV Works proprietary connector. If you're using another amplifier, the connector may need to be removed and the speaker wires connected directly.
- • Should I keep the factory subwoofer when installing this one?
It depends on your audio setup. Wrangler owners upgrading their systems often weigh keeping the factory sub against replacing it with a larger aftermarket enclosure.
- • Will removing the Wrangler's roof affect the subwoofer's sound?
Yes. Open-air driving changes the cabin acoustics and can make bass seem less pronounced than with the Jeep enclosed.
- • Why does the enclosure seem difficult to line up during installation?
Make sure the mounting brackets are aligned with the correct existing bolts before tightening everything. The design is intended as a bolt-in installation without drilling.
Features:
- JL Wrangler Unlimited Fit: The JJL-DS10 is custom-designed for select Jeep Wrangler Unlimited JL models, giving you a clean, vehicle-specific bass upgrade.
- Loaded Kicker 10" Subwoofer: Includes a Kicker 43CWRT101 subwoofer rated at 400W RMS and 800W peak for deep, powerful low-end performance.

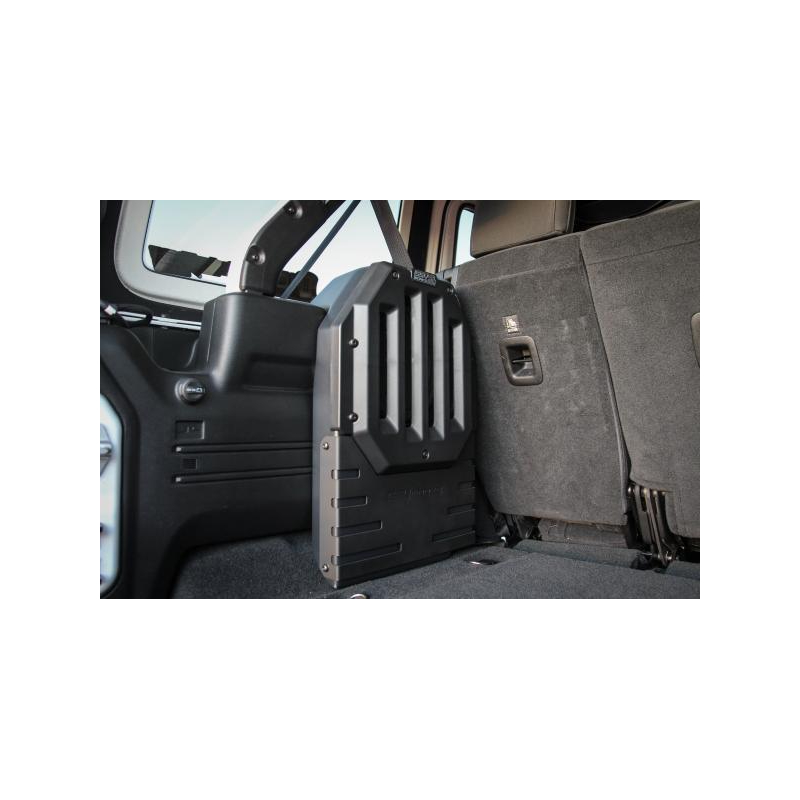

- Space-Smart Cargo Installation: Mounts along the driver's-side rear cargo wall, adding serious bass without taking over the usable cargo area.
- No-Drill Bolt-In Design: Uses three existing factory bolts for secure installation, so no drilling or permanent Jeep modifications are required.
- Premium Fiberglass Enclosure: Durable, paintable fiberglass construction provides a rigid enclosure designed for strong and controlled bass.
- 2-Ohm Final Load: The Kicker subwoofer's dual 1-ohm voice coils are wired in series to provide a 2-ohm final load for compatible amplifiers.
- Factory-Inspired Appearance: The custom finish complements the Jeep's stock interior for an integrated look that doesn't feel like an oversized aftermarket box.
- Flexible Wiring: The attached 16" speaker lead connects directly to compatible SSV Works systems, while the connector can be removed for standard amplifier wiring.
- Secure Trail-Ready Mounting: Stainless-steel mounting hardware provides a durable installation for everyday driving and off-road adventures.
- Built for Jeep Adventures: Add powerful Kicker bass while keeping your Wrangler's interior clean, functional, and ready for the next trail.
Specifications:
- Model: JJL-DS10
- Vehicle: Select Jeep Wrangler Unlimited JL models
- Subwoofer: Kicker 43CWRT101
- Subwoofer Size: 10"
- RMS Power Handling: 400W
- Peak Power Handling: 800W
- Voice Coils: Dual 1-ohm
- Final Wired Impedance: 2 ohms
- Enclosure Volume: 0.7 cu. ft.
- Enclosure Material: Fiberglass
- Finish: Custom factory-style finish
- Mounting Location: Driver-side rear cargo area
- Installation: Bolt-in, no drilling required
- Mounting Points: Three existing factory bolts
- Speaker Wire: 16" attached input wire
- Connector: Proprietary SSV Works connector
- Alternative Wiring: Red positive / black negative
- Mounting Hardware: Stainless steel
- UPC: 815172016410
- Weight: 34
