JL Audio MMR-5N2K MediaMaster® NMEA 2000® Volume Controller
We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

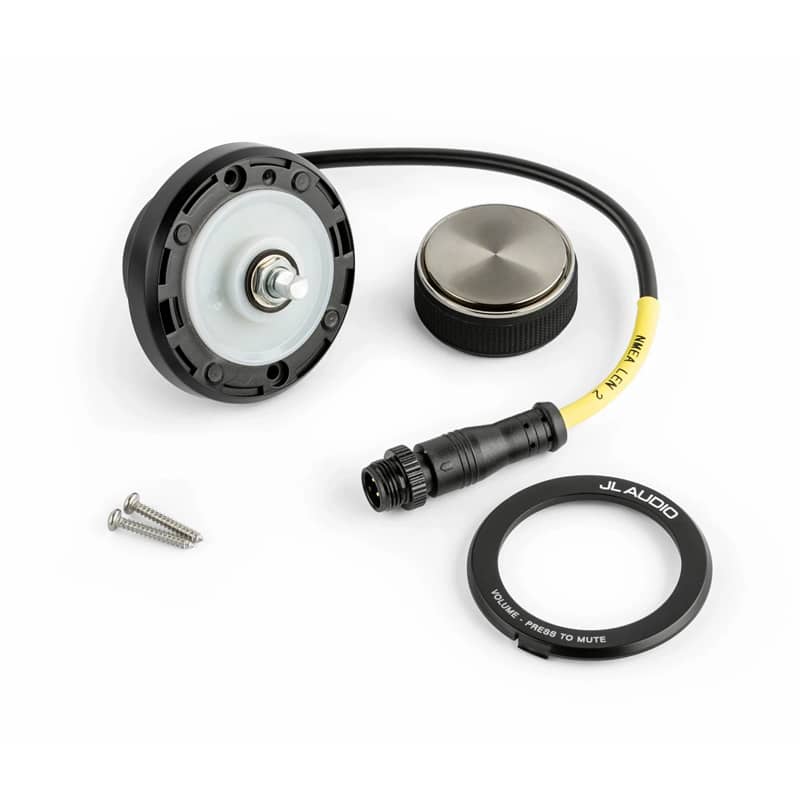

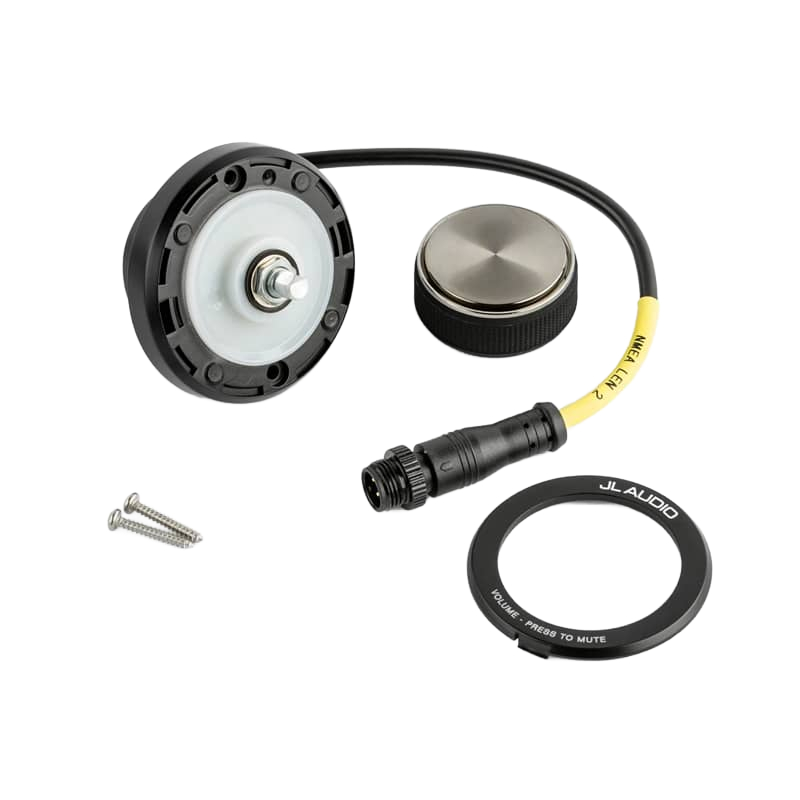

What's Inside?
- •network wired remote volume controller
- •Owner's manual
Auxiliary Volume Control
The MMR-5N2K is a wired remote designed to add auxiliary volume control to compatible MediaMaster® source units. Outfitted with a NMEA 2000® Micro-C connector, the MMR-5N2K connects to a host MediaMaster® source unit in two he MMR-5N2K should only be used with a single MediaMaster® source unit.
Connected via a NMEA 2000® network or MMC-PN2K powered network cables (sold separately). The level control mode for each audio zone of the host source unit must be set to Relative or Variable. When connected, all audio zones will adjust simultaneously. Functionality of the MMR-5N2K is solely derived from the host MediaMaster® source unit.
MediaMaster® NMEA 2000® network wired remote volume controller
The MMR-5N2K is a wired remote designed to add auxiliary volume control to compatible MediaMaster® source units.
Outfitted with a NMEA 2000® Micro-C connector, the MMR-5N2K connects to a host MediaMaster® source unit in two ways:
- Direct interface with a vessel's NMEA 2000® network using applicable NMEA 2000® cables and connectors (not included)
- Direct connection to single MediaMaster® source unit using MMC-PN2K powered network cables (sold separately) to simulate an isolated, stand-alone NMEA 2000® network
Engineered for real-world marine (and many outdoor) applications, its weatherproof (IPX7 rated) design is built to withstand the harshest environments.
The MMR-5N2K includes the following features:
- NMEA 2000® Certified (LEN 2)
- Weatherproof design (IPX7 rated) for real marine duty
- Large rotary design for easy adjustments, especially while in motion
- One knob simultaneously adjusts all audio zones
- Simple, push-button audio mute/unmute control
- Integrated status LED ring with programmable brightness
- Front-mounted design requires just a single 1.5-inch (38 mm) hole for installation
- Automatically recognizes which MediaMaster® source unit model is connected
The MMR-5N2K is compatible with these MediaMaster® source units:
- MM100s-BE
- MM100s
- MM80-HR
- MM50
Note: The MMR-5N2K should only be used with a single MediaMaster® source unit, connected via a NMEA 2000® network or MMC-PN2K powered network cables (sold separately). The level control mode for each audio zone of the host source unit must be set to Relative or Variable. When connected, all audio zones will adjust simultaneously. Functionality of the MMR-5N2K is solely derived from the host MediaMaster® source unit.
- UPC:
- Weight: 5
- Authorized Internet Dealer
Warranty: 2 Years Manufacturer warranty.
