JL Audio  C1-690x-Bundle

JL Audio C1-690x C1 Series Coaxial & Component Car Speakers + JL Audio C1-650 6.5" 225W Peak Power Handling 4 Ohm, Component Speaker System

Item #79556

Product Highlights

  • JL Audio C1-690x 6x9"
  • 225W peak power
  • high-quality sound
  • nhancing your car's audio

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


Exclusive Bundle Banner for OCS

Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

JL Audio C1-690x-Bundle JL Audio C1-690x C1 Series Coaxial & Component Car Speakers + JL Audio C1-650 6-1/2" 50W RMS Component Speaker System


Authorized Dealer Stamp

We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • •JL Audio C1-690x
  • •JL Audio C1-650
  • •Owner's Manual

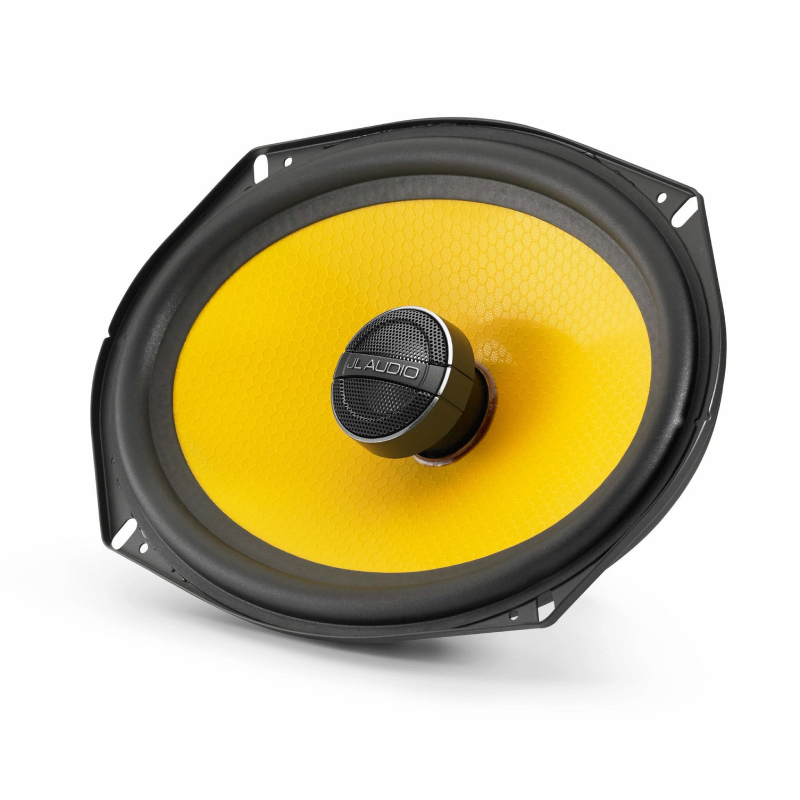

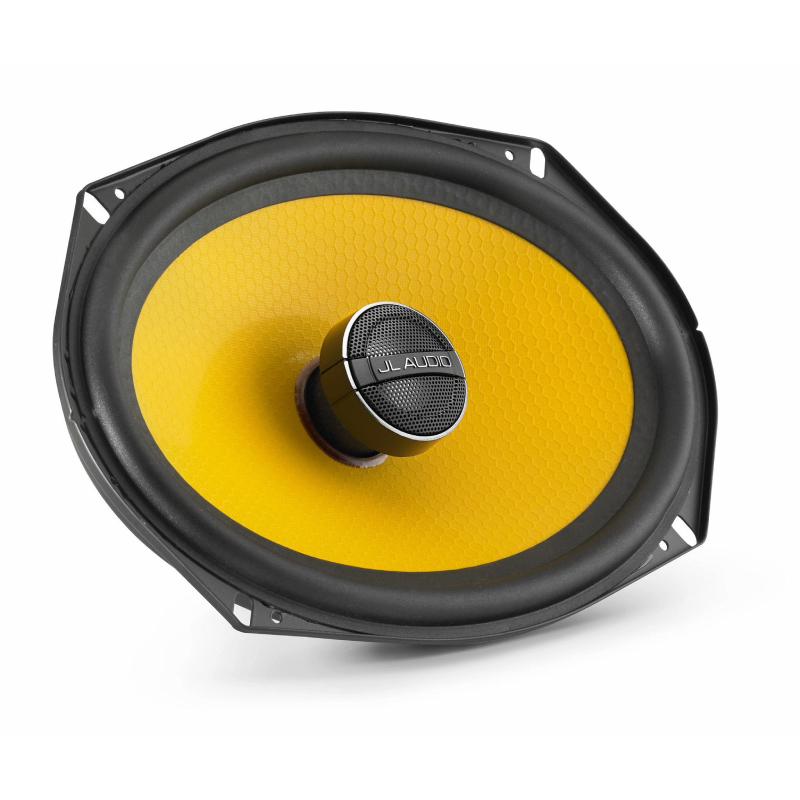

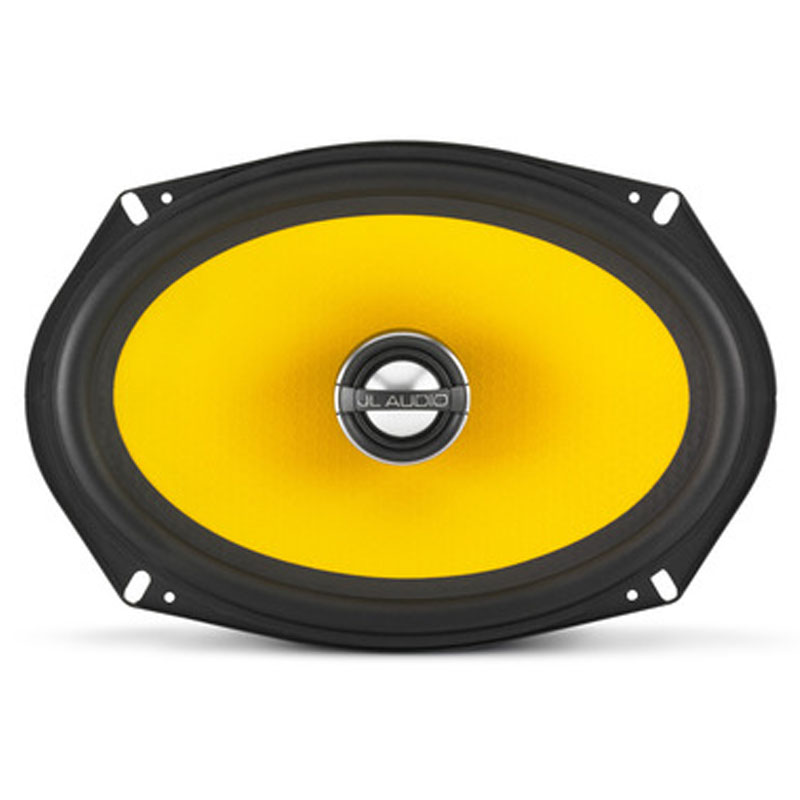

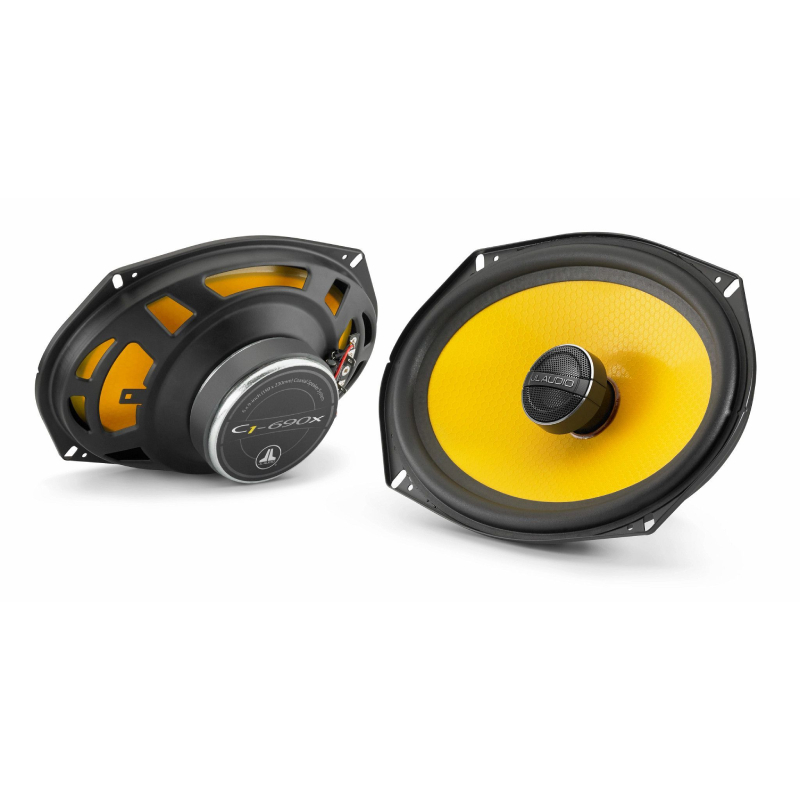

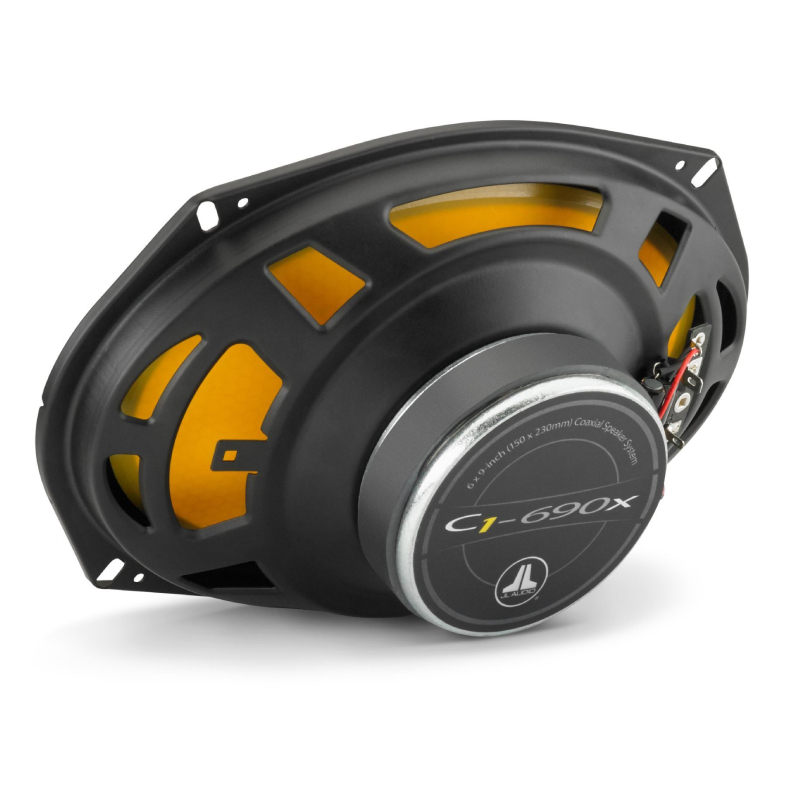

JL Audio C1-690x C1 Series 6x9" 60W RMS (225W Peak Power Handling) 2-way Coaxial Car Speaker System

Affordable Price

A component speaker system that can give you the high-quality JL Audio sound that audiophiles love at an affordable price, the JL Audio C1-690 would be an excellent replacement for your vehicle's factory speakers. Composed of two woofers and two tweeters, you can now listen to an outstanding full-range frequency performance without breaking the bank.

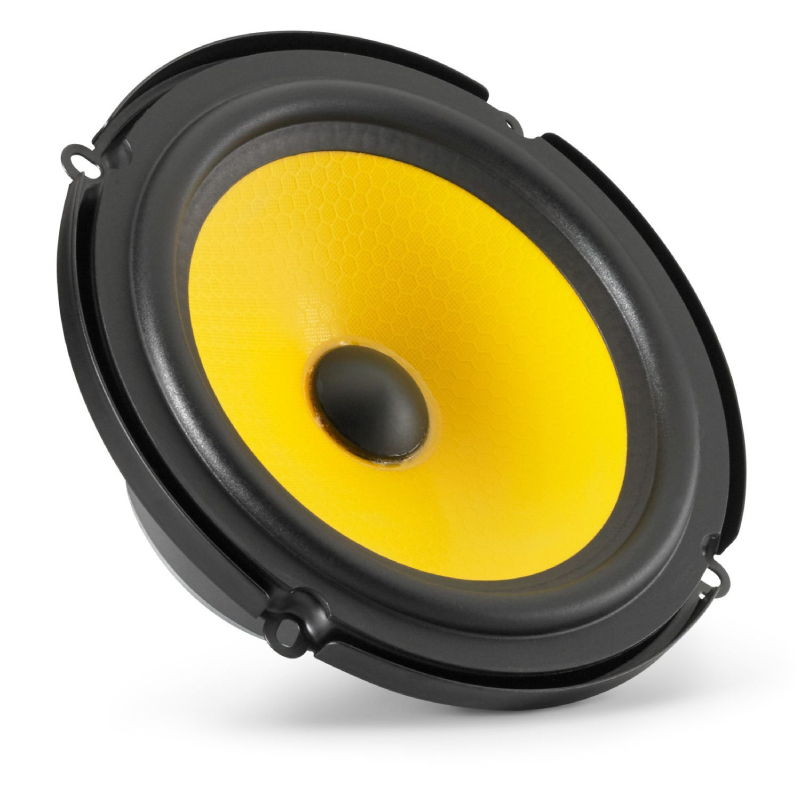

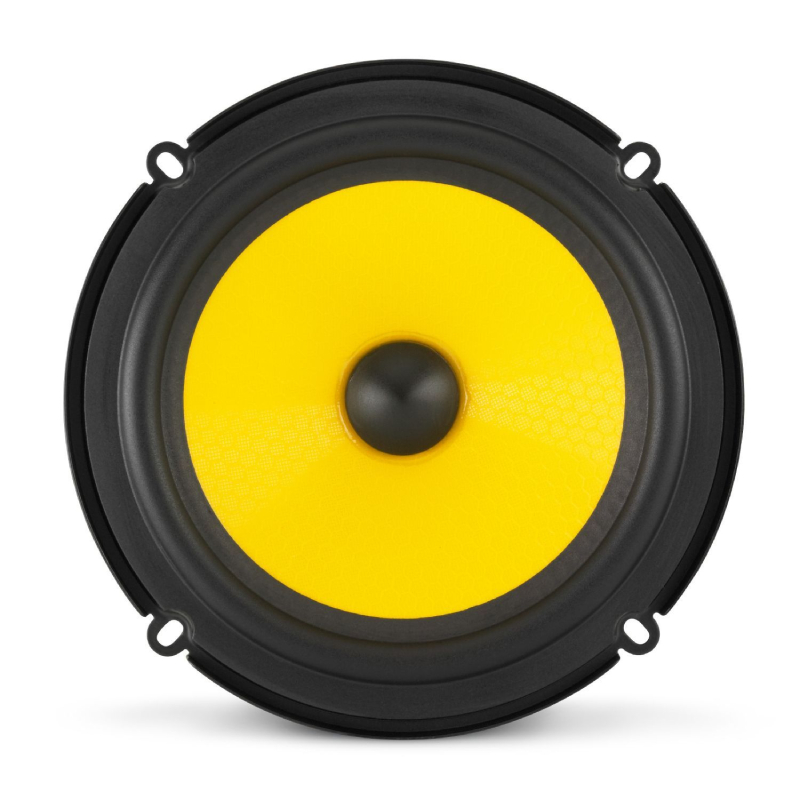

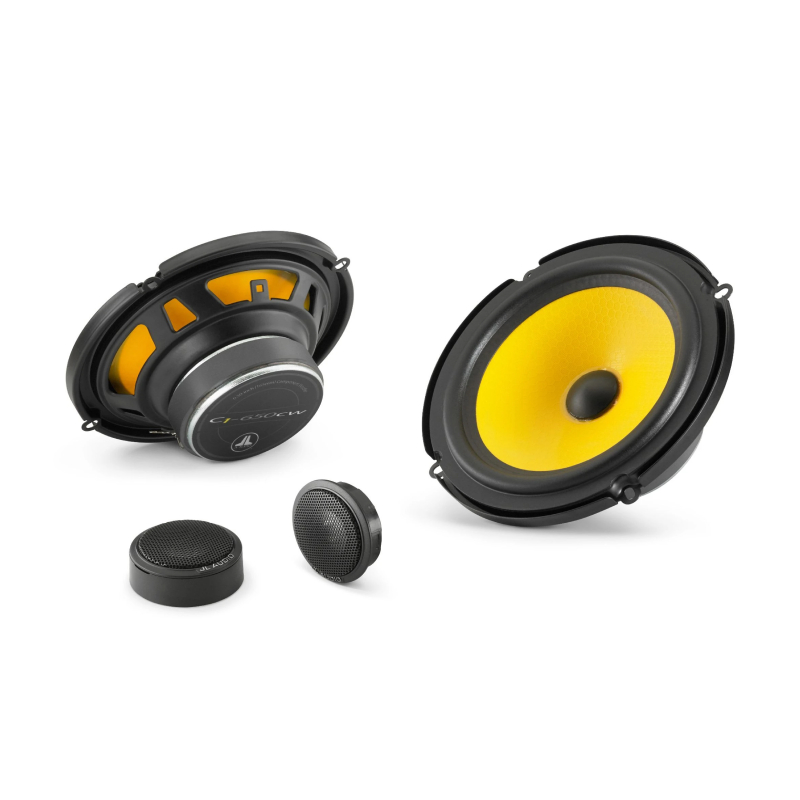

JL Audio C1-650 C1 Series 6-1/2" 50W RMS (225W Peak Power Handling) 4 Ohms 2-way Car Component Speaker System

Surface And Flush Mounts

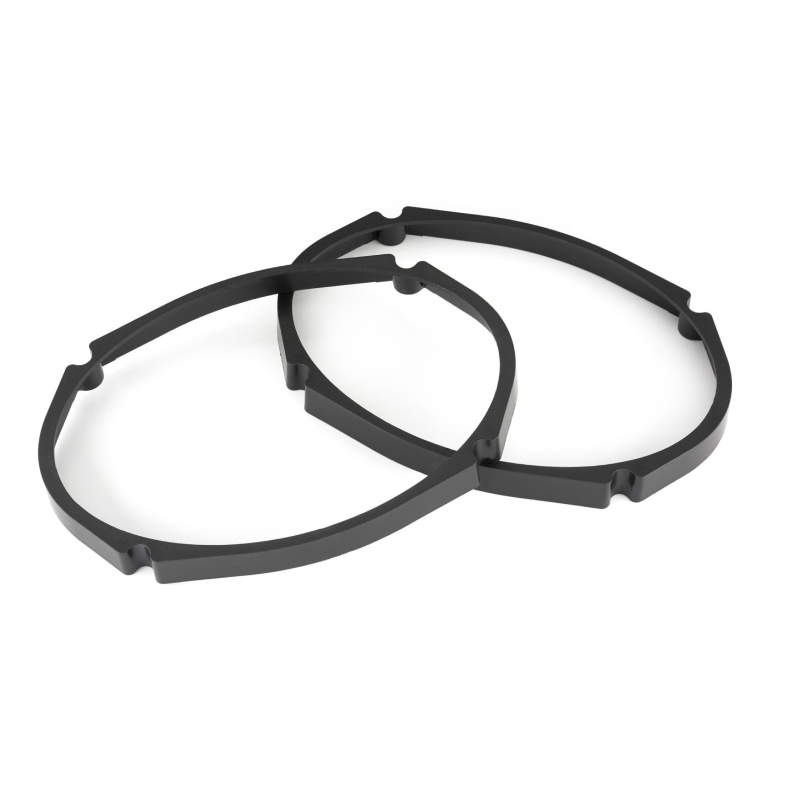

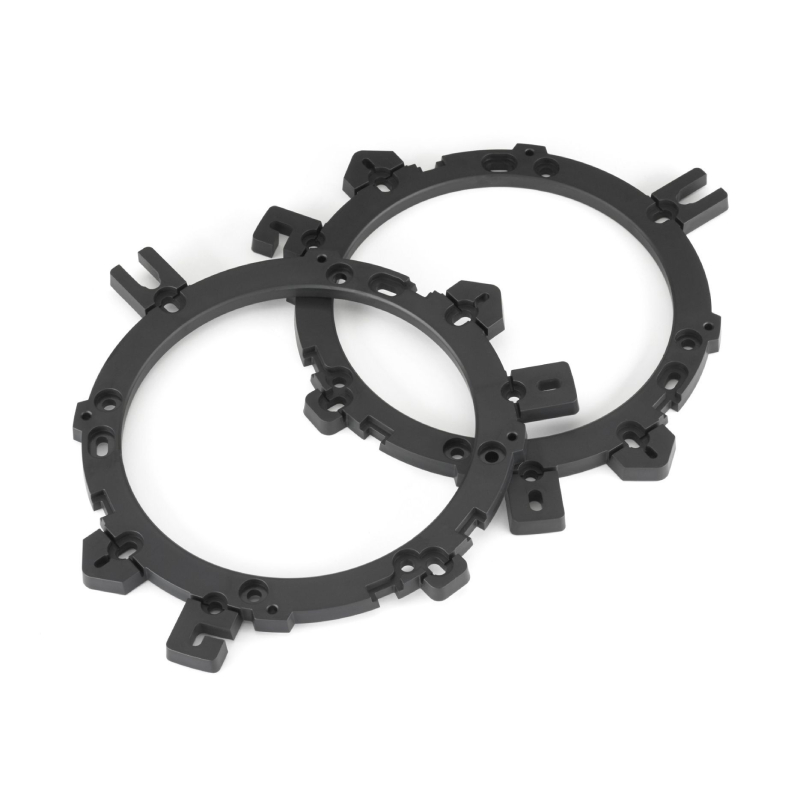

C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles. To facilitate fit, multi-application adaptor rings are included for the C1-650 woofers, allowing easy, drop-in installation in vehicles equipped with oversized 6.5-inch and 6.75-inch speaker openings. Without the ring, the woofers will also fit into many "6-inch" speaker locations as well. Surface and flush mounts are included with C1 tweeters for maximum installation versatility.


SPECIFICATIONS



FEATURES


C1-690x 6 x 9", 225 Watts Peak Power Coaxial Car Speaker System

General Specifications:

  • Continuous Power Handling (RMS): 60 W
  • Recommended Amplifier Power (RMS): 10 - 100 W / Ch.
  • System Efficiency: 91.5 dB @ 1 W / 1 m
  • System Nominal Impedance: 4 Ω
  • System Frequency Response: 39 Hz - 22 KHz ± 3 dB



Coaxial Physical Specifications:

  • Frame Outer Diameter* (A):6.38 x 9.33 in / 162 x 237 mm
  • Grille Tray Outer Diameter (B):N/A
  • Motor Outer Diameter (C):3.54 in / 90 mm
  • Frontal Coaxial Tweeter Protrusion** (D):0.41 in / 10 mm
  • Frontal Grille Protrusion (E):N/A
  • Mounting Hole Diameter (F):N/A
  • Mounting Depth (G):2.75 in / 70 mm



C1-650 6-1/2", 225 Watts Peak Power, 2-Way Car Component Speaker System

General Specifications:

  • Continuous Power Handling (RMS): 50 W
  • Recommended Amplifier Power (RMS): 10 - 75 W / Ch.
  • System Efficiency: 91.0 dB @ 1 W / 1 m
  • System Nominal Impedance: 4 Ω
  • System Frequency Response: 59 Hz - 22 KHz ± 3 dB

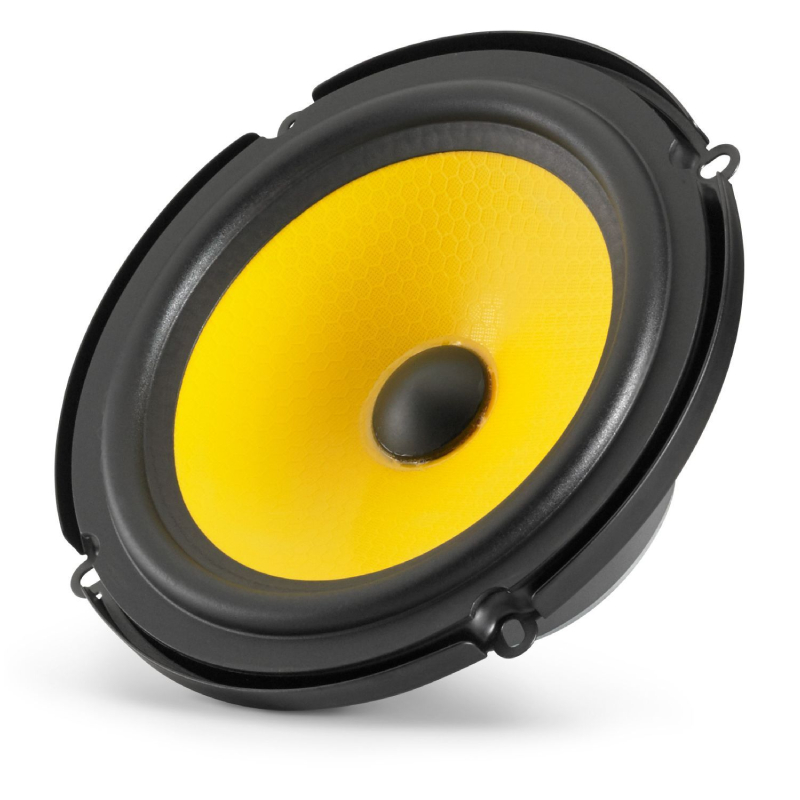

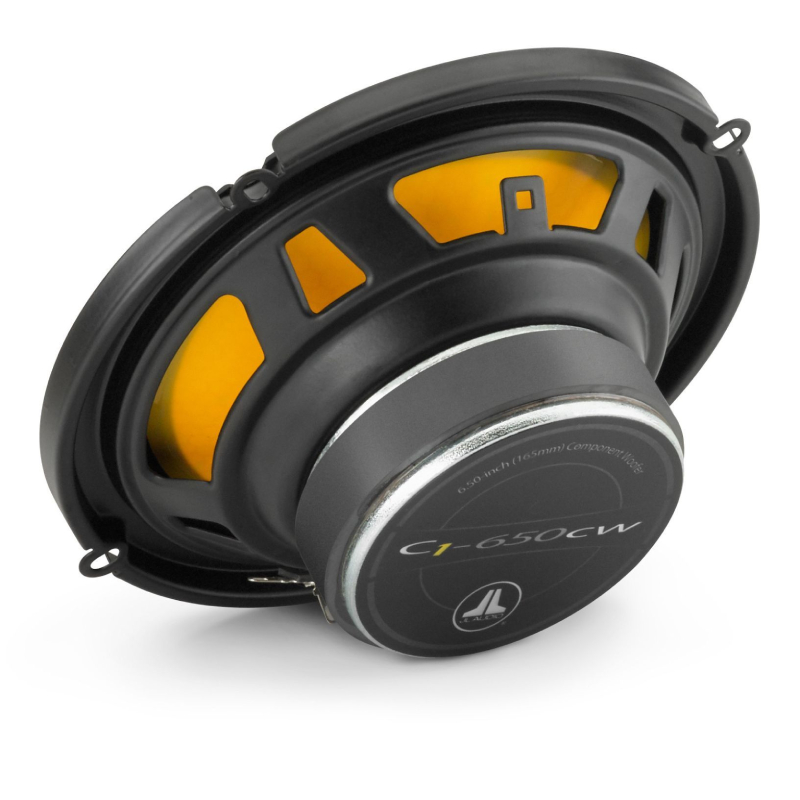

Woofer Physical Specifications:

  • Frame Outer Diameter* (A): 6.25 in / 159 mm
  • Grille Tray Outer Diameter (B): 6.84 in / 174 mm
  • Motor Outer Diameter (C): 3.15 in / 80 mm
  • Frontal Coaxial Tweeter Protrusion (D): N/A
  • Frontal Grille Protrusion** (E): N/A
  • Mounting Hole Diameter (F): 5.02 in / 128 mm
  • Mounting Depth (G): 2.07 in / 53 mm



Tweeter Physical Specifications:

  • Flush Mount Fixture Diameter (A1): 1.87 in / 48 mm
  • Surface Mount Fixture Diameter (A2): 1.69 in / 43 mm
  • Flush Mount Mounting Hole Diameter (B): 1.625 in / 41 mm
  • Flush Mount Mounting Depth (C): 0.76 in / 19 mm
  • Flush Mount Tweeter Frontal Protrusion (D1): 0.29 in / 7 mm
  • Surface Mount Tweeter Frontal Protrusion (D2): 0.92 in / 23 mm

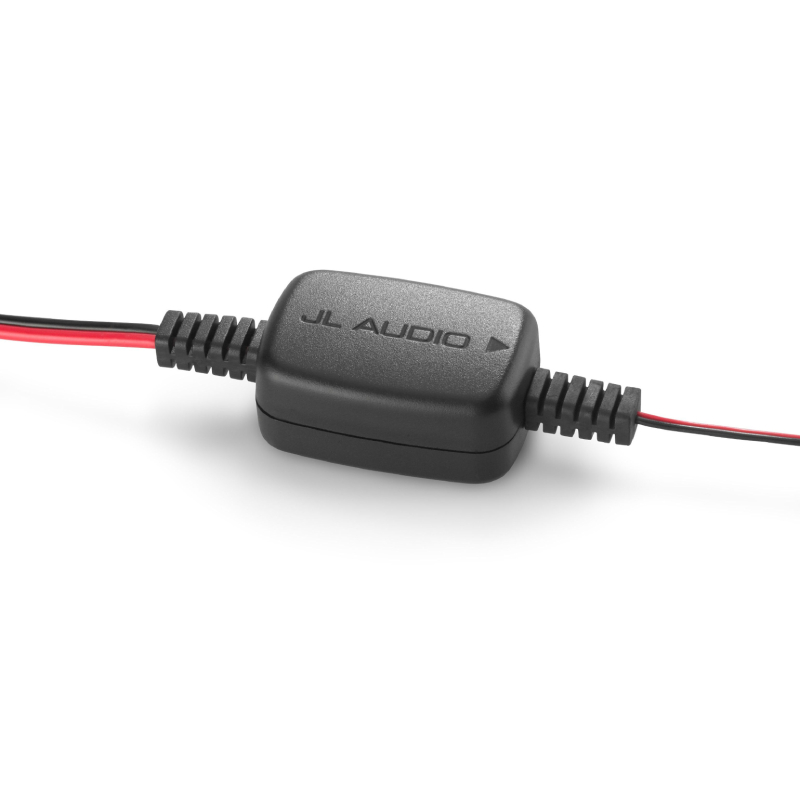

Crossover Physical Specifications:

  • Width (W): 1.96 in / 50 mm
  • Height (H): 0.90 in / 23 mm
  • Depth (D): 1.34 in / 34 mm
  • UPC: 798418838239
  • Weight: 17
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.

Do you own this product?

Write a review!
  • I found myself at online car stereo.com well searching for a new system for my van. JL audio had come recommended by not only the company but friends and other audio files as well. Although I plan on adding a sub woofer and probably an amp, I felt this to be a good place to start and my intuition was correct for clean distortion-free sound this was certainly the way to go. Great speakers very happy I can recommend them highly

    Peter
    1/27/2024
