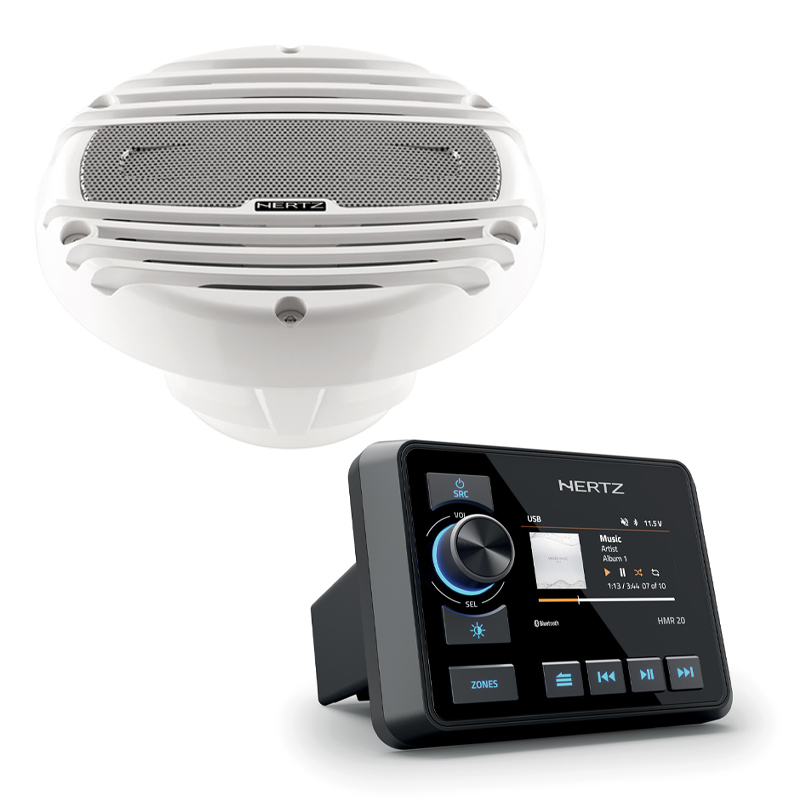

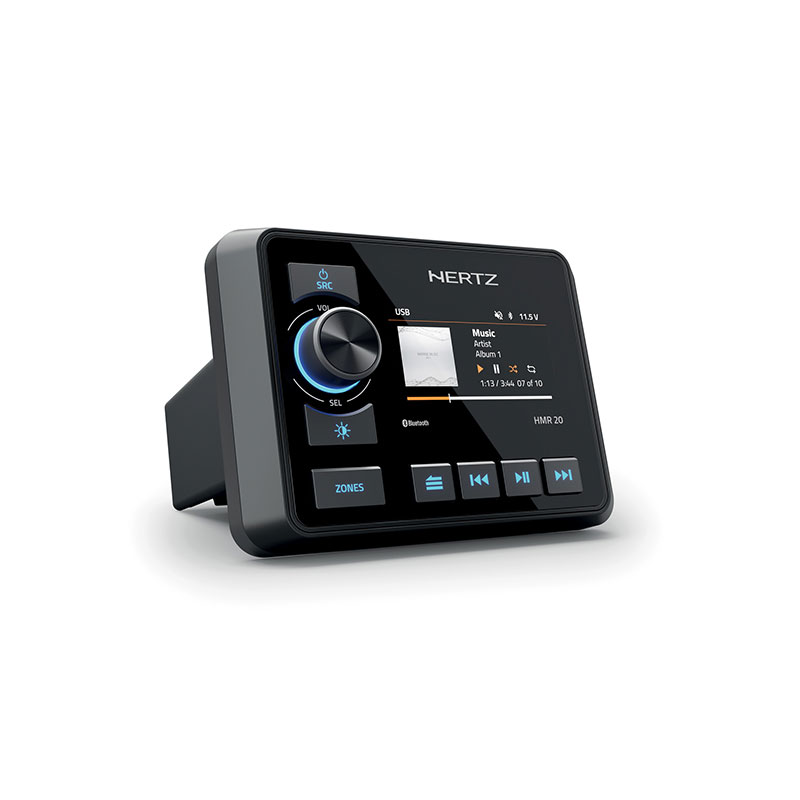

HMR 20 3" Color TFT IPS, 4 Preset EQ Digital Media Receiver
display: 3” color tft ips
peak power @ 4 ω: 4 x 50 w
front panel ipx rating: ip66
line out: 2 (1 x l + r per zone)
subwoofer out: 1 (low pass 60-80-100 hz)
aux input: 1 x l + r
equalizer: 4 preset
camera in: -
battery voltage gauge: yes
tuner: am/fm with rds (where available)
dab+ ready: yes
siriusxm ready: -
nmea 2000 ready: -
bluetooth: 4.2, audio streaming with id3 tag display, - -
Size & Mounting
unit size mm (in.): w 146 (5.75) x h 105 (4.13) x d 132 (5.2)
mounting hole size mm (in.): w 120 (4.72) x h 50 (1.97)
mounting depth mm (in.): 98 (3.86)
mounting method: screw

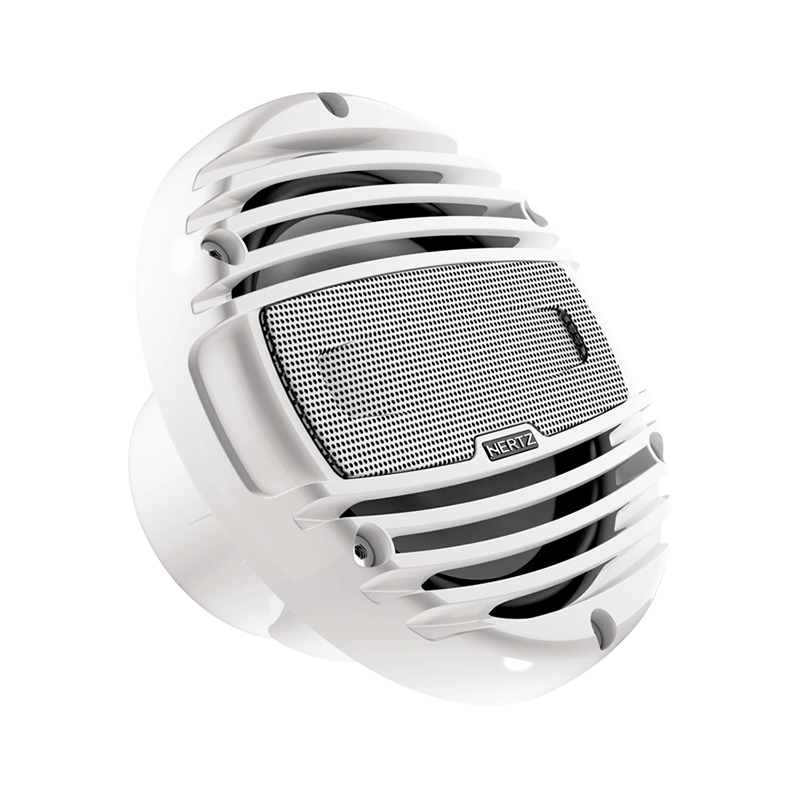

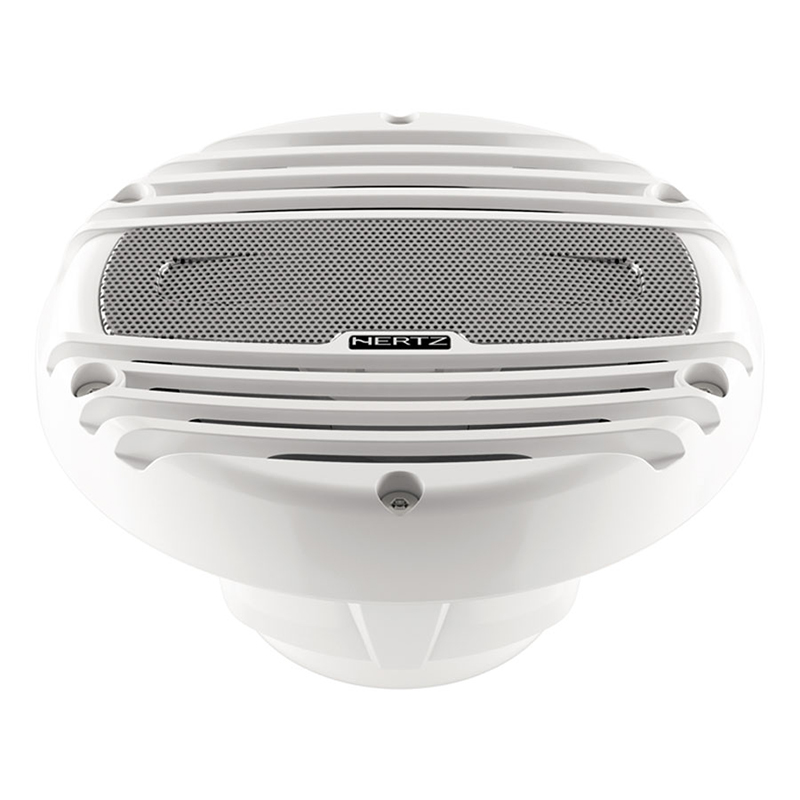

HMX 6.5 6-1/2" 150 Watts Peak Power 4-ohm Impedance Marine Coaxial Speakers - White
Engineered and tested for the real environment of application (UV, salt-fog, vibrations, water spray, thermal shock, dust).
1.4” Neodymium magnet tweeter featuring a PEI material dome combined with faceplate and acoustic lens optimized for best off-axis dispersion and highest SPL.
Sound-transparent stainless steel tweeter mesh grille providing efficient high-frequency transfer, attractive look and a rock-solid protection.
Long-throw 25mm (1”) voice coil woofer fine-tuned for infinite baffle application featuring polypropylene cone injected with UV inhibitors and co-molded Santoprene surround.
Aramid fiber spider with silicone-insulated lead wires ensuring durability and constant performance over time.
FEM optimized high-excursion mobile equipment driven by a massive magnetic group encapsulated into a marine-grade polymer injected basket.
Sealed built-in crossover with resettable solid-state tweeter protection circuit.
Gold-plated corrosion resistant terminals.
Power Handling - Peak W: 150
Power Handling - Continuous W: 75
Impedance: 4 ohms
Frequency response Hz: 50 ÷ 25k
Sensitivity dB SPL: 89
Woofer size mm (in.): 165 (6.5)
Tweeter size mm (in.): 36 (1.4)
Woofer Voice Coil Ø mm (in.): 25 (1)
Tweeter voice coil Ø mm (in.): 20 (0.8)
Woofer magnet: High density flux ferrite
Tweeter magnet: Neodymium
Woofer cone: Polypropylene with UV inhibitors
Tweeter dome: PEI
Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
