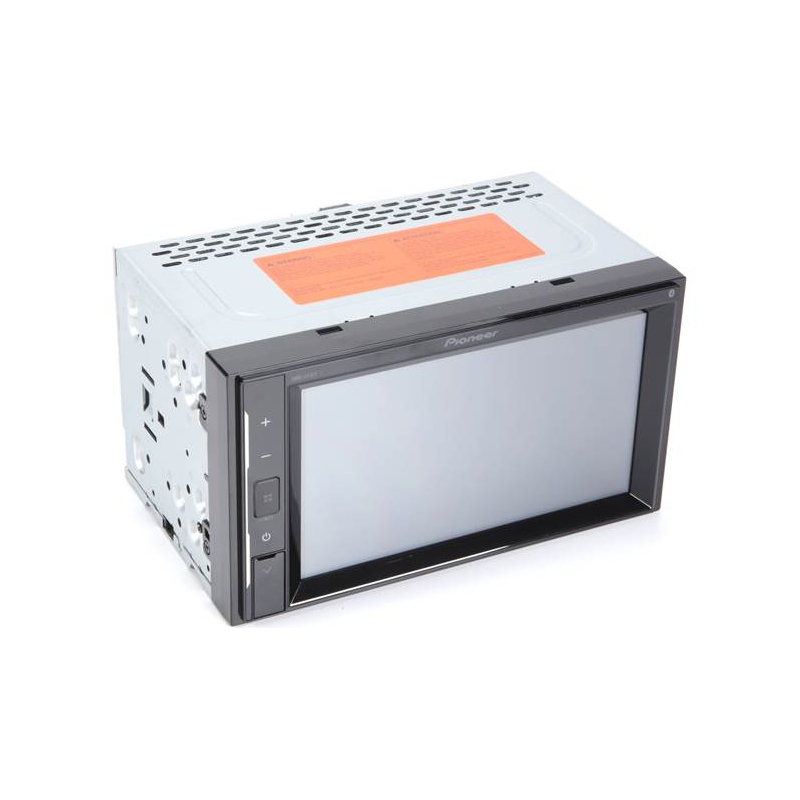

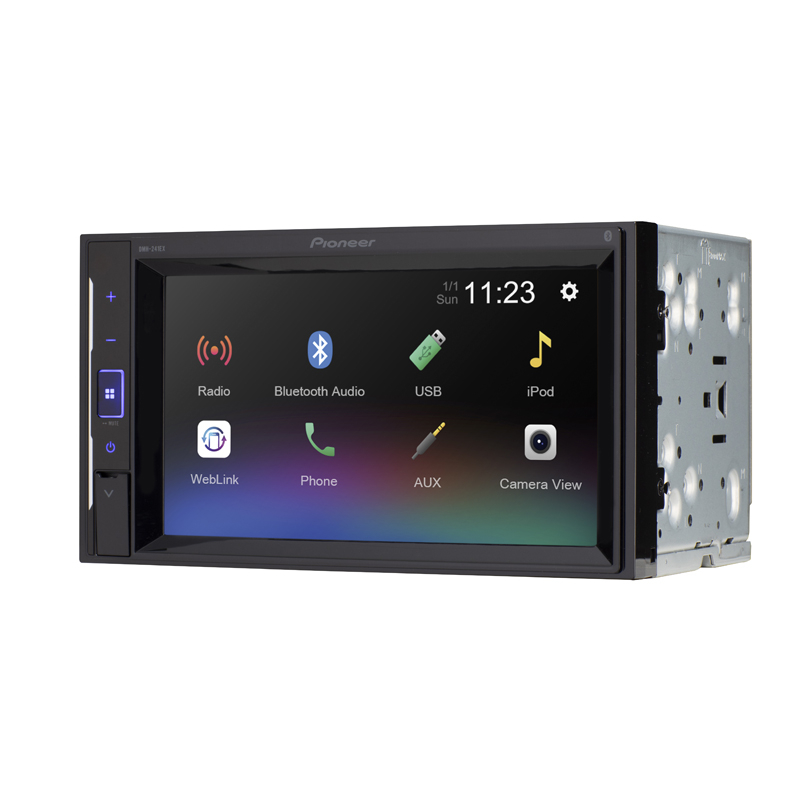

Pioneer DMH-241EX 2-DIN 6.2" Digital Media Receiver with Resistive Touchscreen, Amazon Alexa Built-in when Paired with Pioneer Vozsis App, Bluetooth® Back Up Camera Ready
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

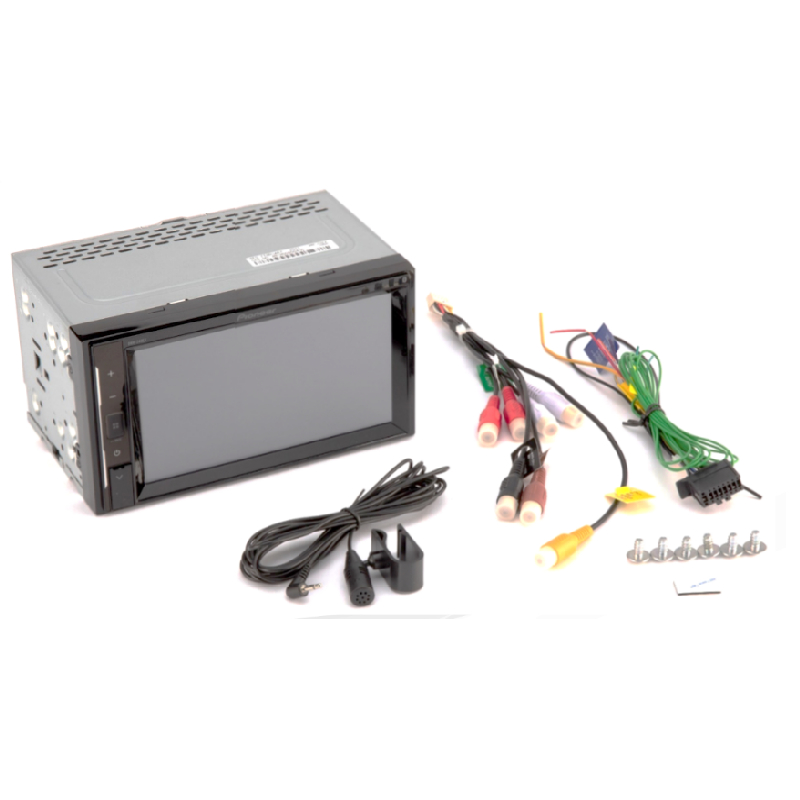

What's Inside?
- • Digital multimedia receiver (10A fuse)

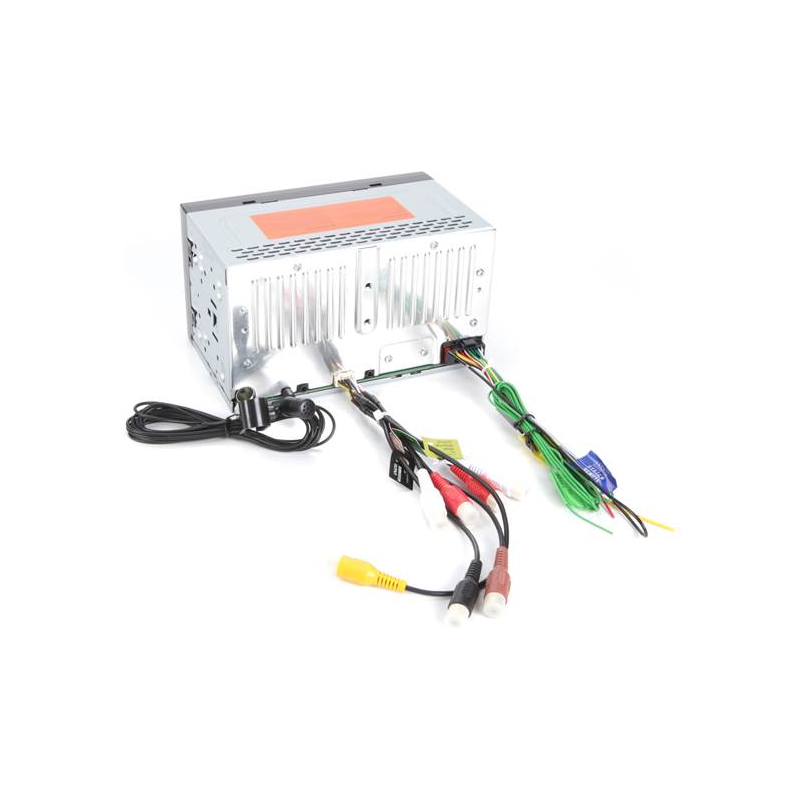

- • Wiring harness (6.5' Parking brake wire)
- • Preout/AV harness
- • Remote control (CXE9605)
- • CR2025 3V lithium battery (installed in remote)
- • Microphone w/ visor-bracket (attached 10' cable terminated by a right-angled 2.5mm connector)
- • Two-sided tape
- • (6) Pan-head ISO screws (M5 x 9mm)
- • (6) Counter-sunk ISO screws (M5 x 9mm)
- • Installation Manual
- • Quick Start Guide
- • Warranty Sheet
- • Owner's Manual
Why Choose Pioneer DMH-241EX Digital Multimedia Video Receiver?
Our Top-selling Items for a Long Time
Pioneer has always been one of the most respected brands for a long time, and its products have always been a symbol of that outstanding reputation. One of its multimedia receivers,the Pioneer DMH-241EX, has always been one of our top-selling items for a long time, as it is loaded with modern technologies and being sold at a budget-friendly price.
Amazon Alexa feature
Downloading Pioneer's Vozsis app from your iPhone or Android phone allows you to activate the Pioneer DMH-241EX receiver's Amazon Alexa feature, so you can use voice commands to play music, check the weather, control smart home devices, hear the news, and more. It also has a Bluetooth connectivity option allowing you to take phone calls hands-free and stream music in wireless mode.
Built-in MOSFET Amplifier
The Pioneer DMH-241EX has a built-in MOSFET amplifier with a five-channel preamp output for your front and rear speakers and a mono subwoofer. It has a power output of 14 Watts RMS per channel and a peak power of 50 Watts per channel.
Built-in 13-band Graphic EQ
The Pioneer DMH-241EX also comes with a tone-shaping feature with its built-in 13-band graphic EQ so that you can adjust the amplifier frequency response to your preference. It also has high and low-pass filters to filter out the unwanted frequencies that could damage your speakers and subwoofer.
Frequently Asked Questions (FAQ)
- • Why won't the touchscreen respond properly?
An unresponsive touchscreen can be caused by software glitches, improper installation, or physical damage. Restart the receiver and verify that the screen is clean and free of obstructions before troubleshooting further.
- • Can I connect my smartphone for music playback?
Yes. You can connect a compatible smartphone using USB or Bluetooth, depending on your device and preferred playback method.
- • Why won't my phone connect through Bluetooth?
Bluetooth pairing issues are often caused by outdated pairing records or compatibility settings. Delete the existing pairing from both devices and pair them again.
- • Why isn't the backup camera displaying when I shift into reverse?
Incorrect wiring or camera settings are the most common causes. Verify the reverse trigger wire and ensure the camera input is enabled in the receiver's settings.
- • Why is there no sound even though music is playing?
Incorrect audio settings, amplifier wiring issues, or muted outputs can prevent sound from reaching the speakers. Check the volume, speaker connections, and amplifier settings.
- • Can I play videos from a USB drive?
Yes, provided the video files are in a supported format and stored on a compatible USB device. Unsupported file types may not appear or play correctly.
- • Why does the receiver keep restarting while driving?
Unexpected restarts are often caused by loose power connections or unstable vehicle voltage. Inspect the wiring harness and confirm all power and ground connections are secure.
- • Why is the Bluetooth call quality poor?
Poor microphone placement, excessive cabin noise, or a weak phone signal can affect call quality. Position the microphone closer to the driver and verify your phone has a stable connection.
- • Why won't the receiver save my settings after turning off the vehicle?
This usually indicates that the constant 12-volt memory wire and accessory power wire are connected incorrectly. Verify the wiring to ensure the receiver receives uninterrupted memory power.
- DIN : 2
- Preamp Voltage : 2 volts
- Display Size : 6.2 Inch
- Audio/Video Inputs : 1
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- Front USB Input : 1
- Preamp Outputs : Front, Rear & Sub
- Rear View Camera Input : Yes
- Apple CarPlay : No
- Android Auto : No
Features:
- 6.2" Resistive Touchscreen
- Amazon Alexa Built-in when Paired with Pioneer Vozsis App
- Smartphone Compatible
- Built-in Bluetooth®
- Back-up Camera Ready
Specifications:
STANDARDS
PERFORMANCE
- Continuous Power Output: 22 W x 4-Channel
- Load Impedance Allowance: 4 Ohm (4 Ohm to 8 Ohm Allowable)
- Max Power Output: 50 W x 4-ch 4 ohm
- RCA Preamp Outputs: 5-Channel
- RCA Pre-out: 2V
- RMS Power Output (CTA-2006): 14 W RMS x 4-ch 4 ohm
DISPLAY
- Back Light: LED
- Brightness Control: Yes
- Color Customization: 3 Preset Background Images ,Fixed Color - Blue
- Device (Non-DIN/Modular Unit): 2-DIN
- Dimmer: Automatic with vehicle illumination, Manual
- Display Off Mode: Yes
- Monitor Mechanism: Fixed
- Resolution: WVGA (800 x 480)
- Screen Size/Aspect Ratio: 6.2"/16:9
- Touch Screen: Resistive
BLUETOOTH
- Advanced Audio Distribution Profile (A2DP: Yes
- AVRCP: 1.6
- Built-in Bluetooth®: Yes
- Hands Free Version: 1.6
- Hands-Free: Yes
- Microphone Included: Included
- Phone Registration: 5-phone
- Secure Simple Pairing (SSP): Yes
- Serial Port Profile (SPP): Yes
TUNER
- Best Station Memory: Yes
- Local Seek tuning: Yes
- Presets: 18 FM, 6 AM
- PS (Preset Scan): Hide or display radio station name
- RDS: Yes
INTEGRATION
- Amazon Alexa: Paired with Pioneer Vozsis
- Mobile Operating System: Android / Apple iOS
- Pandora®: Bluetooth Audio Source
- Pioneer App Compatibility: Vozsis Android, Vozsis iPhone
- Siri® Eyes Free (VR) (Internet Required): iPhone Only
- Spotify: Bluetooth Audio Source
- Voice Control: Yes
- Weblink: 2.0
- WiFi: Tethering, WiFi Hotspot
DIGITAL MEDIA PLAYBACK

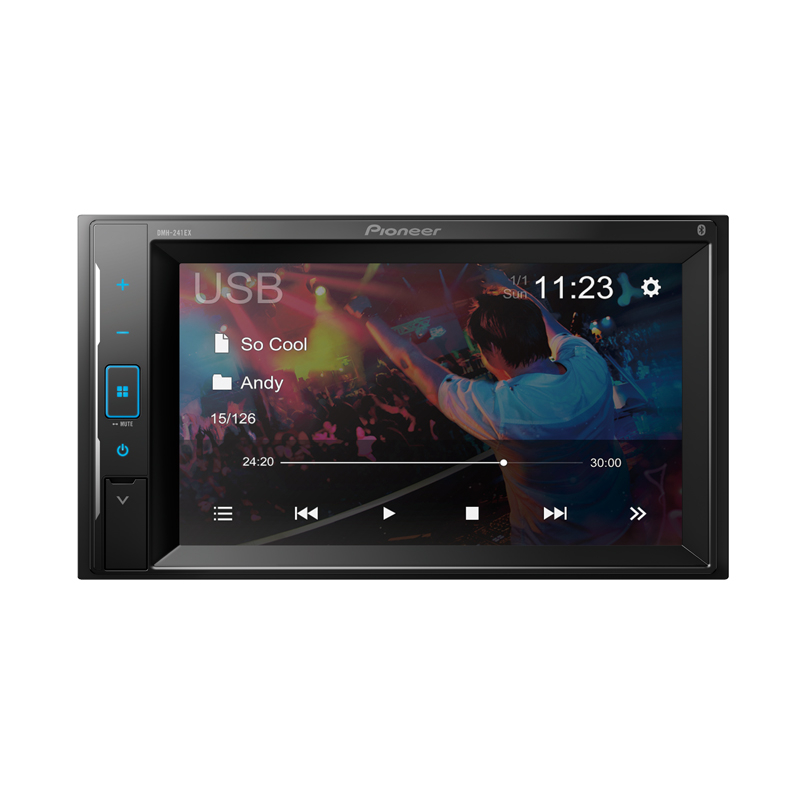

- Audio Playback via USB: MP3 Audio Playback / WMA Audio Playback / AAC Audio Playback / FLAC Audio Playback (Hi-Res) / WAV Audio Playback (Hi-Res)
- Audio Video Playback via USB: .avi / .mpg/mpeg / .mp4 / .mkv / .mov / .flv / .m4v / .ts/.m2ts/.mts / H.263 / H.264
- Image Display via USB: BMP / JPEG / PNG
AUDIO
- Built-in Amplifier: MOSFET 50 W x 4
- Crossover Standard Mode: HPF/LPF
- Customizable Graphic Equalizer: 13 Band
- DA Converter: 24 Bit
- Digital Signal Processor: Built In
- Easy EQ (EEQ) Preset Equalizer: Yes
- Fade: Yes
- Loudness: High/Mid/Low/Off
- Speaker Output: 4-Channel
- Subwoofer Control: Yes
EXPANDABILITY
- RCA Video Output: Yes
- USB: Single Rear Type-A (5V, 1.5 A)
- USB Direct Control for iPhone®: 5s and newer
INPUTS
- Input 1: Backup Camera Dedicated
- Input 2: AUX (Minijack)
GENERAL
- Detachable Face Security: Fixed
- Multi-Language Display: English, French, Spanish Portuguese, Chinese (Simplified)
- Music Browser: USB
- Remote Control: Included
- Steering Wheel Control Ready (Adapter Sold Separately): Yes
- UPC: 884938478816
- Weight: 7
