Source Unit Dimensions Mounting Hole (in): 7.0 x 2.0
Source Unit Dimensions Total Mounting Depth (in): 4.0
Additional Details: MAXIMUM THD+N AT 4 OHMS: 81.2dBA, EFFICIENCY AT FULL POWER 4 OHM (1KHZ): 0.639, IDLE CURRENT: 0.3A, MAXIMUM UNDISTORTED PREAMP VOLTAGE (WITH 20K OHM LOAD): 4 Volts, SIGNAL TO NOISE (CTA-2006B): -86.2dBA AUX / -66.1dBA Bluetooth, SIGNAL TO NOISE RATIO OF LINE LEVEL OUTPUTS (AT MAX VOLUME): Bluetooth -76.2 dBA / Aux -86.4dBA, PREAMP FREQUENCY RESPONSE (+/- 3.0DB): 20Hz–10.2kHz USB / 30Hz–9.7kHz Bluetooth, AMPLIFIER FREQUENCY RESPONSE (+/- 3.0DB): 20Hz–20.0kHz USB / 30Hz–20.0kHz Bluetooth, STEREO SEPARATION (AUX INPUT): -45.60dB @ 5kHz, FM MONO USABLE SENSITIVITY: 3.6μV, AM MONO USABLE SENSITIVITY: 17µV
Marine Grade Protection / IPX Rating:Meets or exceeds IPX5 requirements for water and dust proofing. LIFE SHIELD: This product has been designed and tested against the elements. Waterproof, dustproof, snowproof or shockproof. Built to handle the outdoors.
Apple® Control: Quick control and access of iTunes collection with iPhone, iPod and iPad.
Source Type: AM/FM/Bluetooth® Radio allows all access to radio stations and content from Bluetooth enabled devices.
Input Types: Bluetooth, RCA, USB: Nearly nothing the device can not play.
Control Buttons: Front facing buttons to engage and adjust all features.
Bluetooth® Connect:Bluetooth® Connect allows your phone or other Bluetooth enabled device to be quickly paired to the controller without a complicated pairing process.
Secure Simple Pairing™ :Quick and secure wireless connection between your Bluetooth enabled device. This reliable connection is impervious to outside interference, providing a lock-tight connection to your audio system.
Quick-Pair™: No more frustration with trying to pair. When the unit powers up, it immediately connects to the last device connected. For a first time connection, you only have to select "MB Quart" from your Bluetooth menu and you are connected, QUICKLY.
Built-In Power: Four channels of output. These channels remain active when running external amplifiers (RCA Output) to run additional speakers in the vehicle.

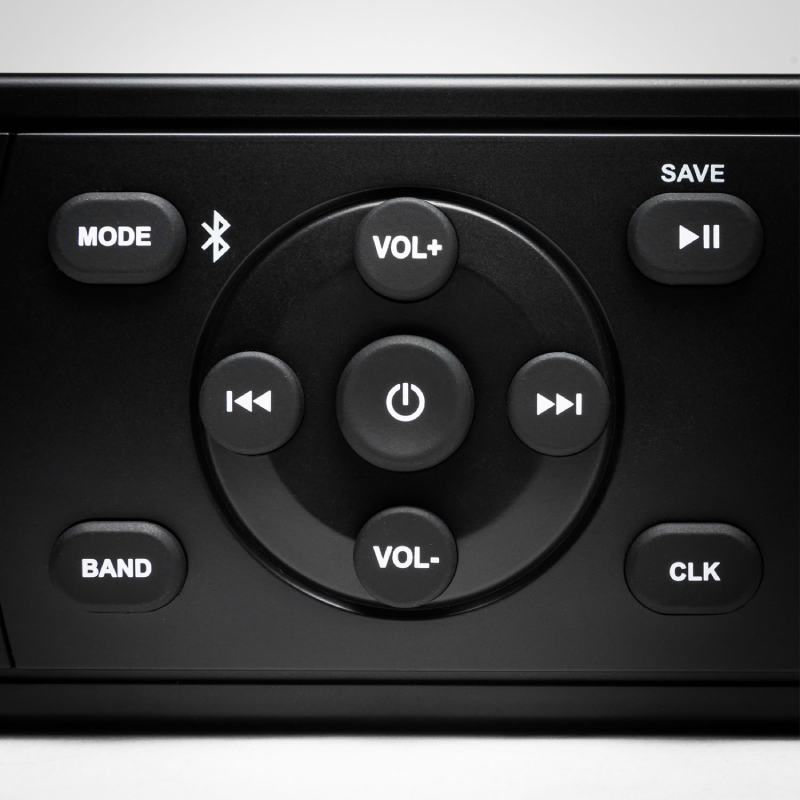

Control Method:9 control buttons on faceplate.
Frequency Range: FM: 87.5-108, AM: 530-1710
Weather Band: Includes built-in weather band radio.
Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
