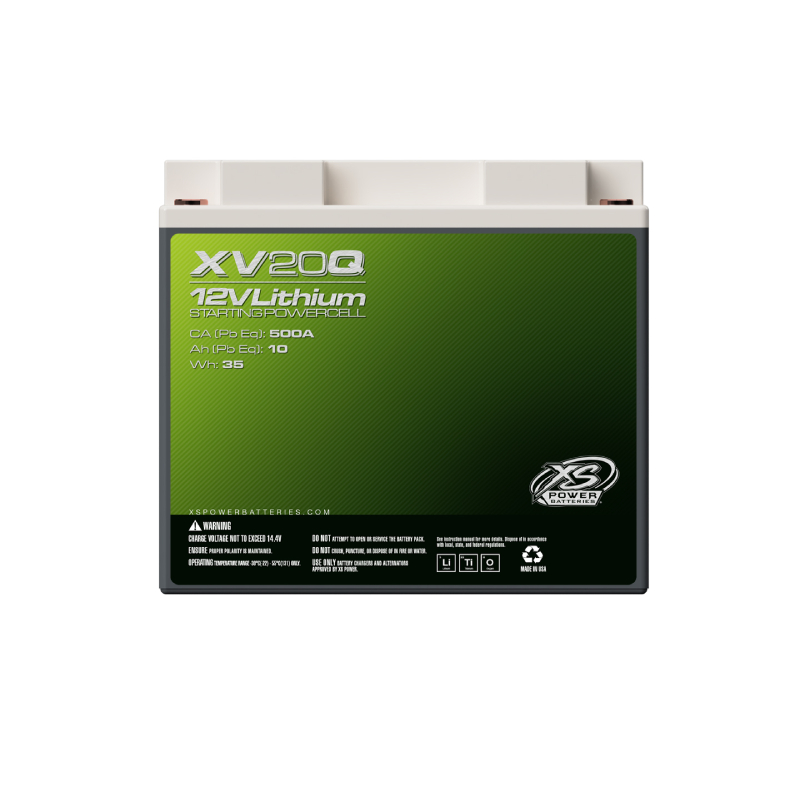

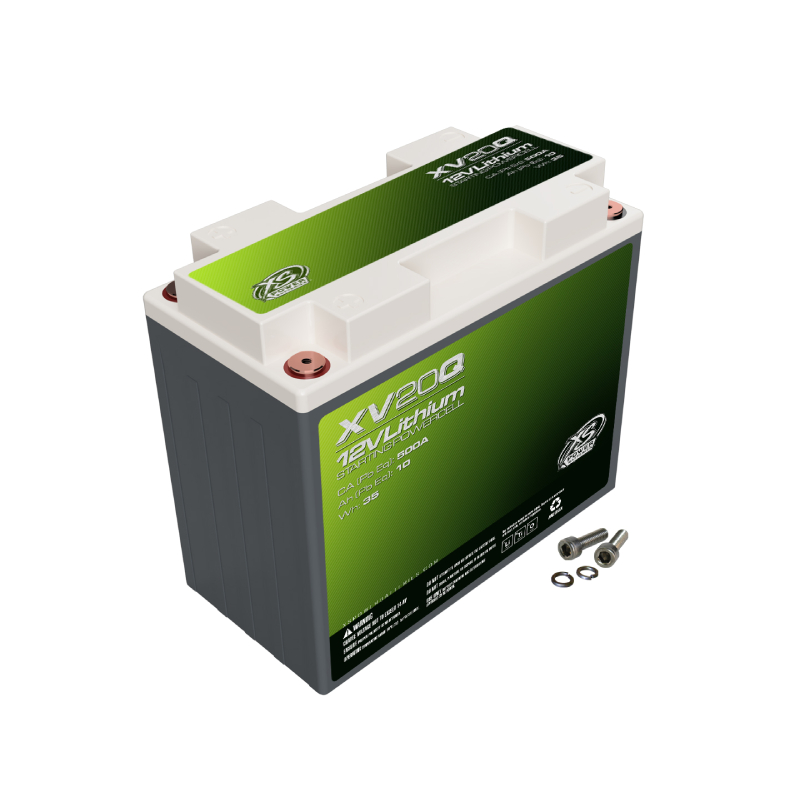

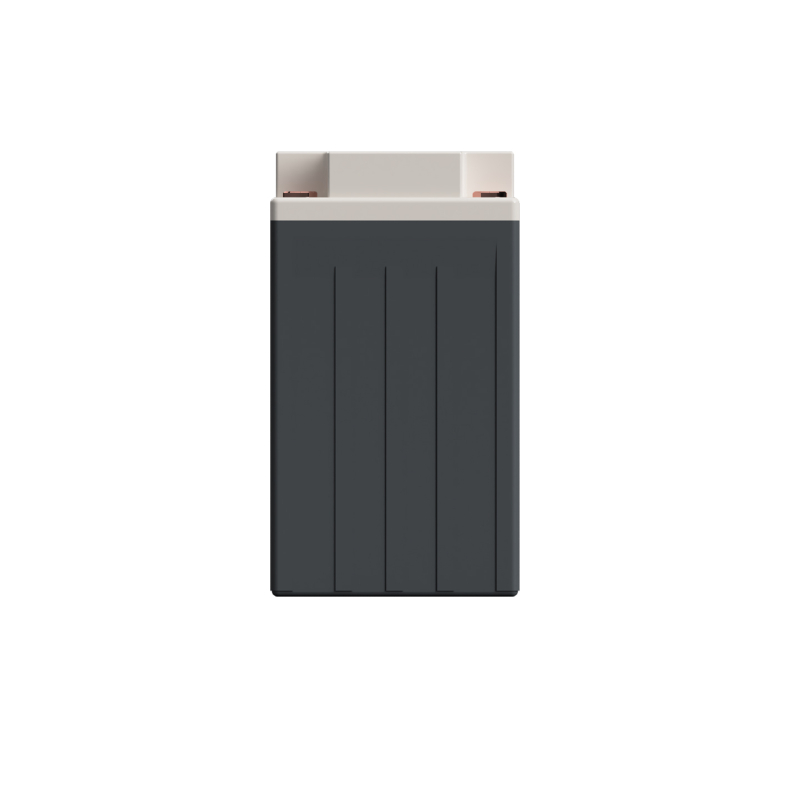

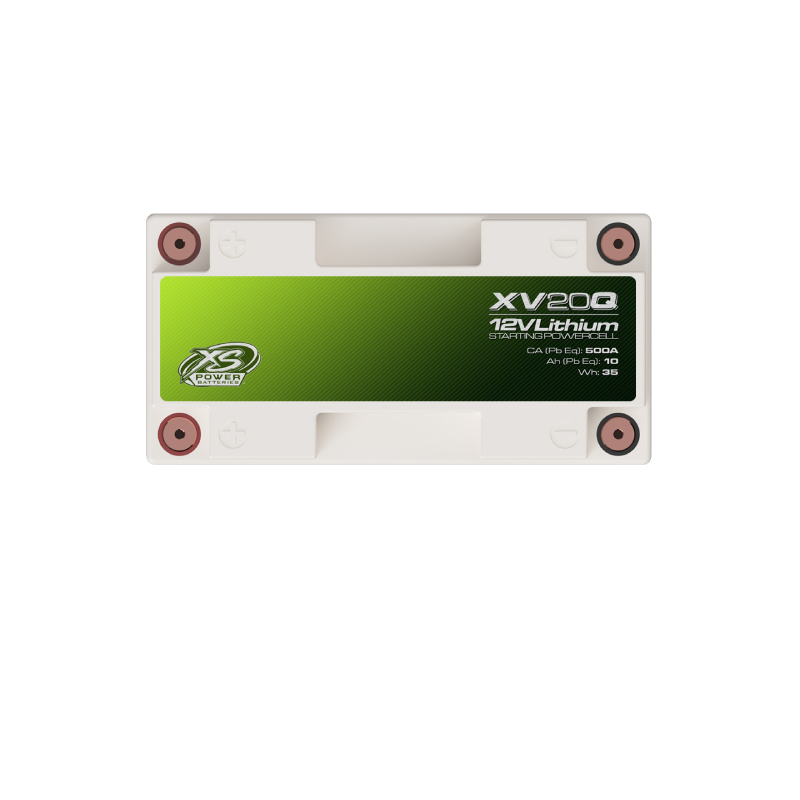

XS Power XV20Q 12V Lithium Titanate XV Series Batteries 750 Watts, CA 335A, 670 Max Amps - M6 Terminal Bolts Included
We are a XS Power authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 12V Lithium Titanate XV Series Batteries
- • Owner's Manual
Top-tier Solution
The XS Power XV20Q 12V Lithium Titanate XV Series Battery stands at the forefront of energy storage technology, offering unparalleled performance. As a member of the XV Series, it incorporates advanced lithium titanate technology, ensuring superior energy efficiency. With a reliable power output of 750 watts, this battery is versatile and suitable for various applications. The impressive Cranking Amps (CA) rating of 335A makes it an ideal choice for quick and efficient engine starting. Additionally, the battery provides robust power with a maximum current output of 670 amps, catering to demanding power needs. The inclusion of M6 terminal bolts enhances the ease of installation, ensuring secure and reliable connections. Upgrade to the XV20Q for cutting-edge technology and exceptional energy performance.
Frequently Asked Questions (FAQ)
- • Will the XV20Q fit my original battery compartment?
The XV20Q uses a BCI Group 20/20L case measuring about 6.89 × 3.43 × 6.10 inches. Even though it is designed for common powersports applications, always compare the tray dimensions and terminal position before installation.
- • Why does my XV20Q have much less Ah than my old battery?
The XV20Q is rated at only 3Ah, but its lithium-titanate design is listed with a 10Ah AGM-equivalent rating. Amp-hour numbers should therefore not be compared directly without considering the battery chemistry and intended starting application.
- • Can my upgraded alternator damage the XV20Q?
The charging system is an important limitation. XS Power specifies the XV20Q for alternators or stators 150A or less, so an excessively high-output charging system can put the battery outside its intended application.
- • Do I need to buy a lithium-specific charger for this battery?
Not necessarily. XS Power's published information says the XV20Q can be recharged without a special charger, provided the charging system follows the required 13.8–14.0V range for a 12V model.
- • Why is my replacement battery suddenly much lighter?
The XV20Q weighs only about 3.25 pounds, which is dramatically lighter than many conventional lead-acid batteries. The low weight is intentional and comes from its LTO construction rather than indicating that the battery is missing internal components.
- • Can I run a powerful stereo from the XV20Q?
There is an important limit here. XS Power lists the XV20Q as not intended for high-amp audio systems above 1,500W, so a larger sound system may require a different power solution.
- • Why won't the factory battery cables bolt directly onto my XV20Q?
The XV20Q uses threaded M6 terminal hardware, so vehicles with conventional clamp-style terminals may need compatible terminal adapters or an appropriate cable connection. XS Power also lists optional brass post adapters for clamp-style installations.
- • Is the XV20Q safe to use on a UTV that gets wet and shaken around?
The sealed LTO construction is intended for powersports use, including UTVs and other applications exposed to vibration and moisture. However, the battery should still be mounted securely and protected from conditions outside its operating limits.
- • What happens if the XV20Q is installed near a very hot engine?
Temperature is a major consideration. XS Power lists the battery as rated up to 140°F and warns that prolonged exposure above that temperature can cause permanent damage and void the warranty.
- • Can the XV20Q be used as an auxiliary battery instead of the main battery?
Yes. The XV20Q can be used as either the primary battery or a secondary power source. This makes it useful for powersports setups where additional electrical accessories need lightweight supplemental power.
Features:
- Perfect for stock charging systems
- Not intended for high amp audio systems (1,500W Max)
- Prolonged exposure to temperatures above 140 Degrees will void the warranty and may cause permanent damage to the battery or vehicle.
Specifications:
- Length: 6.89 in
- Height: 6.10 in
- Width: 3.43 in
- Voltage: 12V
- Wattage: 750
- MAX Amps: 670
- Energy Wh: 35
- CA: 335A
- CA Pb Eq: 500A
- Ah: 3
- Ah Pb Eq: 10
- UPC: 692209054627
- Weight: 4
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
