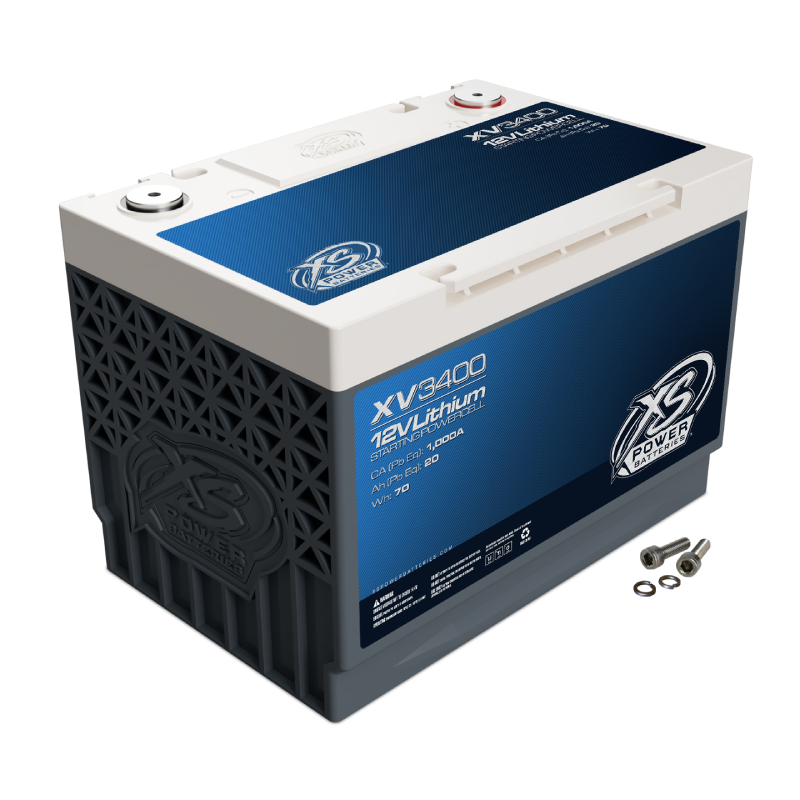

XS Power XV3400 12V Lithium Titanate XV Series Batteries 1500 Watts, CA 670A, 1335 Max Amps - M6 Terminal Bolts Included
We are a XS Power authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 12V Lithium Titanate XV Series Batteries
- • Owner's Manual
Enhanced Performance for Demanding Applications
The XS Power XV3400 12V Lithium Titanate XV Series Battery represents the pinnacle of energy storage technology, offering exceptional performance. As a member of the XV Series, it incorporates advanced lithium titanate technology, ensuring superior energy efficiency. With a substantial power output of 1500 watts, this battery is designed for high-performance applications. The impressive Cranking Amps (CA) rating of 670A makes it an ideal choice for quick and efficient engine starting. Additionally, the battery provides robust power with a maximum current output of 1335 amps, catering to demanding power needs. The inclusion of M6 terminal bolts enhances the ease of installation, ensuring secure and reliable connections. Elevate your power solution with the XV3400 for cutting-edge technology and exceptional energy performance.
Frequently Asked Questions (FAQ)
- • Why does my XV3400 seem different from a normal Group 34 battery?
The XV3400 uses Lithium Titanate (LTO) technology instead of traditional lead-acid or AGM construction. Although it follows the Group 34 size format, its lighter weight, 6Ah capacity, and high-current output make its operating characteristics different from a conventional battery.
- • Can the XV3400 handle my factory alternator without modifications?
The XV3400 is designed for compatible stock or performance charging systems, but XS Power specifies a 150-amp maximum alternator limitation for this battery. If your vehicle has a larger alternator, verify compatibility before installation.
- • Why doesn't the XV3400 have the same amp-hour rating as my AGM?
The XV3400 is rated at 6Ah, with a listed 20Ah AGM-equivalent rating. Comparing the raw Ah numbers directly can therefore make the lithium battery appear much smaller than it is intended to be.
- • Do I have to replace my battery cables for the XV3400?
Not necessarily, but the terminal connection needs attention. The XV3400 uses threaded M6 terminals, while some factory vehicles use conventional clamp-style connections. XS Power offers optional brass post adapters for applications where the original cable ends need a different connection style.
- • Why does my XV3400 not seem to fit even though my vehicle uses Group 34?
Group numbers do not guarantee that every installation will have identical cable positioning or clearance. The XV3400 measures approximately 10.24 × 6.89 × 7.16 inches, so compare the actual tray, hold-down, terminal orientation, and cable reach before installing it.
- • Can a 1,500-watt stereo overload the XV3400?
The XV3400 is rated for a maximum 1,500-watt system, and XS Power specifically states that it is not intended for high-amp audio systems above that level. A larger audio installation should use a battery and charging system designed for the additional demand.
- • What should I check if my XV3400 starts weak after an electrical upgrade?
Start by checking alternator output, charging voltage, terminal tightness, cable condition, and overall electrical demand. A battery can appear to be the problem when the actual issue is insufficient charging capacity or a poor connection.
- • Is leaving the XV3400 unused for several weeks a problem?
The XV3400 is designed to retain its charge and does not need to remain connected to a maintainer under normal storage conditions. However, excessive parasitic drain or leaving any battery deeply discharged can create starting problems.
- • Can engine-bay heat shorten the life of the XV3400?
Yes. XS Power rates the XV3400 for temperatures up to 140°F and warns that prolonged exposure above that temperature can cause permanent damage and affect the warranty. Check the mounting location if the battery is installed near a hot engine or exhaust component.
- • Why did I get a different charging result than expected with my XV3400?
The charging system needs to stay within the battery's intended voltage range. XS Power specifies 13.8–14.0V for charging its 12V models through an alternator or stator. If charging voltage is outside that range, test the alternator and wiring before blaming the battery.
Features:
- Perfect for stock charging systems
- Not intended for high amp audio systems (1,500W Max)
- Prolonged exposure to temperatures above 140 Degrees will void the warranty and may cause permanent damage to the battery or vehicle.
Specifications:
- Length: 10.24 in
- Height: 7.16 in
- Width: 6.89 in
- Voltage: 12V
- Wattage: 1,500
- MAX Amps: 1,335
- Energy Wh: 70
- CA: 670A
- CA Pb Eq: 1,000A
- Ah: 6
- Ah Pb Eq : 20
- UPC: 692209054702
- Weight: 7
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
