XS Power XV3400R 12V Lithium Titanate XV Series Batteries 1500 Watts, CA 670A, 1335 Max Amps - M6 Terminal Bolts Included
We are a XS Power authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 12V Lithium Titanate XV Series Batteries
- • Owner's Manual
Enhanced Performance for Demanding Applications
The XS Power XV3400R 12V Lithium Titanate XV Series Battery stands at the forefront of energy storage technology, offering exceptional performance. As part of the XV Series, it incorporates advanced lithium titanate technology, ensuring superior energy efficiency. With a substantial power output of 1500 watts, this battery is designed for high-performance applications. The impressive Cranking Amps (CA) rating of 670A makes it an ideal choice for quick and efficient engine starting. Additionally, the battery provides robust power with a maximum current output of 1335 amps, catering to demanding power needs. The inclusion of M6 terminal bolts enhances the ease of installation, ensuring secure and reliable connections. Elevate your power solution with the XV3400R for cutting-edge technology and exceptional energy performance.
Frequently Asked Questions (FAQ)
- • Why did my vehicle voltage change after installing the XV3400R?
Some users have reported unexpected voltage behavior after installing an XS Power battery. Check the alternator, regulator, and vehicle charging strategy before blaming the battery.
- • Can the XV3400R handle a larger audio setup?
The XV3400R is rated for up to 1,500 watts, so systems beyond that level may require additional electrical support.
- • Why are my original battery clamps not attaching correctly?

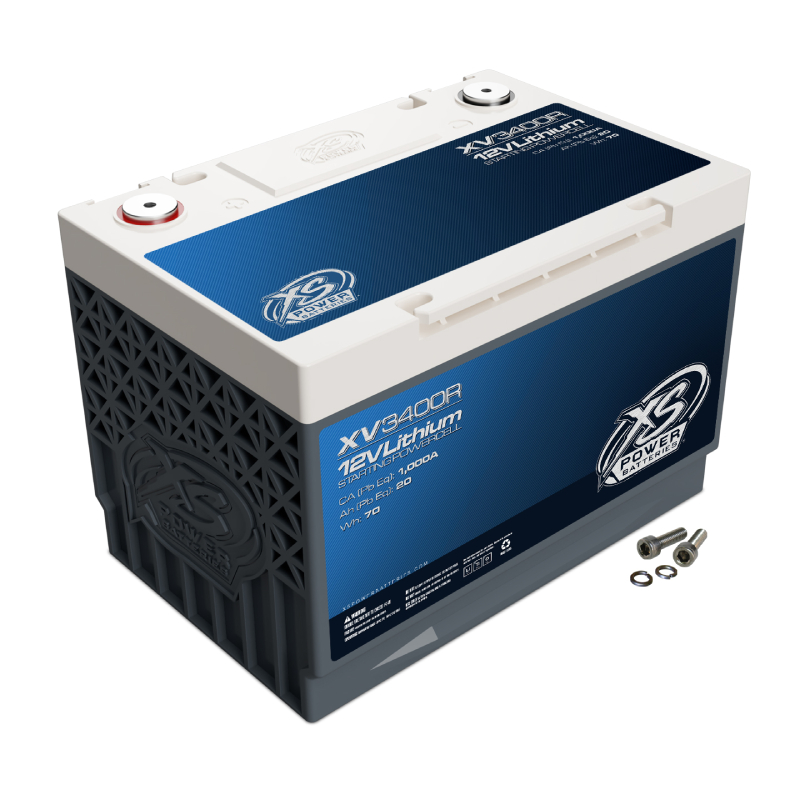

The XV3400R uses threaded M6 terminals, which can require the correct hardware or optional post adapters when replacing a conventional clamp-style battery.
- • What happens if the XV3400R is connected to an overcharging alternator?
XS Power specifies 13.8–14.0V as the preferred charging range for its 12V XV batteries, with charging voltage limited to 14.5V or less.
- • Why does the battery seem small despite its Group 34R rating?
The XV3400R stores 6Ah and 70Wh while delivering 670A of cranking power, so its lightweight lithium design differs considerably from a conventional lead-acid battery.
- • Could the reverse-terminal layout cause installation problems?

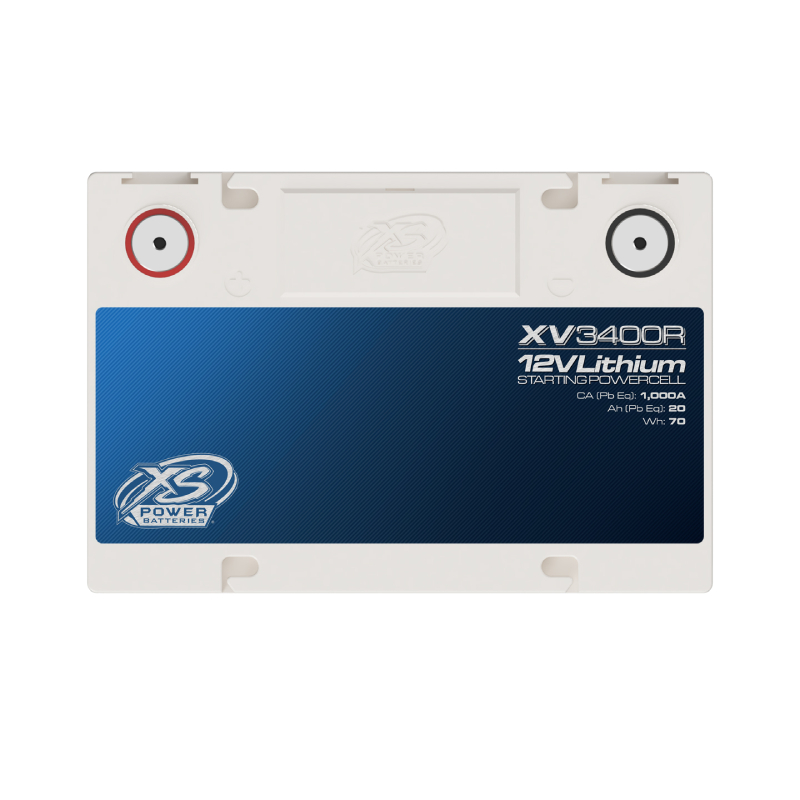

Yes. The XV3400R is a Group 34R battery with the positive terminal on the left, so cable reach and polarity should be checked before installation.
- • Why is my XV3400R not holding voltage when the car sits?
A parasitic electrical draw can drain a battery while the vehicle is parked. XS Power owners have reported charging and resting-voltage issues that ultimately involved the vehicle's electrical system.
- • Can I install the XV3400R in any Group 34 battery tray?
Not necessarily. Its 10.24 × 6.89 × 7.16-inch dimensions and reverse-terminal configuration should be compared with the actual tray and cable arrangement.
- • What should I do if the XV3400R arrives below 10 volts?
Do not immediately attempt to charge it. XS Power's instructions specifically say not to charge the battery below 10V and to contact XS Power for assistance.
- • Can excessive engine heat damage the XV3400R?
Yes. The battery is rated for temperatures up to 140°F, and XS Power warns that operating above this limit can cause permanent damage.
Features:
- Perfect for stock charging systems
- Not intended for high amp audio systems (1,500W Max)
- Prolonged exposure to temperatures above 140 Degrees will void the warranty and may cause permanent damage to the battery or vehicle.
Specifications:
- Length : 10.24 in
- Height : 7.16 in
- Width : 6.89 in
- Voltage : 12V
- Wattage: 1,500
- MAX Amps: 1,335
- Energy Wh: 70
- CA: 670A
- CA Pb Eq: 1,000A
- Ah: 6
- Ah Pb Eq : 20
- UPC: 692209054719
- Weight: 7
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
