XS Power XV6500 12V Lithium Titanate XV Series Batteries 1500 Watts, CA 670A, 1335 Max Amps - M6 Terminal Bolts Included
We are a XS Power authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 12V Lithium Titanate XV Series Batteries
- • Owner's Manual
Enhanced Performance for Demanding Applications

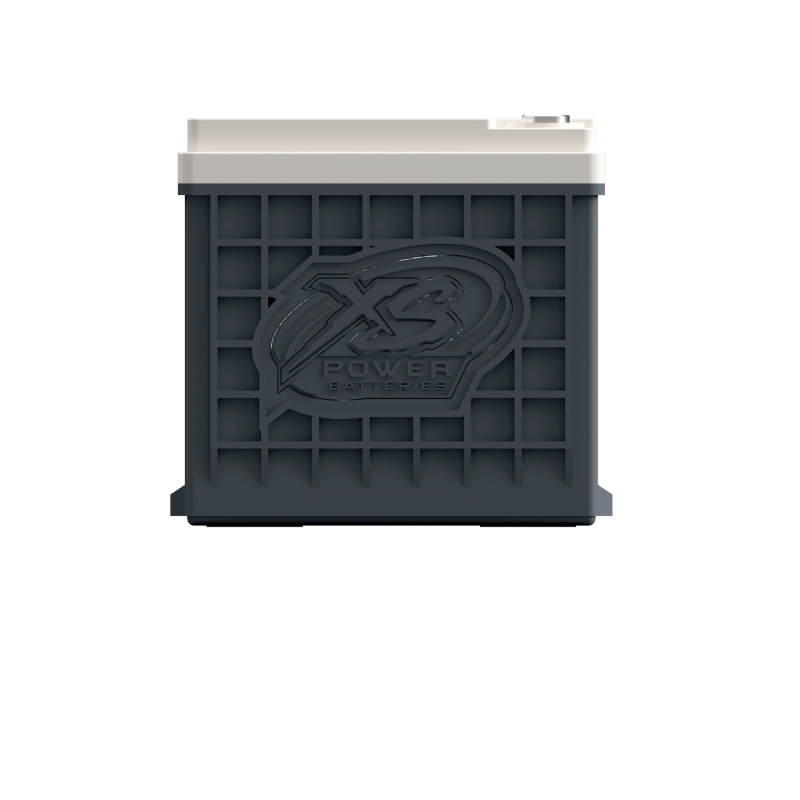

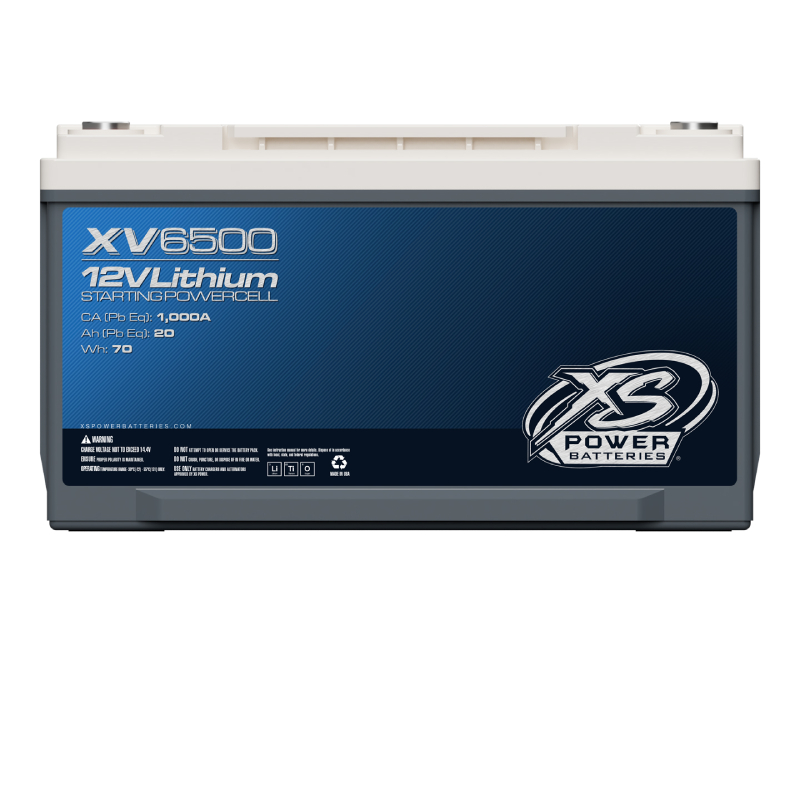

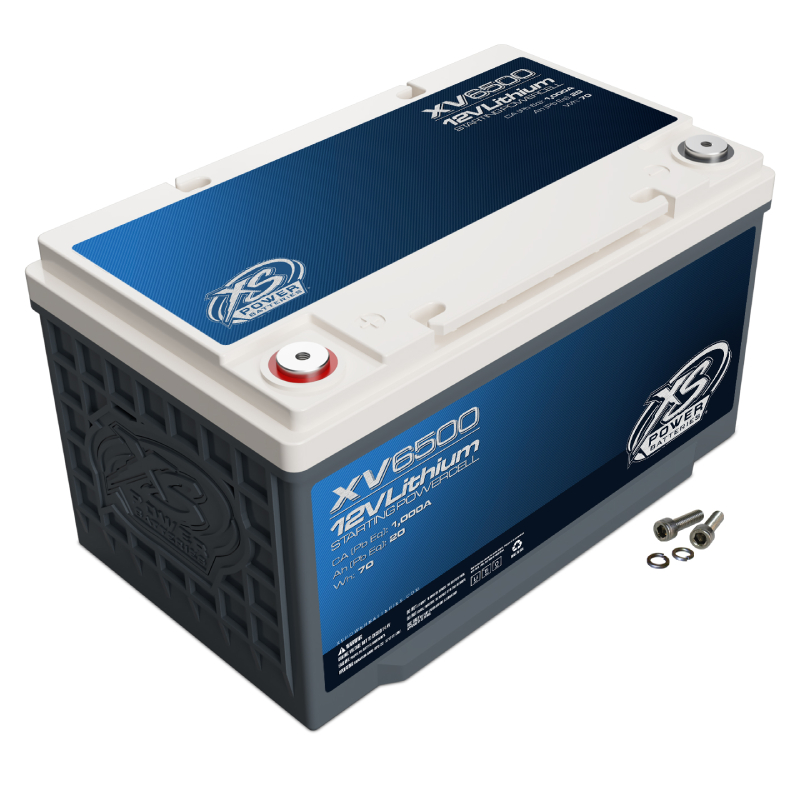

The XS Power XV6500 is a 12V Lithium Titanate battery, part of the XV Series, delivering 1500 watts with 670A Cranking Amps and a maximum current output of 1335 amps, complete with M6 terminal bolts for easy installation.
Frequently Asked Questions (FAQ)
- • Why does the XV6500 show only 6Ah on the specifications?
The 6Ah rating is the battery's actual amp-hour specification, while XS Power lists 20Ah as the AGM-equivalent figure. These values should not be compared as though they were measured using the same battery chemistry.
- • What happens if my alternator produces more than 150 amps?
The XV6500 is intended for charging systems using alternators of 150 amps or less. If your vehicle has a larger alternator, the battery may be outside its specified application, so verify the charging system before installing it.
- • Why won't my factory battery clamp fit the XV6500 terminals?

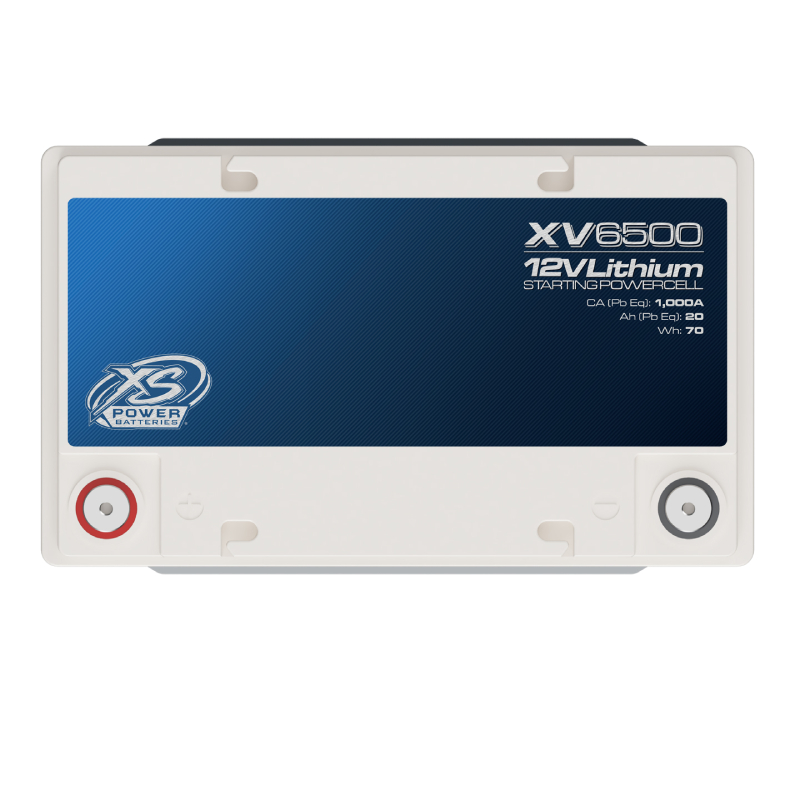

The XV6500 uses threaded M6 terminal hardware, rather than conventional automotive posts. XS Power offers optional brass post adapters for clamp-style installations when the original cables do not directly match the battery terminals.
- • Could a Group 65 battery still create a fitment problem?
Yes. Group 65 identifies the battery's general case size, but cable routing, terminal orientation, hold-down clearance, and the actual tray can still cause installation problems. The XV6500 measures approximately 11.8 × 7.2 × 6.8 inches, so compare those dimensions with the vehicle before installation.
- • Why does my XV6500 seem unusually light for a starting battery?
The XV6500 uses Lithium Titanate (LTO) technology and weighs roughly 6–8 pounds depending on the listed specification. Its low weight is intentional and is one of the major advantages of the XV Series over conventional lead-acid batteries.
- • What if my stereo system is larger than 1,500 watts?
The XV6500 is rated for a 1,500-watt maximum audio system, and XS Power specifically states that it is not intended for high-amp audio systems above that level. A larger system should be matched with an appropriate battery and charging setup rather than relying on the XV6500 alone.
- • Why does my battery voltage look normal but the engine still struggles to start?
A voltage reading at rest does not always reveal how the battery performs under load. If starting performance becomes weak, check the battery under load and inspect the terminals, grounds, cables, and charging system before deciding that the XV6500 itself has failed.
- • Can excessive under-hood heat shorten the XV6500's life?
Yes. XS Power rates the XV6500 for temperatures up to 140°F and warns that prolonged exposure above that level can cause permanent damage and may affect the warranty. Mounting location and heat shielding are therefore important considerations.
- • Why might my charging voltage be different from what I expected?
For a 12V XS Power lithium battery, charging from an alternator or stator should be maintained between 13.8 and 14.0 volts. If your voltage is significantly outside that range, investigate the alternator, regulator, wiring, and grounds before assuming the XV6500 is defective.
- • What should I document if the XV6500 fails unexpectedly?
Record the battery's resting voltage, load-test results, charging voltage, installation details, and any visible physical changes. This is especially useful because XS Power owners online have reported disputes involving battery testing, low-voltage conditions, and warranty claims.
Features:
- Perfect for stock charging systems
- Not intended for high amp audio systems (1,500W Max)
- Prolonged exposure to temperatures above 140 Degrees will void the warranty and may cause permanent damage to the battery or vehicle.
Specifications:
- Length: 11.8 in
- Height: 6.80 in
- Width: 7.20 in
- Voltage: 12V
- Wattage: 1,500
- MAX Amps: 1,335
- Energy Wh: 70
- CA: 670A
- CA Pb Eq: 1,000A
- Ah: 6
- Ah Pb Eq: 20
- UPC: 692209054733
- Weight: 8
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
