- • Will the XS Power PWR-S6-5100 fit my vehicle without modification?

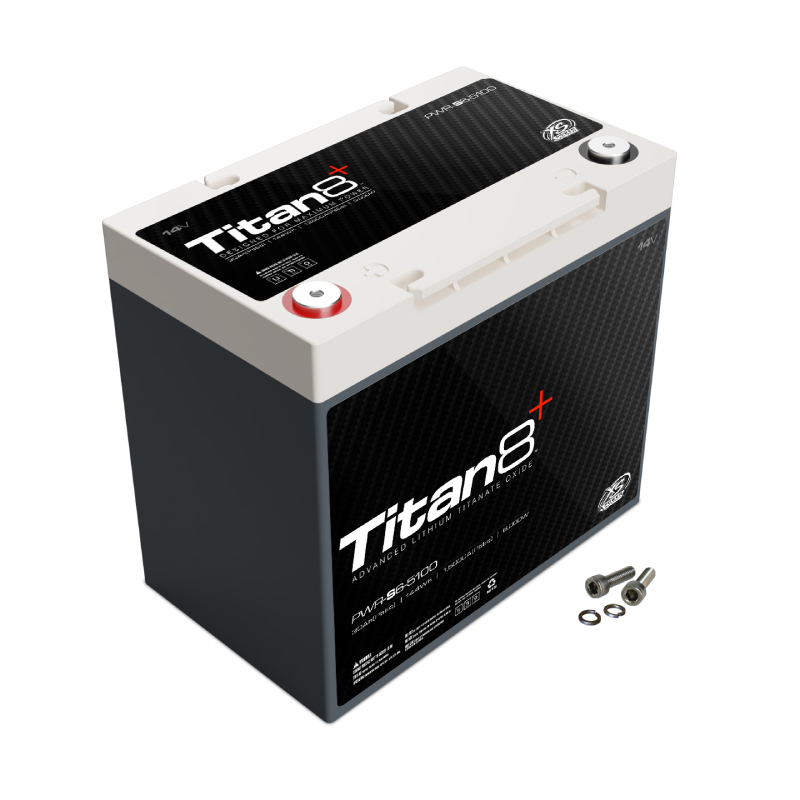

The PWR-S6-5100 uses a BCI Group 51 case measuring approximately 9.04 × 5.43 × 8.19 inches, so it can fit many Group 51 applications, but buyers should verify the battery tray, hold-down, cable reach, and terminal orientation before installation.
- • Why does my PWR-S6-5100 seem smaller in amp-hours than my old AGM battery?
The PWR-S6-5100 is rated at 10Ah, but its LTO technology provides a listed 30Ah AGM-equivalent rating and is designed for very high burst-current delivery. The lower Ah number should therefore not be compared directly with a conventional AGM battery.
- • Can I use my factory alternator to charge this 14V battery?
The PWR-S6-5100 is designed to work with stock or performance-style alternators, but charging voltage is important. XS Power's listed guidance says 14V models charged by an alternator or stator should receive approximately 15.5–17.4 volts.
- • Why are my factory battery cables not lining up with the terminals?

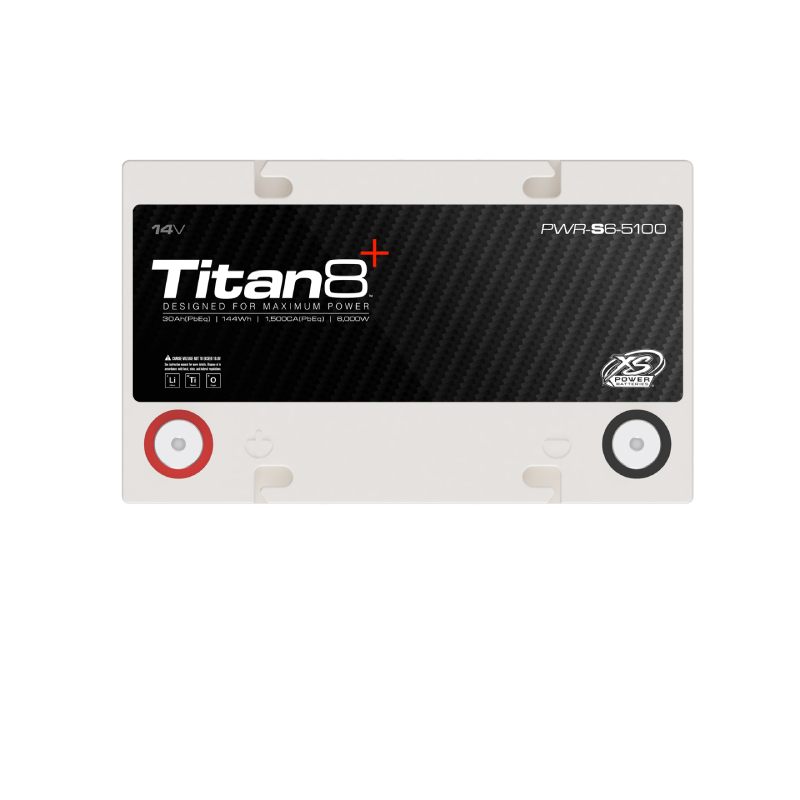

The PWR-S6-5100 has a specific terminal orientation and uses M6 terminal hardware. If your original cables were positioned for a different battery layout, you may need to check cable length, terminal direction, and available clearance before tightening everything down.
- • Does the PWR-S6-5100 need a special charger?
A common concern when switching from AGM to lithium is needing an entirely different charging system. The listed specifications state that the PWR-S6-5100 does not need a special charger, although the correct charging voltage and compatible charging equipment should still be used.
- • Why does this battery recharge so quickly after a high-current load?
The Titan8 LTO design is built for high charging-current capability as well as high burst output. XS Power's product information describes the chemistry as supporting very high charge rates, which helps explain its quick recovery after demanding electrical loads.
- • Can the PWR-S6-5100 handle a powerful car audio system?
The battery is rated at up to 2,000 maximum amps and 6,000 watts, making it suitable for demanding electrical systems when the complete charging and wiring system is properly designed. Its 1,000 CA rating also targets high-current engine-starting applications.
- • Is the PWR-S6-5100 too lightweight for a performance battery?
Some buyers may initially question the low weight because the battery weighs only around 8–9 pounds depending on the listed source. The lightweight construction is a benefit of the Titan8 LTO design rather than an indication that it has conventional lead-acid construction.
- • Can I install the PWR-S6-5100 under the hood?
Yes, the PWR-S6-5100 is listed for both cabin and under-hood mounting in suitable applications. However, the installation should still provide proper physical support, terminal protection, and adequate clearance from surrounding components.
- • Why should I choose the PWR-S6-5100 instead of another Group 51 battery?
The main advantage is its combination of compact Group 51 packaging, 14V output, 1,000 CA, 2,000 maximum amps, 6,000-watt rating, and LTO chemistry. It is designed for applications where strong burst power, rapid recharge, and reduced weight are more important than simply maximizing conventional amp-hour capacity.
