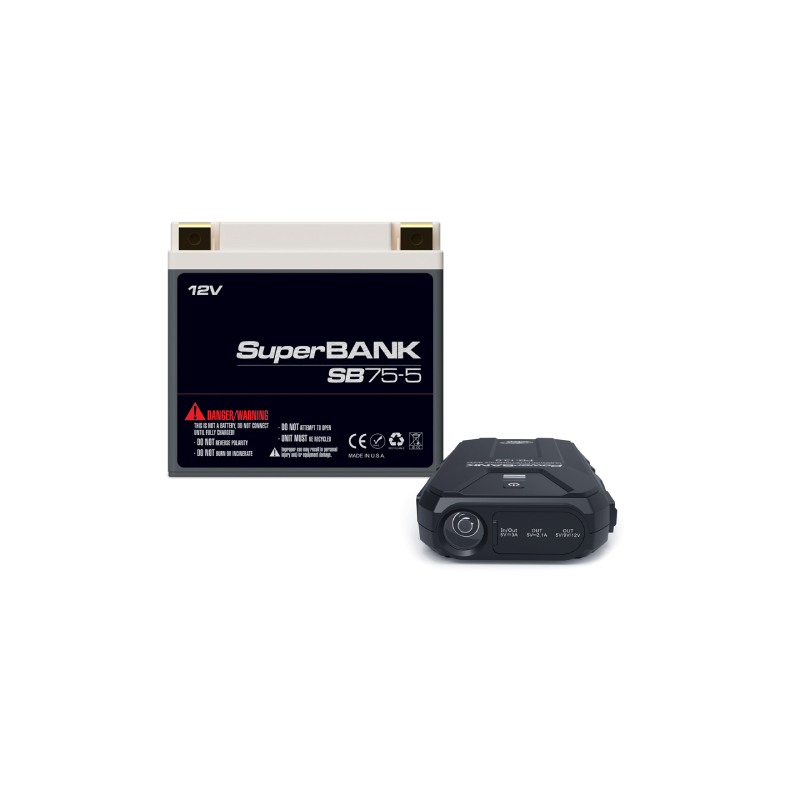

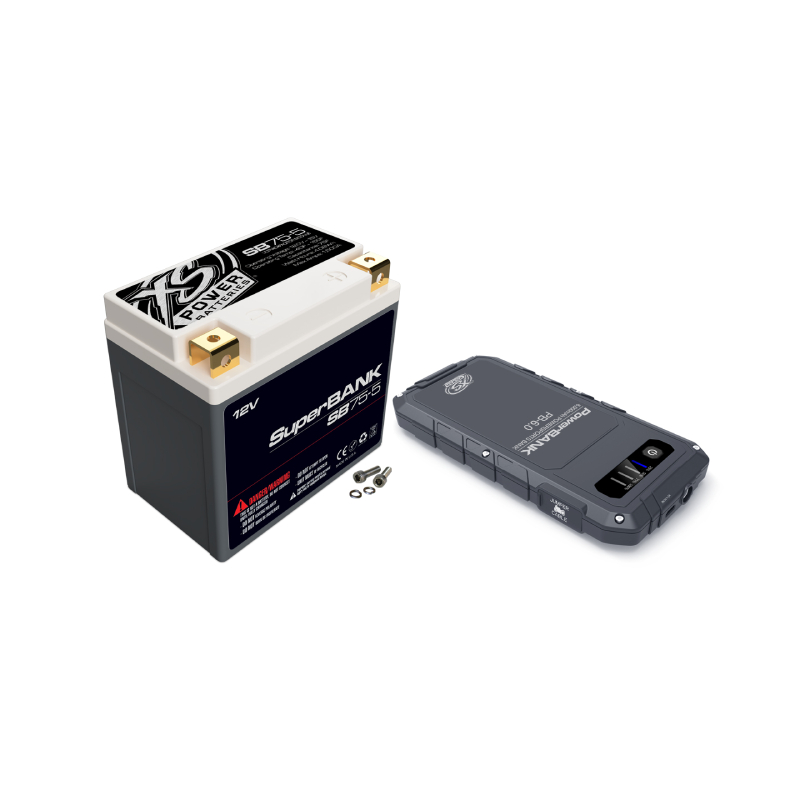

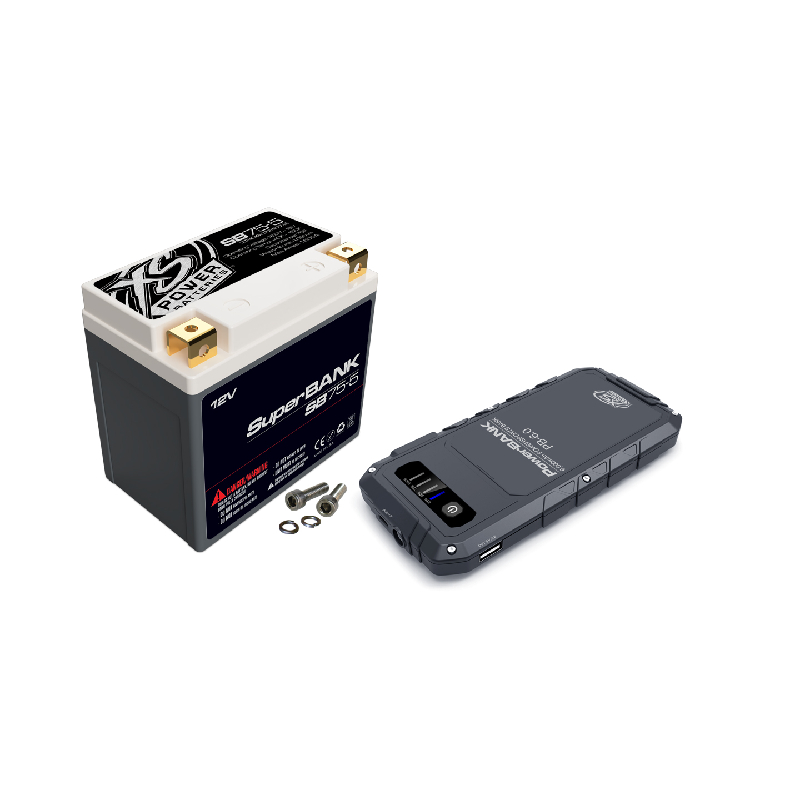

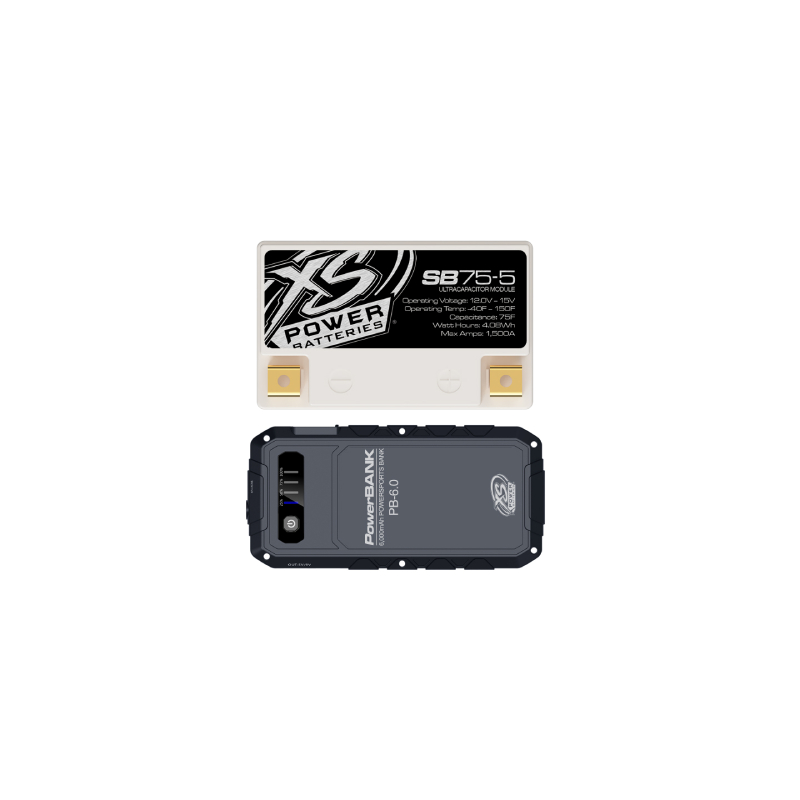

XS Power SB75-5CK 12V Super Bank Capacitor, Max Power 600Watts, Farad 75, Max Amps 1500 with M6 Terminal Bolts Included
We are a XS Power authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 12V Super Bank Capacitor
- • Owner's Manual
Advanced 12V Lithium Titan8 Battery
The XS Power SB75-5CK is a 12V Super Bank Capacitor featuring a high capacitance of 75 Farads, providing efficient energy storage and quick power delivery with a maximum output of 600 watts. It boasts a robust maximum current of 1500 amps, making it ideal for high-performance electrical systems, and includes M6 terminal bolts for convenient and secure installation.
Frequently Asked Questions (FAQ)
- • Why does my SB75-5CK voltage change under load?
The SuperBANK responds quickly to changing electrical demand, so voltage can move as the load increases or decreases.
- • Can the SB75-5CK fix amplifier voltage dips?
It can help support sudden power demands, but major voltage drops may still indicate weak wiring, grounding, or charging capacity.
- • Does the SB75-5CK replace my vehicle battery?
No. It is designed to work alongside the vehicle’s battery and provide fast current during demand spikes.
- • Why are my M6 terminals getting hot?
Loose hardware or poor cable contact can create resistance and cause unwanted heat at the connections.
- • Can I use the SB75-5CK for a winch?
It is designed to help handle high-inductive loads such as winches, cooling fans, and high-wattage amplifiers.
- • Why isn't my SuperBANK charging correctly?
Check the system voltage and wiring first, since the SB75-5CK is designed for a 12–15V operating range.
- • Is the SB75-5CK difficult to mount?
Its compact 4.75 × 4.5 × 3-inch size and 1.5-pound weight make installation easier, but secure mounting is still important.
- • What happens if the SB75-5CK gets completely discharged?
Check the charging source and connections before attempting to reuse it, and keep the applied voltage within its specified range.
- • Can the included PowerBANK start my vehicle?
The included 6,000mAh PowerBANK provides 150A starting current and 300A peak current, making it useful as a portable emergency power source.
- • Why is my SB75-5CK not performing as expected?
Inspect polarity, terminals, wiring, charging voltage, and electrical load before assuming the SuperBANK is defective. Improper installation or misuse can also affect warranty coverage.
Features:
- 12V Super Bank Capacitor: The XS Power SB75-5CK is a high-performance capacitor designed for advanced electrical systems.
- Max Power: 600 Watts: This capacitor provides a maximum power output of 600 watts, catering to high-performance applications.
- Farad: 75: With a capacitance of 75 Farads, it ensures efficient energy storage and quick power delivery.
- Max Amps: 1500: The capacitor boasts a maximum current output of 1500 amps, ensuring robust and reliable power supply.
- M6 Terminal Bolts Included: The inclusion of M6 terminal bolts enhances the ease of installation, ensuring secure and reliable connections.
Specifications:
- Length: 4.75 in
- Height: 4.5 in
- Width: 3 in
- Operating Voltage: 12.0V - 15V
- Operating Temperature: -40 - 150
- Max Power: 600W
- Max Amps: 1,500A
- Watt Hours: 2.34Wh
- Farads: 75F
- CA(5s): 330A
- CCA(5s): 290A
- UPC: 692209055181
- Weight: 2
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
