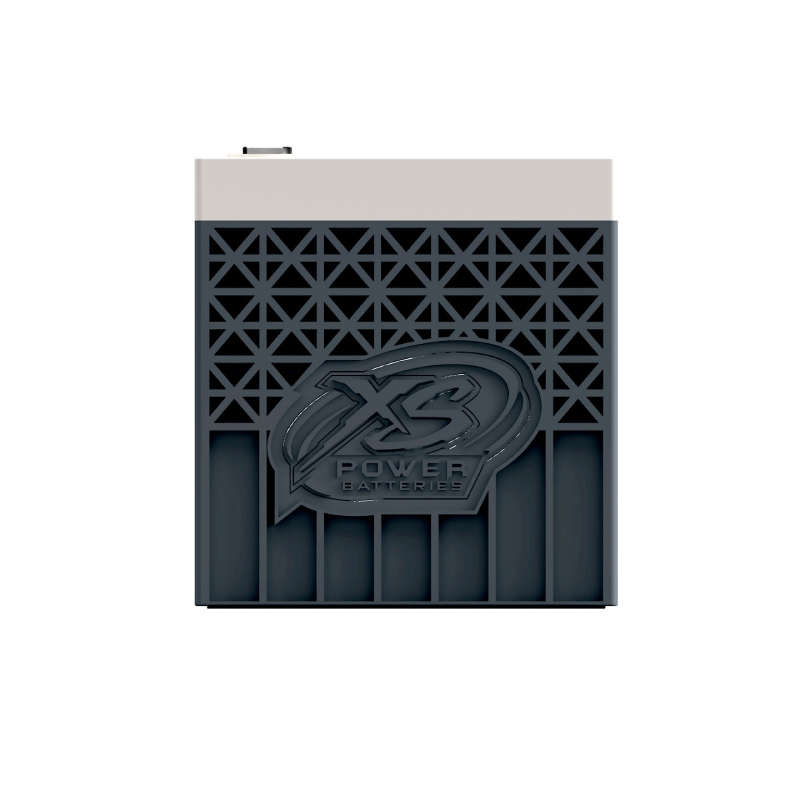

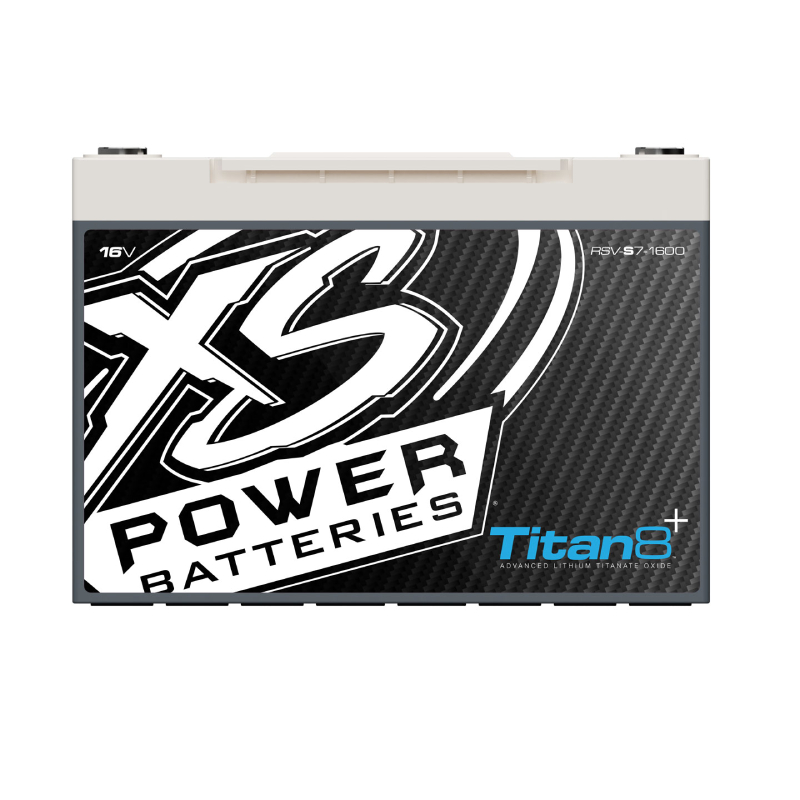

XS Power RSV-S7-1600 16V Lithium Titan 8 Batteries - 3/8" 3,500 Watts, 1,000 Max Amps, 500 CA with Stud Terminals Included
We are a XS Power authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 16V Lithium Titan 8 Batteries
- • Owner's Manual
High-Performance Features
The XS Power RSV-S7-1600 features stud terminals for secure connections, cutting-edge lithium technology for high energy density, a compact design for easy installation, and a robust 3,500-watt power output. With a maximum amperage of 1,000, 500 CA for reliable cranking, fast recharge capabilities, and advanced safety features, this battery is ideal for high-performance applications in automotive, marine, and other electrical systems. It's maintenance-free, easy to install, and crafted for durability, ensuring a reliable power supply in challenging conditions.
Frequently Asked Questions (FAQ)
- • Why does my RSV-S7-1600 voltage drop during hard pulls?
Check the battery connections, grounds, and total electrical demand. High-current accessories can still cause drops if the system is undersized.
- • Can I use the RSV-S7-1600 in a standard Group 34 tray?
Yes, it uses a Group 34 housing, but verify the tray dimensions and terminal orientation before installation.
- • Why are my battery cables not lining up correctly?

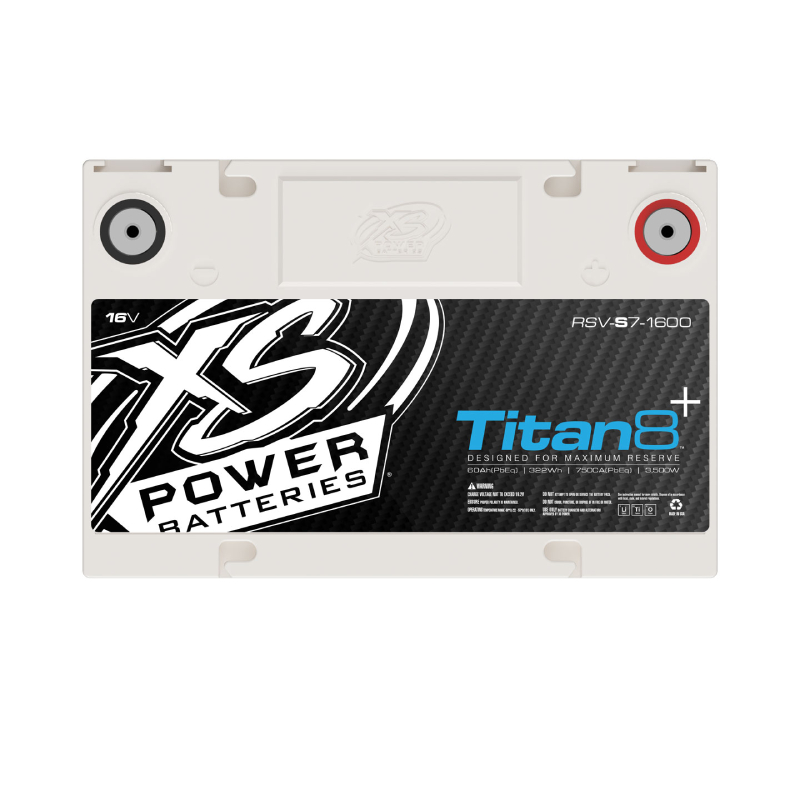

The RSV-S7-1600 has a right-side positive terminal and includes stud adapter hardware. Cable length and terminal placement should be checked before mounting.
- • Can I charge this battery with my existing charger?
The RSV-S7-1600 is a 16V lithium battery. Some XS Power-approved AGM chargers can charge it, but the charger's voltage setting must be compatible.
- • Why won't my battery reach full charge?
Check the charger setting, terminal connections, and charging voltage first. An incorrect charger profile can prevent the battery from completing its charge.
- • Is the RSV-S7-1600 suitable for a total-loss race car?
Yes. XS Power specifically highlights the battery for total-loss applications such as drag racing and dirt late-model racing.
- • Why does my 16V vehicle show charging warnings?
Some vehicle electronics may react unexpectedly to higher voltage. Verify the alternator regulation and wiring before assuming the battery is defective.
- • Does the lightweight design mean less usable power?
Not necessarily. The RSV-S7-1600 weighs about 12 lb while providing 322Wh and 1,000 maximum amps, making it designed for high output with reduced weight.
- • Why does my battery seem weak after repeated racing runs?
Repeated high-current use can consume stored energy faster than the charging system can replace it. Check the battery's state of charge between runs.
- • What should I check if my RSV-S7-1600 fails unexpectedly?
Inspect the charger, terminals, grounds, voltage, and electrical load before replacing the battery. Proper testing can separate a battery issue from a vehicle wiring or charging problem.
Features:
- Stud Terminals Included: Convenient and secure connections.
- Advanced Lithium Technology: Cutting-edge for high energy density and performance.
- Compact Design: Lightweight for easy installation and versatile placement.
- High Power Output: Capable of delivering 3,500 watts for high-performance applications.
- Maximum Amperage: Provides robust power with a maximum amperage of 1,000.
- Cranking Amperage: Offers 500 CA for reliable engine cranking.
- Fast Recharge: Efficient charging for quick recharge times.
- Durable Construction: Built to withstand vibrations, extreme temperatures, and challenging conditions.
- Versatile Application: Suitable for automotive, marine, and high-performance electrical systems.
- Advanced Safety Features: Protection against overcharging, over-discharging, and short circuits.
- Maintenance-Free: Hassle-free power solution.
- Easy Installation: User-friendly design for professionals or enthusiasts.
- Quality Assurance: Manufactured with high-quality materials and rigorous testing for reliability.
- Ideal for High-Performance Vehicles: Tailored for consistent and reliable power supply.
Specifications:
- Length: 10.24 in
- Height: 7.16 in
- Width: 6.89 in
- Voltage: 16V
- Wattage: 3,500
- MAX Amps: 1,000
- Energy Wh: 322
- CA: 500A
- CA Pb Eq: 750A
- Ah: 20
- Ah Pb Eq: 60
- 587 Stud Adapter Hardware Included
- UPC: 692209055174
- Weight: 13
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
