Onlinecarstereo Exclusive Bundle
This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.
PCH Custom Audio Silverado Sound System-2 Dual DCPA701 + JL Audio C1-650 + JL Audio C1-650x + Kicker 44TCWC104 + Kicker 46CXA4001t + XS Power AKXP4-1 + Metra 95-3305 + Metra 40-CR10 + Axxess AXRC-GMLN1 + Axxess AXSWC
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •Dual DCPA701
- •JL Audio C1-650
- •JL Audio C1-650x
- • Kicker 44TCWC104
- •Kicker 46CXA4001t
- •XS Power AKXP4-1
- •Metra 95-3305
- •Metra 40-CR10
- •Axxess AXRC-GMLN1
- •Axxess AXSWC
- •Owner's Manual

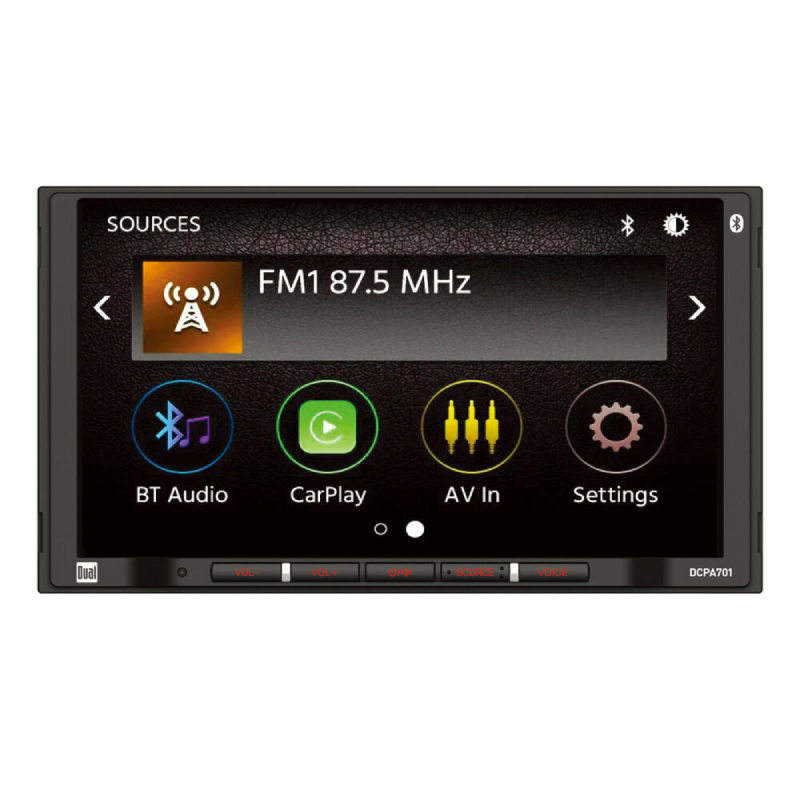

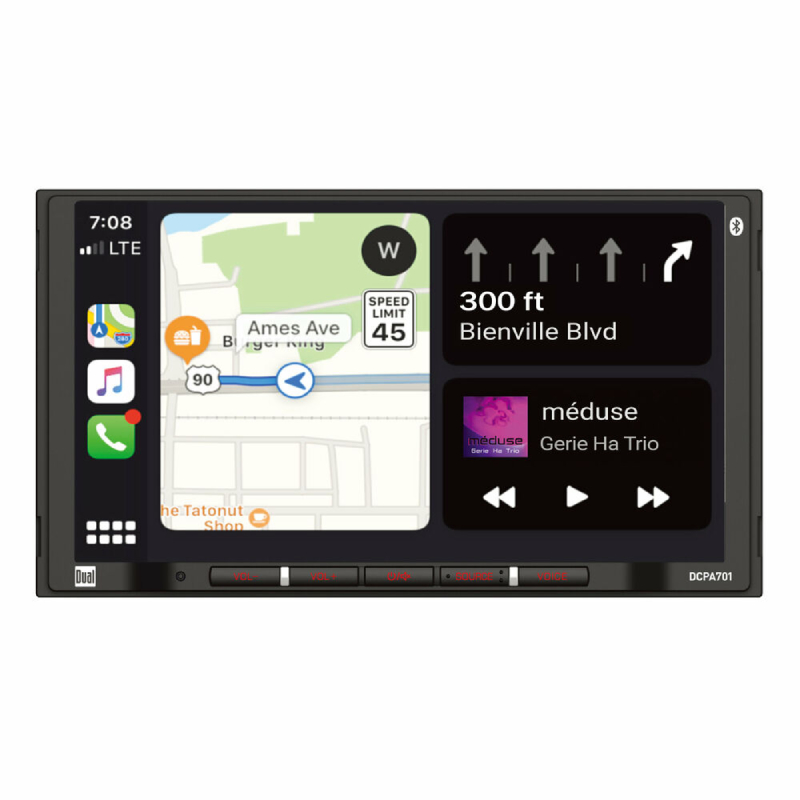

Dual DCPA701 2-DIn 7" LCD Digital Media Receiver with Bluetooth, Apple CarPlay, & Android Auto
Apple CarPlay™ and Android Auto™
With support for both Apple CarPlay™ and Android Auto™ you can control key phone features directly from the receiver’s touchscreen or via voice-control — significantly reducing driver distraction. Both Apple CarPlay and Android Auto launch upon connecting a compatible phone to the receiver via USB.

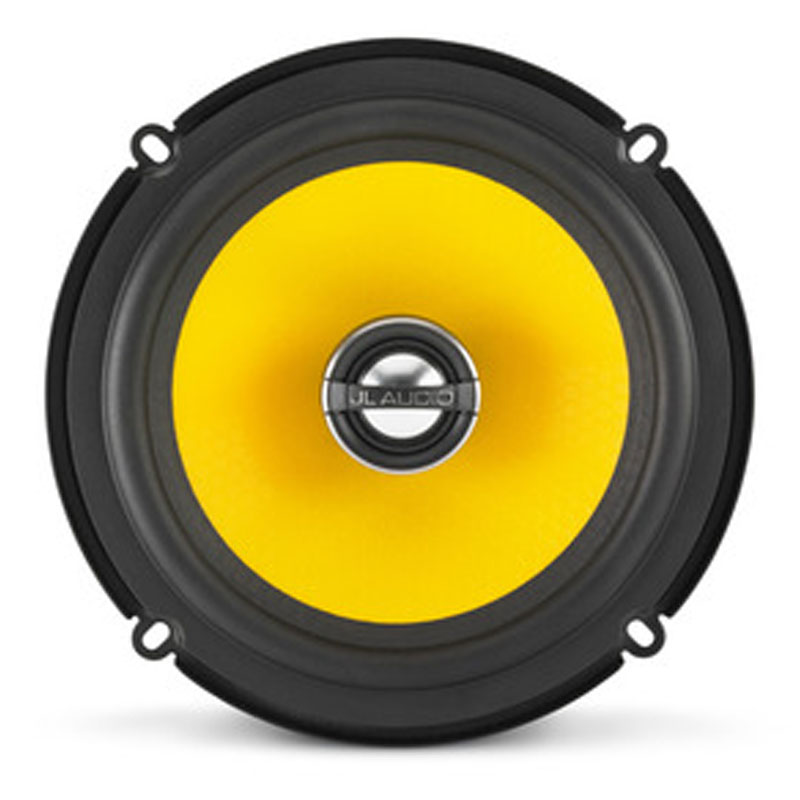

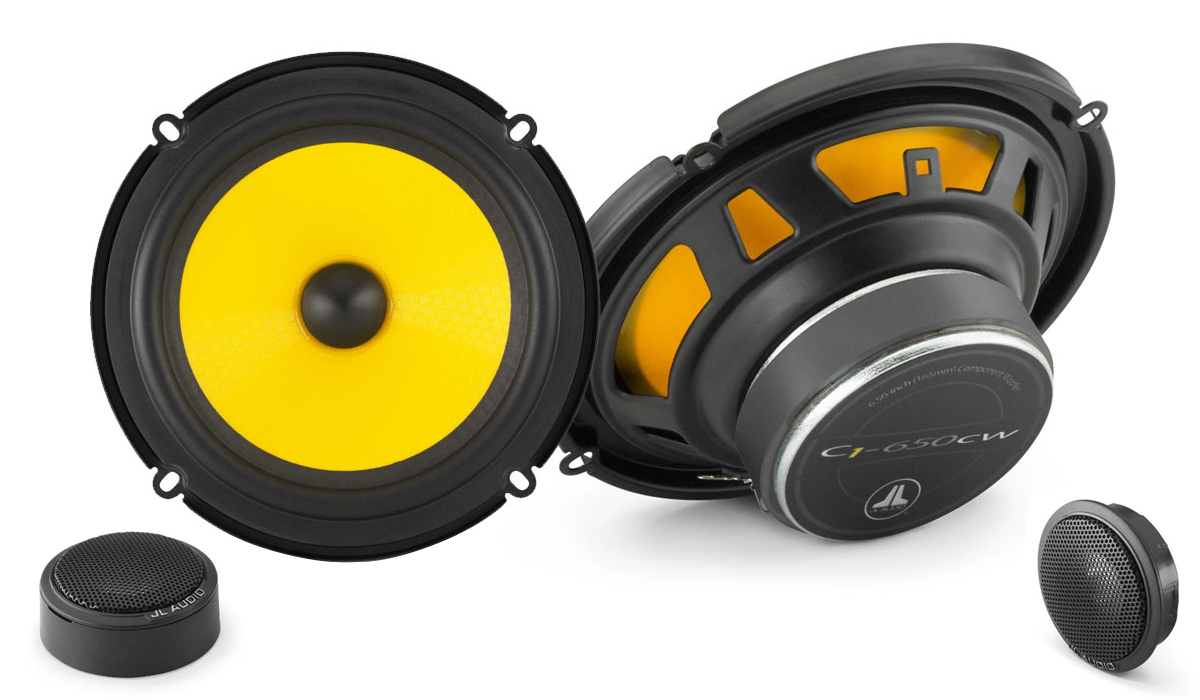

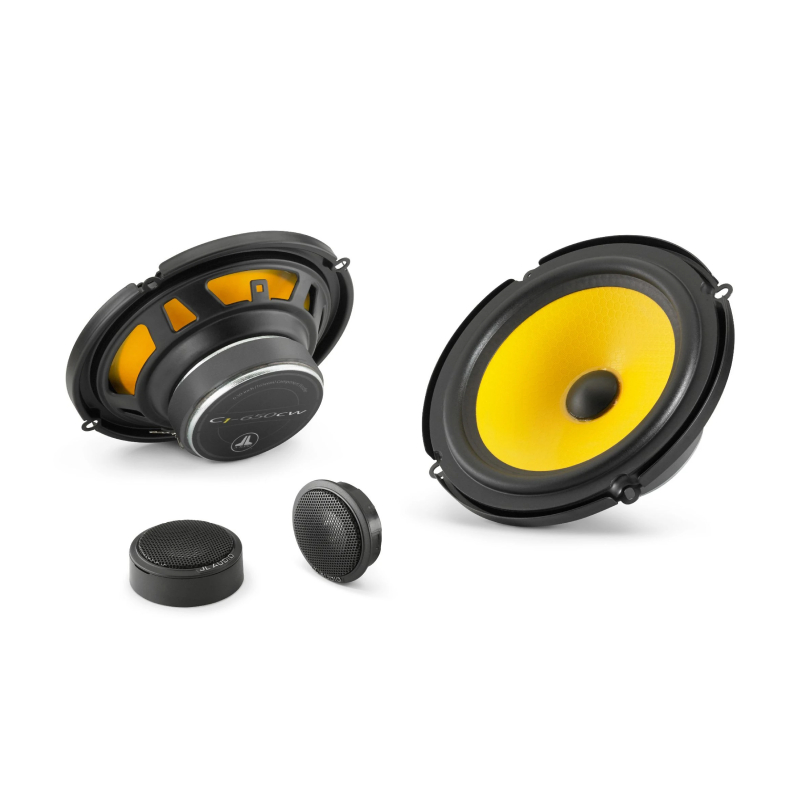

JL Audio C1-650 C1 Series 6-1/2" 50W RMS (225W Peak Power Handling) 4 Ohms 2-way Car Component Speaker System
Surface And Flush Mounts
C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles. To facilitate fit, multi-application adaptor rings are included for the C1-650 woofers, allowing easy, drop-in installation in vehicles equipped with oversized 6.5-inch and 6.75-inch speaker openings. Without the ring, the woofers will also fit into many "6-inch" speaker locations as well. Surface and flush mounts are included with C1 tweeters for maximum installation versatility.

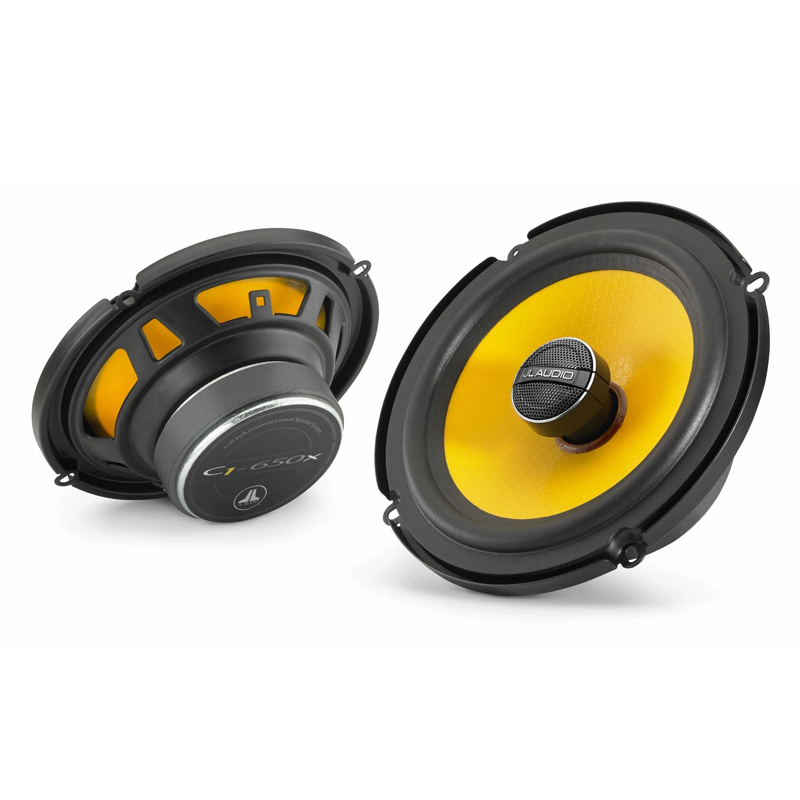

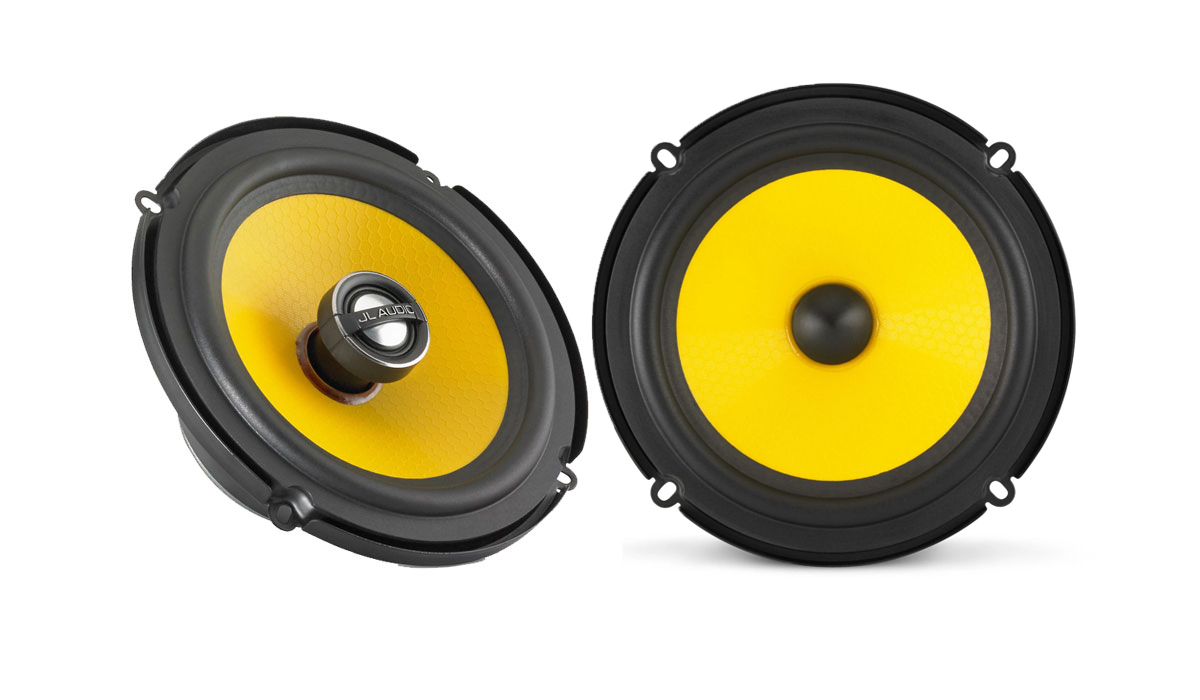

JL Audio C1-650x C1 Series 6-1/2" 50W RMS (225W Peak Power Handling) 4 Ohm 2-way Coaxial Car Speaker System
Made to Deliver High-quality Audio Performance
A high-quality 6.5-inch two-way coaxial speaker that won't break the bank, the JL Audio C1-650x is made to deliver high-quality audio performance for your car audio system with an easy-to-install design. It also has a built-in high-pass filter for smoother performance and additional protection for the tweeter.

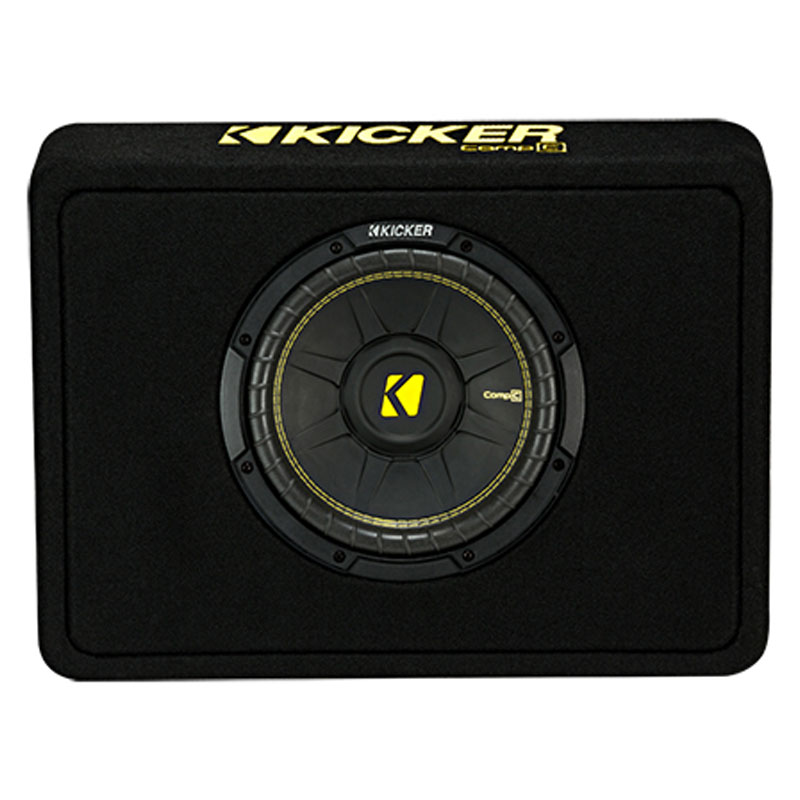

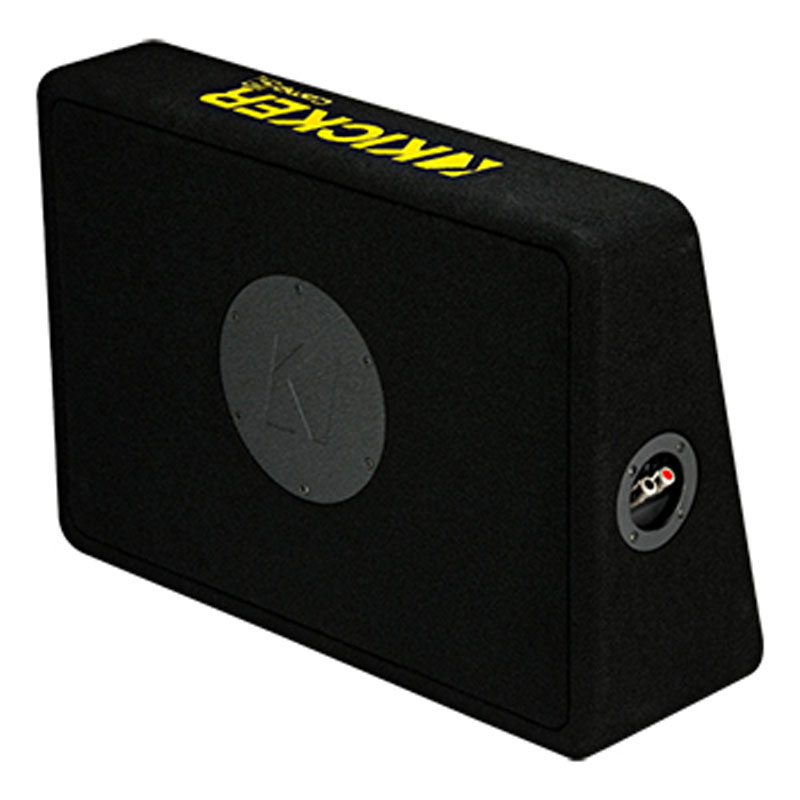

Kicker 44TCWC104 CompC Series 10" 300W RMS (600W Peak Power Handling) 4-Ohm Car Subwoofer in Thin Profile Enclosure
Loaded Subwoofer Enclosure
You should go for a Kicker 44TCWC104 if you are thinking of a loaded subwoofer enclosure that would surely fit inside your vehicle rather than having you install it on your own. Coming with a 10-inch CompC subwoofer, you can be sure that it can deliver a powerful and loud bass that you can always expect from any of Kicker subwoofers.

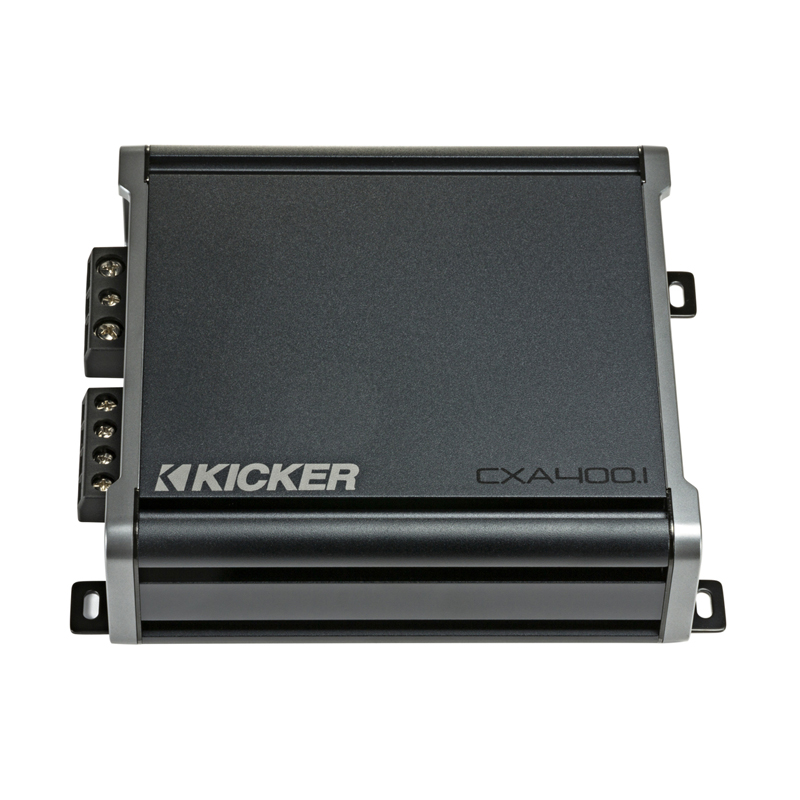

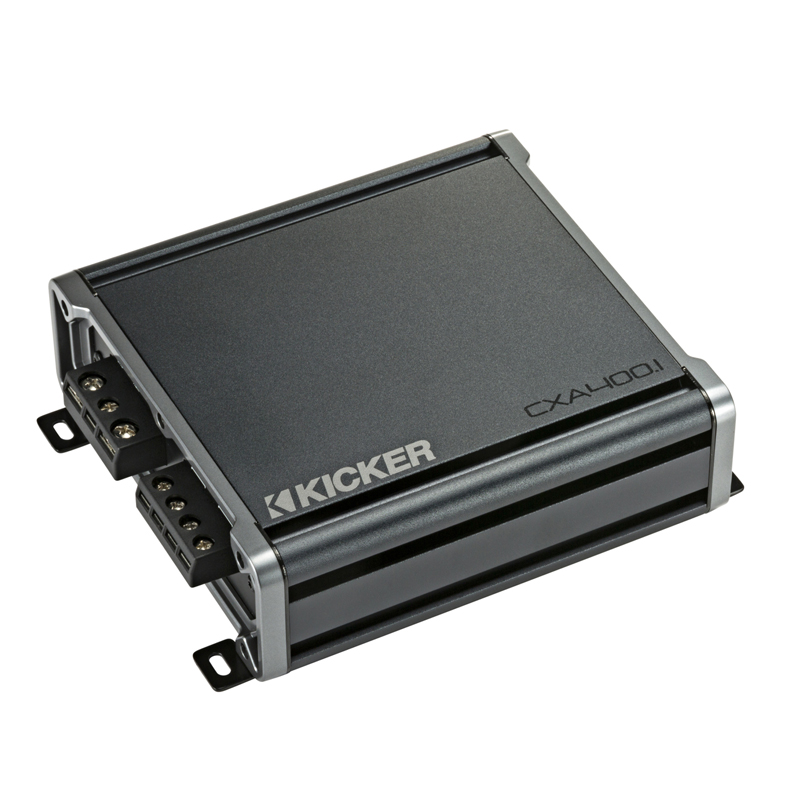

Kicker 46CXA4001t CX Series 400W x 1 RMS @1Ohm, 400W Max Power Class D Monoblock Subwoofer Amplifier
Powerful Monoblock Subwoofer Amplifier
Do you feel your current subwoofer amp lacks the bass production you are looking for? Why not go for an upgrade with our Kicker 46CXA4001t? A small but powerful mono subwoofer amplifier, it can bring your car subwoofers into their maximum bass potential performance.

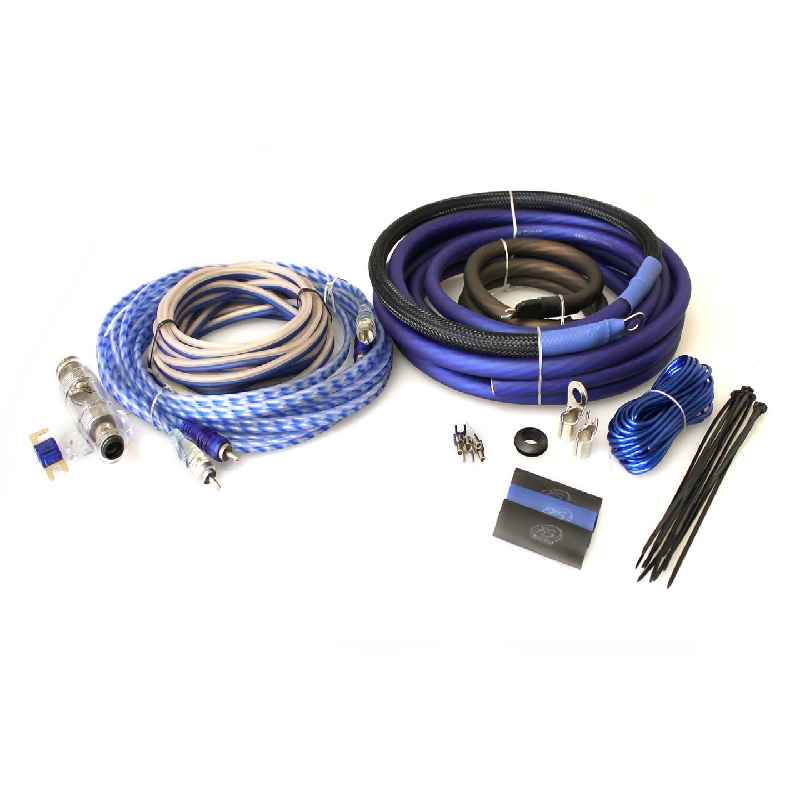

XS Power AKXP4-1 Amp Kit, XP Flex 4 AWG, Power Cable, Speaker Cable, Signal and Remote
Designed With the Installer in Mind
This kit is designed to help you correctly and safely install your new XS Power or other aftermarket Powercell. The kit was designed with the installer in mind, and can be completed with very few tools and requires no wire crimping if the directions are followed correctly. Please see the steps below that will help to facilitate a fast, safe and easy installation of your new battery and cables.

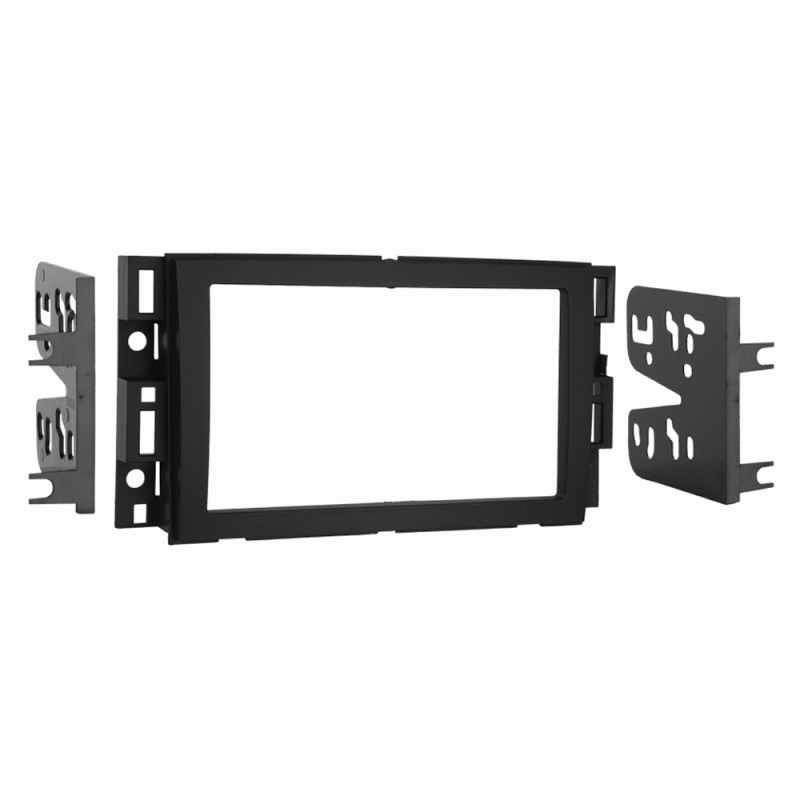

Metra Electronics 95-3305 2006-Up General Motors vehicles Multi-Kit
Painted Scratch-resistant
The Metra Electronics 95-3305 is a car stereo installation kit to fit select General Motors (GM) vehicles with double-DIN radio openings. It includes a dash kit, and optional wire harness and antenna adapter, making installing an aftermarket car stereo in your vehicle easier.

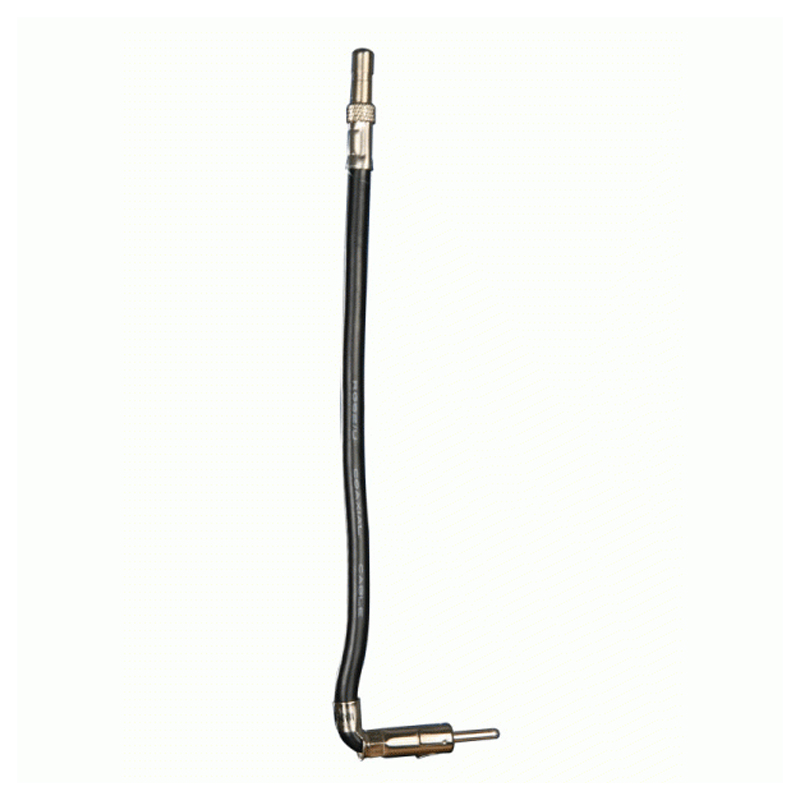

Metra Electronics 40-CR10 Factory Antenna to Aftermarket Radio Adapter for Chrysler/Dodge/Ford/GM 2006/Jeep 2002-Up
Simple Yet Necessary Cable
If you are replacing the radio in your vehicle, this antenna cable adapter ensures that you can continue to use your factory antenna. It is a simple yet necessary cable that adapts the vehicle’s original antenna cable to plug into an aftermarket radio with a male Motorola™ connector on one end and a snap-lock female antenna connector on the other.

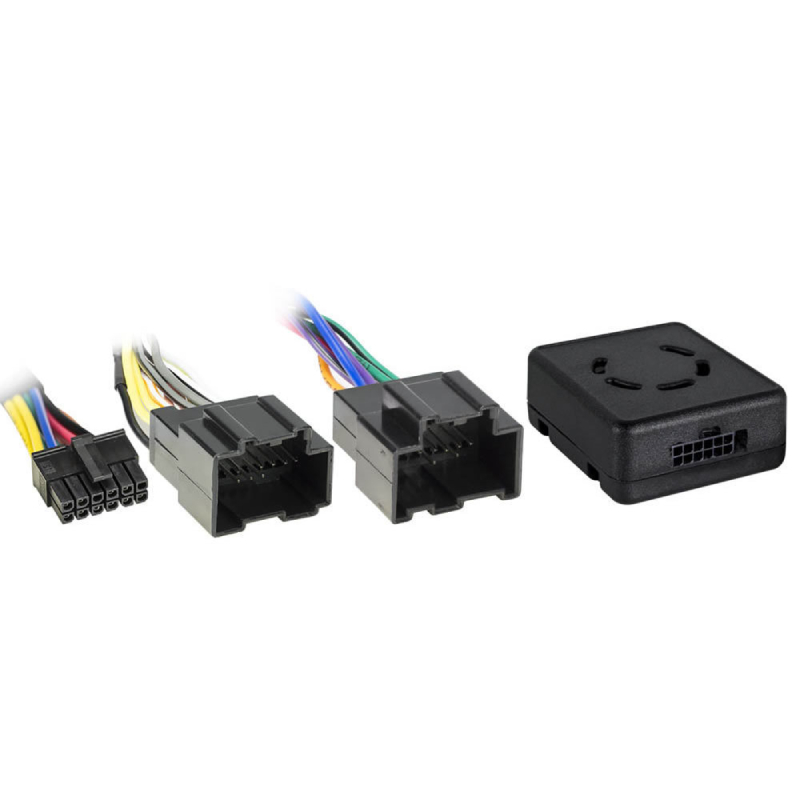

Axxess AXRC-GMLN1 GM 29-Bit LAN Data RAP ACC & Chime Retention
29-Bit LAN Data RAP ACC & Chime Retention
This feature found in some car stereos that allows the user to retain all of their audio settings after they disconnect their battery. This includes the settings for their audio settings, such as bass, treble, and equalizer settings, as well as the RAP (Remote Access Protocol) and chime settings. This feature ensures that the user does not have to reset their audio settings every time they disconnect their battery.
Axxess AXSWC Universal Steering Wheel Control Interface
Steering Wheel Control Harness
This wiring harness allows you to connect various electrical components of a car to the steering wheel. It is typically used to connect a hands-free device such as a Bluetooth headset, or a car stereo system, to the steering wheel. This harness is designed to provide a secure connection that ensures the electrical components are securely connected to the steering wheel.
- Vehicle Make : Chevrolet
- Vehicle Model : Silverado
DCPA701 7" LCD Digital Media Receiver with Bluetooth, Apple CarPlay, & Android Auto
Features:
- Digital Media Receiver with Apple CarPlay™ and Android Auto
- 7-inch Full-Color Capacitive Touchscreen
- Digital LED Backlit TFT Display
- Screen Resolution: 800 x 480
- Power Output:
- Peak: 60 watts x 4 channels
- Works with Apple CarPlay®
- Works with Android Auto™ and the Google Assistant
- AM/FM tuner with 18FM/12AM presets
- Authorized Internet Dealer
- Use with Apple CarPlay or Android Auto
Playback and Audio Features:
- Mechless Digital Media Receiver: No CD mechanism means you have less to carry. Stream your music digitally!
- FLAC/MP3/WMA/AAC/HE-AAC music playback via USB
- 10-band EQ
- 7 EQ Presets
- Rear USB Input
- CEA-2006 compliant amplifier
Bluetooth Features:
- Built-in Bluetooth technology for hands-free talking and audio streaming
- Bluetooth Profiles Supported:
- HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
- PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list of the mobile phone directly from the car stereo
- A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
- AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
- Works with most Bluetooth enabled cell phones
Front - C1-650 6-1/2", 225 Watts Peak Power, 2-Way Car Component Speaker System
Specifications:
- Continuous Power Handling (RMS) 50 W
- Peak Music Power 225 W
- Recommended Amplifier Power (RMS) 10 - 75 W / Ch.
- System Efficiency 91.0 dB @ 1 W / 1 m
- System Nominal Impedance 4 Ω
- System Frequency Response 59 Hz - 22 KHz ± 3 dB
Rear - C1-650x 6-1/2", 225 Watts Peak Power, Coaxial Car Speaker System
Specifications:
- Continuous Power Handling (RMS) 50 W
- Peak Music Power 225 W
- Recommended Amplifier Power (RMS) 10 - 75 W / Ch.
- System Efficiency 90.5 dB @ 1 W / 1 m
- System Nominal Impedance 4 Ω
- System Frequency Response 48 Hz - 24 KHz ± 3 dB
44TCWC104 CompC Series 10" 600 Watts Max Power 4-Ohm Car Subwoofer in Thin Profile Enclosure
- Subwoofer (in, cm): 10, 25
- Impedance (Ohms): 4
- Power Watts (peak/RMS): 600/300
- Sensitivity (dB 1w/1m): 93.8
- BOX TOP DEPTH (in, cm): 4,10.2
- BOX BOTTOM DEPTH (in, cm): 7-5/8, 19.4
- BOX HEIGHT (in, cm): 15, 38.1
- BOX WIDTH (in, cm): 21-1/2, 54.6
46CXA4001t CX Series 800 Watts Peak Power Class D Mono Subwoofer Amplifier
Specifications:
- Model: CXA400.1t
- Power (watts/ch) 4 Ohm Stereo: 150x1
- Power (watts/ch) 2 Ohm Stereo: 300x1
- Power (watts/ch) 1 Ohm Mono: 400x1
- CXRC Remote Bass Capable (sold sep.): yes
- Dimensions (in, cm): (all models 2-3/8, 5.9H x 6-3/4, 17W x ...L): 8-1/8, 20.6
- Frequency Response (Hz): 25-200, +0/-1dB
- Input Sensitivity: 250mV-10V (Low Level) | 1V-40V (High Level)
- Signal-to-Noise Ratio: >95dB, a-weighted, re: rated power
- Active Crossover: Variable Lo-pass 50Hz–200Hz, 12dB/octave
- Subsonic Filter: 25Hz @24dB/Octave
- KickEQ™ Boost: Variable 0-6dB @40Hz
95-3305 GM Multi-Kit 2006-Up
Features:
- DDIN Radio Provision
- Wiring and Antenna Connections (sold separately)
Vehicle Applications:
- Avalanche 2007-2013
- Equinox 2007-09
- Express Van 2008-Up
- Impala 2006-2013
- Impala Limited (Fleet) 2014
- Monte Carlo 2006-07
- Tahoe 2007-2014
- Silverado 2007-2013(Excluding Classic Models)
- Silverado 2500/3500 2014
- Suburban 2007-2014
- Tahoe 2007-2014
- Traverse 2009-2012
- Captiva Sport 2012-Up
- Enclave 2008-2012
- Lucerne 2006-2011
- Acadia 2007-2012
- Savanna 2008-Up
- Sierra 2007-2013 (Excluding Classic Models)
- Sierra 2500/3500 2014
- Yukon 2007-2014
- Outlook 2007-2010
- Vue 2008-2010
- XL7 2007-2009
- H2 2008-2009
- Torrent 2007-2009
AKXP4-1 Amp Kit, XP Flex 4 AWG, Power Cable, Speaker Cable, Signal and Remote
Specifications:
- Weight Lbs. – 3.25
- Weight Kgs. – 1.47
- Length – 9.75 in
- Height – 11 in
- Width – 2.5 in
Kit Contents:
- 1qty - 17ft 4AWG XPFLEX BL Cable
- 1qty - 3ft 4AWG XPFLEX BK Ground Cable
- 1qty - 17ft 18G BL Remote Cable
- 1qty - 17ft 16G Clear Speaker Wire
- 1qty - 17ft High Grade Twisted Pair RCA Cables
- 1qty - Mini ANL Fuse Holder
- 1qty - 60A ANL Fuse
- 2qty - Plaite Braid Tube in BK
- 2qty - 4AWG Ring Terminal/Seamless/BL
- 2qty - 4AWG Spade Terminal/BK
- 2qty - 16G Spade Terminals/BK
- 3qty - 16G Spade Terminals/BL
- 1qty - 1/2" Firewall Grommet
- 10qty - 6" Zip Ties
AXRC-GMLN1 GM 29 BIT LAN Data with RAP ACC and Chime Retention
- Provides accessory power (12-volt 10-amp)
- Retains R.A.P. (Retained Accessory Power) if equipped
- Used in non-amplified systems or when replacing amplified systems
- Retains all warning chimes through onboard speaker
- Provides NAV outputs (parking brake, reverse and speed sense)
- Micro-B USB updatable
40-CR10 Factory Antenna to Aftermarket Radio Adapter for Chrysler/Dodge/Ford/GM 2006/Jeep 2002-Up
Features:
- Chrysler factory antenna adapter
- Snap-lock to aftermarket radio
AXSWC Universal Steering Wheel Control Interface, Works with Many Popular Aftermarket Receivers - NEW MODEL that replaced the ASWC-1
Features:
- One Interface does it all – No additional interfaces needed
- Designed to be compatible with all major radio brands
- Auto detects (1) vehicle type, radio connection, and presets controls
- Ability to dual assign steering wheel control buttons
- Can be manually programmed for most vehicles
- Retains settings even after battery disconnection or interface removal
- All connections done at the radio location
- Micro “B” USB updatable
- UPC:
- Weight: 50
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
