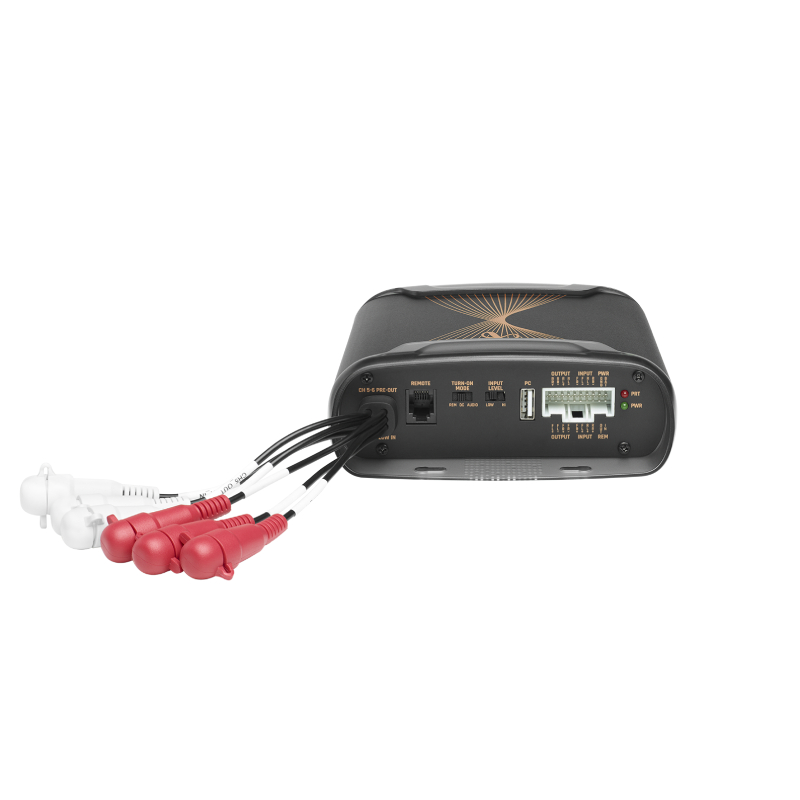

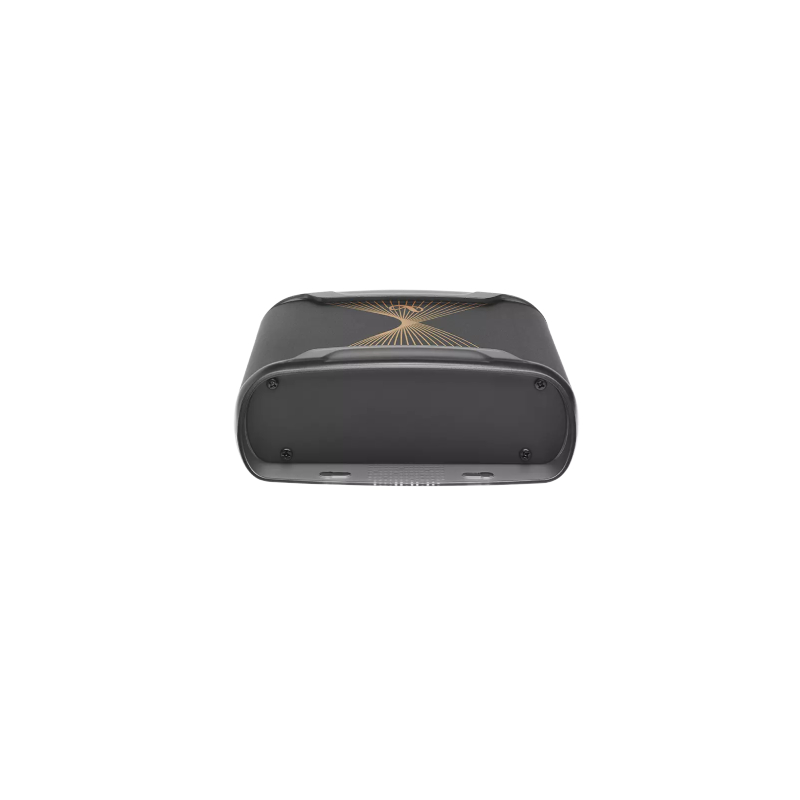

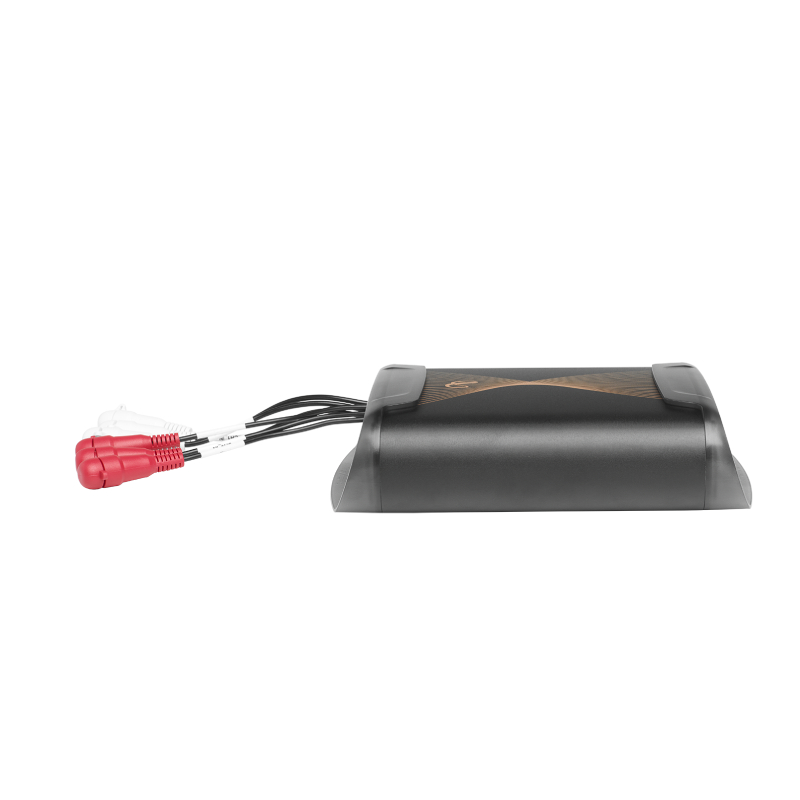

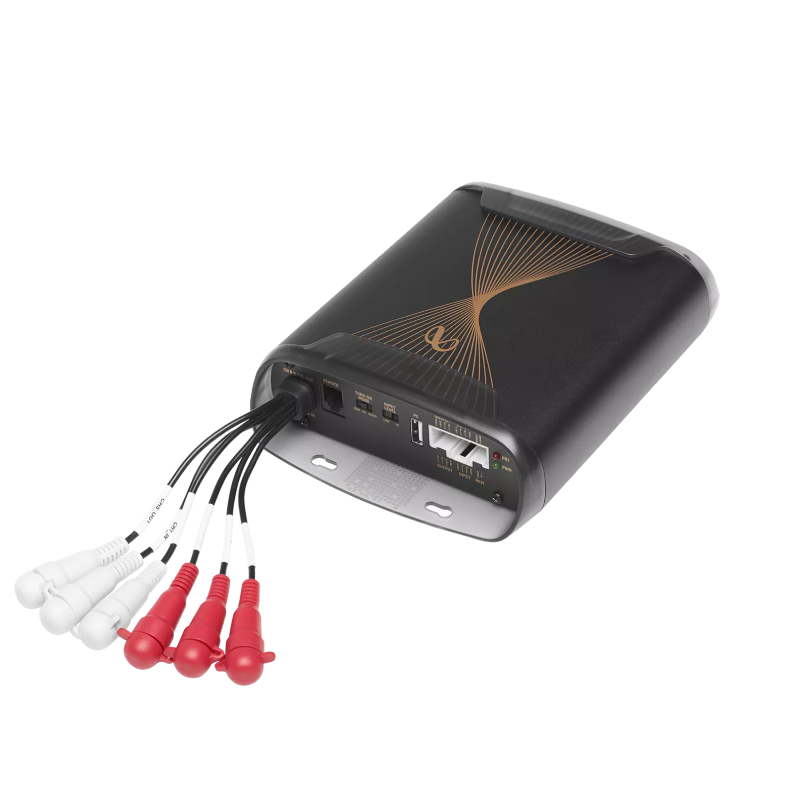

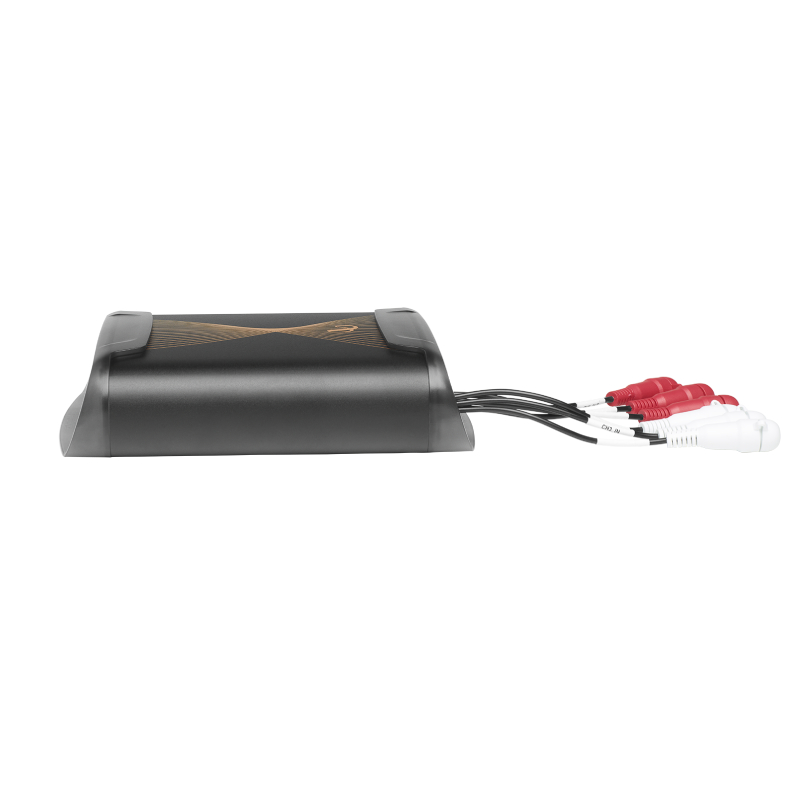

Infinity Class A/B 4-Channel Car Amplifier with Digital Signal Processing
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •4-Channel DSP amplifier

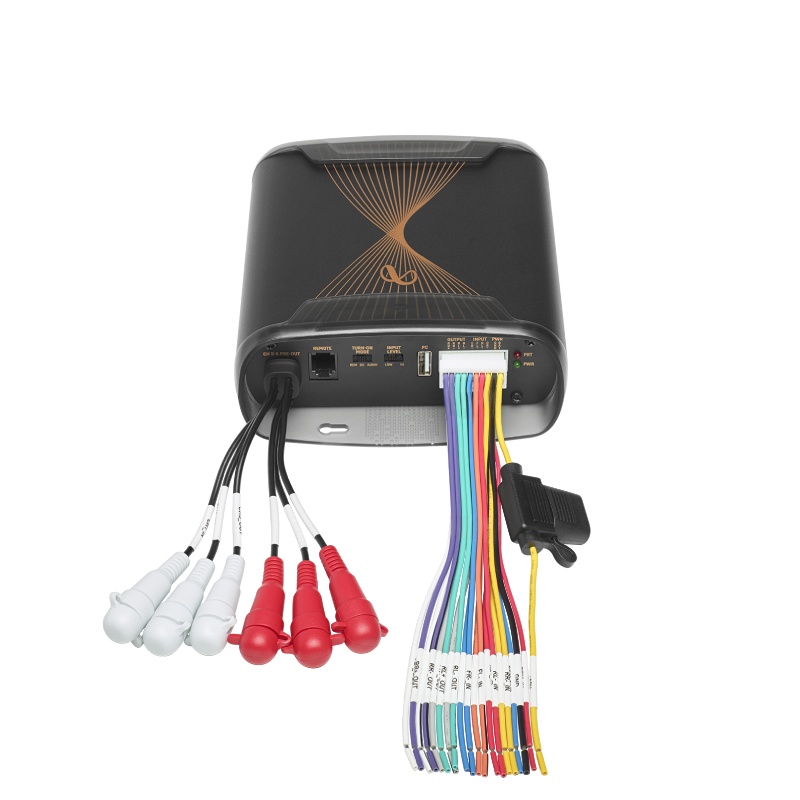

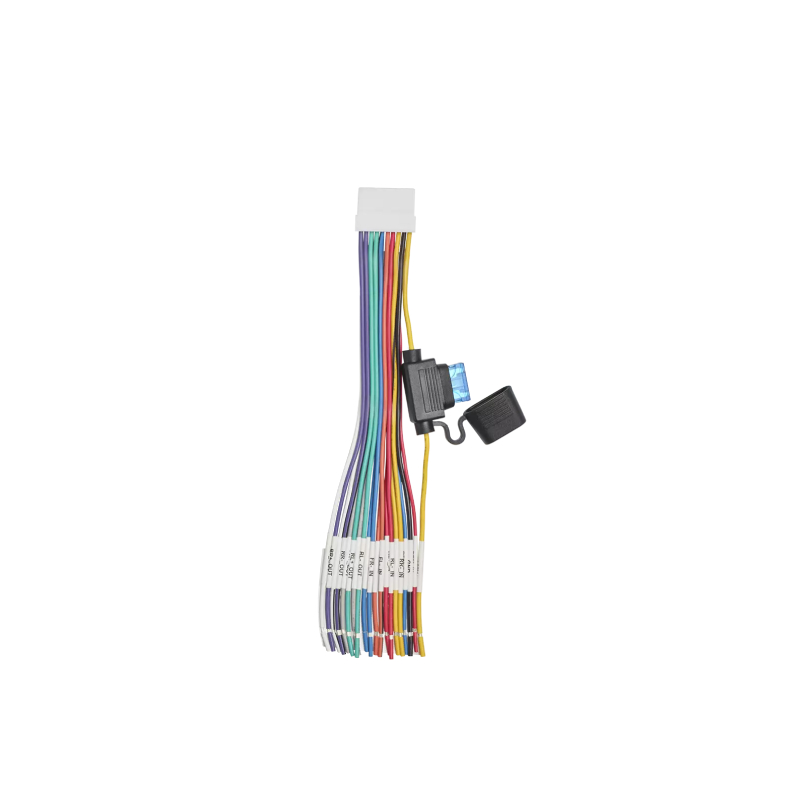

- •8" Power/Speaker/Remote harness
- •Two 15-amp ATO fuses (1 installed/1 spare)
- •70" USB Cable (type-A both ends)
- •Four 5/8" Screws
- •4 Flat-washers
- •Four 5" Zip ties
- •Owner's manual
Small footprint, All-in-One Class A/B Amplifier with DSP Control
Infinity DSP Amplifier has everything you need to create a professional sound quality audio system with the ability to mount your amplifier in tight spaces.
Everything You Need to Get Started
Infinity DSP Amplifier has everything you need to create an audio system, or expand your existing one, plus the ability to add more power by using it as a line driver when you are ready for your next power upgrade.
Simple Tuning Interface with Complex Features
Easy-to-use tuning interface anyone can understand, learn and control with enough horsepower to satisfy experienced installers. The Windows PC user interface includes variable crossover control, 0-to-48dB selectable slopes, 31-band parametric or graphic EQ adjustment, time delay in 0.2ms, output clipping indicator, assignable input to output mixer with input channel summing, output channel gain, master volume control, clipping indicator and ability to save up to 10 presets.
Versatile Connectivity
Balanced differential inputs to provide you with the best sound quality & noise rejection, and accepts RCA or speaker-level inputs so it will integrate into almost any system. Plus, all wire connections are conveniently labeled to make installation a cinch.
Convenient Bass Control
Wired remote control (sold separately) allows for quick adjustment of low frequency output with -30 to +6dB adjustment directly from the driver's seat.
Conformal Coated PCB
Your Infinity DSP Amplifier is engineered to withstand harsh conditions present in a wide variety of applications, using conformal coated circuit boards to ensure flawless power delivery, year after year.
Harman Standard Reliability Testing
Infinity is one of the greatest audio brands in the world. This is not a coincidence given the arduous testing and quality control. We take our craft seriously and want every consumer to have a world class experience that lasts and lasts.
Infinity Industrial Design

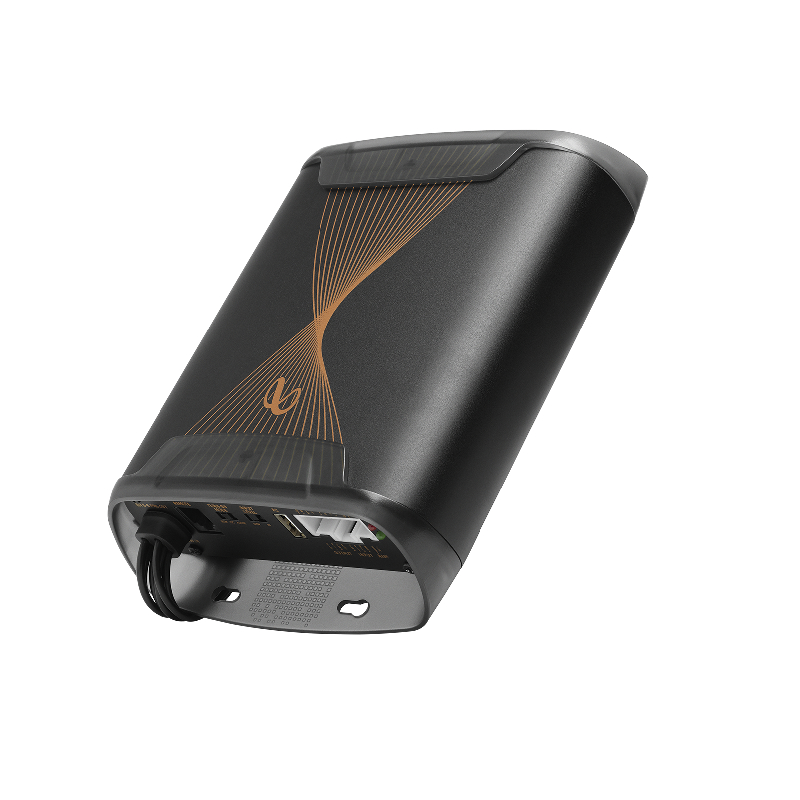

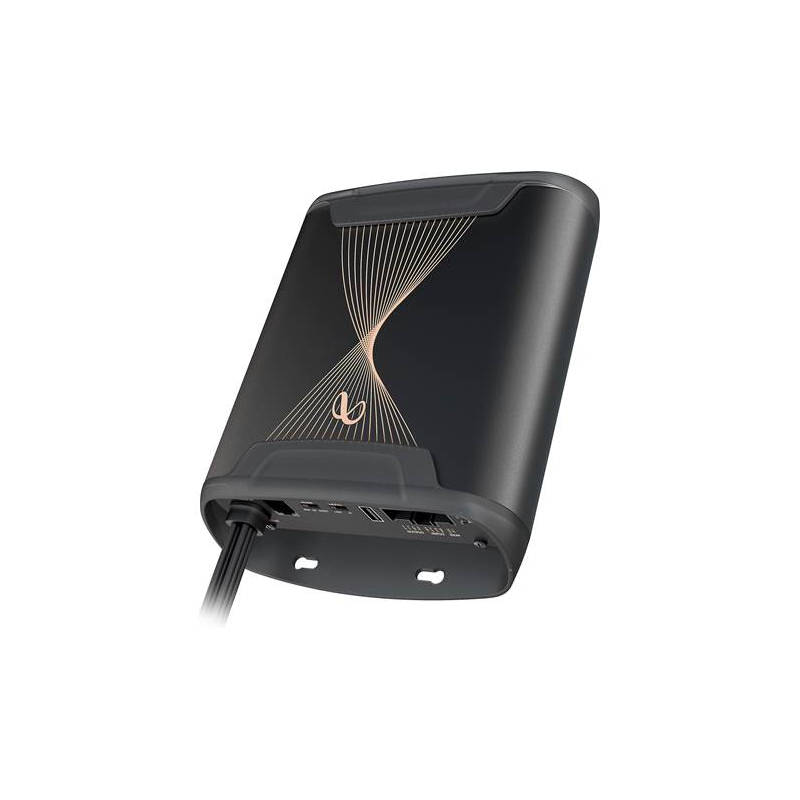

At Infinity, we take pride in our iconic design heritage. Our design team took great care to ensure that your Infinity DSP Amplifier will look amazing mounted wherever your music takes you. The smooth curve of the amplifier body, angular end cap design, and five-line staff with Infinity logo all tie together with our classic, current and future design language while concentrating on the design of your lifestyle.
- Maximum Power : 200 Watts
- Low Frequency Response : 20-20000 Hz
- High Frequency Response : 20-20000 Hz
- Number of Channels : 4
- Frequency Response : 10-22000 Hz
- RMS Power Output : 25x4 Watts
- Amplifier Class : A/B
- Fuse Rating : 15 A
Features:
- Small footprint, All-in-One Class A/B
- Amplifier with DSP Control
- Everything You Need to Get Started
- Simple Tuning Interface with Complex Features
- Versatile Connectivity
- Convenient Bass Control
- Conformal Coated PCB
- Harman Standard Reliability Testing
- Infinity Industrial Design
Specifications:
- Max Power: 200W peak
- RMS Power Output @ 4Ω: 25W x 4,
- <10% THD+N
- Full-Range Pre-Amp Outputs: 2-channel
- Variable crossovers with hi-pass, lo-pass, bandpass capability & adjustable 0-to-48dB slopes
- Selectable EQ adjustment: Parametric or Graphic
- Selectable 12V/Signal Sense/DC Offset turn-onmodes, with 12V remote output
- Frequency Response 10Hz to 22kHz @ -3dB
- Signal-to-Noise Ratio: >80dB @ 4Ω
- Subwoofer Level Control -30dB to +6dB
- (sold separately)
- Fuse Rating: 15A
- Operating Voltage: 8V to 16V
- UPC: 050667376628
- Weight: 5
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
