Axxess  AXDSPX-TY2

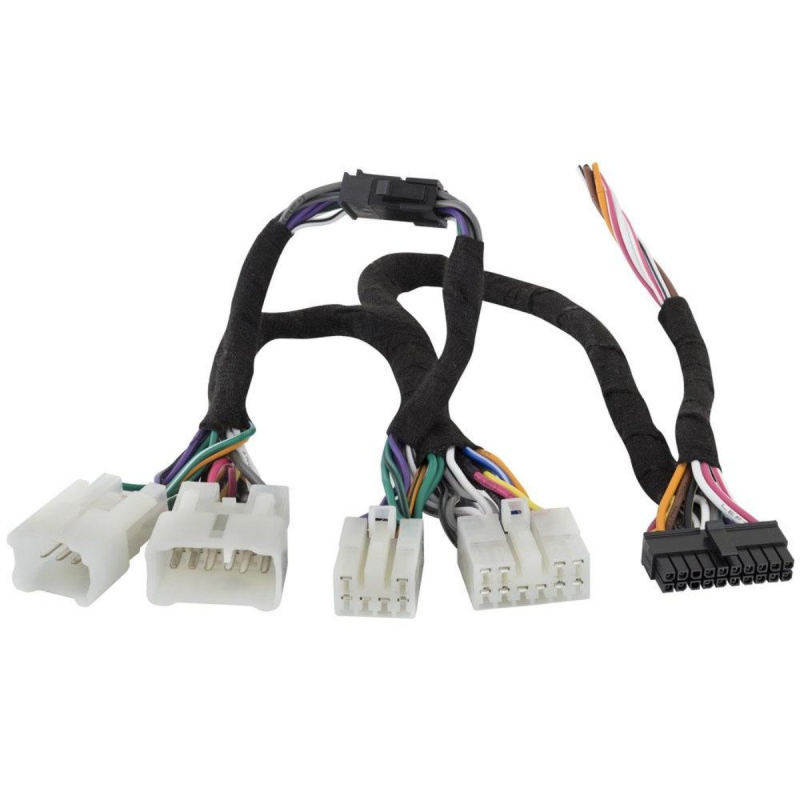

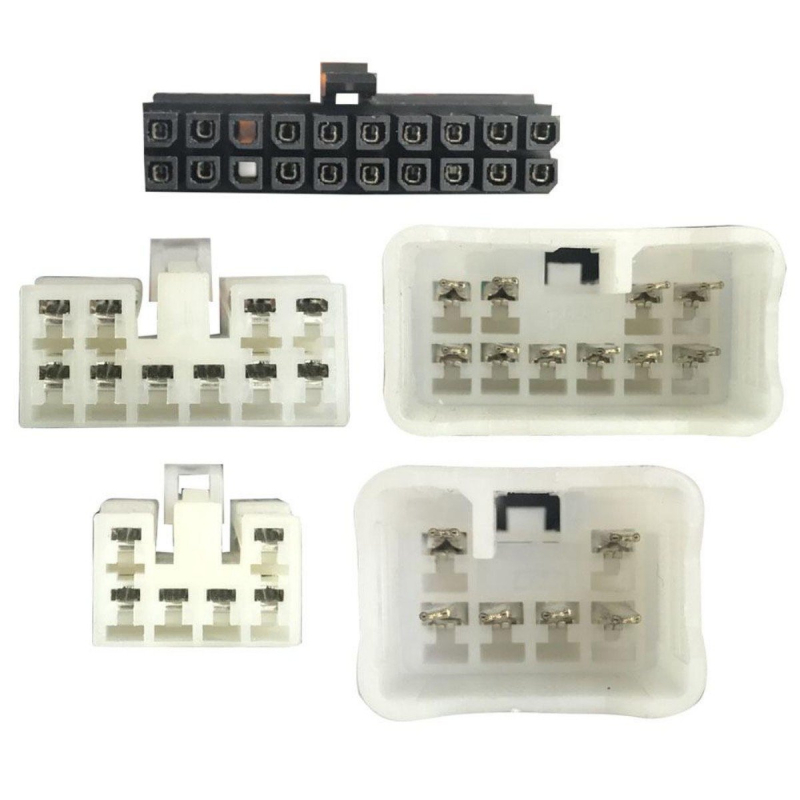

DSP Data Interface with Pre-Wired Harness for Select 2003-2022 Scion/Subaru/Toyota Vehicles

Item #80025

Condition:   Brand New

Product Highlights

  • DSP Ready
  • Prewired Harness
  • Factory Integration
  • Seamless Fit
  • Easy Install

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$533.94

Add Extended Warranty
  Free 2-Years Warranty Included!

No Credit needed for acima logoLearn More

Axxess Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Axxess Banner

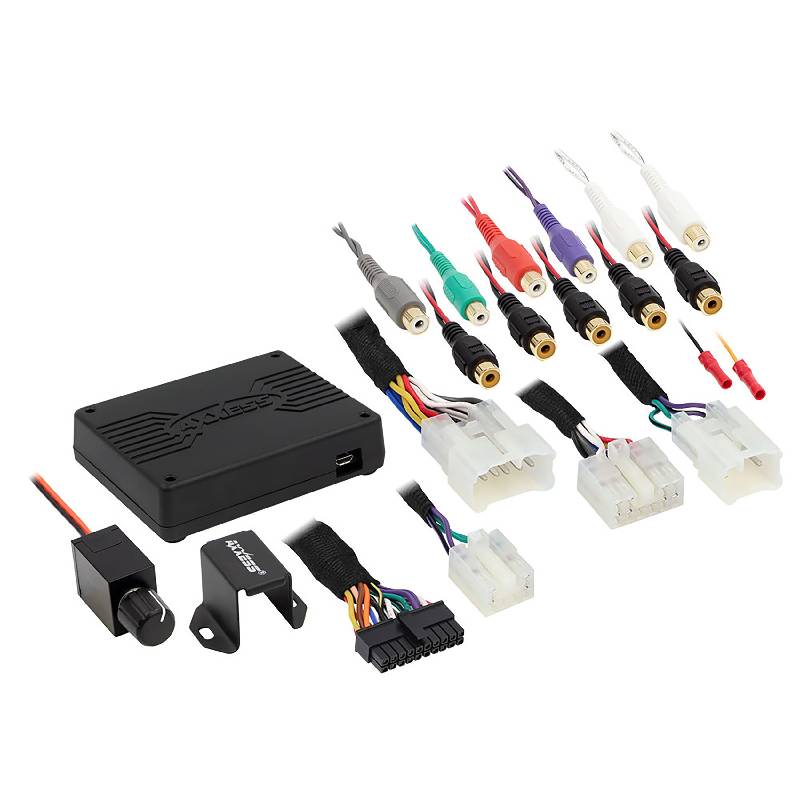

Axxess AXDSPX-TY2 DSP Data Interface with Pre-Wired Harness for Select 2003-2022 Scion/Subaru/Toyota Vehicles


We are an Axxess authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

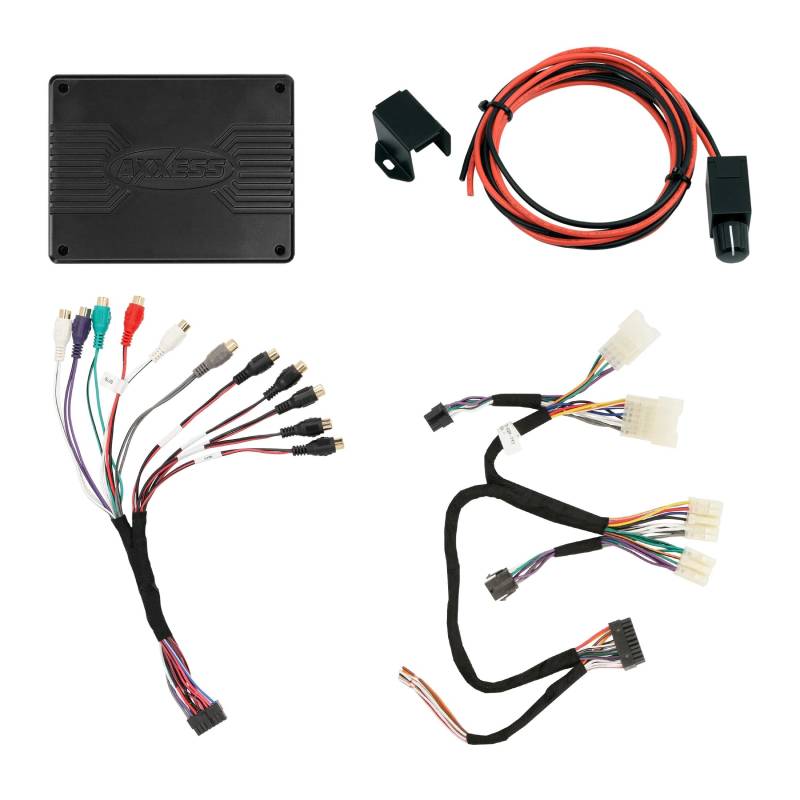

What's Inside?
AXDSP-X Advanced Sound Tuning System

Unlock precision audio control with the included AXDSP-X and vehicle-specific T-harness, delivering a clean and seamless installation. Fine-tune your system with a 31-band graphic EQ or 5-band parametric EQ, along with selectable high-pass, low-pass, or bandpass filters on every channel. With 6 inputs, 10 individually assignable outputs, independent equalization, and adjustable crossover slopes up to 48 dB per octave, you get complete control for professional-grade sound performance.

Complete DSP Integration & Control System

Achieve precise sound staging with independent channel delay of up to 10 ms, along with clipping detection and limiting circuits for clean, protected audio performance. Designed for easy behind-the-radio installation, it works seamlessly with both OE and aftermarket radios while offering expandability through an internal header port. With an included bass knob and retention of factory chimes—including parking sensor and cross-path alerts—you get full control without losing essential vehicle features.

Wireless DSP Control for Non-Amplified Systems

Upgrade your audio setup with a solution designed specifically for non-amplified models, delivering clean and reliable performance. Easily fine-tune your sound wirelessly through a smart device app, with the ability to read, write, and store custom configurations for instant recall. With password protection and Micro “B” USB updatable support, it offers secure, flexible, and future-ready control for your system.


SPECIFICATIONS



FEATURES


Features:

  • The package includes the AXDSP-X and vehicle-specific T-harness
  • 31-band graphic EQ or 5-band Parametric EQ
  • Selectable high pass, low pass, or bandpass filters on each channel
  • 6 inputs and 10 individually assignable outputs
  • Independent equalization on each of the 6 outputs
  • Selectable slope (12, 24, 36, or 48 db per octave)
  • Each channel can be delayed independently for up to 10 ms
  • Easy behind-the-radio installation in most applications
  • Can be used with OE and aftermarket radios
  • Clipping detection and limiting circuits
  • Internal header port for adding interface modules
  • Bass knob included
  • Retains factory chimes, including parking sensor and cross-path detection alerts with adjustable chime level
  • Designed for non-amplified models
  • Settings adjusted wirelessly in a smart device application (tablet or mobile phone)
  • Read, write, and store configurations for future recall
  • A password-protect feature is available in the mobile app
  • Micro “B” USB updatable



Vehicle Applications:

Scion 2010-Up (all non-amplified)

  • FR-S 2013-2016
  • iA 2016
  • iM 2016
  • iQ 2012-2015
  • tC 2010-2016
  • xB 2010-2015
  • xD 2010-2014



Toyota 2010-Up (all non-amplified)

  • 4Runner 2010-2017
  • Avalon 2010-2017
  • Camry 2010-2017
  • Corolla 2010-2017
  • Corolla iM 2017
  • FJ Cruiser 2010-2014
  • Highlander 2010-2017
  • Land Cruiser 2010-2017
  • Matrix 2010-2014
  • Prius 2010-2017
  • Prius C 2012-2017
  • Prius Plug-In 2012-2015
  • Prius Prime 2017
  • Prius V 2013-2017
  • RAV4 2010-2017
  • Sequoia 2010-2017
  • Sienna 2010-2017
  • Tacoma 2010-2017
  • Tundra 2010-2017
  • Venza 2010
  • Yaris 2010
  • Yaris iA 2017-2018



Subaru 2015-2022 (Non-Amplified)

  • Ascent 2019-2022
  • BRZ 2013-2017
  • Crosstrek 2016-2022
  • Forester 2016-2022
  • Impreza 2015-2022
  • Legacy 2015-2022
  • Outback 2015-2022
  • WRX 2016-2022
  • XV Crosstrek 2013-2015
  • UPC: 086429386703
  • Weight: 1
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
