Axxess  AXDSPX-HK4

DSP Data Interface with Amplifier Bypass Harness for Select 2013-2024 Hyundai/Kia Vehicles

Item #80181

Condition:   Brand New

Product Highlights

  • DSP Ready
  • Amplifier Bypass
  • Factory Integration
  • Seamless Fit
  • Easy Install

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$449.95

Add Extended Warranty
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

No Credit needed for acima logoLearn More

Axxess Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Axxess Banner

Axxess AXDSPX-HK4 DSP Data Interface with Amplifier Bypass Harness for Select 2013-2024 Hyundai/Kia Vehicles


We are an Axxess authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

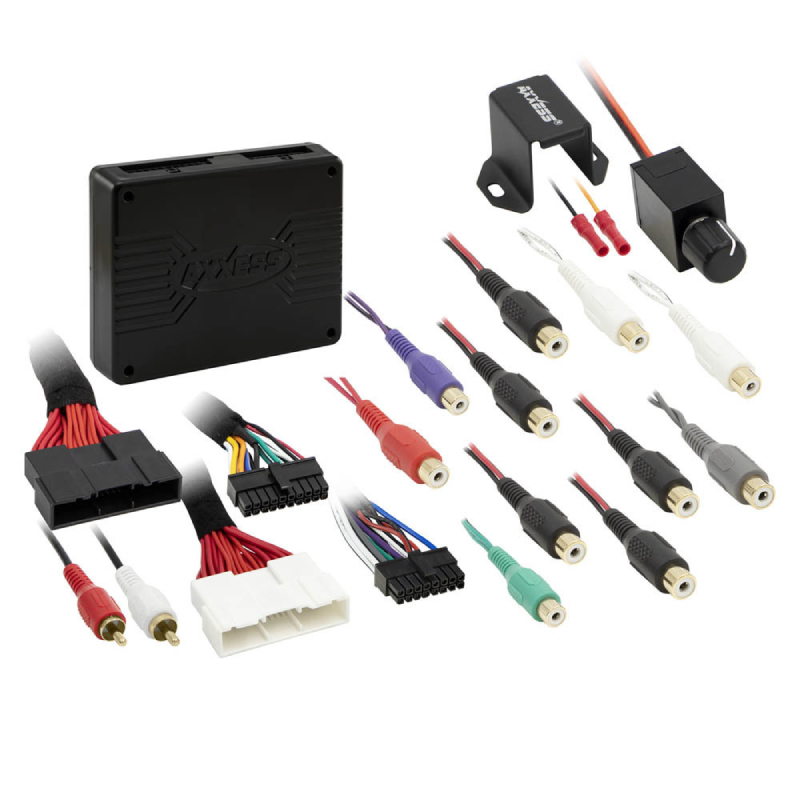

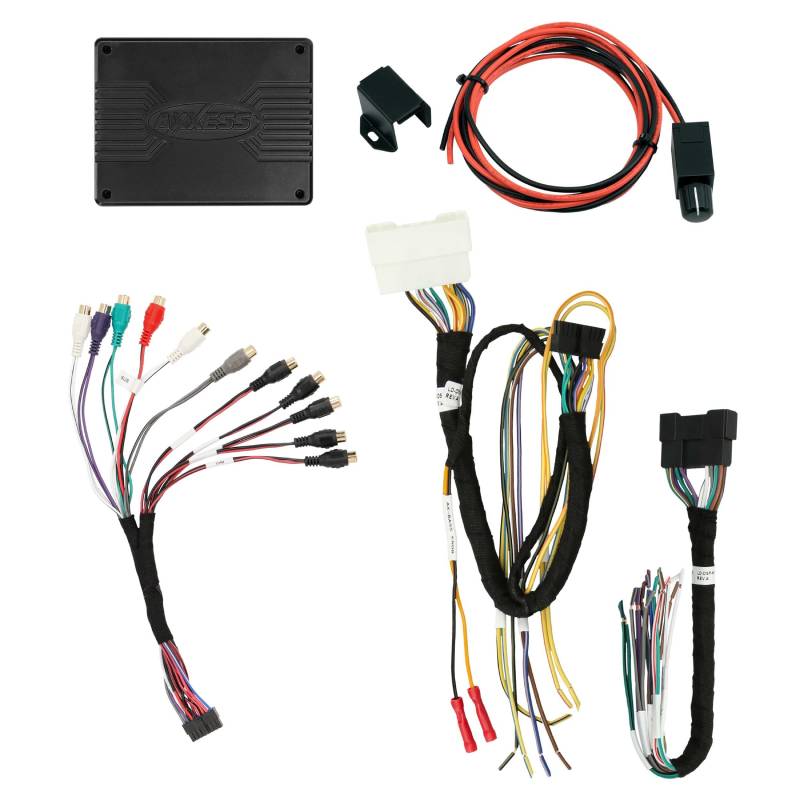

  • • DSP Data Interface with Amplifier Bypass Harness
  • Owner's Manual
S/PDIF® Advanced DSP Audio Control System

Upgrade your digital audio experience with full support for S/PDIF® digitally controlled amplified systems for precise, high-quality sound integration. Fine-tune every channel using a selectable 31-band graphic EQ or 5-band parametric EQ, along with high-pass, low-pass, and bandpass filters for complete control. With 6 inputs, 10 individually assignable outputs, adjustable crossover slopes, and Micro “B” USB updatable support, this system delivers powerful flexibility and future-ready performance.

Precision 10-Channel DSP Audio Control System

Take full control of your sound with selectable Graphic or Parametric EQ and independent equalization across all 10 outputs for precise, high-quality tuning. Each channel supports up to 10 ms of independent delay, allowing accurate sound staging and a more immersive listening experience. Built-in clipping detection, limiting circuits, and an included bass knob ensure clean, powerful, and easy-to-adjust audio performance.

Smart OE Voice & Wireless DSP Control System

Maintain your factory experience with retained OE voice prompts (Blue Link®/UVO®) and adjustable audio levels when equipped for seamless integration. Fine-tune your system effortlessly using the free AX-DSP-XL app, allowing wireless control from your smartphone or tablet. Save, recall, and secure your custom configurations with read/write storage and a password-protect feature for a personalized and protected audio setup.


SPECIFICATIONS



FEATURES


Features:

  • Retains ability to work with S/PDIF® digitally controlled amplified systems
  • Micro “B” USB updatable
  • Selectable 31-band Graphic EQ or 5-band parametric EQ on each channel with high-pass, low-pass, and bandpass filters
  • 6 inputs and 10 individually assignable outputs
  • Selectable slope (12, 24, 36, or 48 dB per octave)
  • Selectable Graphic or Parametric EQ
  • Independent equalization on each of the 10 outputs
  • Each channel can be delayed independently up to 10 ms
  • Clipping detection and limiting circuits
  • Bass knob included
  • Retains OE voice prompts (Blue Link®/UVO®) with adjustable level if vehicle is equipped
  • Settings adjusted wirelessly in the free AX-DSP-XL app available for smartphones and tablets
  • Read, write, and store configurations for future recall
  • Password-protect feature available in the app



Vehicle Application:

  • Hyundai
    • Elantra 2017-2020, Amplified, Amplifier Location: Right Side Trunk.
    • Elantra GT 2018-2020, Amplified, Amplifier Location: Right Side Trunk.
    • Kona 2018-2023, Amplified, Amplifier Location: Below Passenger’s Seat.
    • Santa Fe 2013-2023 , Amplified, Amplifier Location: Below Passenger’s Seat



  • Kia
    • Cadenza 2017-2020, Amplified, Amplifier Location: Right Side of Trunk, Behind Trim Panel.
    • Forte 2019-2023, Amplified, Amplifier Location: Right Side of Trunk, Behind Trim Panel.
    • Niro (EV) 2017-2021, Navigation, Amplifier Location: Driver's Kick.
    • Niro (Hybrid Electrical) 2018-2021, Navigation, Amplifier Location: Center of Instrument Panel.
    • Niro (Plug-In Hybrid) 2018-2021, Navigation, Amplifier Location: Center of Instrument Panel.
    • Optima 2016-2020, Amplified, Amplifier Location: Right Side of Trunk, Behind Trim Panel.
    • Sorento 2019-2020, Amplified, Amplifier Location: Below Passenger’s Seat.
    • Soul 2017-2023, Amplified, Amplifier Location: Below Driver’s Seat.
    • Soul EV 2020-2023, Amplified, Amplifier Location: Center Console Towards Rear.
    • Sportage 2017-2022, Amplified, Amplifier Location: Right Rear Trunk Space, Behind Trim Panel.
    • Telluride 2020-2024 , Amplified, Amplifier location: Below Passenger’s seat
  • UPC: 086429384051
  • Weight: 2
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
