Pyle  PLCMTR83WIR

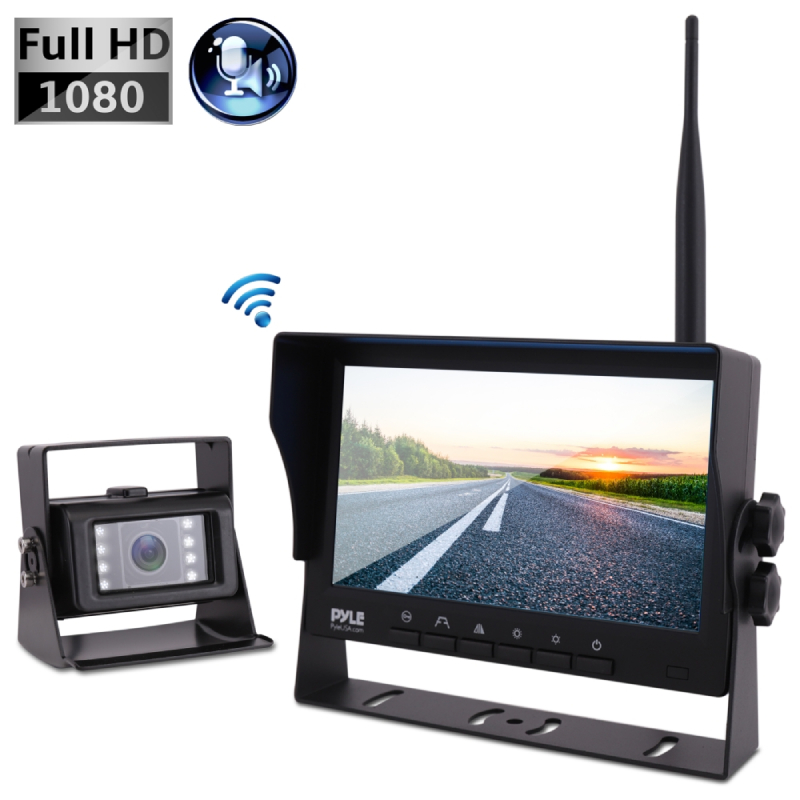

Digital Wireless Monitor and Camera System - Single Channel 7" LCD Display, 1080P HD Quality

Item #80312

Product Highlights

  • Digital Wireless Monitor and Camera System
  • Single Channel
  • 7" LCD Display
  • 1080P HD Quality

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:



SPECIFICATIONS



FEATURES


Features:

  • All View Angle IPS TFT LCD Panel
  • 2.4G Digital Wireless Transmit Solution
  • Wireless Transmit Range at About 11,811-inches
  • Camera with Built-in Microphone
  • Transmits Audio Sound to the Monitor
  • Monitor Have Sound Mute Operation Button
  • Easy Operation & Installation on Vehicles
  • Includes Sound Control Button
  • Built-in Speaker and Microphone
  • Ability to Connect Only One Wireless Camera
  • Designed for Car/Truck use 12/24 Volt Systems



What’s In The Box:

  • Monitor with Built-in Receiver
  • Camera with Built-in Transmitter
  • Power & Wiring Harness
  • Camera DC Power Cable
  • (2) 2.4G Wireless Antennas

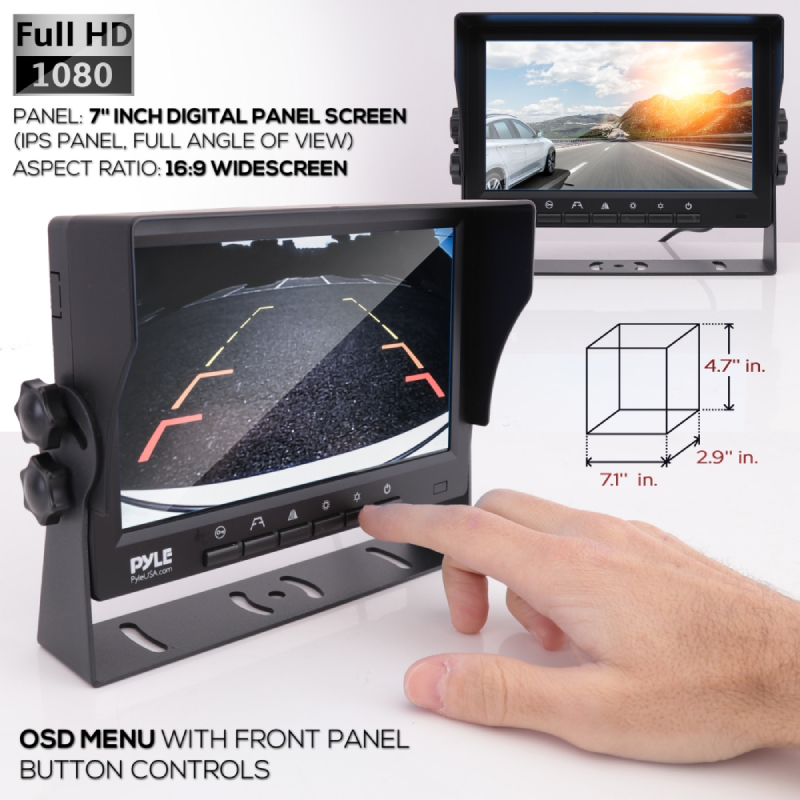

Monitor Specs:

  • 1080p HD Quality
  • Panel: 7-inch Digital Panel Screen (IPS panel, Full Angle of View)
  • Aspect Ratio: 16:9 Widescreen
  • System: PAL/NTSC Auto-Switching

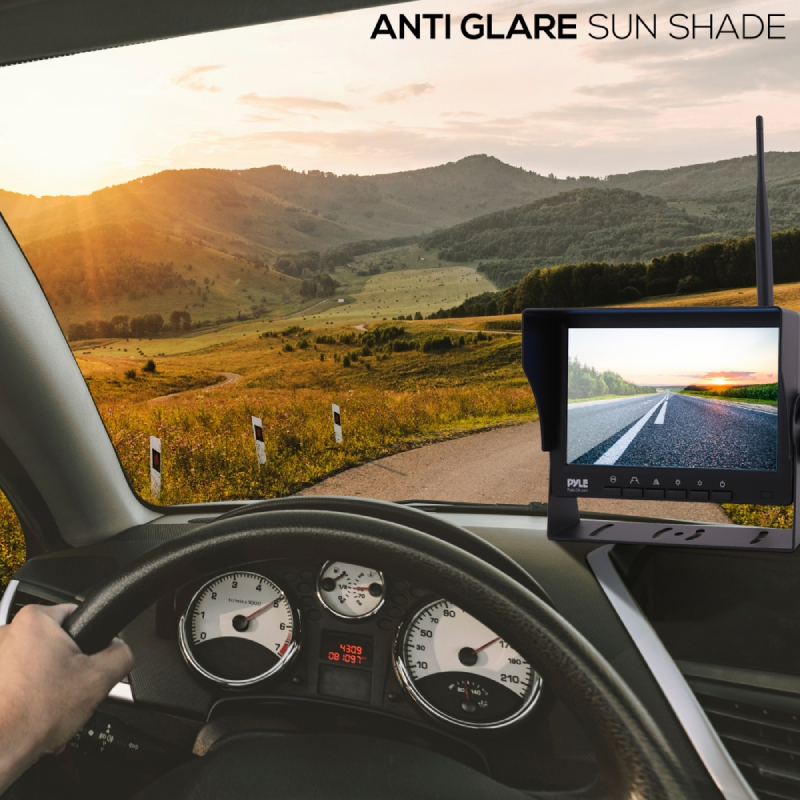

  • Anti Glare Sun Shade
  • Universal Stand Mount
  • Resolution: 800 x 480 Pixels
  • Power: DC12V & DC24V(Max to DC36V)
  • Power Consumption: Less than 5W
  • Max.Current: Less 450mAh
  • Storage temperature: -30??80?
  • Working temperature: -20? to 70?
  • Brightness: 500 cd/m2
  • OSD Menu with Front Panel Button Controls
  • Brightness, Color, Contrast Adjustable
  • Dimensions: (L x W x H): 7.1 x 2.9 x 4.7-inches



Monitor Wireless Receiver Specs:

  • Operating frequency range Cover: 2.4GHz~2.4835GHz
  • Output Power: 17±1dBm @TYp 20dBm@max (if necessary)
  • Modulation Type: FSK/GFSK
  • RX Sensitivity: -89dBm (Typ.)@4MHz BER<1E-3
  • RF Bit Rate: 4MHz BER<1E-3
  • Spread Spectrum: FHSS
  • Distance: Over 300M



Camera Specs:

  • Image Sensor: 1/3 sensor
  • Effective Pixels: 720 x 576 pixels
  • System: AHD
  • Night Vision Visible Distance: About 3 meters
  • IR Night Vision: with IR
  • Power: DC 12V & 24V
  • Power Consumption: Less than 5W
  • Max.Current: Less 450mAh
  • Storage temperature: -30??80?
  • Working temperature: -20? to 70?
  • Sound: With Built-in Microphone
  • Camera Dimensions (W x H x D): 3.18" x 2.95" x 2.17" -inches



Camera Wireless Transmit Specs:

  • Operating frequency range Cover: 2.4GHz~2.4835GHz
  • Output Power: 17±1dBm @TYp 20dBm@max (if necessary)
  • Modulation Type: FSK/GFSK
  • RX Sensitivity: -89dBm (Typ.)@4MHz BER<1E-3
  • RF Bit Rate: 4MHz BER<1E-3
  • Spread Spectrum: FHSS
  • Distance: Over 300M
  • Sold as: Unit
  • UPC:
  • Weight: 3
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
