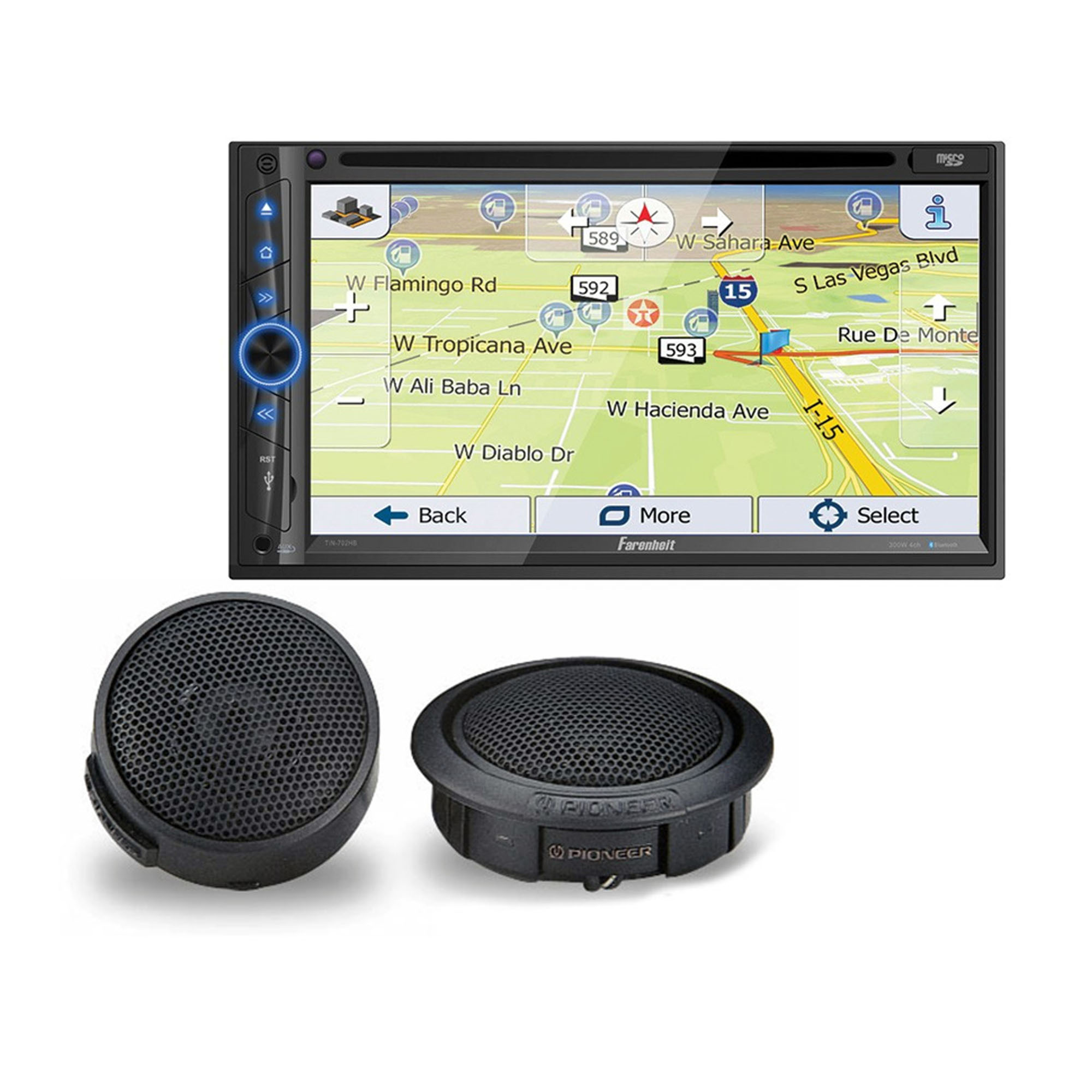

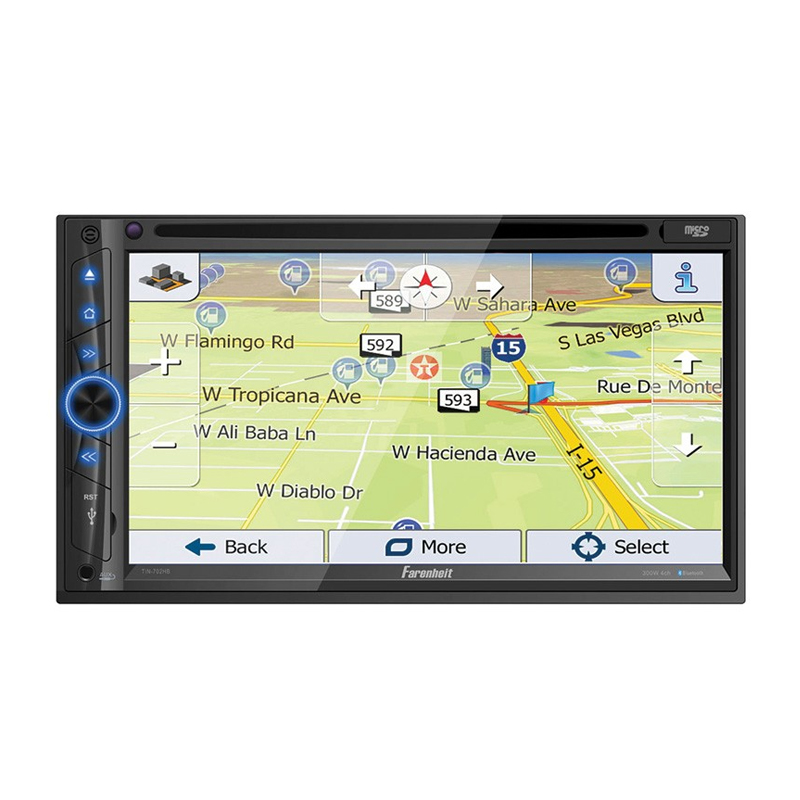

TIN-702HB 2-DIN 6.2" LCD GPS Navigation DVD Multimedia Source Unit w/ Android PhoneLink, Bluetooth v4.0
General Information
- 2-DIN Multimedia System w/ 6.2” LCD
- ISO 2-Din Chassis, Mounting Sleeve Included
- HD 6.2” 1024x600 LCD w/ Adjustable Backlight
- Clear Glass Resistive Anti-Glare Touchscreen
- 7-Color RGB LED Illuminated Keys & Accents
- Bluetooth 4.0 Phone Calling + A2DP Audio Streaming
- RCA Back-up Camera Input w/ +12V Auto-on Trigger
- Accessory Steering Wheel Remote Control Included
- Steering Wheel Remote Control Input(s) Included
- 10-Band 8dB Boost/Cut Equalizer & Preset EQs
- Smart Device Remote Control App available on app Stores
- ID3 Tag & Album Art & Title Display
Digital Media Playback
- Video & Audio Playback from DVD, DVDR, CD, & CDR Discs
- Video & Audio Playback from 64GB USB or Full Size SD Card
- 1080p MP4 & WMV Video Playback; MP3 & WMA Audio Playback
Audio/Video In’s & Out’s
- AUX Audio (3.5mm) Input for External Devices on Front Panel
- 6ch Preamp RCA Outputs; Front + Rear + Variable Subwoofer, 4V
- RCA A/V Input for External Source Display + 2 RCA Video Output
- 4Ch. 300w Max Class A/B Full Range Speaker Amplifier Built-in
GPS Navigation
- Turn-by-Turn GPS Navigation System Built-In
- Street Maps of All 50 U.S.A States on Micro SD
- 17 Million Points of Interest Database Included
Android PhoneLink
- Android PhoneLink Mobile Device Integration
- Complete Control of Android Devices via USB

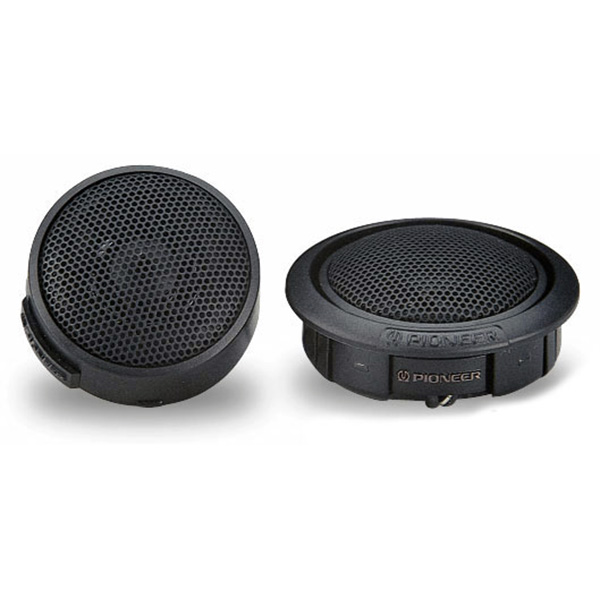

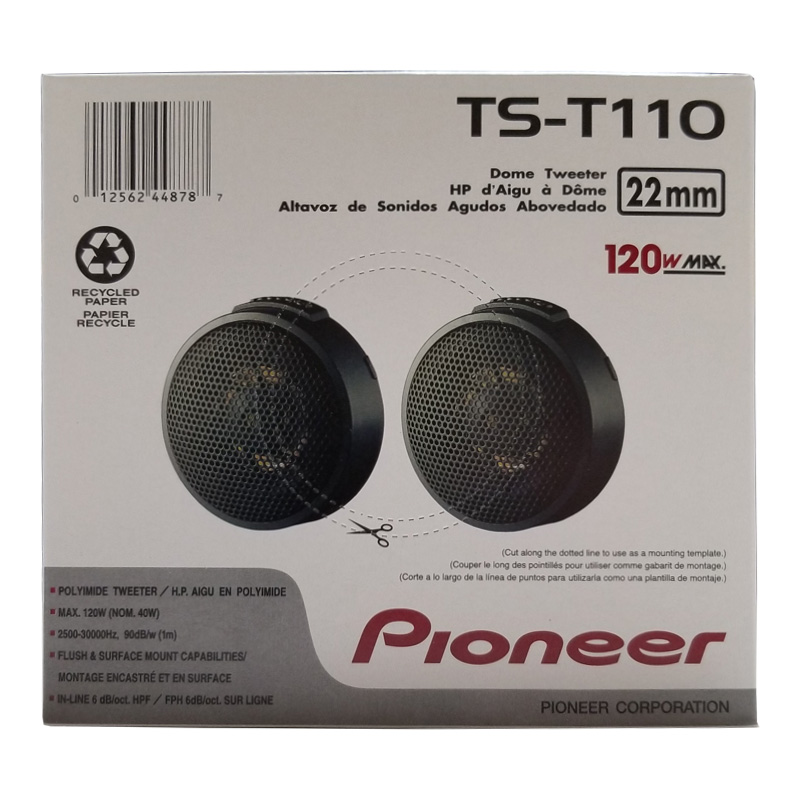

TS-T110 7/8", 40W RMS (120W Peak Power Handling), 1-way Poly Dome Tweeters
More complex mobile entertainment systems have special speaker requirements. If your design calls for component speakers, Pioneer has high-quality tweeters and mid-range speakers to fit your needs.
Specifications
- Impedance (Ohms): 4
- Frequency Response: 2500 - 30k Hz
- Peak Power Handling (Watts): 120
- RMS Power Range (Watts): 2-40
- Tweeter Design: 7/8" Dome
- Top-mount Depth (Inches): 15/16
- High-Pass Crossover Frequency: 7000 Hz
- Sensitivity: 90 dB
- Cutout Diameter or Length (inches): 2 1/16
- Tweeter Composition: PPTA
- UPC:
- Weight: 20
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
