Alpine X009-FD1-OB In-Dash Digital Media Bluetooth Car Stereo Receiver
We are a Alpine authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

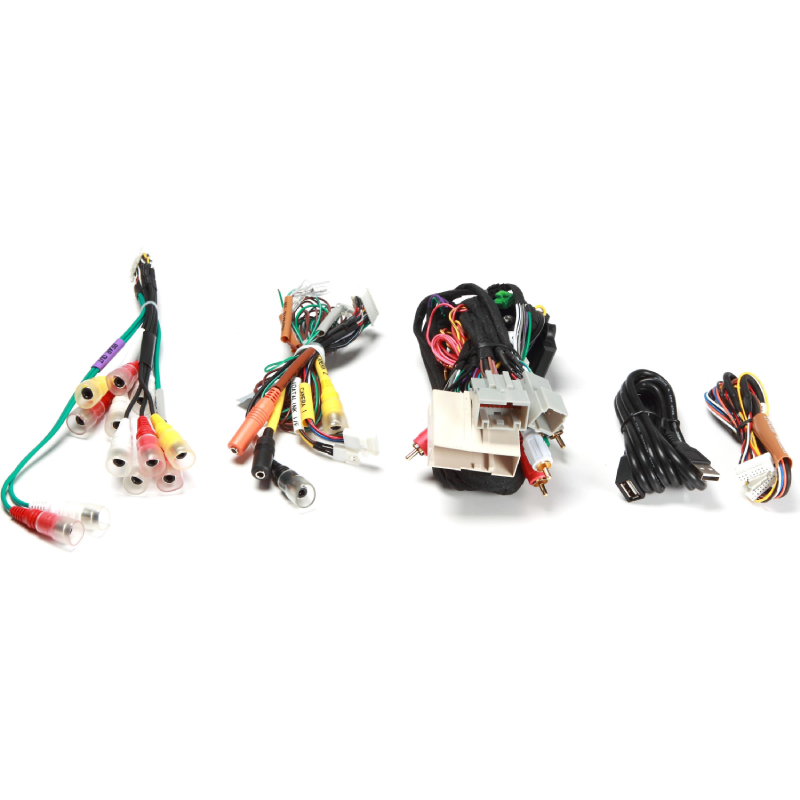

What's Inside?
- • Factory amplifier interface (attached 30" harness)
- •Navigation receiver (map card pre-installed)
- •Aux/pre-out harness
- •Camera harness
- •GPS antenna (w/ attached 11.5' cable)
- •5' USB extension cable
- •Self-adhesive magnetic mount
- •3 Cable-clips
- •Eight M8 screws
- •Self-adhesive foam strip
- •Owner's Manual on CD-ROM
- •Audio/Video Quick Reference Guide
- • Navigation Quick Reference Guide
- •Alpine Registration Card
- •NAVTEQ Registration Card
- •Owner's Manual
Built-in Bluetooth
Built-in Bluetooth allows you to use the X009-FD1 for hands-free calling and music streaming through your compatible phone. The touchscreen buttons for dialing and volume are larger than ever, for convenient operation.
Alpine includes an external microphone to maximize the fidelity of your conversations.Not only does the X009-FD1 offer easy touchscreen access, you can use the kit's buttons below the receiver display to quickly pull up functions like favorites, navigation, phone access, and sound settings without going through menu screens.
You can create a custom top source banner that shows the audio sources you use most frequently, so you don't have to scroll anywhere to choose between a disc player, radio station, or MP3 player.
HD Radio reception/Pandora® Internet radio:
You'll enjoy crystal-clear sound quality from participating AM and FM stations, including FM that sounds almost as good as a CD. Plus, you'll see station and song info on the screen.
Pandora lovers will love touchscreen control over their stations, including thumbs up and down, bookmarks, and station lists. Just plug your iPhone® into the USB port or use Bluetooth audio with your Android™ device.The X009-FD1 also offers split-screen sound tuning, so you can adjust the sonic controls and change the tracks at the same time, for adjustments that don't waste time.
iPhone and iPod® control/Enhanced sonic controls:
Browsing for your favorite songs is simple and concise, thanks to an intuitive touchscreen interface and the huge display. You can check out song title, artist info, and album art with a quick glance at the big screen.You can add SiriusXM programming to the receiver with an optional tuner and your paid subscription.
Alpine's audio engineers have loaded special Sound Parameters Settings into this receiver for all the vehicles covered by Restyle packages. You pick the one that matches your vehicle to get sound that's custom-EQ'd and time-corrected for your vehicle's acoustics. Tailored sound, no tweaking required.

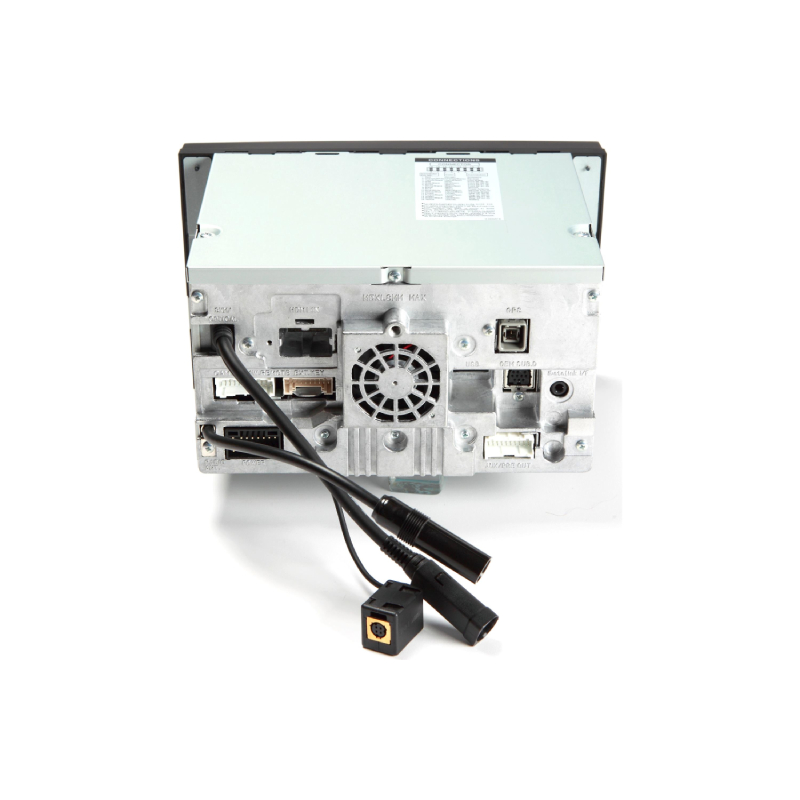

A wealth of connections
The X009-FD1 also features an MHL-compatible HDMI input, allowing you to connect most compatible Android smartphones and devices. With the correct HDMI cable connected, you'll be able to view video content from your phone or a portable Blu-ray Disc™ player on the Alpine's screen while parked.
You also keep your front auxiliary input and get a rear USB port, plus a rear A/V input and output. An optical digital output lets you connect directly to Alpine's PXA-H800 audio processor.
- Maximum Power : 200 Watts
- CD-R/CD-RW Compatible : Yes
- CD Text : Yes
- Satellite Radio Ready : Yes
- Remote Control : Yes
- Built-in EQ : Yes
- DIN : 2
- Display Size : 9 Inch
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- HD Radio : Yes
- Rear USB Input : Yes
- Vehicle Make : Ford
- Points of Interest (PoI) : Yes Numeric
- RDS - Radio Data System : Yes
- Rear View Camera Input : Yes
General Features:

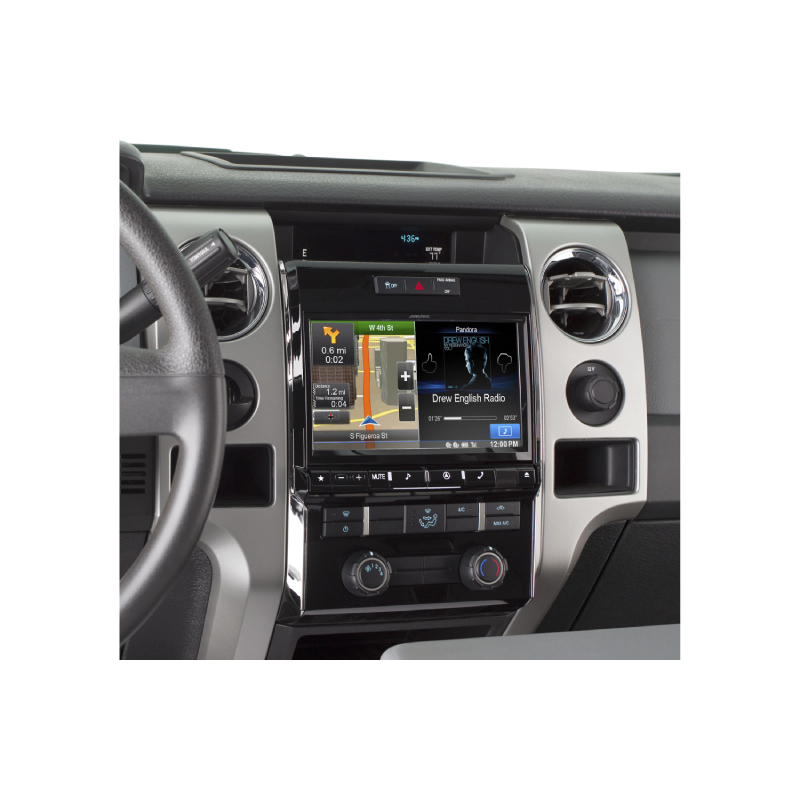

- Alpine X009-FD1 In-Dash Restyle System for select 2009-up Ford F-150 vehicles
- 9" WVGA Touchscreen
- Includes Alpine Restyle package with all installation parts
- CEA-2006 compliant amplifier
- Power Output:
- Peak: 50 watts x 4 channels
- RMS: 18 watts x 4 channels
- Includes iDatalink Maestro ADS-MRR module
- Retains factory features
- Retains steering wheel controls
- Displays engine performance data on touchscreen
- CD text information display
- MP3 ID3 Tag Display (Title/Artist/Album)
- AM/FM tuner with 18FM/12AM presets
Navigation Features:
- Comprehensive map database covers the entire United States, Canada and Puerto Rico
- 3D representations of buildings, landmarks, and terrain
- 7 Million Points of Interest (POI's)
- Free lifetime TMC traffic service in metropolitan areas
- Text-to-Speech voice guidance with street names
- Built-in traffic tuner provides real-time traffic data for over 90 major North America cities
- Enhanced junction view and realistic road signs
- Available Languages: English, French and Spanish
Smartphone Features:
- iOS Devices
- Built in iPod and iPhone Controls
- Siri Eyes Free
- Pandora control with iPhone
- Android Devices
- Pandora control via Bluetooth connection
- MHL-compatible HDMI cable required for viewing video content from compatible Android devices
Playback and Audio Features:
- DVD,CD/CD-R/RW, MP3/WMA/AAC Playback
- MP3/WMA/AAC/MP4/FLAC Playback via USB
- Compatible with Apple iPhone 6/6+ and iOS 8 software
- 9-band parametric equalizer with 10 selectable tone curves
- High Pass and Low Pass Crossovers
- Rear USB Input
- Dual Zone A/V output
- 3 Sets of 4V preamp outputs (front, rear and subwoofer)
Bluetooth Features:
- Built-in Bluetooth technology for hands-free talking and audio streaming
- Bluetooth version 2.1 +EDR certified
- Bluetooth Profiles Supported:
- HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
- PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list of the mobile phone directly from the car stereo
- A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
- AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
- OPP: Object Push Profile for sending basic "objects" such as pictures and other virtual material
- SPP: Serial Port Profile provides a wireless replacement for RS-232 based serial communications
- Works with most Bluetooth enabled cell phones
- Maximum communication rage: 32.8 feet (approx, line of sight)
Expandability Options:
- SiriusXM Satellite Radio Ready: SiriusXM SXV300v1 and subscription required, sold separately
- HD Radio Built-in
- MHL-compatible HDMI input
- Dedicated Backup Camera Input: Used for universal rear view cameras with an RCA composite input.
- Rear RCA Video Output: Used for connection to separate monitors and other devices
- Rear RCA Audio/Video Input: Used for connecting video accessories such as game consoles, video cameras, etc.
- UPC:
- Weight: 22
- Authorized Internet Dealer
Warranty: 90 Days Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
