Diamond Audio  H154

Hex Series 15" 1500W Peak Power Handling, 4-Ohms, Dual Voice Coil Subwoofer

Item #80639

Condition:   Brand New

Product Highlights

  • Hex Series 15" Subwoofer
  • 1500W Peak Power Handling
  • 4-Ohm Dual Voice Coil
  • High-Performance Audio

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$619.99

Reg. Price $719.99  Save $100.00

Out of Stock Check out other products listed below
Diamond Audio Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:


Diamond Audio H154 - Hex Series 15" 1500W Peak Power Handling, 4-Ohms, Dual Voice Coil Subwoofer


We are a Diamond Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 15" 4-Ohms, Dual Voice Coil Subwoofer
  • • Owner's Manual
Exceptional Performance and Design in HEX Series Subwoofers

The HEX Series subwoofers incorporate advanced features from the HEX PRO series, featuring a cast aluminum frame basket, a unique solid core aluminum radial heat sink, and 3” high-temperature voice coils on a treated high-strength aluminum former for superior thermal management. They are designed with an exotic fiber weave cone supported by a specially treated paper backing, ensuring rapid and precise bass reproduction. These high-output subwoofers deliver exceptional sound quality and performance, built to offer years of listening enjoyment. Key attributes include a high-density cast aluminum alloy deep drawn basket, a ridged two-part treated paper/fiberglass laminated cone, an FEA optimized high-power motor with a vented pole piece, a copper anodized aluminum elevated radiating heat sink, impedance selection via a high-power terminal, and Klippel® DA optimized motor and suspension symmetry.


SPECIFICATIONS


  • Diameter : 15 Inch
  • Sensitivity : 86 dB
  • Impedance : 4 Ohm
  • Peak Power Handling : 1500 Watts
  • Number of Voice Coils : Dual
  • Mounting Depth : 7.8 Inches
  • RMS Power Handling : 750 Watts

FEATURES


Features

  • Improved High-Density Cast Aluminum Alloy Deep Drawn Basket
  • Ridged 2-Part Treated Paper/Fiberglass Laminated Cone
  • FEA Optimized High Power Motor with Vented Pole Piece
  • Unique High-Strength 3 Point Triple Bond Neck Joint Technique
  • Copper Anodized Aluminum Elevated Radiating Heat Sink
  • Impedance Selectable High Power Terminal
  • 3” High Temp Copper VC on Treated Black High-Strength Aluminum Former
  • Klippel DA Optimized Motor and Suspension Symmetry



Specifications

  • Impedance: 4 Ohms
  • Power Handling: RMS: 750 Watts, Peak: 1500 Watts
  • Dual Voice Coil

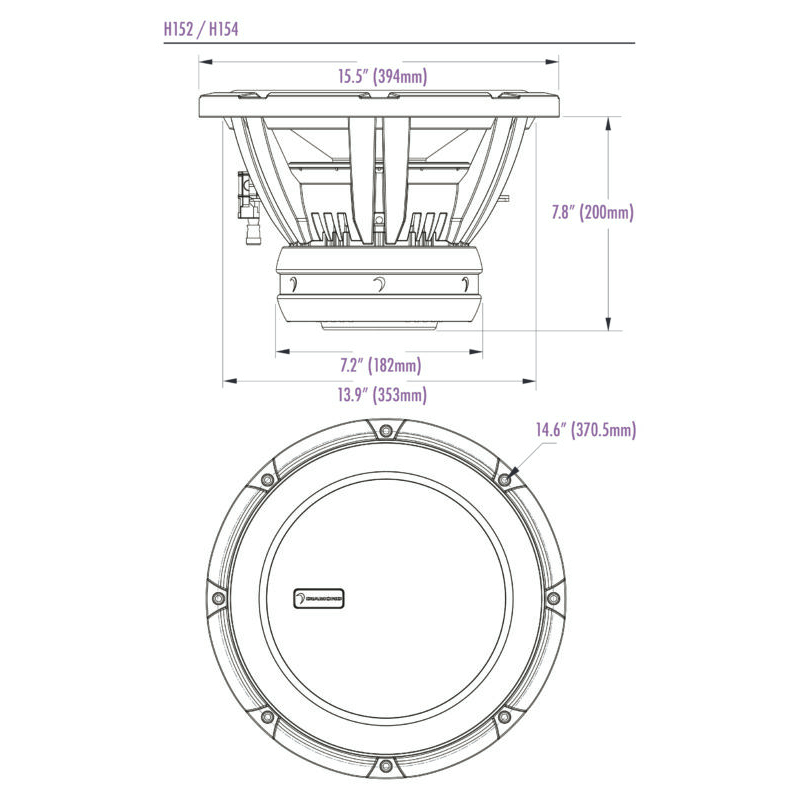

  • Total Diameter: 15.5"
  • Mounting Diameter: 13.9" / 353mm
  • Hole Diameter: 14.6"
  • Mounting Depth: 7.8" / 200mm
  • Magnet Diameter: 7.1"
  • SPL @ 2.83v: 87dB
  • Re: 6.0 Ohms
  • Qms: 4.52
  • Qes: 0.58
  • Qts: 0.51
  • Fs: 28Hz
  • Vas: 74L
  • Xmax: 15mm
  • UPC: 847169020315
  • Weight: 25
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
