- Diameter : 8 Inch
- Sensitivity : 82 dB
- Impedance : 2 Ohm
- Peak Power Handling : 500 Watts
- Number of Voice Coils : Dual
- Mounting Depth : 4.5 Inches
- RMS Power Handling : 250 Watts
Features:
- 2Ω Impedance
- 250W RMS, 500W MAX
- Dual Voice Coil
- Mounting Diameter: 7.25” / 184mm
- Mounting Depth: 4.5” / 114.3mm
- True-fiber weave paper backed parabolic cone
- High-grade rolled edge six leg black powder coated stamped frame
- Dual mirror image spider with woven tinsel leads
- Black PVC wrap-around mounting gasket
- Vented pole and voice coil gap for cooler operation
- Klippel® DA optimized motor and suspension symmetry
Specifications
- SPL (dB): 82.0
- Re (Ω) [series]: 3.40
- Qms: 11.00
- Qes: 0.44
- Qts: 0.42
- Fs (Hz): 38.0
- Vas(L): 7.70
- Cms (mm/N): 0.140
- Mms (g): 125.0
- Sd (m2): 196
- BL (T*M): 15.2
- Xmax: 11.0
- Pwr (W) nom/max: 250/500

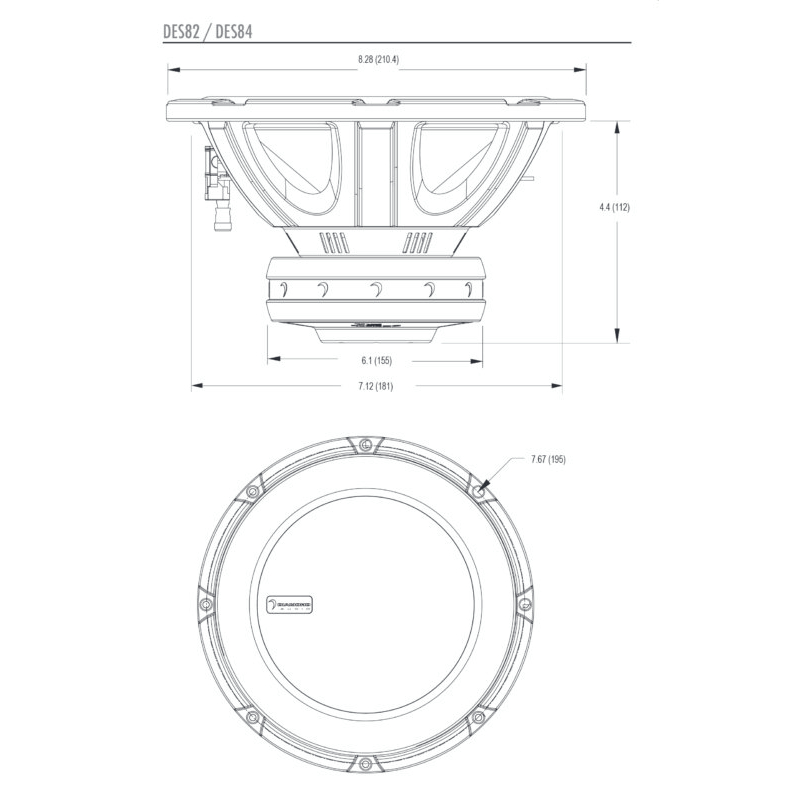

- Total Diameter: 8.28” (210.4) in. (mm)
- Mounting Diameter: 7.12” (181) in. (mm)
- Screw Hole Dia.: 7.67” (195) in. (mm)
- Mounting Depth: 4.4” (112) in. (mm)
- Magnet Dia.: 6.1” (155) in. (mm)
- UPC: 847169035029
- Weight: 18
