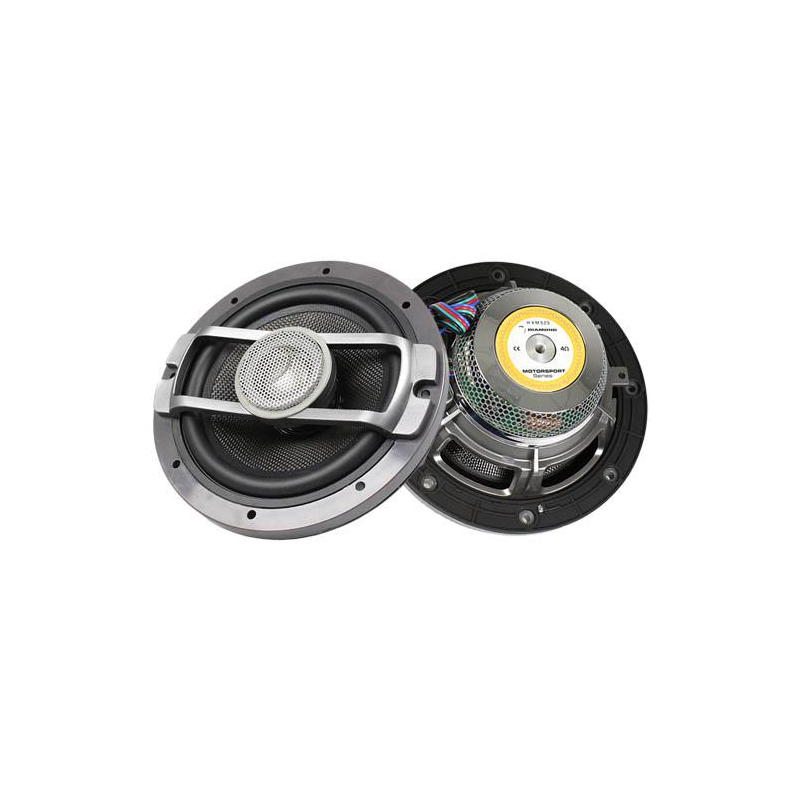

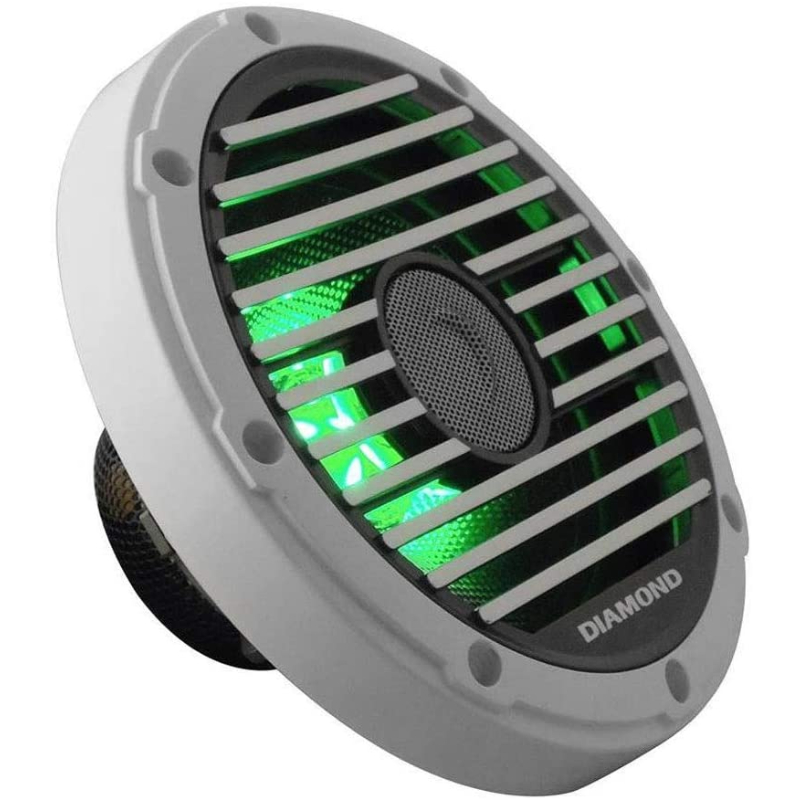

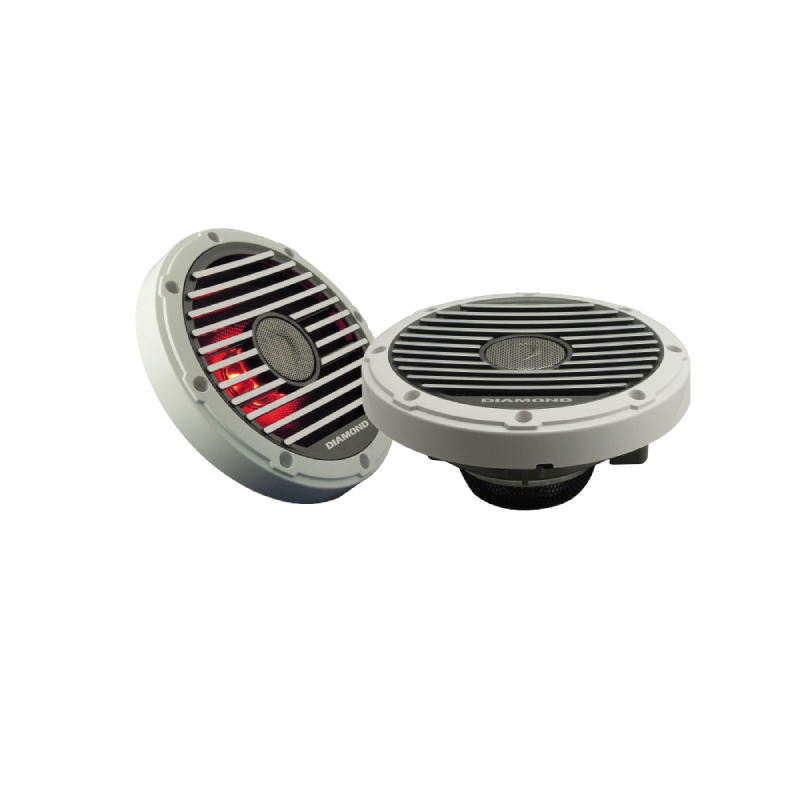

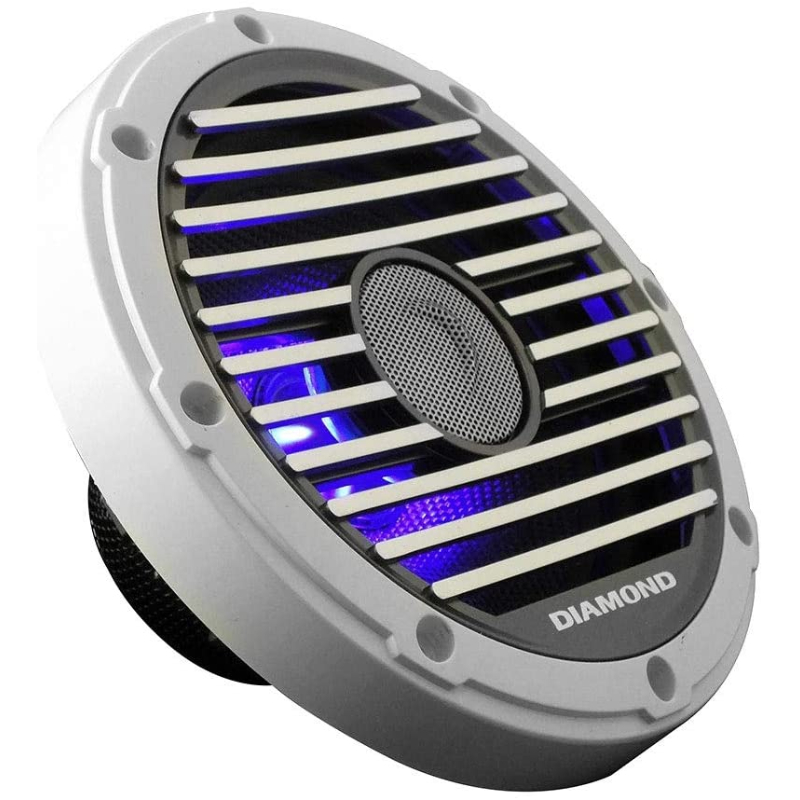

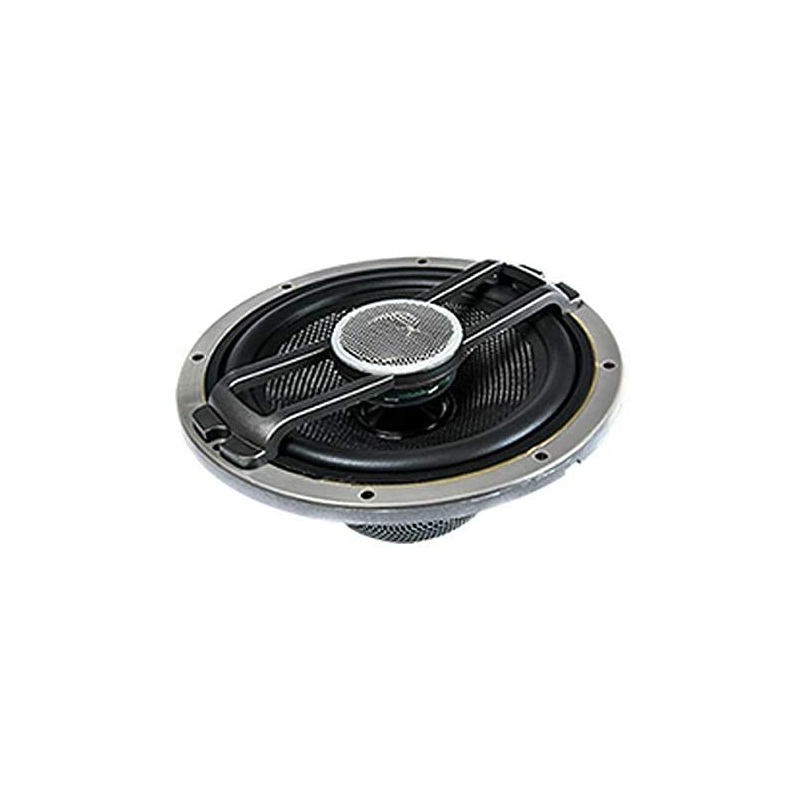

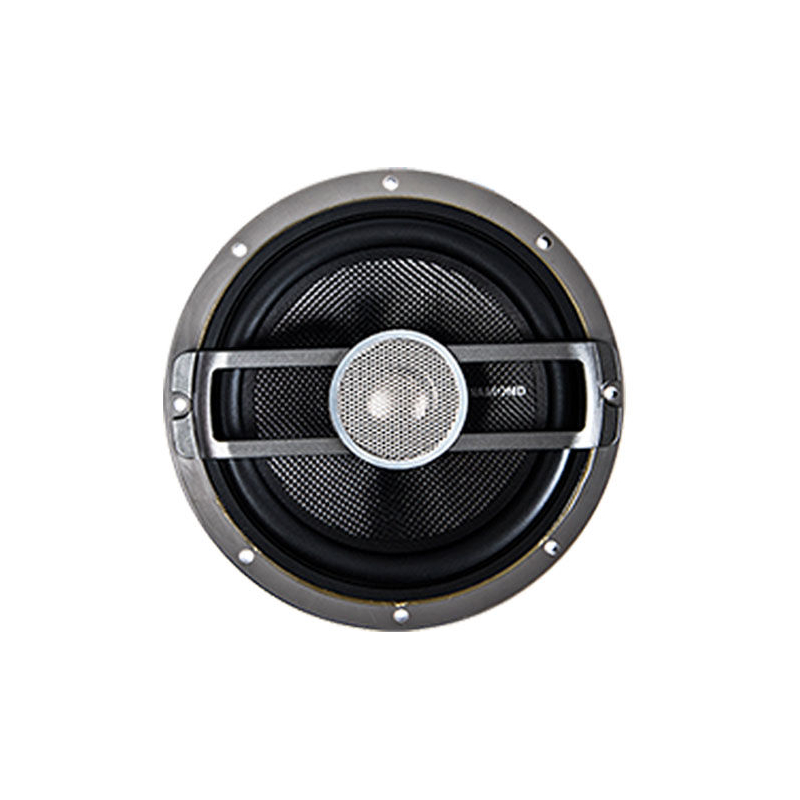

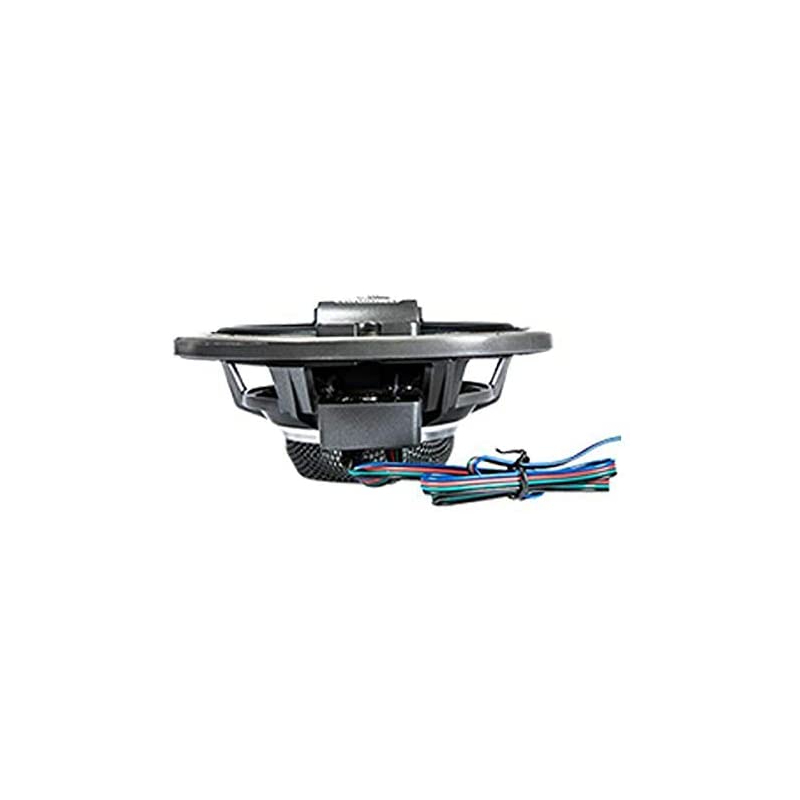

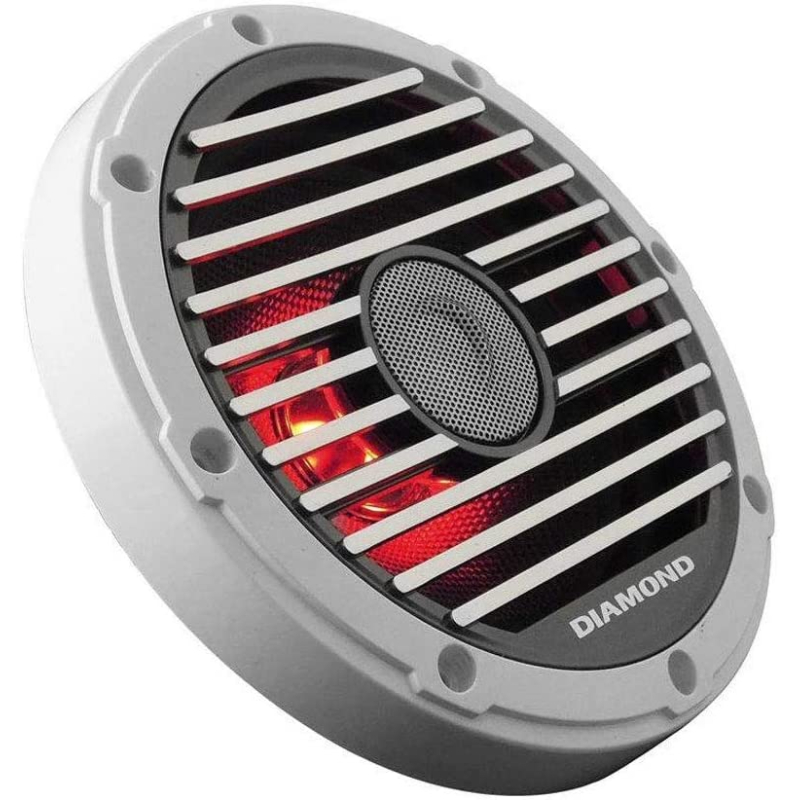

Diamond Audio  HXM8

HXM Series 8" 500W Peak Power Handling, 4-Ohms, 2-Way Marine Coaxial Speaker

Item #80746

Product Highlights

  • HXM Series
  • 8 Inch
  • 500W Peak
  • 2-Way Marine
  • Coaxial Speaker

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


Diamond Audio HXM8 - HXM Series 8" 500W Peak Power Handling, 4-Ohms, 2-Way Marine Coaxial Speaker


We are a Diamond Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • (2) Speakers
  • • Owner's Manual
High-Energy Subwoofer Built for Marine and Motorsports

Diamond Audio’s HXM8 is an 8-inch subwoofer built for motorsports and marine applications, featuring a neodymium motor system for high energy output. This subwoofer is designed with a marine-certified single 4 Ohm voice coil, suitable for marine and powersports environments. Weatherproofed with advanced U-V treatments and comprehensive sealing and insulation, these Motorsport speakers are engineered to exceed marine industry standards while delivering the trademark Diamond Audio performance quality.


SPECIFICATIONS


  • Diameter : 8 Inch
  • Sensitivity : 95 dB
  • Impedance : 4 Ohm
  • Frequency Response : 35-23000 Hz
  • Peak Power Handling : 500 Watts
  • RMS Power Handling : 120 Watts

FEATURES


Features:

  • 120W RMS
  • Mounting Diameter: 7 inches / 178mm
  • Mounting Depth: 3.01 inches / 76.5mm
  • Over-All Diameter: 8.58” / 218mm



Specifications:

  • Nominal Diameter – inch (mm): 8″ (203)
  • Description: 3-Way
  • Nominal Impedance (Ohms): 4Ω
  • Frequency Response (Hz): 35-23kHz
  • Kapton Voice Coil Diameter – inch (mm): 1.52 (38.55)
  • Power Handling – Watts (RMS/Peak): 120/500
  • Fs – Free Air Resonance (Hz): 58
  • Qts: 0.78
  • Vas – cu. ft. (Liter): 0.689 (19.5)
  • Sensitivity (1W/1M): 92dB
  • Sensitivity (2.83V/1M): 95dB
  • Xmax – Inch (mm): 0.2 (5)
  • Mounting Diameter: 7″ (178mm)
  • Mounting Depth: 3.01″ (76.4mm)
  • Grille: Yes
  • UPC: 847169024108
  • Weight: 8
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
