The S-Series speakers have a large voice coil. The 6.5-inch and 6x9-inch models have a 35-mm voice coil, and this large voice coil size increases their driving power and control of the motor. The S-Series speakers are the first in the industry to use a material called CFRP (Carbon Fiber Reinforced Plastic), a very lightweight yet rigid material.
The R-Series speakers use Alpine’s exclusive cone technology, Carbon Fiber Reinforced Polymer (CFRP), which is a high-strength, lightweight material. CFRP can be custom-formed so that its fibers align in the same direction as the curve and shape of the cone, thereby reducing resonant peaks and increasing the speakers’ mid-bass performance and dynamic range. CFRP is also used as a tweeter diaphragm, enabling the speakers to perform into the 45kHz range and making them compliant with High-Resolution Audio playback.
Hifonics BRUTUS GAMMA Four Channel audio amplifier delivers 1600 watts with Super A/B Class™ technology that features Ultra-Fi™ MOSFET outputs that are selected for both balance and output power.

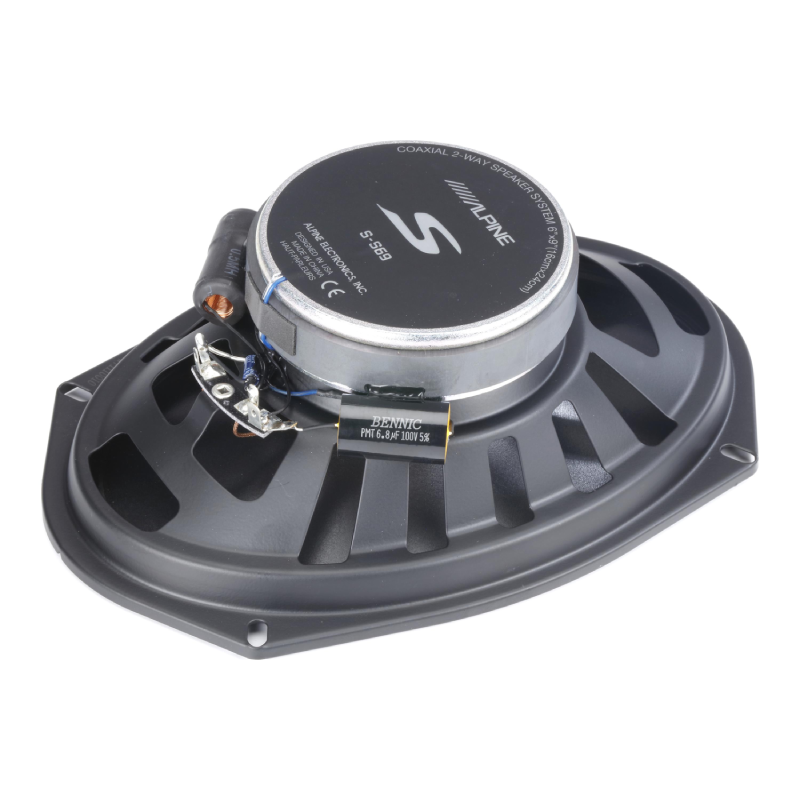

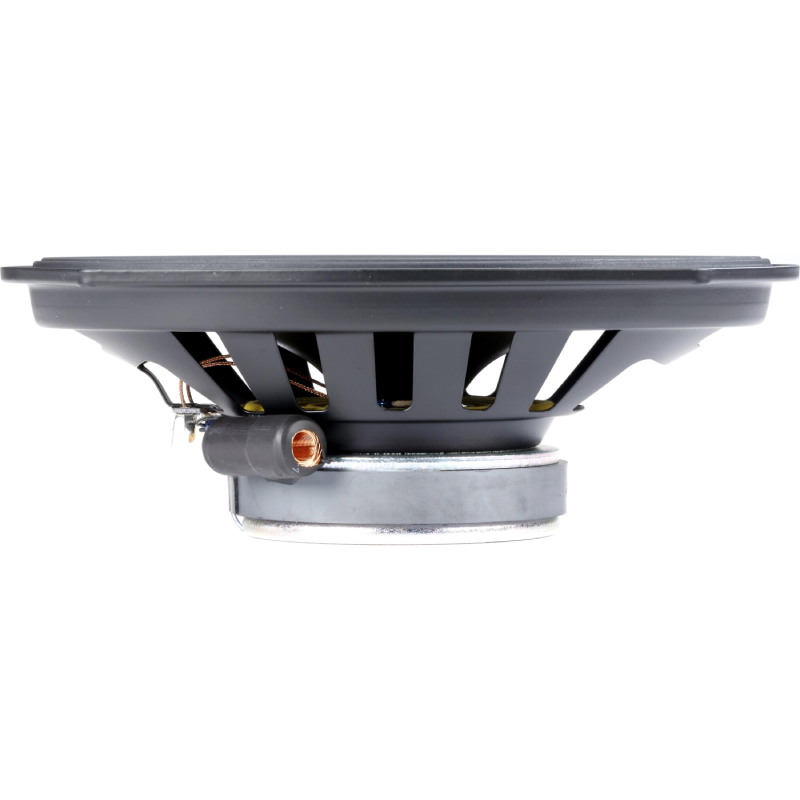

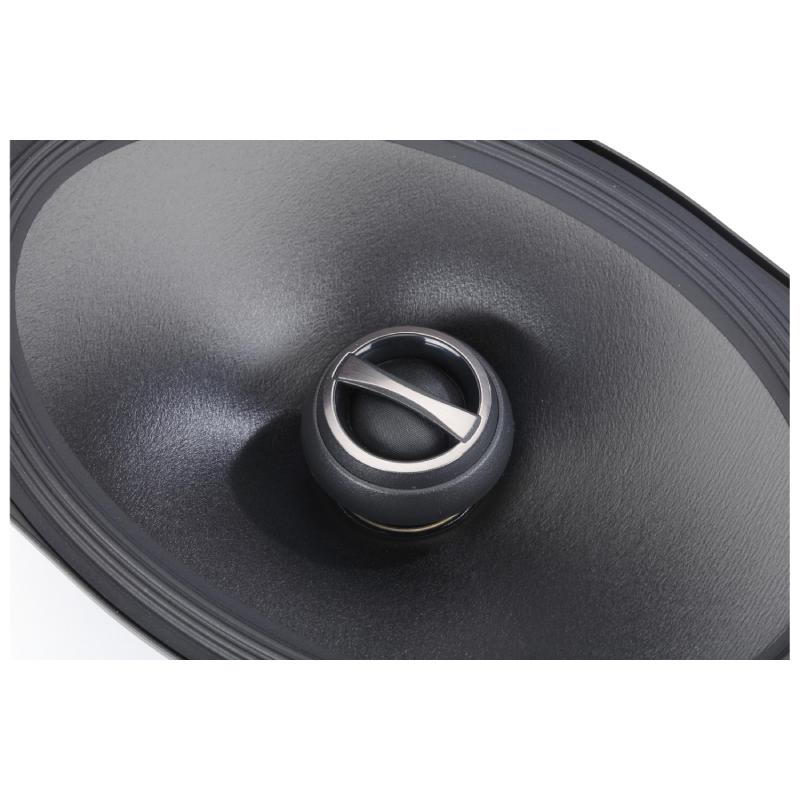

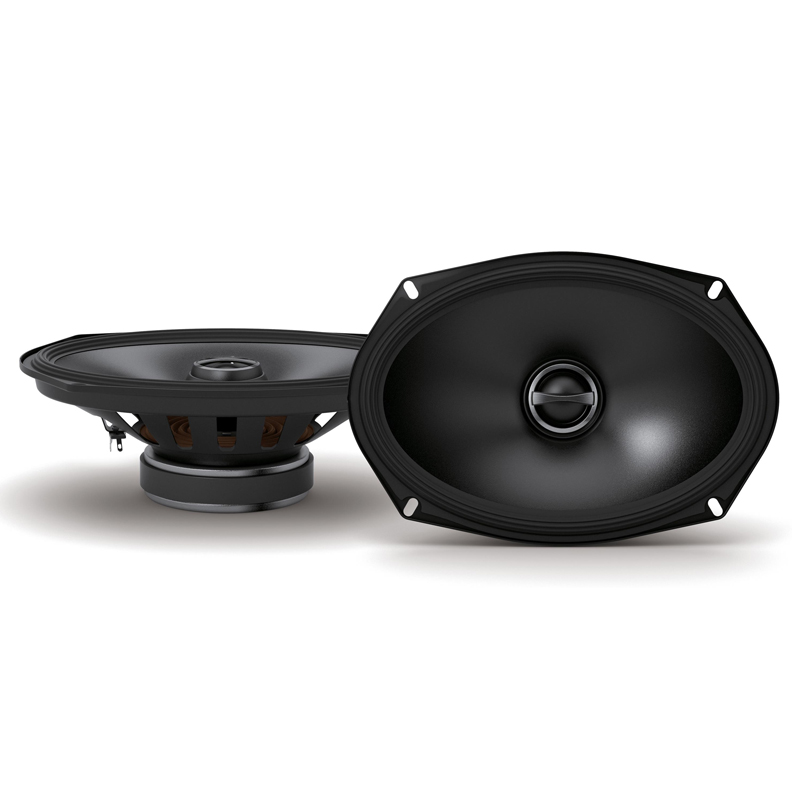

S-S69 S-Series 6"X9" 85W RMS (260W Peak Power Handling) 2 Way Coaxial Car Speaker
Max RMS Power Capacity: 85W
Peak Power Capacity: 260W
Frequency Response: 65Hz-22kHz
Nominal Impedance: 4 ohms
Incredible sound quality
Perfect for an OEM upgrade with many sizes to choose from to suit almost any vehicle
Now available in a 6x9-inch component set, perfect for newer trucks and SUVs
Larger voice coil and new CFRP (Carbon Fiber Reinforced Plastic) cone
Now with Alpine’s patented HAMR (High Amplitude Multi-Roll) Surround, allowing for large amounts of linear air movement
1-inch silk dome tweeter (3/4-inch silk dome tweeter on the S-S40 speaker)
Grilles available for 6x9-inch, 6.5-inch, and 5.25-inch models (grilles sold separately)
S-Series speakers deliver the winning combination of incredible sound and value within an entry-level category.

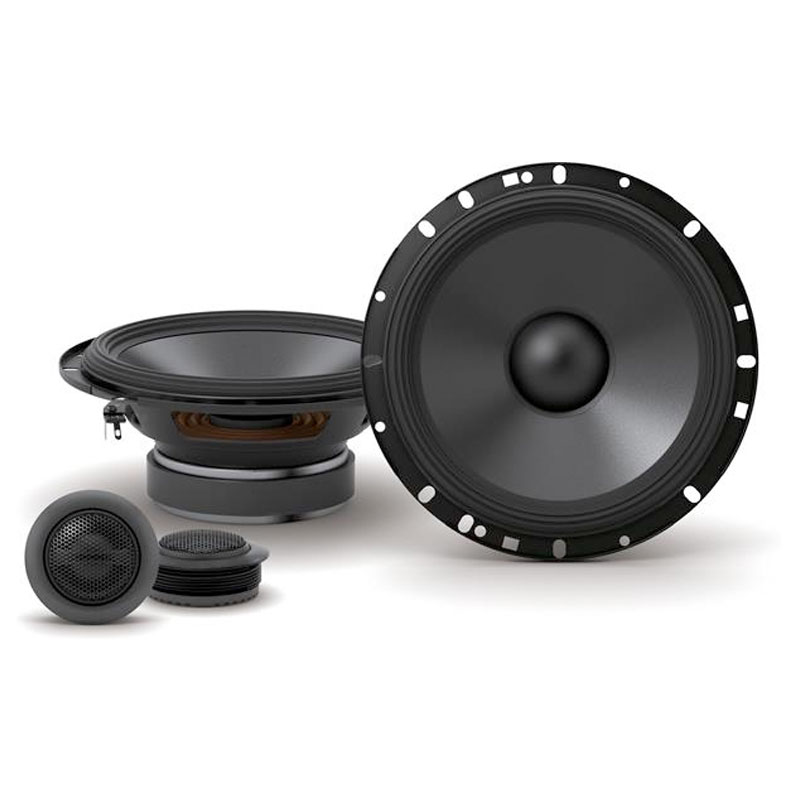

S-S65C S-Series 6.5" 80W RMS (240W Peak Power Handling) 2-Way Component System
component speaker system includes 2 woofers and 2 tweeters
6-1/2" carbon fiber-reinforced plastic woofer cone with specialized rubber surround

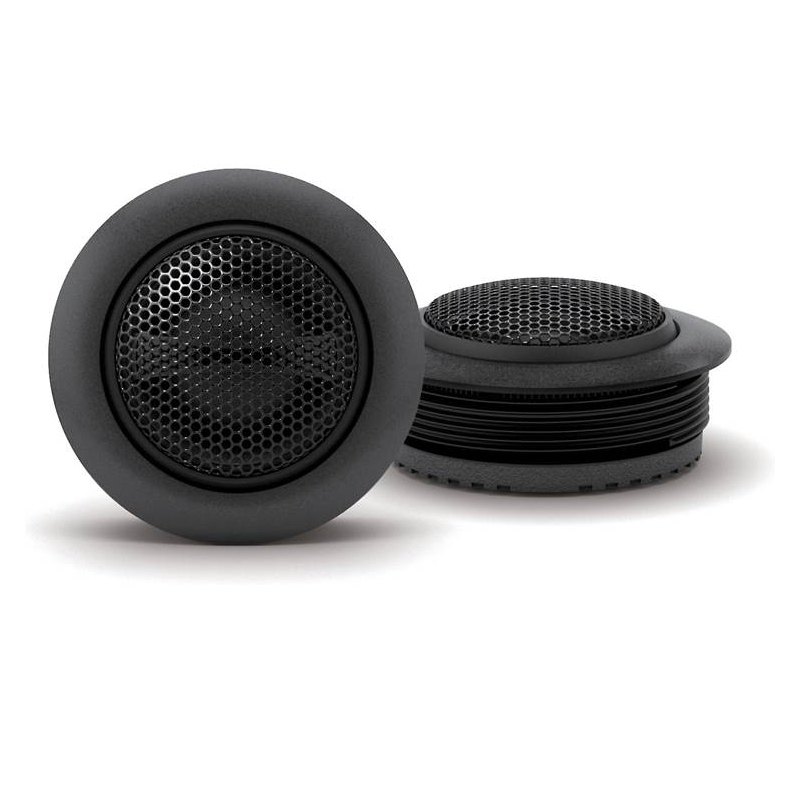

1" silk dome tweeter with inline crossover
handles up to 80 watts RMS (240 watts peak power)
frequency response: 70-22,000 Hz
sensitivity: 88 dB
woofer mounting depth: 2-5/16
GRILLES NOT INCLUDED

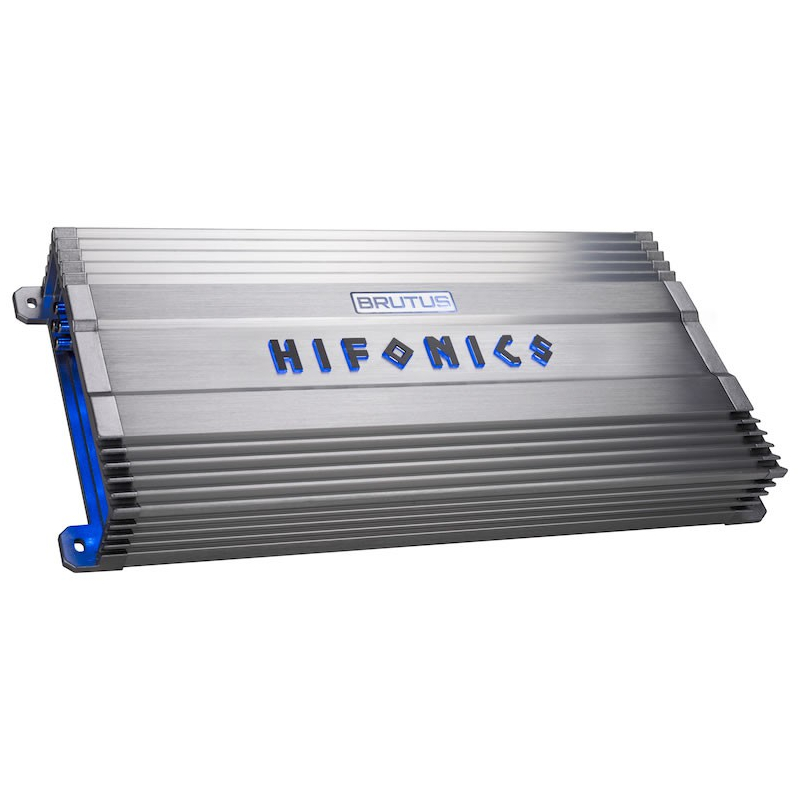

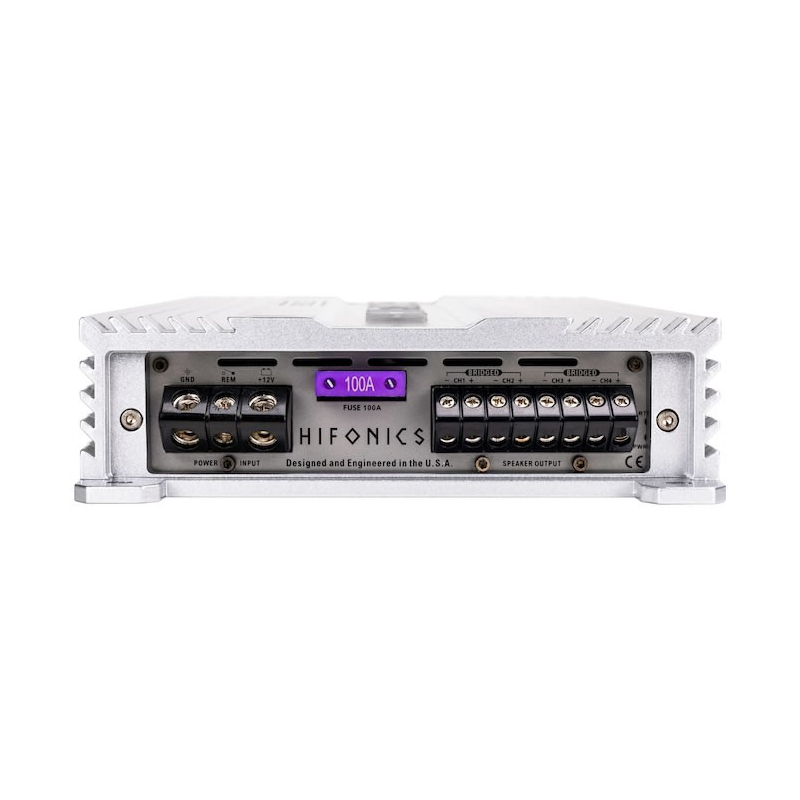

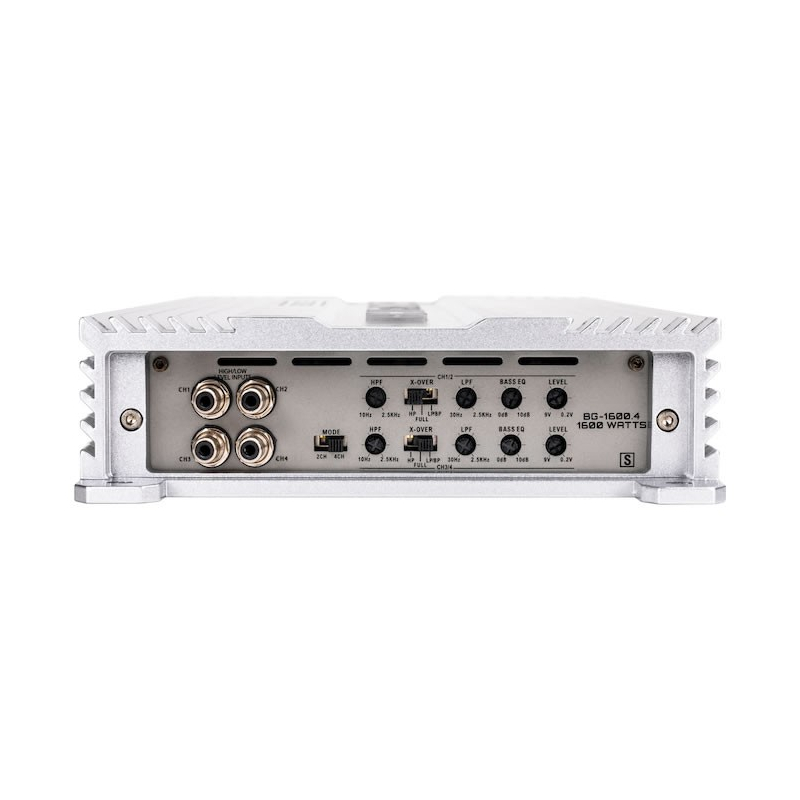

BG-1600.4 1600 Watts BRUTUS Gamma Four Channel Car Audio Amplifier
CEA STANDARDS: CTA-2006B Compliant. CTA stands for Consumer Technology Association and Hifonics has been a member for decades.
CLASS: Super A/B Class™
TOTAL CHANNELS: 4
POWER @ 1 OHM (CH X WATTS): N/A
POWER @ 2 OHMS (CH X WATTS): 4 x 400
POWER @ 4 OHMS (CH X WATTS): 4 x 200
MONO BRIDGED @ 4 OHMS (CH X WATTS): 2 x 800
CROSSOVER: Variable Electronic 12dB Per Octave
VARIABLE HIGH PASS CROSSOVER 12DB PER OCTAVE: 10Hz-2.5KHz
VARIABLE LOW PASS CROSSOVER 12DB PER OCTAVE: 30Hz-2.5KHz
TONE CONTROL/PARAMETRIC EQ: Built-in bass control
BASS BOOST: 0-10dB
SUBSONIC FILTER: 15Hz-35Hz
PHASE SHIFT: 0-180 Degrees
VARIABLE VOLTAGE: .2 to 9V
FREQUENCY RESPONSE: 10Hz-22kHz
TOTAL HARMONIC DISTORTION (THD): < 0.5%
SPEAKER LEVEL AUDIO INPUTS: Yes
POWER TERMINAL 12V/GND: 4 AWG
SPEAKER TERMINAL WIRE GAUGE: 12 AWG
