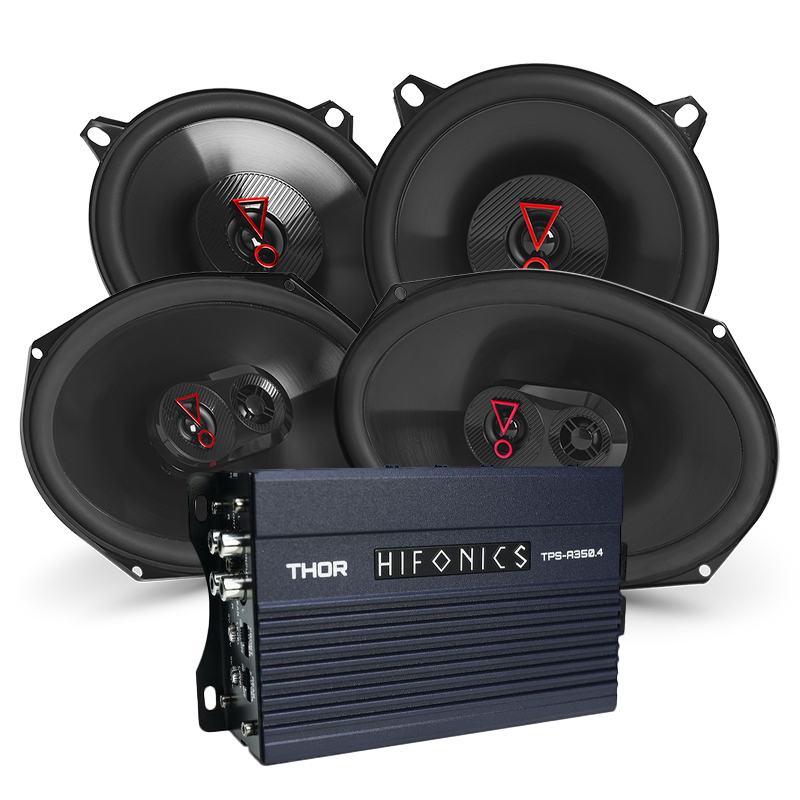

What's Inside?
- 1 Pair of JBL Stage3 9637F
- 1 Pair of JBL Stage3 527F
- 1 Hifonics TPS-A350.4

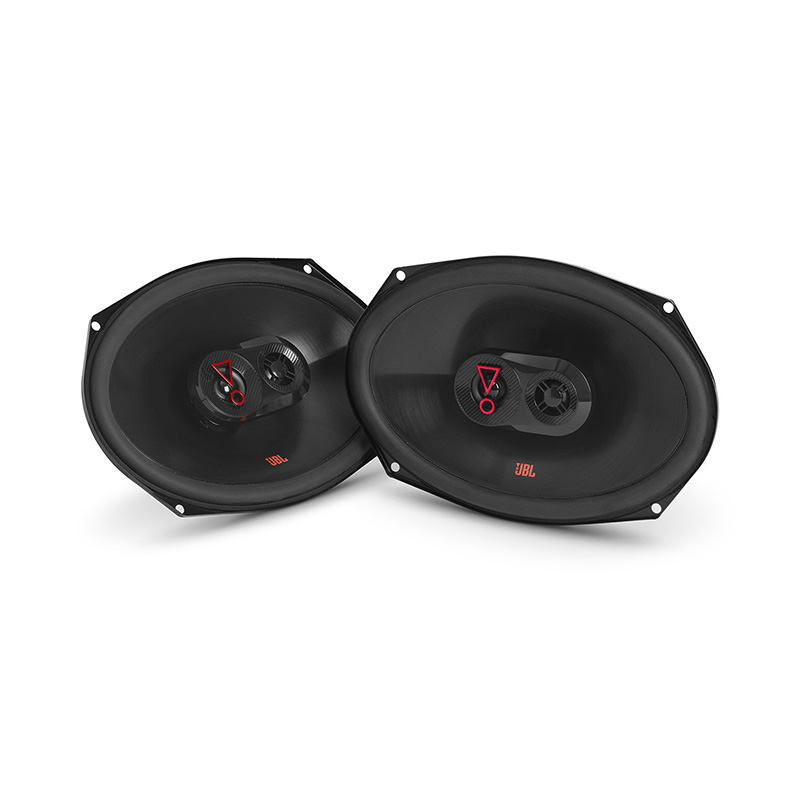

Stage3 9637F 6x9" 75W RMS (375W Peak Power Handling) 3-ohm Impedance 3-Way Car Speakers
JBL Stage3 speakers bring patented technologies, world-class engineering and JBL pro sound heritage together to create a powerful line of car audio loudspeakers. Focusing on performance and fitment, they bring unrivaled sound performance to your vehicle. The high output 2 ohm DCR design extracts every watt of power from the amplifier or head unit enabling the patented Plus One™ woofers to deliver high output and solid deep bass performance. Our rigorous OEM-level reliability testing provides peace of mind when it's time to crank it up for that inimitable JBL adrenalin surge.
General Specifications:
- Power Handling: 75 watts RMS
- Peak Power: 375 Watts
- Sensitivity (@ 2.83V/1m): 93dB
- Frequency Response: 50Hz – 20kHz
- Impedance: 3ohms

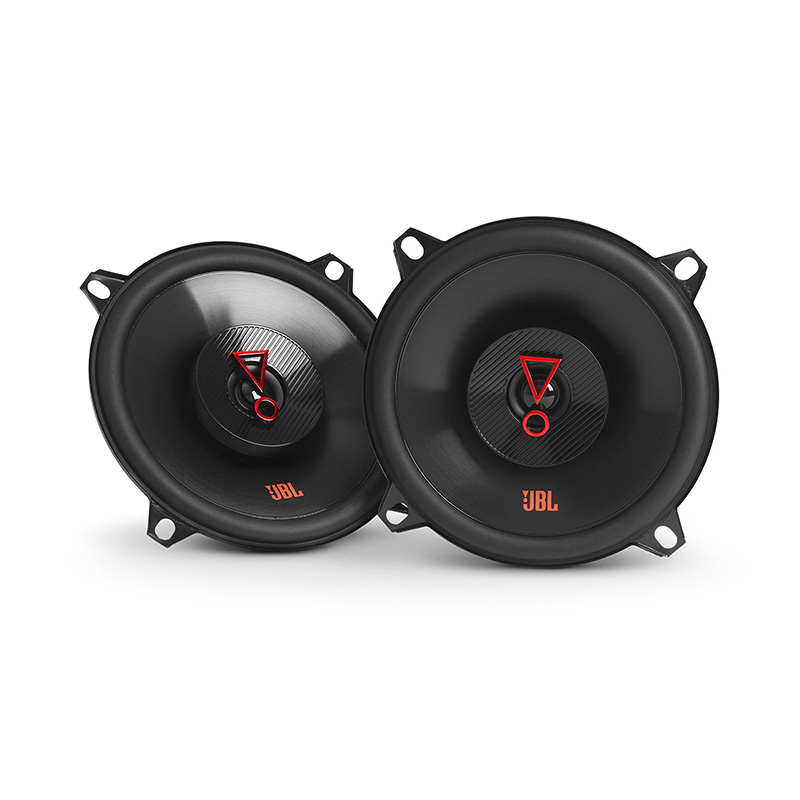

Stage3 527F Stage3 Series 5-1/4" 40W RMS (200W Peak Power Handling) 2-Way Coaxial Car Speakers
JBL Stage3 speakers bring patented technologies, world-class engineering and JBL pro sound heritage together to create a powerful line of car audio loudspeakers. Focusing on performance and fitment, they bring unrivaled sound performance to your vehicle. The high output 2 ohm DCR design extracts every watt of power from the amplifier or head unit enabling the patented Plus One™ woofers to deliver high output and solid deep bass performance. Our rigorous OEM-level reliability testing provides peace of mind when it's time to crank it up for that inimitable JBL adrenalin surge.
General Specifications:
- Power Handling: 40 Watts RMS
- Peak Power: 200 Watts
- Sensitivity (@ 2.83V/1m): 91dB
- Frequency Response: 75Hz – 20kHz
- Impedance: 3-ohms

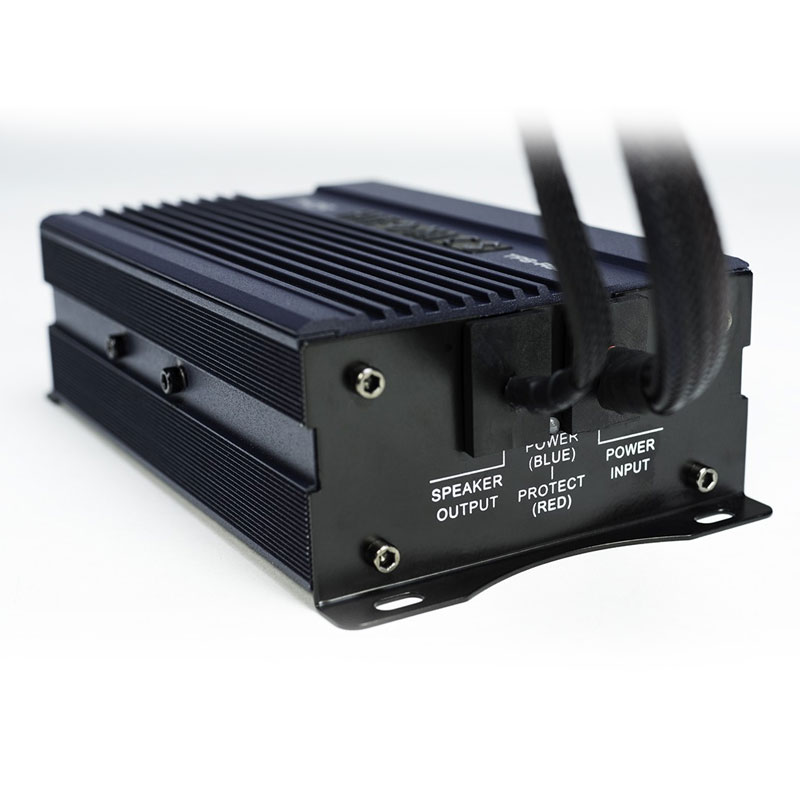

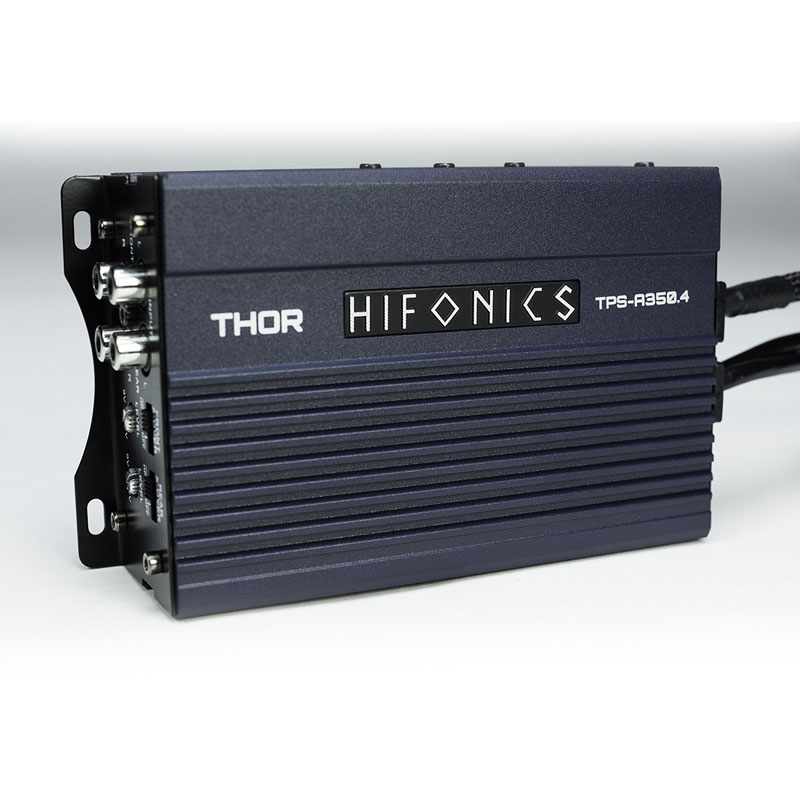

TPS-A350.4 High Performance Compact 4 Channel Digital Amplfier - 4 x 80 Watts @ 4 Ohm
Features & Benefits
- MARINE GRADE PROTECTION: YES
Amplifiers are ABYC & ASTM certified which defines that marine amplifiers must use conformal coated PC boards to resist corrosion from salt spray & moisture.
- PRE-AMP CIRCUITRY: Low Noise Pre-Amplifier Stage
Special preamplifier reduces incoming noise from source units dramatically improving sound quality
- INPUTS: 2 Pair, RCA Nickel-Plated
High temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant
- OPERATION MODE: Four channel operation
Flexible installation allows this amplifier to run in four channel or bridged mono mode.
- CROSSOVER / SIGNAL SHAPING: Switched FULL / LPF / HPF
Complete control of amplifier signal, essential when using two or more amplifiers
- CLASS / TOPOLOGY: Full Range Class D
Highly efficient circuit topology which helps the amplifer develop a lot of power in a very small heatsink.
- OUTPUT DEVICES TECHNOLOGY: PWM MOSFET Power Supply
Stable power through the PC board with minimal heat generation
- HEAT SINK: Aluminum
Quickly dissapates heat to allow the amplifer to run lower impedance for longer duration
- POWER SUPPLY: Simpatico Coil Design
The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices
- OUTPUT CONNECTIONS: Quick Dissconect Wires, RCA Connections
Quickly remove amplifer when you are putting machine up for the winter of as a security precaution
- CONNECTIONS TYPE: Gold-plated connections
Gold-plated power, ground, speaker and RCA corrosion resistant connections
- DIAGNOSTICS: Three-stage protection circuits
Monitor thermal, overload, DC, and speaker short protection with lighted indicators on the amplifier end panel
- MARINIZED / WATERPROOF: YES
Water resistant for durability in any environment
- UPC:
- Weight: 26
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
