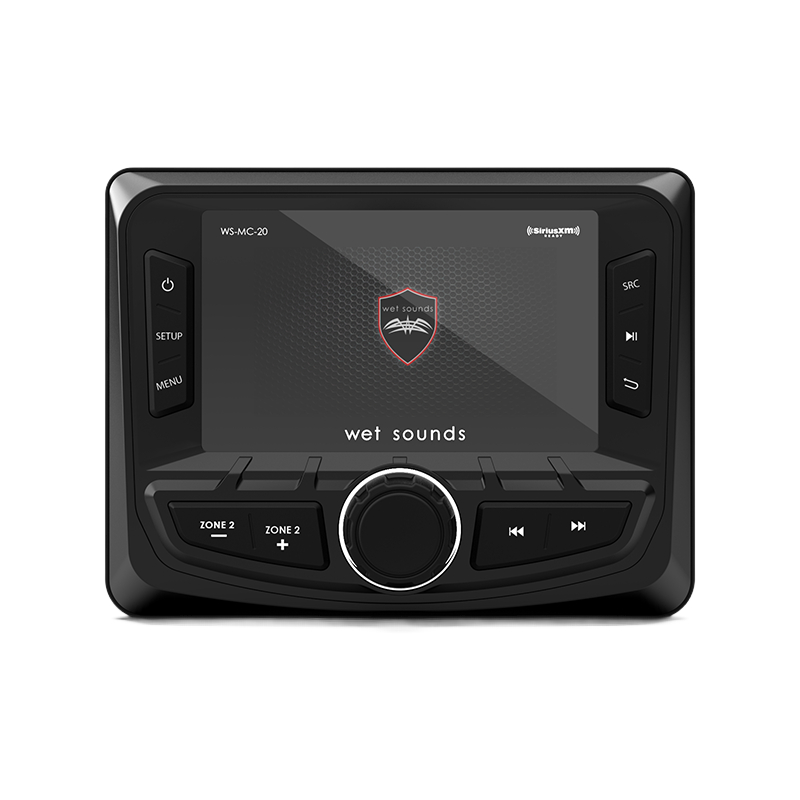

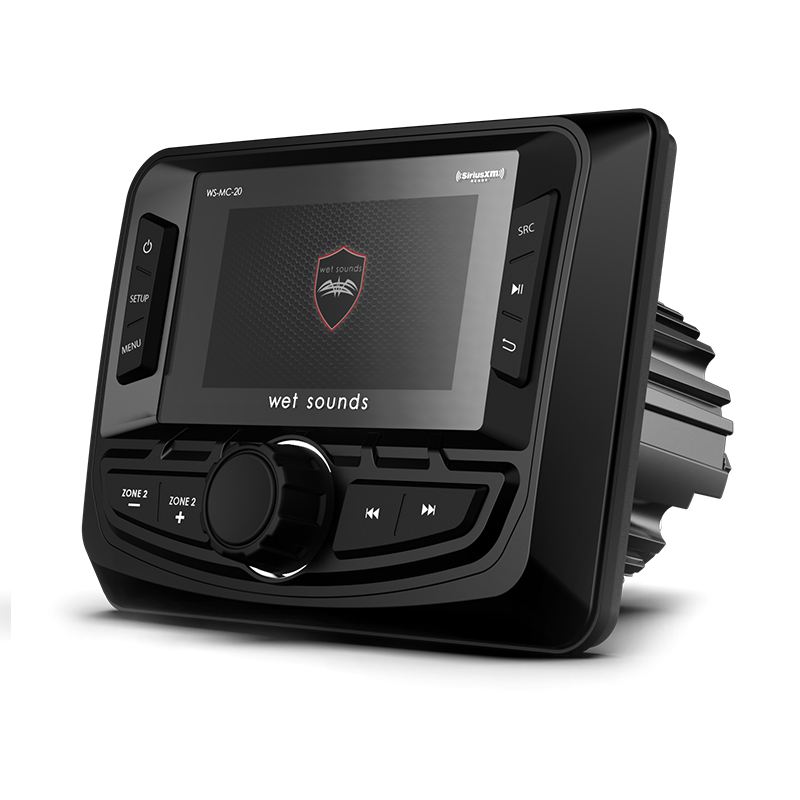

Wet Sounds WS-MC-20 MC-20 Series 3" Full-Color TFT Display Marine Digital Media Receiver with Built-In Bluetooth, SiriusXM-Ready, and NMEA 2000 Connectivity
We are a Wet Sounds authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 3" MC-20 Series Marine Digital Media Receiver with Built-In Bluetooth
- • Marine Digital Media Receiver (20A Fuse)

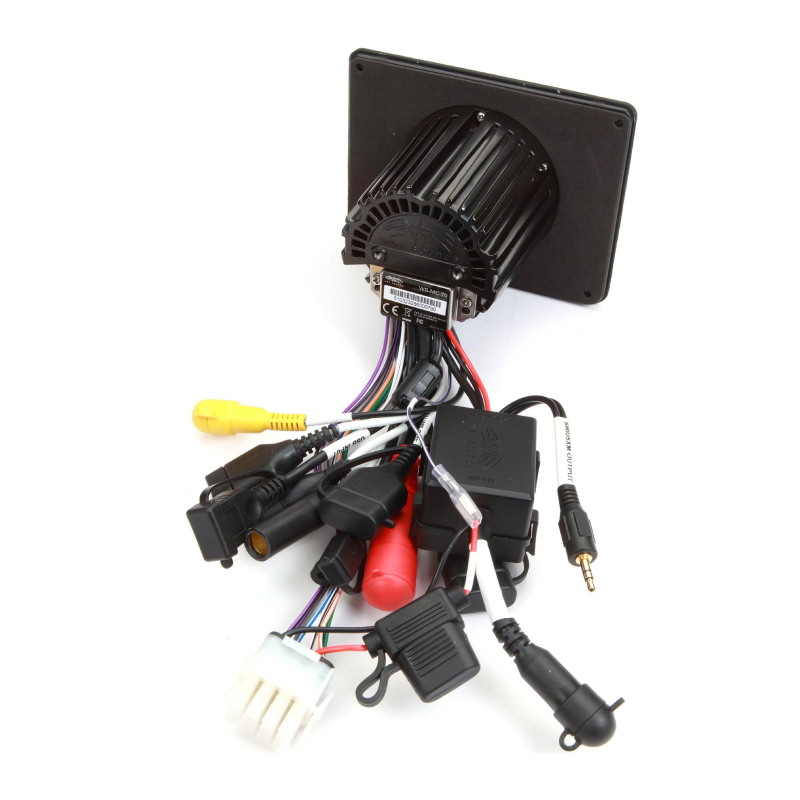

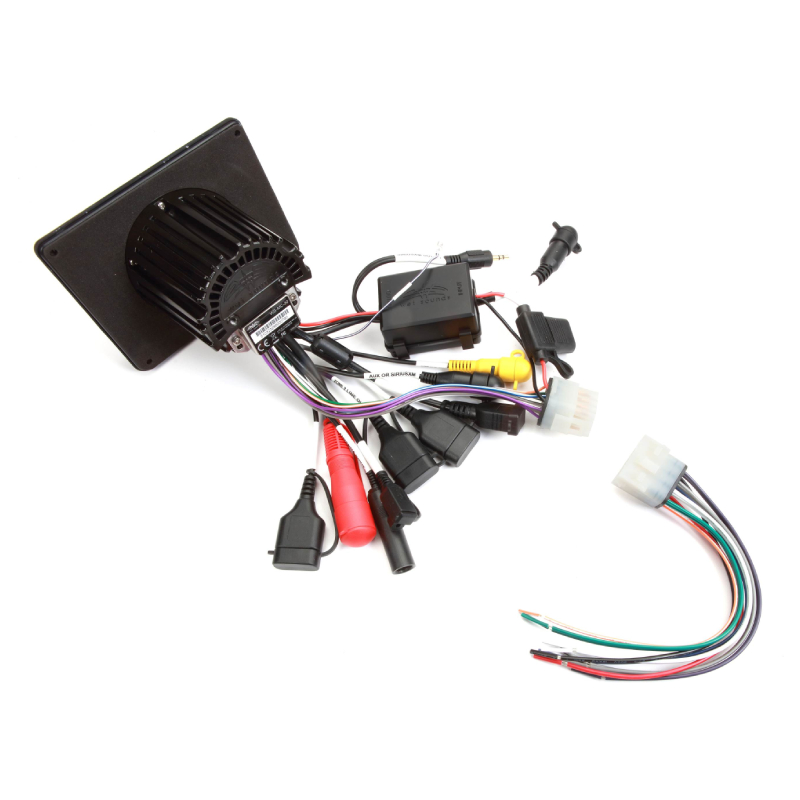

- • Wiring Harness
- • Trim-Ring
- • Front-Panel Cover
- • Mounting Bracket
- • (4) Screws
- • (2) Bolts
- • (8) Hex-Nuts
- • Owner's Manual
Why Choose Wet Sounds WS-MC-20 Marine Receiver?
Compact Media Receiver for Powerful Sound on the Water
The Wet Sounds WS-MC-20 is a compact, high-performance media receiver that delivers powerful sound with 50W x 4 output. It features an AM/FM/Weather Band tuner, easy Bluetooth® streaming for both Android and iOS, and multiple ways to play your music, including USB, Pandora, and auxiliary inputs. The vibrant 3” color display shows album art and adjusts for day or night use, while independent zone control lets you fine-tune the sound to your liking. With an upgradeable system and simple, sleek design, the WS-MC-20 is perfect for anyone looking for a compact yet powerful audio experience.
Premium Audio in Tight Spaces
Experience unmatched performance in a compact package with the Wet Sounds WS-MC-20, designed to fit into tight spaces while delivering premium audio from AM/FM, Weather Band, Bluetooth®, and SiriusXM-Ready® sources. With optional NMEA 2000® connectivity and backup camera support, it combines convenience and safety. The vibrant 3” full-color display showcases album art, while effortless Bluetooth® pairing for Android and iOS allows easy playlist and folder browsing via Bluetooth® or USB. Perfect for those looking for top-tier sound and versatility in a space-saving design.
Elevate Your Audio Experience with the Wet Sounds WS-MC-20
Unleash the power of sound with the Wet Sounds WS-MC-20, designed to elevate your audio experience with a robust 4x50W output and customizable preamp options for front, rear, and subwoofer or zone 2 control. Enjoy independent volume control for your secondary zone, along with advanced sound tuning options like selectable low-pass crossovers. With reverse camera video input for added safety, day/night illumination that adjusts with lighting conditions, and compatibility with Wet Sounds transom remotes, this unit combines convenience and performance seamlessly. Plus, an optional flush mount bezel is available for a sleek installation. Perfect for those who crave both power and precision in their audio system.
Frequently Asked Questions (FAQ)
- • Why isn't the receiver turning on?
Check the battery power, ground connection, fuse, and wiring harness. Make sure the power connections are tight and the system's battery has sufficient charge.
- • Why can't my phone connect through Bluetooth?
Make sure Bluetooth is enabled on your phone and that the receiver is in Bluetooth mode. Remove an old pairing from your phone and try pairing again.
- • Why does Bluetooth keep disconnecting?
Keep the phone within a reasonable range and remove other nearby Bluetooth connections that may interfere. Restarting both devices can also restore the connection.
- • Why is there no sound even though the display is working?
Check the selected audio source, volume, mute setting, RCA connections, and amplifier. If using an external amplifier, verify that it is receiving the audio signal.
- • Why does the audio cut out when the boat gets moving?
Inspect the power and ground connections for looseness or corrosion. Also check speaker and RCA connections for movement-related interruptions.
- • Why is the AM/FM radio reception weak?
Check the antenna connection and antenna location. Poor reception can result from a loose antenna connection or interference from nearby electrical equipment.
- • Why does the unit forget my settings after I turn it off?
Check the constant battery connection and wiring. A disconnected memory-power lead can prevent the receiver from retaining saved settings.
- • Why is the display difficult to see in bright sunlight?
Direct sunlight can make marine displays harder to read. Adjust the viewing angle and display settings, and install the receiver where glare is minimized.
- • Why does the receiver restart unexpectedly?
Check for unstable battery voltage, loose power connections, poor grounding, or a weak electrical connection. These issues can interrupt power to the receiver.
- • Is it safe to install in an exposed marine location?
It is designed for marine applications, but proper installation is still important. Mount it securely and follow the manufacturer's recommendations for protecting the wiring and connections.
- Maximum Power : 50 Watts
- RMS Power Output : 4x25 Watts
- Preamp Voltage : 2 volts
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- Rear USB Input : 3
- Preamp Outputs : 6
- Color : Black
Features:
- Compact Design: Ideal for installation in smaller, tighter spaces
- Audio Source Options: AM/FM/Weather Band, Bluetooth® Audio, SiriusXM-Ready® (tuner and subscription sold separately)
- NMEA 2000® Connectivity: Optional interface accessory (WS-G2-NMEA-20) required
- Backup Camera Support: Video input for reverse camera with reverse trigger
- Bluetooth® Streaming: Simple and secure pairing for Android & iOS (A2DP/AVRCP 1.4)
- 3” Ultra-Bright Full Color TFT Display: Displays album art from compatible devices
- Playlist and Folder Browsing: Via Bluetooth® or USB connection with compatible devices
- Internal Power Amplifier: 4x50W @ 2 Ohm max output
- Preamp Outputs: Front, Rear, and switchable Zone 2 or Subwoofer output with level control
- Independent Volume Control: For secondary zone (full range or subwoofer) with selectable low pass crossover at 60/80/100Hz and slope options of 12dB or 24dB per octave
- Reverse Camera Video Input: Includes reverse trigger for added safety
- Day/Night Illumination & Dimming: Adjustable based on lighting conditions
- Compatible with Wet Sounds Transom Remotes: Accepts WS-G2-CTR and WS-G2-TR transom remotes
- Optional Flush Mount Bezel: WS-MC-20-FMK available separately
Specifications:
- Tuner: AM/FM/Weather Band Tuner with RDS
- Source Play: Bluetooth® Streaming, Auxiliary, USB, and Pandora Inputs
- Adjustable Input Gains: Customizable for all input sources
- Bluetooth® Connectivity: Simple and secure pairing for Android & iOS (A2DP/AVRCP 1.4)
- Power Output: Internal Power Amplifier 50W x 4 @ 2Ω max output
- Dimensions: 5.20" W x 4" H x 4.40" D
- Control: Front panel-mounted independent secondary zone control (Full Range or Subwoofer)
- Illumination: Day/Night illumination and dimming
- Display: 3” ultra-bright full color TFT display, displays album art via compatible devices
- Built-in Bluetooth®: Yes
- Zone Control: Yes
- Browsing: Playlist and folder browsing via Bluetooth® or USB connection on compatible devices
- Operating System: Fully upgradeable via USB port
- UPC: 814820029888
- Weight: 8
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
Do you own this product?
Write a review!
-
Got this cool unit to swap out my old one that refused to buddy up with my phone. Now, I'm cruising with clear, crisp sounds, and it's a breeze to operate. Only hitch is, that display gets a bit shy in the sun.
