Wet Sounds WWX-DZ-BT Dual Zone Bluetooth Controller Receiver for Off-road Vehicles
We are a Wet Sounds authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Dual Zone Bluetooth Controller Receiver
- • Bluetooth controller w/ attached 18" wiring harness (inline 2A ATO fuse)
- • Locking collar (attached)
- • Owner's Manual
Why Choose Wet Sounds WWX-DZ-BT Marine Accessory?
Allows You to Control Your Volume Levels Independently
Adding Bluetooth® to your stereo just got easier. Introducing the new Dual-Zone Bluetooth® Controller from Wet Sounds™. 2-Zone control allows you to control your volume levels independently as well as together for the best user experience.
Sealed Construction
Equipped with Bluetooth® connectivity, as well as Auxiliary, so you can go wireless or corded. Sealed construction makes this unit perfect for marine conditions and easily mounts in a 1-1/8" opening, giving you a clean flush look.
Frequently Asked Questions (FAQ)
- • How do I pair my phone with the Bluetooth controller?
Turn on Bluetooth and select the controller from your device's available devices list. Make sure the unit has power and is not already connected to another device.
- • What should I check if Bluetooth will not connect?
Restart Bluetooth on your phone and confirm the controller has power. Remove previous pairings if necessary, then move your device closer before reconnecting.
- • How do the two audio zones work?
The dual-zone design allows separate audio control for two areas. Follow the system wiring instructions and equipment requirements when configuring each zone independently.
- • What causes music to cut out while riding?
Check the Bluetooth signal range, power connections, and speaker wiring. Distance, physical obstructions, or loose connections can cause intermittent audio during vehicle operation.
- • How can I improve Bluetooth sound quality?
Keep your phone within range and check the source volume. Inspect audio connections and avoid excessive interference from other nearby wireless devices.
- • Can I connect amplifiers to both audio zones?
Yes, when amplifiers and wiring are configured correctly. Verify the signal outputs and follow the recommended wiring configuration for independent control of each zone.
- • Why is one zone quieter than the other?
Check individual zone volume settings, amplifier gains, and wiring connections. Different speaker configurations or amplifier settings can cause uneven volume between zones.
- • Is it suitable for off-road vehicle installations?
Yes. It is designed for off-road audio applications. Mount the controller securely and protect wiring connections from excessive vibration, moisture, and physical damage.
- • What should I inspect if there is no audio output?
Check the power supply, Bluetooth connection, audio outputs, amplifiers, and wiring. Confirm your paired device is playing audio and the correct zone is activated.
- • Can the controller remember previously paired devices?
Bluetooth memory behavior depends on the controller and connected devices. If automatic reconnection fails, manually select the controller from your Bluetooth settings.
Features:
- Control Volume +/-, Track Fwd/Prev, Play/Pause, & Aux In
- Controls Volume of 2 Separate Zones. Zones Can Also be Linked for Combined Control
- 3.5mm Connections for Zone Input/Outputs
- Amplifier Remote Turn-On Output
- Sealed Construction Designed for Marine Applications

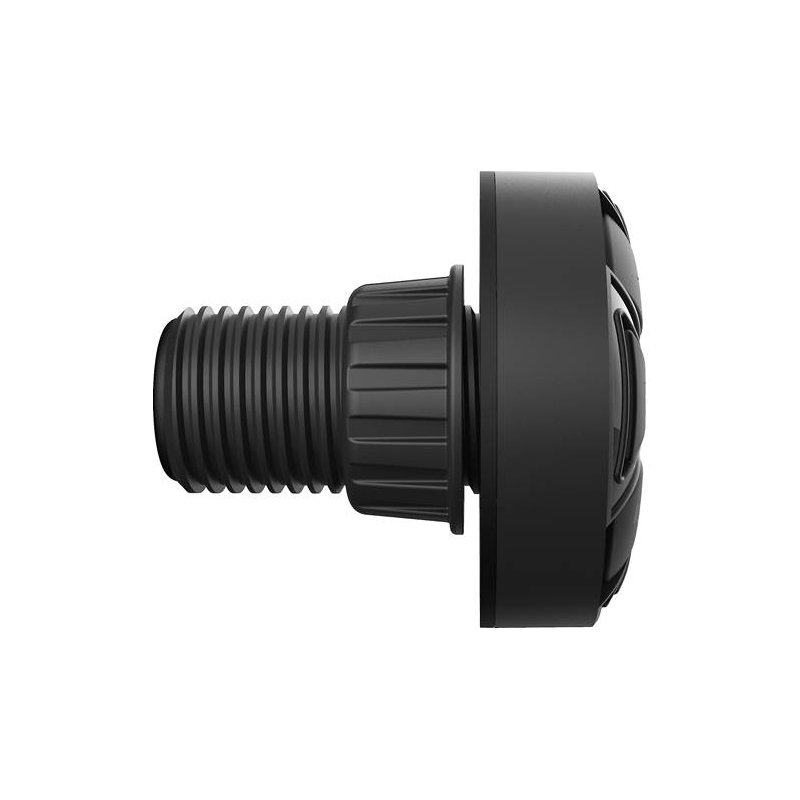

- Mounts in 1-1/8” Hole Opening
- Blue Back-Lit Button Illumination w/ Seperate Illumination for Source Identification
- Volume Zone Illumination Goes Blue when Joined Together, Red When Used Independently
- 1.5' Wiring Harness Length

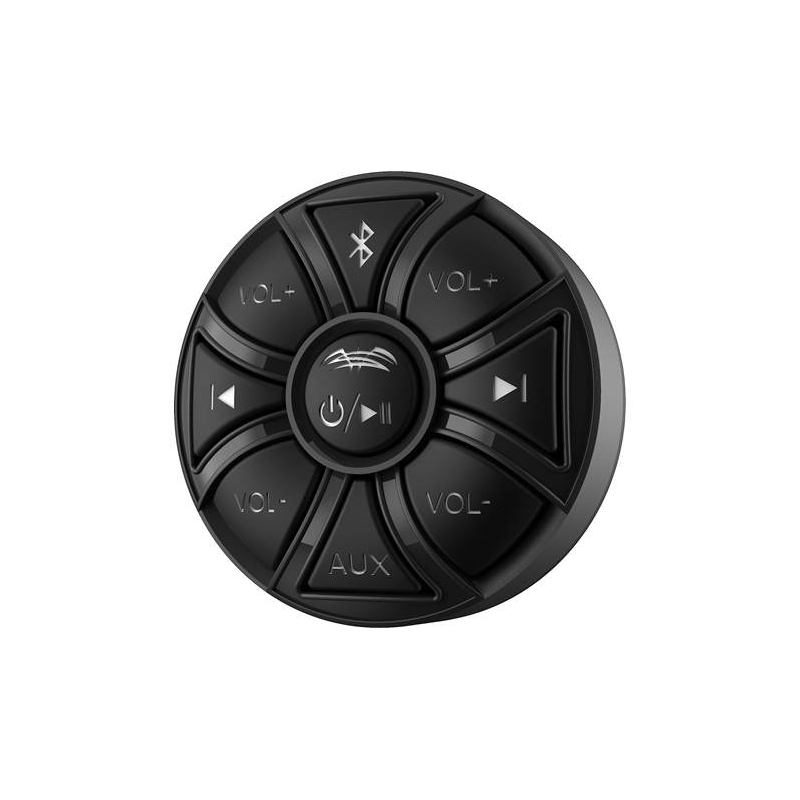

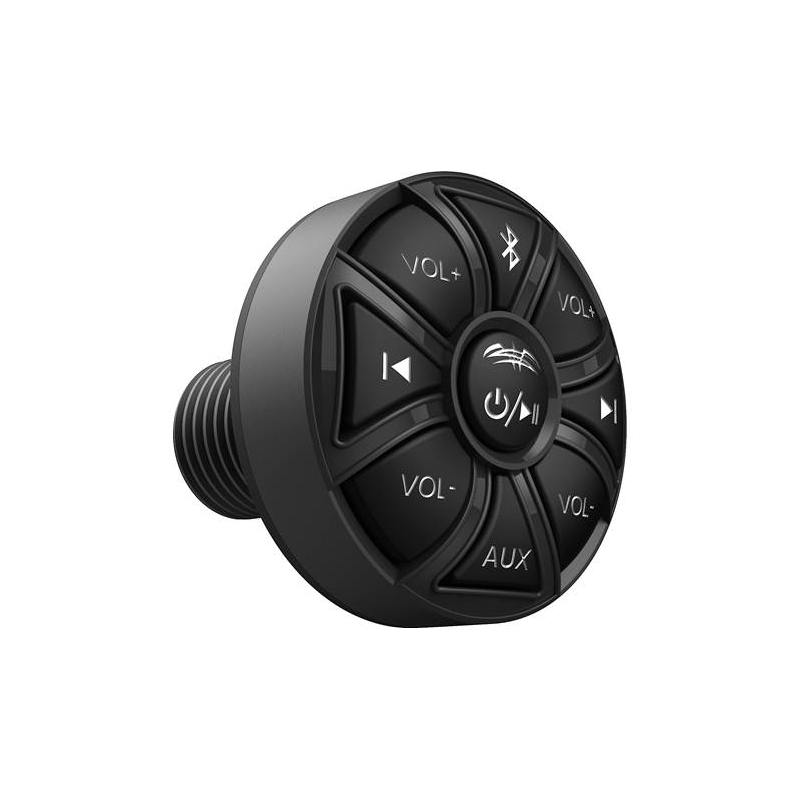

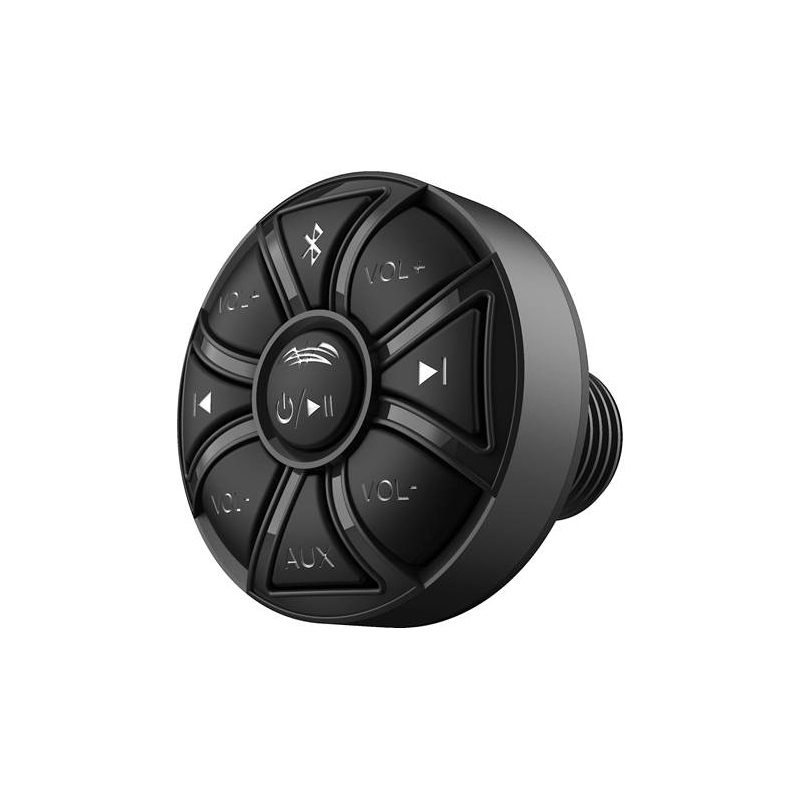

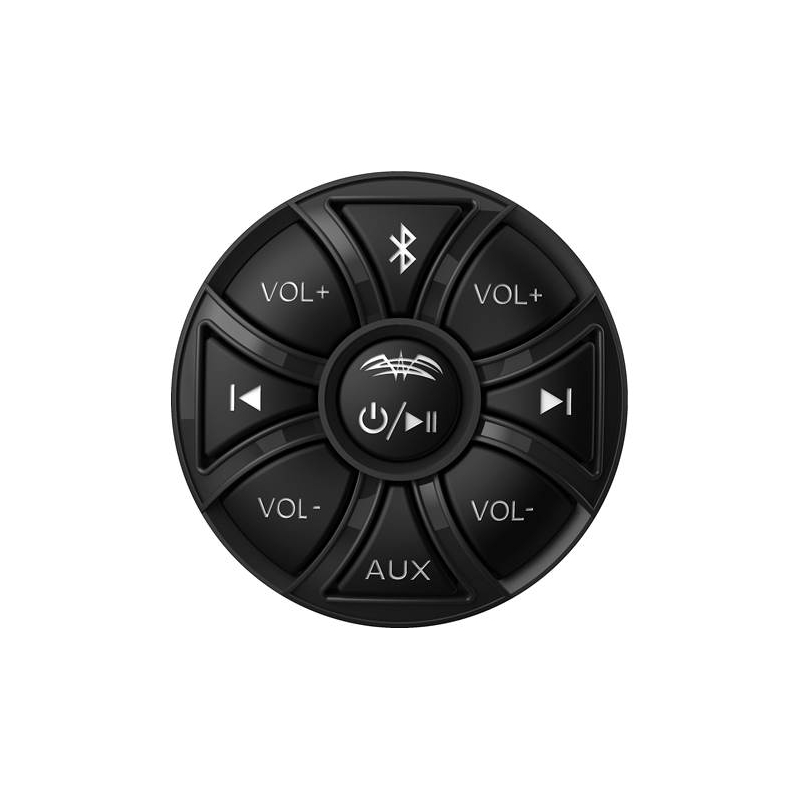

Controls: The DZ-BT's front-panel controls include the following:
- Vol +/-: Two sets of Vol +/- buttons are provided, one for each Zone. If both Zones are Unlinked, the left side controls light blue while the right side controls light red. If both Zones are Linked, all four buttons light blue.
- Power/Play/Pause: Used to power the unit On/Off. When Bluetooth is the current source, these will Play and Pause audio playback.
- Track Forward/Backward: Changes tracks with a Bluetooth source.
- Bluetooth: Selects Bluetooth as the source and is used to initiate phone Pairing.
- Aux: Selects the Auxiliary input as the source.
Wiring: All of the DZ-BT's wiring is contained in an 18" attached harness that includes the following:
- Yellow (inline 2A fuse): Constant +12V
- Red: Switched +12V
- Blue: Remote output, for activating outboard amplifiers (sold separately).
- Black: Ground
- Zone 1: 3.5mm Audio output for Zone 1.
- Zone 2: 3.5mm Audio output for Zone 2.
- Aux Input: 3.5mm Audio input for portable audio playback devices.
- UPC: 810042170803
- Weight: 5
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
