Diamond Audio MSHXM694LK Harley Davidson Cut In Lid Kit

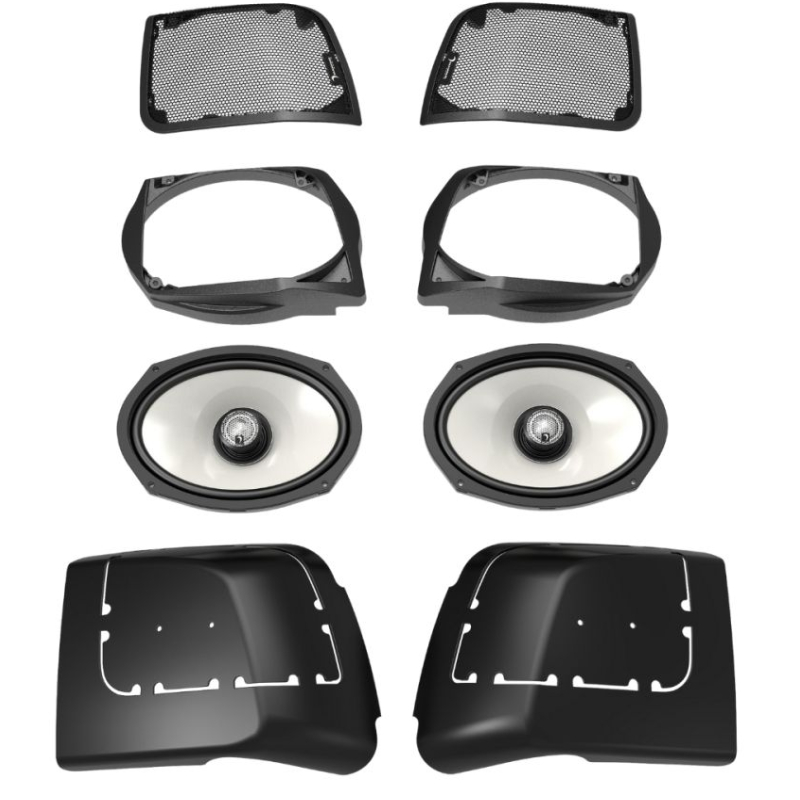

14+ Harley Davidson Cut In Lid Kit MSHXM694LK
The MSHXM694LK will set the new standard in cut in lid kit performance and quality. The larger american made voice coil and high BL Neo Motor structure assure high power handling and maximum low end performance. Marine Grade assures that these are element ready, producing quality no matter the weathering.
Features:
- 100W RMS,450W MAX Power Handling
- 2-Way 1 inch 25mm Titanium Dome Tweeter Speaker System (Pair)
- Flush Mount Design
- Water Spray and Salt Water Resistant,100% UV Stable
- Ultra Small Neodymium Motor Structure With Max Xmax Suspension
- High Temp Injection Molded Composite Basket
- Molded,UV-Coated,Patent Pending Waterproof Cone
- Optional Remote Control - Part No. “DALEDLC”
- Mounting Diameter: 6.38 x 9.33 in / 162 x 237 mm
- Mounting Depth: 2.28“ / 58mm
- Grill is not included
Specifications:
- Nominal Diameter (inch/mm): 6×9″ (152×229)
- Description: 2-Way
- Nominal Impedance (ohms): 4Ω
- Frequency Response: 60Hz-18KHz
- Voice Coil Diameter (inch/mm): 1.75 (44.7)
- Power Handling (RMS/Peak): 150/300
- Fs-Free Air Resonance (Hz): 70
- Vas (Liter): 0.698 (19.5)
- Qts: 0.78
- SPL (db): 12dB
- Mounting Diameter (inch/mm): 8.64×6.0″ (219.5×152.5mm)
- Mounting Depth: 3.15″ (80mm)
- Grille OPTIONAL
- UPC: 471619060639
- Weight: 13
