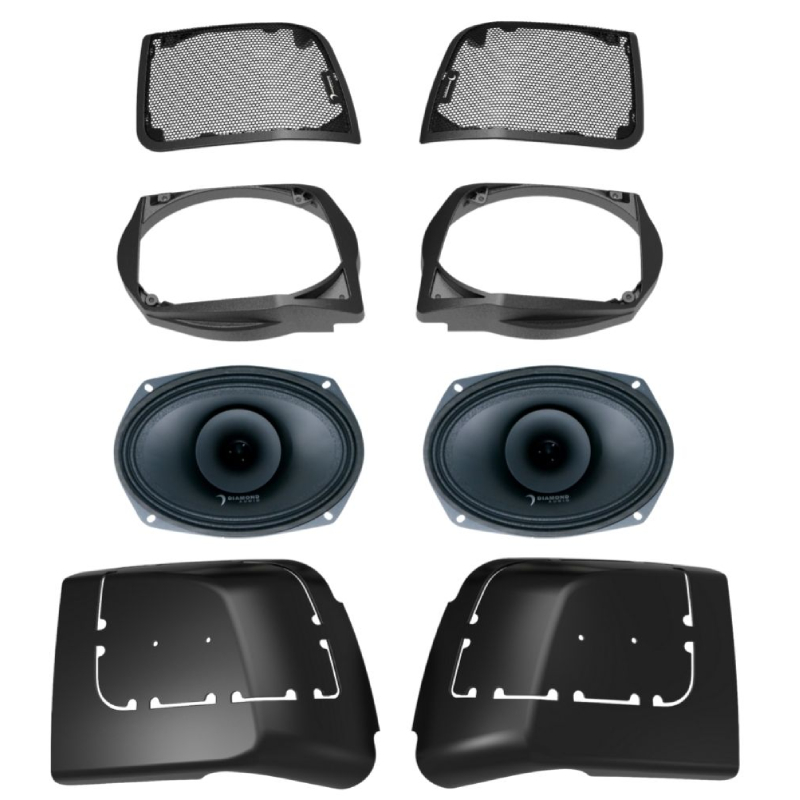

Diamond Audio MSMP694LK Harley Davidson Cut In Lid Kit
14+ Harley Davidson Cut In Lid Kit MSMP694LK
The MSMP694LK will set the new standard in cut in lid kit performance and quality. The larger american made voice coil and high BL Neo Motor structure assure high power handling and maximum low end performance. Marine Grade assures that these are element ready, producing quality no matter the weathering.
Features:
- 150W RMS/300W MAX Power Handling
- Ferrite Strontium High Temp Magnet structure
- Heavy Duty Die-cast Aluminum Basket
- 1.5” 4 Ohm - Single Layer High Temp Voice Coil with Black Coated Voice Coil former for Woofer
- 1.0” 8 Ohm - Single Layer High Temp Voice Coil for Tweeter
- Advanced Voice Coil Heat Sink Design for Better Heat Dissipation
- Frequency Response: 80Hz -18Khz
- High Sensitivity 101dB 1W/1M
- 12dB Crossover
- Mounting Depth: 3.99” / 101.3mm
- Mounting Diameter: 8.86” x 5.98” / 225 x 152mm
Specifications:
- Nominal Impedance (ohms): N/A
- Fs-Free Air Resonance (Hz): 82.6
- Vas (Liter): 18.2
- Qts: 0.42
- Qes: 0.43
- Qms: 9.42
- Re (Ω)[series]: 3.2
- Sd (cm²): 229.7
- Cms (mm/N): 0.25
- Mms (g): 15.1
- BL (T*M): 7.6
- SPL (db): (95.6) (107)
- Total Diameter: 9.33X6.57 (237X167) in. (mm)
- SPL (dB-Tweeter): 107
- SPL (dB-MidBass): 95.6
- Total Depth: 4.26 (108.3) in. (mm)
- Xmax - Inch(mm): 1.0
- Mounting Diameter (inch/mm): 8.86X5.98 (225X152) in. (mm)
- Mounting Depth: 3.99 (101.3) in. (mm)
- Magnet Diameter (E): 3.94 (100) in. (mm)
- UPC:
- Weight: 13
