Diamond Audio  MSMS694LK

14+ Harley Davidson Cut In Lid Kit includes MS69CX 6x9" 500W Peak Power Handling, 4-Ohms, 2-Way Coaxial Speakers

Item #83880

Condition:   Brand New

Product Highlights

  • Cut in lid kit for 2014+ Harley Davidson models.
  • Includes MS69CX 6x9" speakers with 500W peak power.
  • 4-ohm, 2-way coaxial speakers for clear sound.
  • Easy to install in Harley Davidson lids.
  • Designed for loud and crisp audio on the road.

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$849.99

Reg. Price $949.99  Save $100.00

Out of Stock Check out other products listed below
Diamond Audio Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:


Diamond Audio Banner for Onlinecarstereo

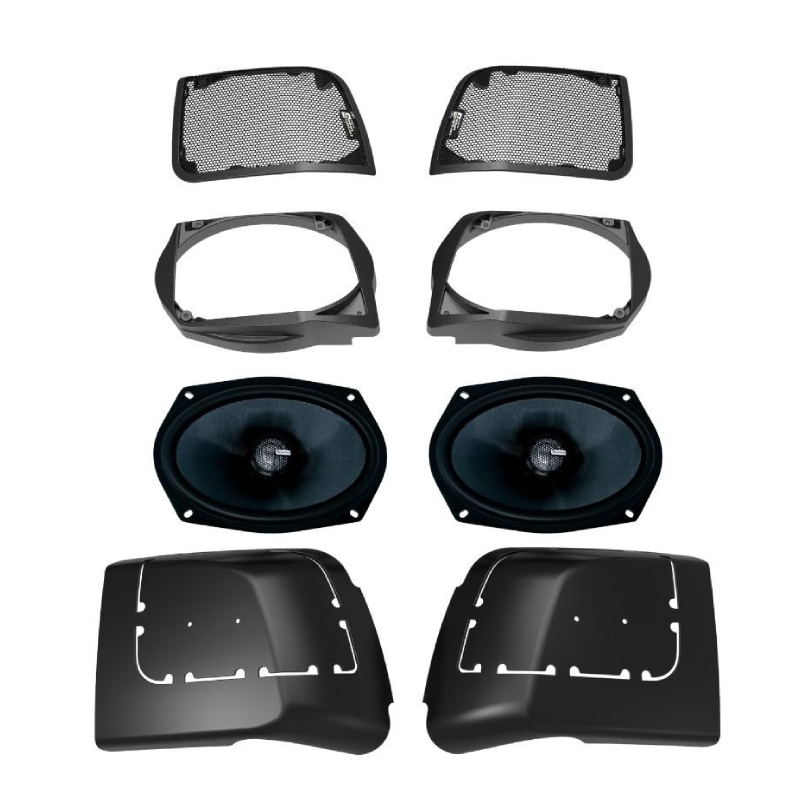

Diamond Audio MSMS694LK Harley Davidson Cut In Lid Kit

14+ Harley Davidson Cut In Lid Kit MSMS694LK

The MSMS694LK will set the new standard in cut in lid kit performance and quality. The larger american made voice coil and high BL Neo Motor structure assure high power handling and maximum low end performance. Marine Grade assures that these are element ready, producing quality no matter the weathering.



SPECIFICATIONS



FEATURES


Features:

  • 125W RMS/500W MAX Power Handling
  • 6 X 9 2-Way High Power MotorSport CoaXSub
  • Manufactured to IPx65 Marine Grade Compliant Specifications
  • 1" High Output Titanium Dome Tweeter
  • UV-Treated Thermal Molded Waterproof Kevlar Cone with Rubber Surround
  • 12dB Bessel Crossover Network
  • Super High Energy Ferrite Motor System With Milled Aluminum Top Plate
  • T-Yoke Back Plate Drilled For 35% More Cooling,Increased Power Handling
  • High-Temperature Cast Aluminum Basket



Specifications:

  • Nominal Impedance (ohms): 4Ω
  • Frequency Response: 45-23kHz
  • Voice Coil Diameter (inch/mm): 1.4 (35.5)
  • Fs-Free Air Resonance (Hz): 46Hz
  • Vas (Liter): 0.159 (4.5)
  • Qts: 0.783
  • Sensitivity (1W/1M): 90.5dB
  • Sensitivity (2.83V/1M): 93.5dB
  • Xmax - Inch(mm): 0.16 (4)
  • Mounting Diameter (inch/mm): 8.875″ (225.5mm) x 6.125″ (155.6mm)
  • Mounting Depth: 3.875″ (98.425mm)
  • UPC: 847169060656
  • Weight: 13
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
